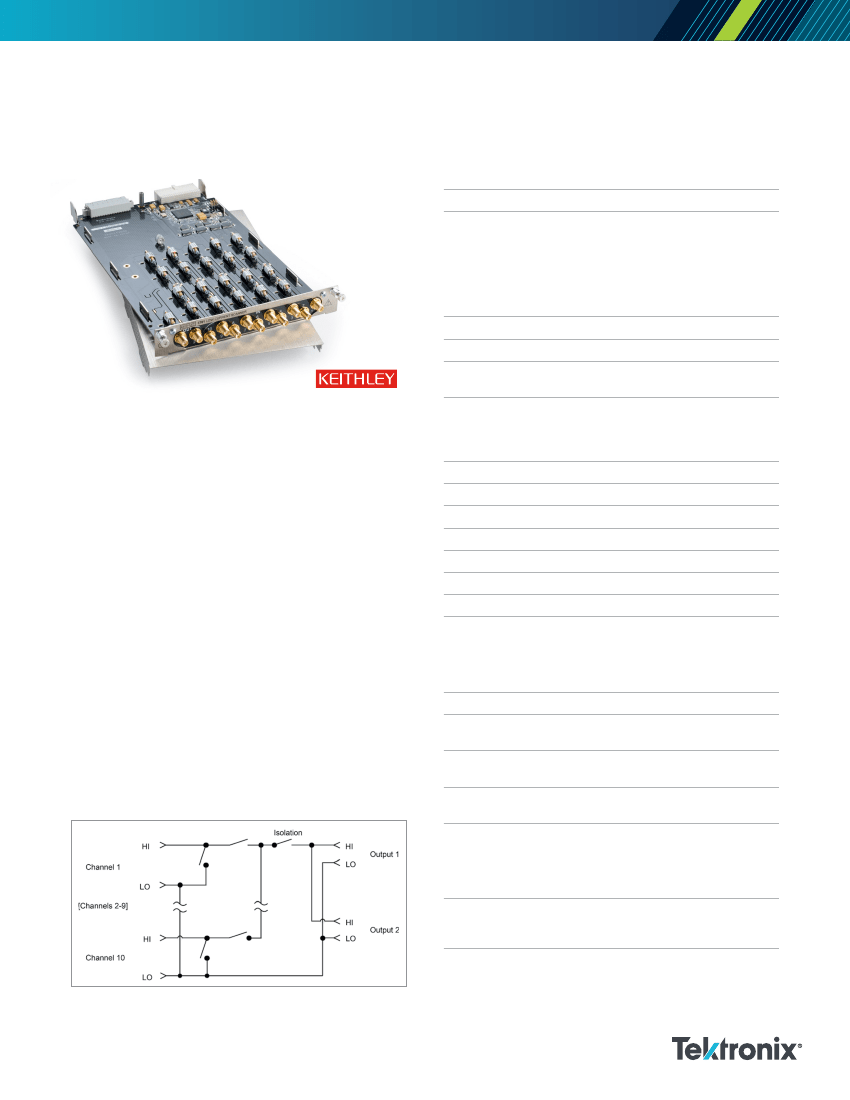

3761 10-Channel Low Current Multiplexer Card
Specifications
Channels Per Card
Contact Configuration
10.
Form A. Signal LO is common
for all 10 channels and output.
When open, signal HI is
shorted to signal LO in current
mode. When open, signal HI
is high impedance in voltage
mode.
SMA.
16 mA/relay typ.
30 V, 100 mA peak (resistive
load).
>10
6
closures at maximum
signal levels; >10
7
closures
cold switching or at low signal
levels.
<1
Ω.
<200 µV.
<1 pA (<30 fA typical).
1 MHz typical.
<1 ms, exclusive of mainframe.
>10
14
Ω,
<50 pF.
>10
9
Ω,
<150 pF.
<30 V maximum.
Connector Type
Relay Drive Current
Maximum Signal Level
A Tektronix Company
Contact Life
The 3761 provides quality low-current switching at an
affordable price. The offset current error generated
is specified <1pA, with typical performance at <30fA.
When used with a voltage source and an electrometer
or picoammeter, this card can easily automate insulation
resistance tests, reverse leakage tests on semiconductor
junctions, or gate leakage tests on FETs.
The 3761 features both current and voltage modes. In
current mode, the current path is maintained even when
the channel is open. This eliminates cable charging time
between measurements. In voltage mode, the input is
broken and is high impedance. Input connectors are SMA
for shielding of the sensitive measurements. An SMA
male to BNC male cable (3761-BNC-SMA) is available
for compatibility with existing 7158 configurations and
with Keithley accessory cables such as the 4801 and
4803. The 3761 does not connect to the 6 common
buses on the 3706A backplane, but two outputs are
provided to allow for chaining several scanner cards to
one measurement instrument, allowing up to 60 channels,
while an isolation relay in the output HI minimizes
interaction between cards.
Contact Resistance
Contact Potential
Offset Current
3dB Bandwidth
Actuation Time
Channel Isolation
Common Mode Isolation
Common Mode Voltage
Available Accessories
3761-BNC-SMA
???
4801
4802-10
4803
SMA to BNC Cable
Low Noise Male to Male SMA
Cable
Low Noise Male to Male BNC
Cable
Low Noise BNC to
Unterminated Cable, 10 ft.
Low Noise BNC Cable kit
Available Services
-3761-3Y-EW
1 year factory warrenty
extended to 3 years from date
of shipment
1 year factory warrenty
extended to 5 years from date
of shipment
-3761-5Y-EW
