Features
■
1/4” Round / Single-Turn / Cermet
■
RoHS compliant* version available
■
For trimmer applications/processing
Industrial / Sealed
■
5 standard terminal styles
■
Tape and reel packaging available
■
Listed on the QPL
for style
RJ50
per
MIL-PRF-22097 and
RJR50
per
High-Rel MIL-PRF-39035
guidelines,
click here

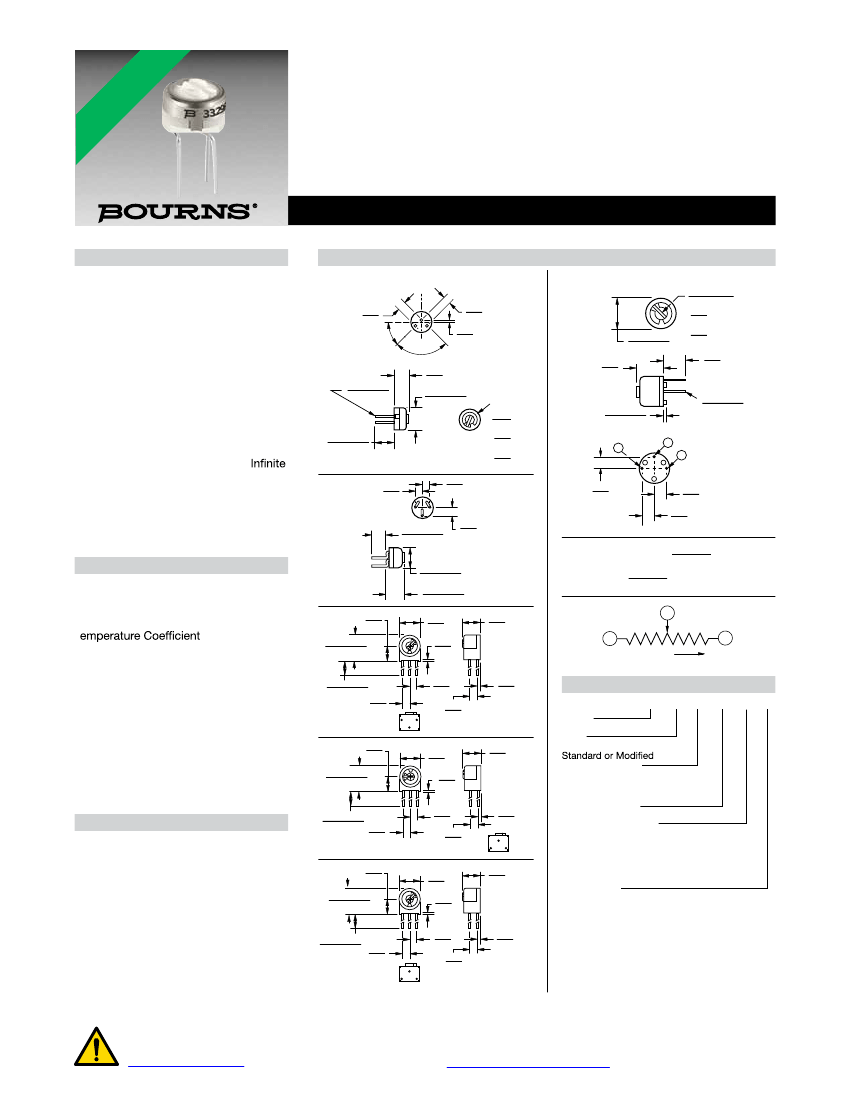

3329 - 1/4 ” Round Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
................................. 10 to 1 megohm
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
(closer tolerance available)
Absolute Minimum Resistance
.................................... 1 % or 2 ohms
(whichever is greater)
Contact Resistance Variation
........................ 3.0 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage .................................. ±0.05 %
Resistance ............................ ±0.15 %
Resolution ...................................
Insulation Resistance ............... 500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 600 vac
80,000 Feet ............................ 250 vac
Adjustment Angle ................. 240 ° nom.
Environmental Characteristics
Power Rating @ 85 °C (300 volts max.)
............................................... 0.5 watt
Power Rating @ 150 °C ................ 0 watt
Temperature Range ... -55 °C to +150 °C
T
... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(3 %
ΔTR,
10 Megohms IR)
Vibration ....... 30 G (1 %
ΔTR;
1 %
ΔVR)
except “P” pin style
Shock ......... 100 G (1 %
ΔTR;
1 %
ΔVR)
Load Life
............ 1,000 hours 0.5 watt @ 85 °C
(3 %
ΔTR;
3 % CRV)
Rotational Life .......................200 cycles
(4 %
ΔTR;
4 % CRV)
Physical Characteristics
Mechanical Angle ................. 260 ° nom.
Torque............................. 5.0 oz-in. max.
Stop Strength ................. 5.0 oz -in. min.
Terminals .......................Solderable pins
Weight ....................................... 0.02 oz.
Marking.........Manufacturer’s trademark,
resistance code, date code,
manufacturer’s model number
and style
Wiper ............... 50 % (Actual TR) ±10 %
Standard Packaging .....50 pcs. per tube
Adjustment Tool..............................H-90
Product Dimensions
3329H
3329P-DK9-RC
ADJ. SLOT
2.79 ± .038
DIA.
(.110 ± ..001)
.64
WIDE
X
(.025)
.51
DEEP
X
(.020)
4.75 MIN.
(.187)
2.54
(.100)
45° REF.
2
3
1
2.54
(.100)
.38
(.015)
5.79
(.228)
6.35 ± .51
(.250 ± .020)
.46 ± .05
(.018 ± .002)
DIA. TYP.
90° ± 5°
4.57
(.180)
6.35 ± .51
(.250 ± .020)
6.78 ± 2.24
(.267 ± .088)
ADJ. SLOT
3.56 LONG
(.140)
.64
WIDE
X
(.025)
1.02
DEEP
X
(.040)
.43 ± .13
(.017 ± .005)
3
2
1
.46 ± .05
(.018 ± .002)
DIA. 3 PINS
3329P
2.54
(.100)
1
2
2.54
(.100)
3
2.54
(.100)
6.78 ± 2.24
(.267 ± .088)
2.54
(.100)
2.54
(.100)
2.54
(.100)
DIMENSIONS:
6.35 ± .51
(.250 ± .020)
5.82 ± .25
(.229 ± .010)
MM
(INCHES)
EXCEPT WHERE NOTED
TOLERANCES: ±
0.25
(.010)
3329S
5.08
(.200)
6.60
(.260)
.38
(.015)
6.10
(.240)
CCW
2
1
CLOCKWISE
WIPER
8.38 ± .51
(.330 ± .020)
3
CW
7.75 ± 2.97
(.305 ± .117)
2.54
(.100)
1 2 3
2.54
(.100)
2.54
(.100)
.89
(.035)
How To Order
3329 M - 1 - 103 __ LF
Model
Style
6.10
(.240)
3329W
5.08
(.200)
8.38 ± .51
(.330 ± .020)
6.60
(.260)
.38
(.015)
2.54
(.100)
2.54
(.100)
Product Indicator
-1 = Standard Product
-DK9 = Plastic Spacer
Resistance Code
Packaging Designator
Blank = Tube (Standard)
R = Tape and Reel (M and U Pin Styles
Only)
A = Ammo Pack (M and U Pin Styles Only)
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
Tape and reel material meets Antistatic ANSI/
ESD 5541-2003 packaging standards.
7.75 ± 2.97
(.305 ± .117) 2.54
(.100)
.89
(.035)
3
2
1
3329X
5.08
(.200)
8.38 ± .51
(.330 ± .020)
6.60
(.260)
.38
(.015)
2.54
(.100)
2.54
(.100)
1 2 3
6.10
(.240)
7.75 ± 2.97
(.305 ± .117) 2.54
(.100)
.89
(.035)
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
†“Fluorinert” is a registered trademark of 3M Co.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the
last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
