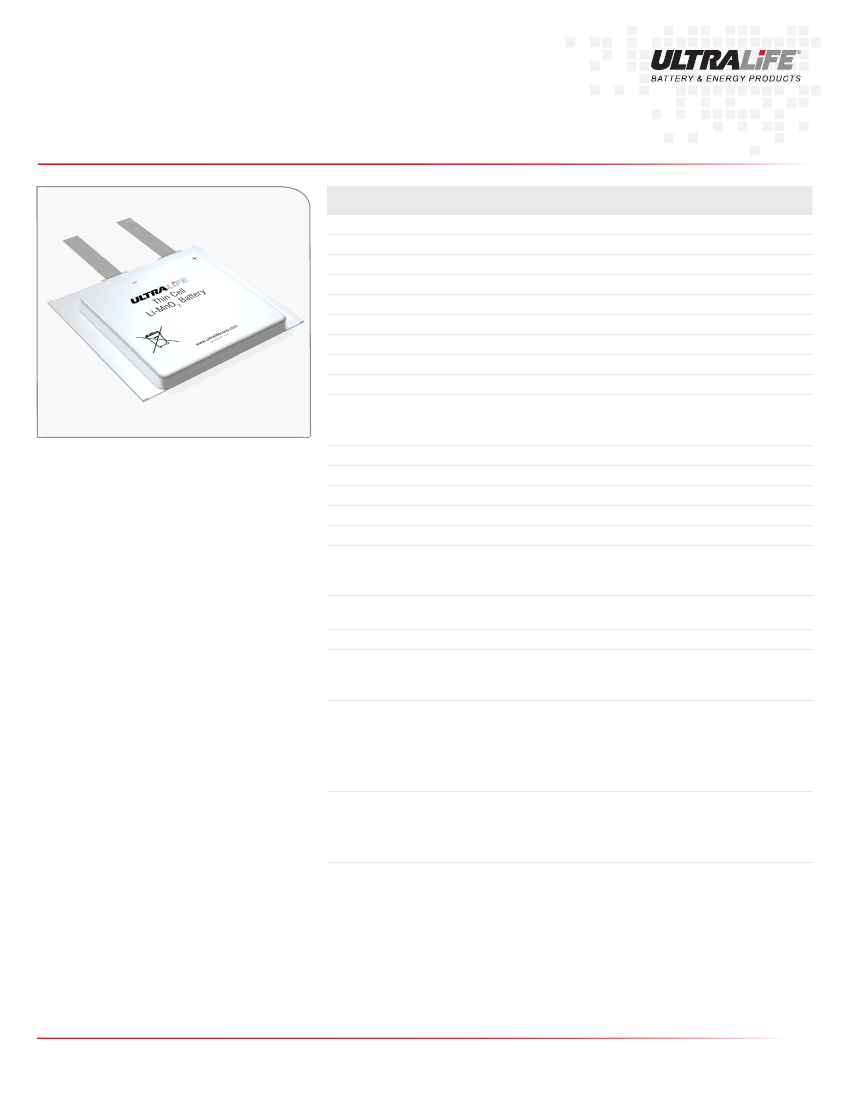

CP403838: Thin Cell
Technical Datasheet
Technical Specifications
Part No
Cell Type
Chemistry
Voltage Range
Nominal Voltage
Typical Capacity
1
Max. Continuous Discharge
Max. Pulse Discharge
Energy Rating
Energy Density
Gravimetric
Volumetric
Weight
CP403838 (previously known as U10004)
Primary, non-rechargeable
Lithium Manganese Dioxide
1.5V to 3.3V
3.0V
1600mAh
125mA
Up to 250mA (life and temperature dependent)
4800mWh
320Wh/kg
1294Wh/L
15.0g
-20°C to +60°C
-40°C to +60°C
Laminated aluminium foil
Ni-stainless steel tabs (Ni-Ni optional)
Length:
Width:
Height:
UL 1642
UN 38.3
AL/MSDS-RD-004
Dangerous Goods Class 9: Miscellaneous
UN3090
Air shipment: Packing Instruction 968, Section IB
Ultralife manufacturing facilities are ISO 9001:2008
and ISO 14001:2004 registered. Its products are
listed under the Component Recognition Program
of Underwriters Laboratories (UL) and have passed
UN transportation testing, which is required for
international transportation of all lithium batteries.
44.5mm
48.0mm
4.4mm
Features
Operating Temperature
Storage Temperature
2
Exterior/Housing
Terminals/Connector
Size (maximums)
Certifications
Safety
Transportation
3
• Flat discharge curve
• High power and higher energy for the whole
battery life
• Long shelf life
• Low self-discharge rate (less than 2% after 1
year of storage at +20°C)
• High energy density
• Wide operating temperature range
• Lightweight
Applications
•
•
•
•
•
•
•
“Smart” security cards
Asset tracking tags
Toll pass tags
Bank theft tracking systems
Electronics record tracking systems
Medical devices
RFID
Quality Assurance
Notes
1. Discharged using 10mA to 1.5V @ +23°C.
2. For a >5 years life, storage should not exceed +30°C.
3. For shipments by air that are no more than 8 cells and 1 package, this cell is Excepted Dangerous
Goods and can be shipped under Packing Instruction 968, Section II.
CP403838
Newark, New York | +1 315-332-7100 | Fax: +1 315-331-7800
©2018 Ultralife Corporation • www.ultralifecorp.com • All information is subject to change without notice.
The information contained herein is for reference only and does not constitute a warranty of performance. •
30 JAN 18 UBM-5155 Rev: P
Dimensions
17.80±1.00
.701±.039
5.00±0.50
.197±.020
18.50±0.50
.728±.020
5.00±0.50
.197±.020
2X 25.40±1.00
1.000±.039
43.50±1.00
1.713±.039
38.00±0.50
1.496±.020
31.50±0.50
1.240±.020
25.50±0.50
1.004±.020
37.50±0.50
1.476±.020
47.00±1.00
1.850±.039
4.20±0.20
.165±.008
0.10±0.20
.004±.008
T AB T H K
CP403838
Newark, New York | +1 315-332-7100 | Fax: +1 315-331-7800
©2018 Ultralife Corporation • www.ultralifecorp.com • All information is subject to change without notice.
The information contained herein is for reference only and does not constitute a warranty of performance. •
30 JAN 18 UBM-5155 Rev: P

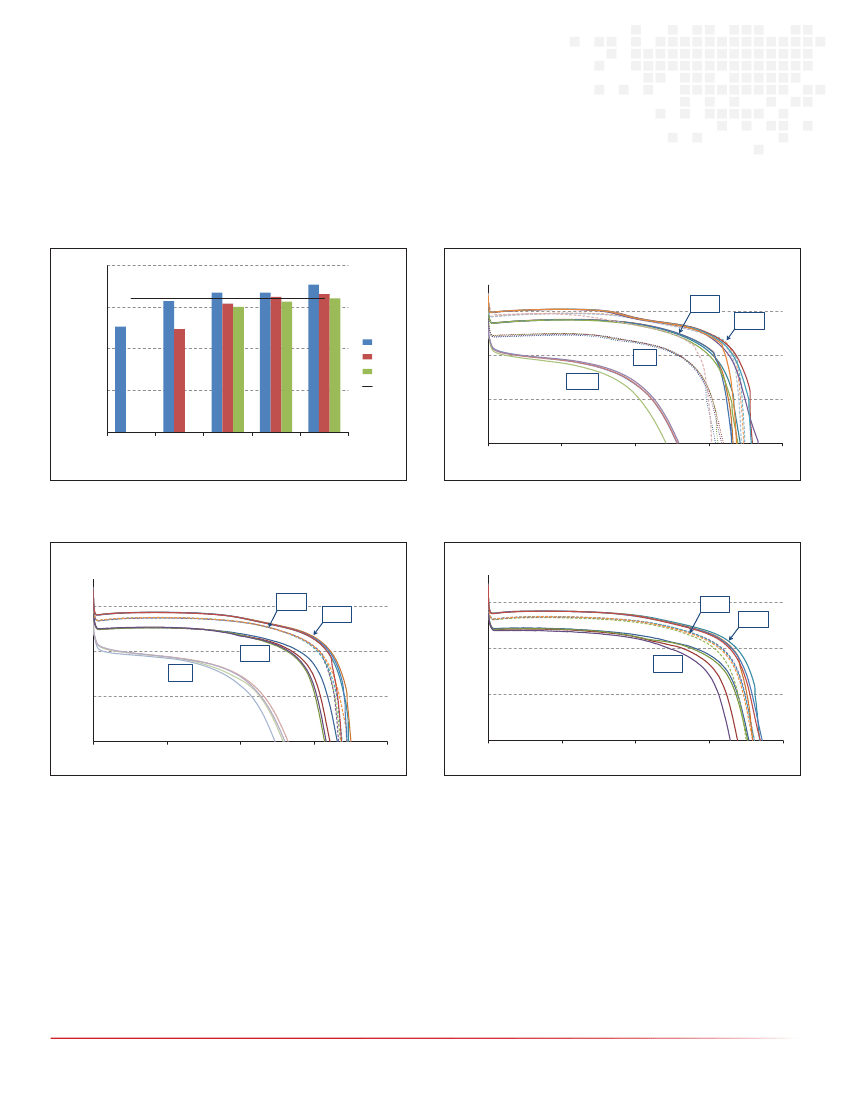

Performance Graphs
2000
10mA discharges
3
25°C
Capacity (mAh)
1500
10mA
80mA
125mA
500
Rating
60°C
0°C
-20°C
1000
Voltage (V)
2.5
2
0
-20°C
0°C
25°C
45°C
Temperature
60°C
1.5
0
50
100
150
200
Hours
80mA discharges
3
125mA discharges
60°C
45°C
3
45°C
60°C
Voltage (V)
Voltage (V)
2.5
25°C
2.5
0°C
2
25°C
2
1.5
1.5
0
6
Hours
12
18
24
0
3.5
7
10.5
14
Hours
CP403838
Newark, New York | +1 315-332-7100 | Fax: +1 315-331-7800
©2018 Ultralife Corporation • www.ultralifecorp.com • All information is subject to change without notice.
The information contained herein is for reference only and does not constitute a warranty of performance. •
30 JAN 18 UBM-5155 Rev: P
