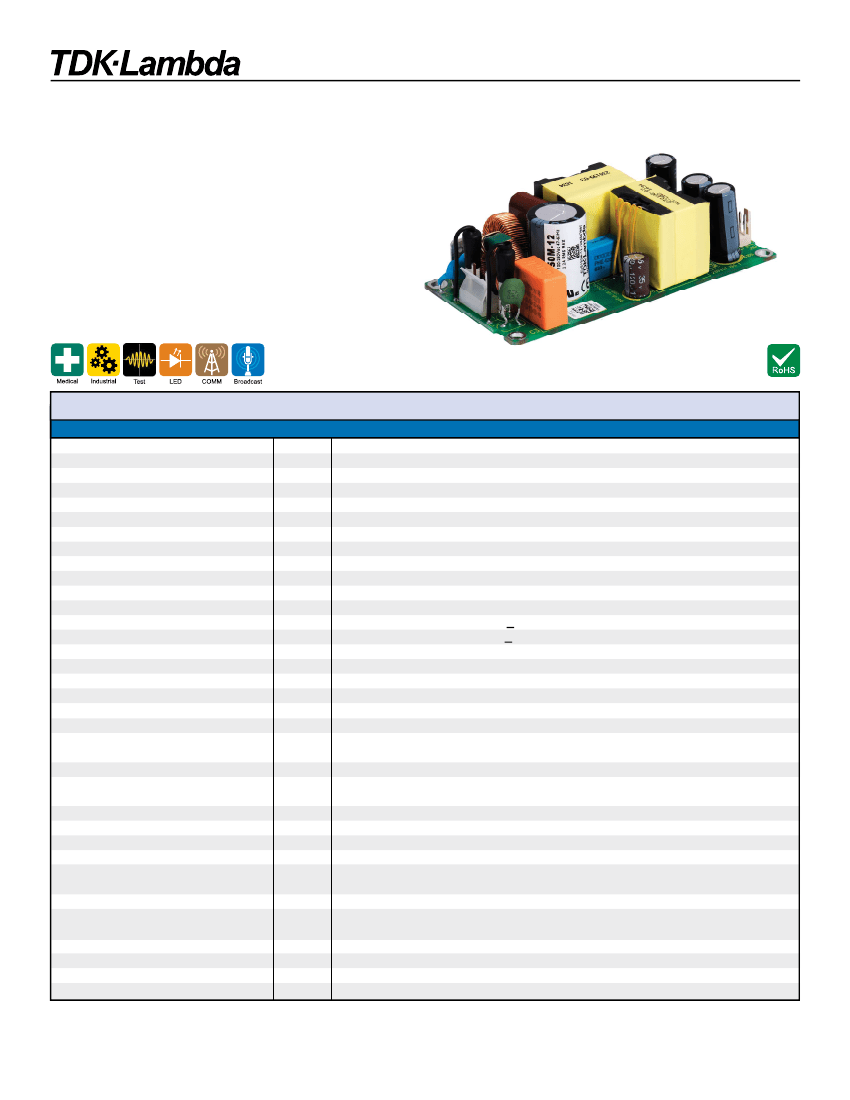

CUS150M Series
2 x 4” 150W AC-DC Power Supplies
Features
150W Convection Rating (/U version)
ITE & Medical Certifications (2 x MOPP)
Class B Conducted and Radiated EMI
Suitable for Class I and Class II installations
Compact 2 x 4 x 1.24” Footprint
Suitable for BF Rated Equipment
Operation up to 85°C Ambient
Key Market Segments & Applications
Specifications
Model
CUS150M
Input Voltage Range (1)
-
85 - 264VAC (47 - 440Hz (2)). Derate linearly to 90% load from 90 to 85VAC input
Inrush Current (Cold start at 230VAC input)
A
<65A
Input Current (150W load)
A
2.2A at 100VAC input
Hold Up Time (Typ)
ms
>18ms
Harmonic Compliance
-
EN/IEC61000-3-2 Class A, Class C >120W. Minimum PF 0.98/0.92 (115/230Vac, 100% load)
Leakage Current
uA
<250uA at 230VAC 63Hz
Touch Current (enclosure leakage)
uA
<100uA
Temperature Coefficient
%/°C
±0.02%/°C
No Load Power Draw at 230VAC input
W
<0.5W
Output Adjustment
-
No adjustment
Fan Supply
-
10 - 12V (see model selector), 0.5A, +14%/ - 6% regulation
Ripple & Noise
mV (pk-pk)
<1%
Load Regulation
mV
<1% (0 - 100% load)
Line Regulation
mV
<0.5% (90 - 264VAC)
Short Circuit Protection
%
110 - 170%. Hiccup mode, automatic recovery
Overvoltage Protection
V
Latching (unit shutdown), cycle AC input to reset
Efficiency
%
Up to 94%
Active Average Efficiency
%
>91%
Operating Temperature
-
-20 (1) to +85°C, see derating curves on website (70°C maximum for fan version /F)
Storage Temperature
°C
-40 to +85°C (70°C maximum for fan version /F)
Operational Altitude
m
5000m
Humidity (non condensing)
%RH
5 - 95%RH (15 - 90%RH for /F fan version)
Cooling
-
Convection, conduction or forced air cooling (see derating curves on website)
Withstand Voltage
VAC
Input to Ground 1.5kVAC (1xMOPP), Input to Output 4kVAC (2xMOPP),
Output to Ground 1.5kVAC (1xMOPP)
Isolation Resistance
MΩ
>100MΩ at 25C & 70%RH, Output to Ground 500VDC
Insulation Class
-
Construction suitable for Class I or Class II installation
Vibration (non operating)
-
2G, 10-500Hz for 1 hour
Shock
-
30G, 11ms half sine
Safety Agency Certifications
-
IEC/EN/UL60950-1 and 60601-1. ES60601-1. Designed to meet IEC61010-1.
EN60335-1 compliant models available (1)
Conducted & Radiated EMI
-
EN55011 / EN55032-B (See application notes for conditions)
Immunity
-
EN60601-1-2:2015 (Edition 4), EN61000-4-2 (Lvl 4), -3 (Lvl 3), -4 (Lvl 4), -5 (Lvl 3),
-6 (Lvl 3), -8 (Lvl 4) -11 (class 3)
Weight (Typ)
g
Open Frame: 185g; /U: 245g; /A: 255g; /B: 220g, /F: 265g
Size (WxLxH)
In (mm)
Open frame version: 2 x 4 x 1.24” (50.8 x 101.6 x 31.5mm)
Warranty
yrs
Five years
Connectors
-
Input: JST B2P3-VH, Output: JST B6P-VH, Fan: Molex 22-04-1021
Note 1: Contact factory regarding option models for -40°C start up, DC input and models compliant to EN60335-1. MOQs may apply.
Note 2: For operation at 400-440Hz, please contact Technical Support.
1-800-526-2324 • www.us.tdk-lambda.com/lp/
108
Disclaimer: us.tdk-lambda.com/lp/legal.htm
CUS150M Series
Model Selector
Model
CUS150M-12 or /B
CUS150M-12/A or U
CUS150M-12/F
CUS150M-15 or /B
CUS150M-15/A or U
CUS150M-15/F
CUS150M-18 or /B
CUS150M-18/A or U
CUS150M-18/F
CUS150M-24 or /B
CUS150M-24/A or U
CUS150M-24/F
CUS150M-28 or /B
CUS150M-28/A or U
CUS150M-28/F
CUS150M-36 or /B
CUS150M-36/A or U
CUS150M-36/F
CUS150M-48 or /B
CUS150M-48/A or U
CUS150M-48/F
Nominal
Output
Voltage (V)
12
12
12
15
15
15
18
18
18
24
24
24
28
28
28
36
36
36
48
48
48
Fan
Supply
Voltage (V)
11.6
11.6
11.6
9.8
9.8
9.8
11.6
11.6
11.6
11.6
11.6
11.6
10.8
10.8
10.8
11.6
11.6
11.6
11.6
11.6
11.6
Maximum
(3)
Current
Convection (A)
10
12.5
12.5
8
10
10
6.66
8.33
8.33
5
6.25
6.25
4.3
5.4
5.4
3.33
4.2
4.2
2.5
3.12
3.12
Maximum
Current
Forced Air (A)
12.5
12.5
-
10
10
-
8.33
8.33
n/a
6.25
6.25
-
5.4
5.4
-
4.2
4.2
-
3.12
3.12
-
Maximum
(3)
Power
Convection (W)
120
150
150
120
150
150
120
150
150
120
150
150
120
150
150
120
150
150
120
150
150
Maximum
Power
Forced Air (W)
150
150
-
150
150
n/a
150
150
n/a
150
150
-
150
150
-
150
150
-
150
150
-
Note 3: See derating curves on website
Model:
Voltage range:
CUS150M-12
12 - 13.2
Non-standard outputs can be requested within the following ranges (excluding the /F version);
CUS150M-18
18 - 19.8
CUS150M-24
24 - 26.4
CUS150M-28
28 - 30.8
CUS150M-36
36 - 39.6
CUS150M-48
48 - 50
CUS150M-15
15 - 16.5
Non-standard output versions may be subject to minimum order quantities and variations to specification.
For all non-standard output voltage settings please consult Sales.

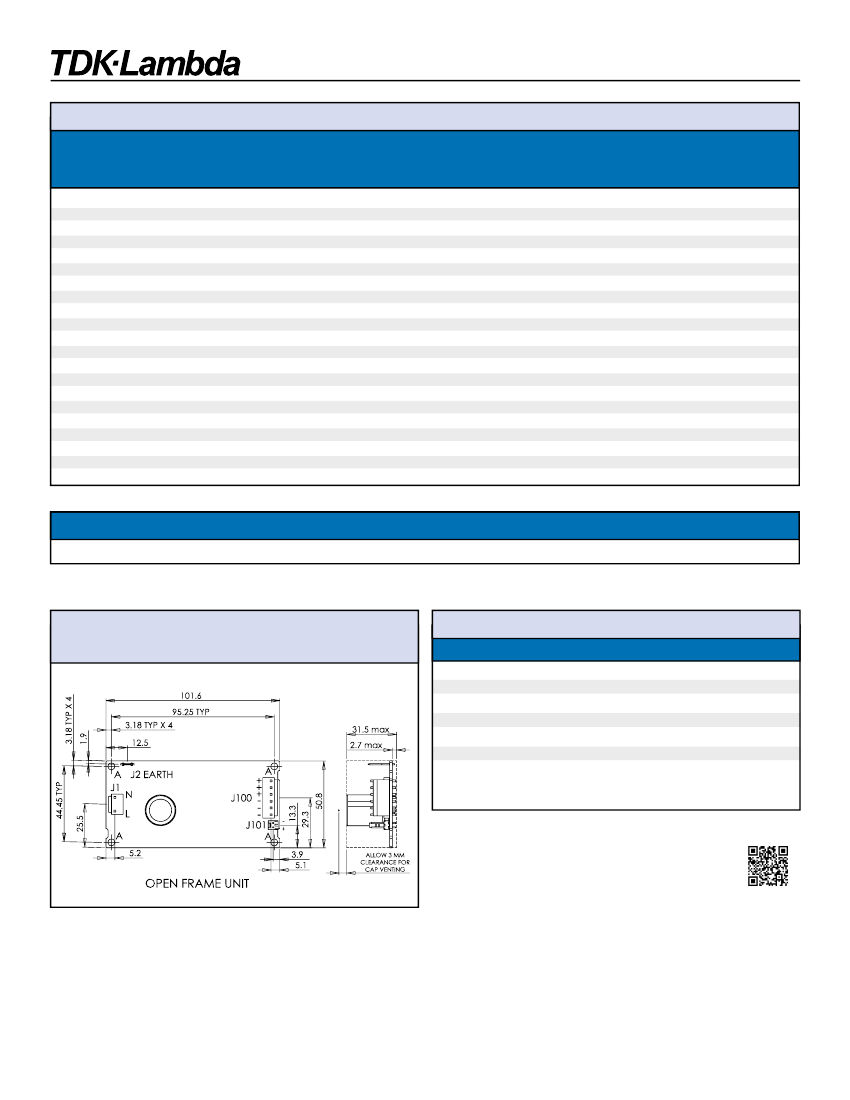

Outline drawing (Open Frame).
See website for /U, /A and /F versions
Options
Suffix
Description
Blank
Open frame construction, dual input fuses, JST connectors
/B
Base plate
/U
U channel construction
/A
U channel with cover
/F
U channel with cover construction, top mounted fan
/E*
Single input fuse in Live line
/M*
Molex connectors
Example:
CUS150M-15/UE U channel with cover construction, single input fuse
* Subject to MOQ, please consult sales
For Additional Information, please visit
http://www.us.tdk-lambda.com/lp/products/cus-m-series
