V10
︳
Features
* Universal Input 90~264VAC
* High Efficiency up to 84%
* Meets EN55032 Class B and CIRSS/FCC Class B
* Approved IEC62368-1, UL62368-1
* Meets EN60335-1
* Continuous Short Circuit Protection
* Over Voltage Protection
*
No load input power < 75mW
*
Class II

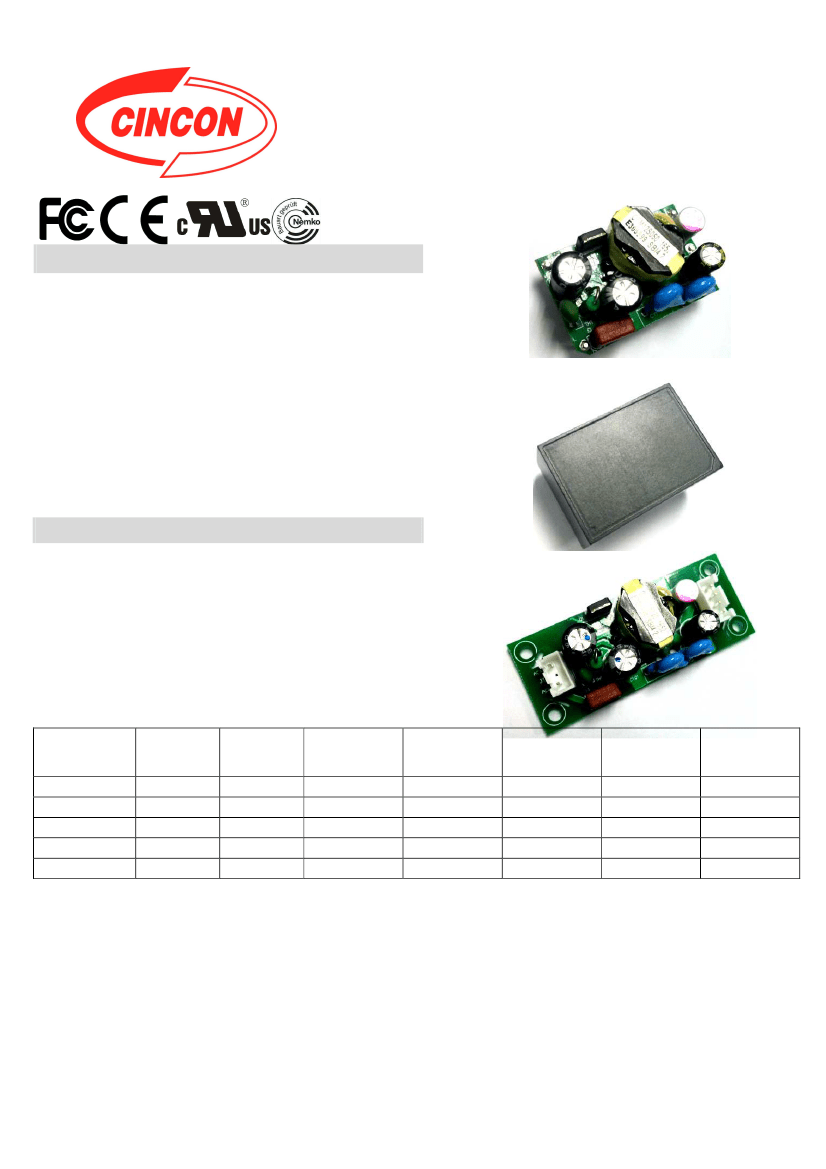

CFM12S SERIES
12 WATT SINGLE OUTPUT
AC-DC OPEN FRAME
Ordering information
CFM12SXXX -
X
Blank: PCB mount
E: Encapsulated
T: WAFER
MODEL
CFM12S050
CFM12S090
CFM12S120
CFM12S150
CFM12S240
Output
Voltage
5V
9V
12V
15V
24V
Output
Current
2A
1.34A
1.0A
0.8A
0.5A
Ripple
(mV p-p)
NOTE 1
100mV
100mV
120mV
150mV
240mV
Voltage
Accuracy
NOTE 2
±2%
±2%
±2%
±2%
±2%
Line
Regulation
NOTE 3
±1%
±1%
±1%
±1%
±1%
Load
Regulation
NOTE 4
±1%
±1%
±1%
±1%
±1%
% EFF.
(typ.)
79%
83.26%
83.26%
83.26%
83.26%
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
1
V10
Specifications
INPUT SPECIFICATIONS:
Voltage …...…….…........………………………….........……… 90~264Vac
Frequency ……………………………………….……………..... 47 to 63Hz
Inrush Current ……..………..…. 50A max. @240Vac, Cold Start @25℃
Leakage Current ………………………………….. 0.25mA max. @ 264Vac
Input Current ………………………………………………………. 0.4A max.
CFM12S Series De-rating Curve
Derating curve:
100
75
Rated Load(%)
50
25
0
-30
-20
-10
0
10
20
30
40
50
60
70
OUTPUT SPECIFICATIONS:
Holdup Time …………………………………………… 10ms typ. @115Vac
Short Circuit Protection ………………………Hiccup Mode (Auto Recovery)
Temperature Coefficient .…………………..........................… ±0.05% /
℃
Over Voltage Protection ………………. ........Hiccup Mode(Auto Recovery)
Startup time ……………..…………….…………………………..……<3.0s
GENERAL SPECIFICATIONS:
Isolation Voltage(Input to Output) …………...……..……………. 3000VAC:
Operating Temperature.............. -30℃~70℃ (Derating from 50℃ to 70℃)
Storage Temperature …………..……………………....……. -40℃~85℃
Cooling …………………………………….……….…….. Natural Convection
Humidity .................................................... 93% RH max. Non condensing
Switching Frequency ……………………………….………….. 65KHz Typical
MTBF ……….…. MIL-HDBK-217F, GB, 25℃/115VAC …..… 450Khrs min.
Altitude ….…………………..……………………………………………. 5000m
Dimensions …………... 1.500x1.000x0.764nches (38.10x25.40x19.40mm)
-E: 1.600x1.1x0.772 Inches (40.64x27.94x19.60 mm)
-T: 2.150x1.000x0.681 Inches (63.50x25.40x17.30 mm)
Weight ………………………………………………. 16g, (-E): 40g, (-T): 17g
Ambient Temperature(
o
C)
SAFETY AND EMISSION:
Emission and Immunity…….…. EN55032 Class B, EN55024, EN61204-3,
EN61000-3-2, EN6100-3-3,
EN61000-6-1, EN61000-6-3.
47 CFR FCC Part 15
Subpart B (Class B)
Safety ……………………IEC62368-1,UL62368-1,IEC60950-1,UL60950-1
NOTE:
1. Voltage accuracy is set of 100% rated load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
ripple&noise measuring @20MHz BW.
3. Line regulation is measured from high line to low line with full load.
4. Load regulation is measured from 10% to 100% full load.
5. T Version wafer with JST B3B-XH / B4B-XH and mate with JST housing
XH series or equivalent..

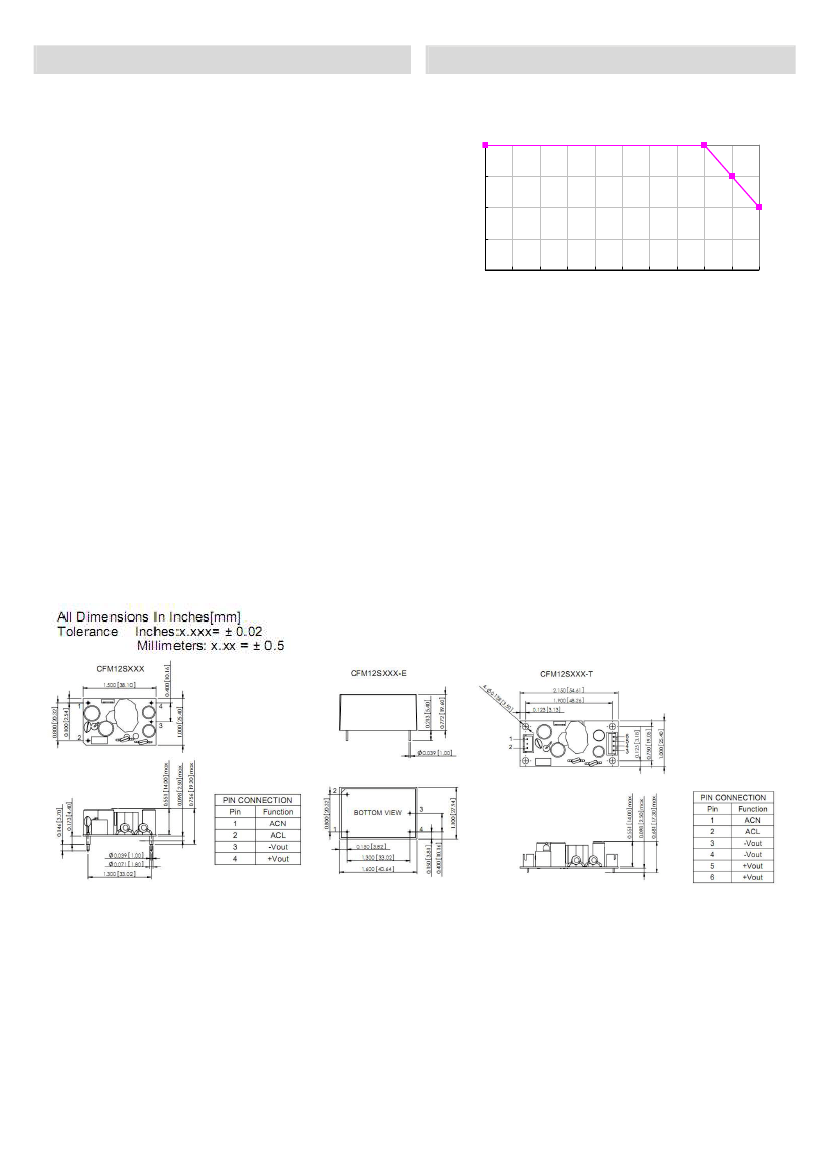

Mechanical Specification
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
