Power entry modules without line filter
https://www.schurter.com /PG05
6145
IEC Appliance Inlet C14 with Circuit Breaker TA45
C14
See below:
70° C
Approvals and Compliances

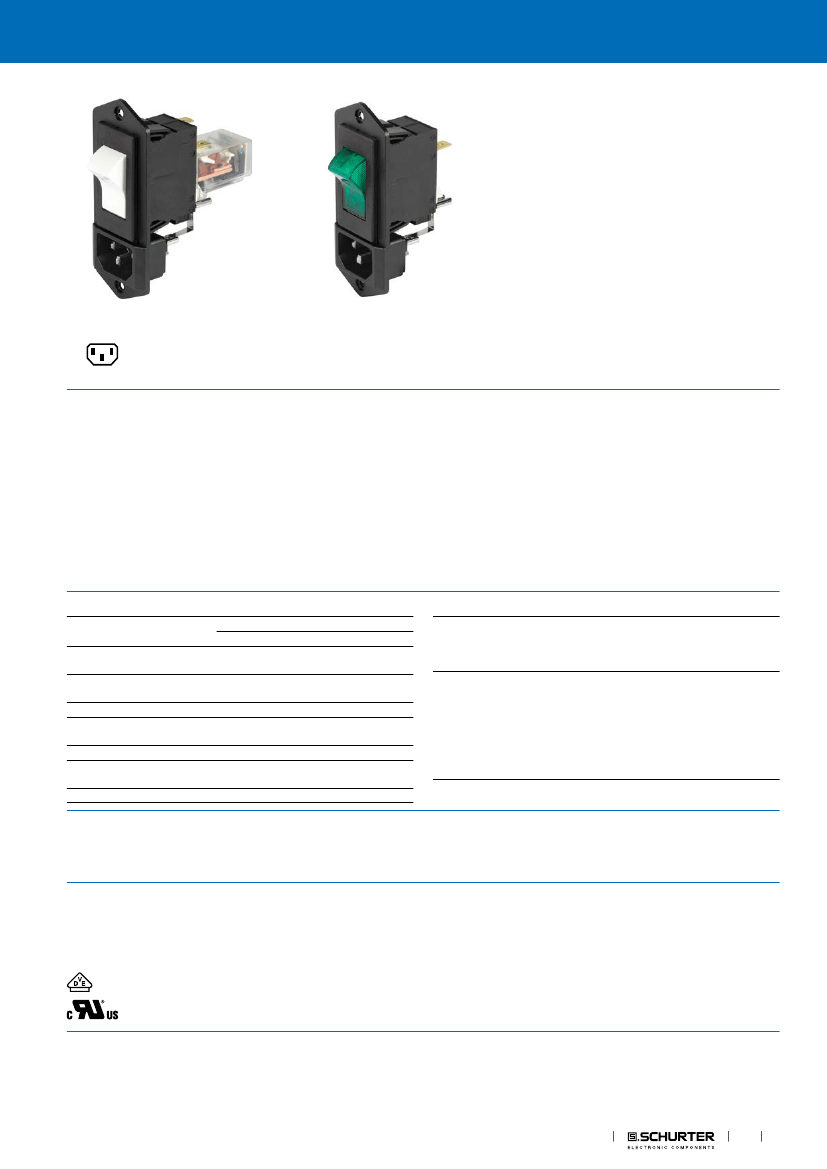

Description
Characteristics
-
-
-
-
- Panel mount :
Screw-on mounting from front side
- 2 Functions :
Appliance Inlet Protection class I , circuit breaker type TA45 2-pole
- Quick connect terminals 6.3 x 0.8 mm
All single elements are already wired
Unwired versions available on request
Circuit Breaker non-illuminated or illuminated
Suitable for use in equipment according to IEC/UL 60950
References
Weblinks
Alternative: version with line filter
5145
We recommend for new applications
DF11
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-10 °C to 55 °C
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 6 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 10 A, Protection Class I
Acc. IEC/EN 60934, UL 1077, CSA
22.2 no. 235
2-pole rocker switch, illuminated or non-
illuminated. Optional with undervoltage-
or remote trip release
Short circuit capacity Icn:
at In < 3A/240VAC : 10 x In
at In
≥
3A/240VAC : 300A
Circuit Breakers
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 6145
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 40040061
UL File Number: E96454
Product standards
Product standards that are referenced
Connectors
1
6145
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
UL 60320-1
CSA C22.2 no. 60320-1
Power entry modules without line filter
https://www.schurter.com /PG05
Description
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

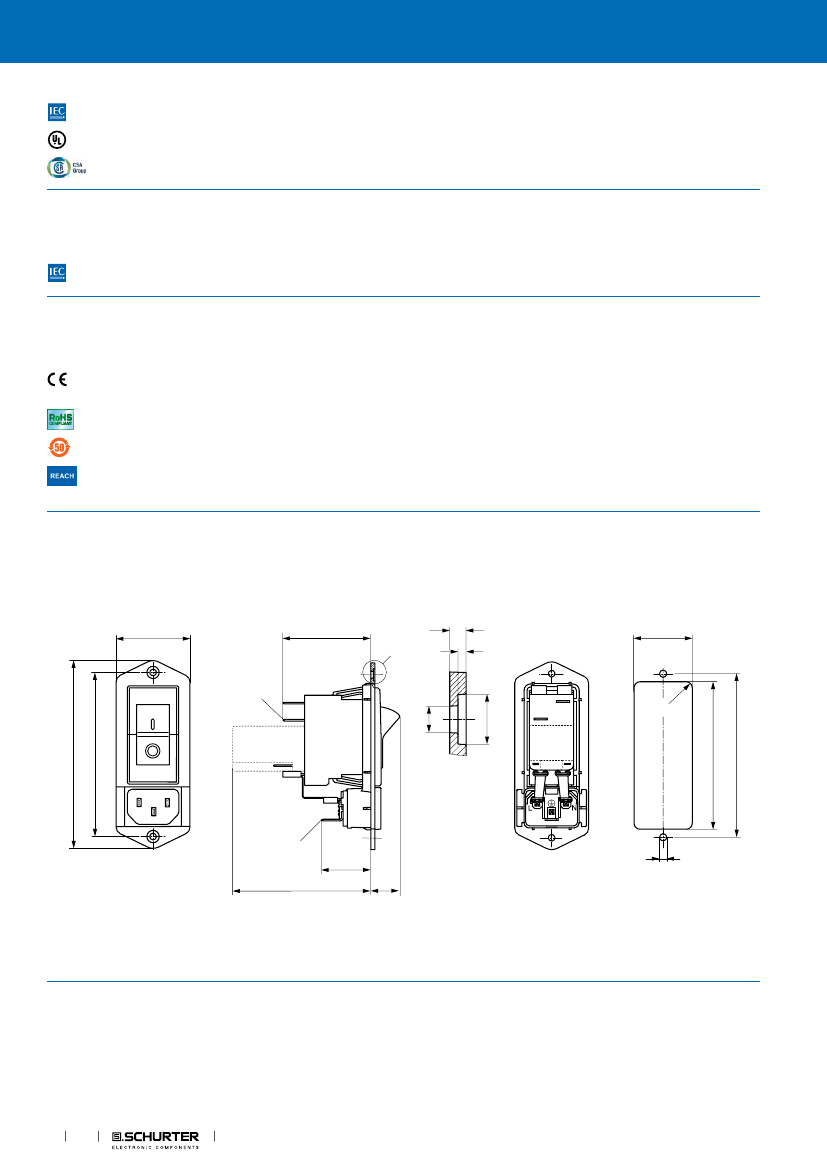

Dimensions [mm]
Detail A
36
43.1
A
2
1
29
-0.2
0
6.3x0.8mm
ø 3.3
ø 6.1
R3
-0.5
0
91.5
+0.10
0
80
6.3x0.8mm
24.2
67.5
13.9
M3 / ø 3.6
* --- Version TA45 with undervoltage release
2
Connectors
72
80
±0.1
Power entry modules without line filter
https://www.schurter.com /PG05
6145
Diagrams
L
1)
PE
N
1) Line
2) Load
L' P
1
2)
PE'
N' P
2

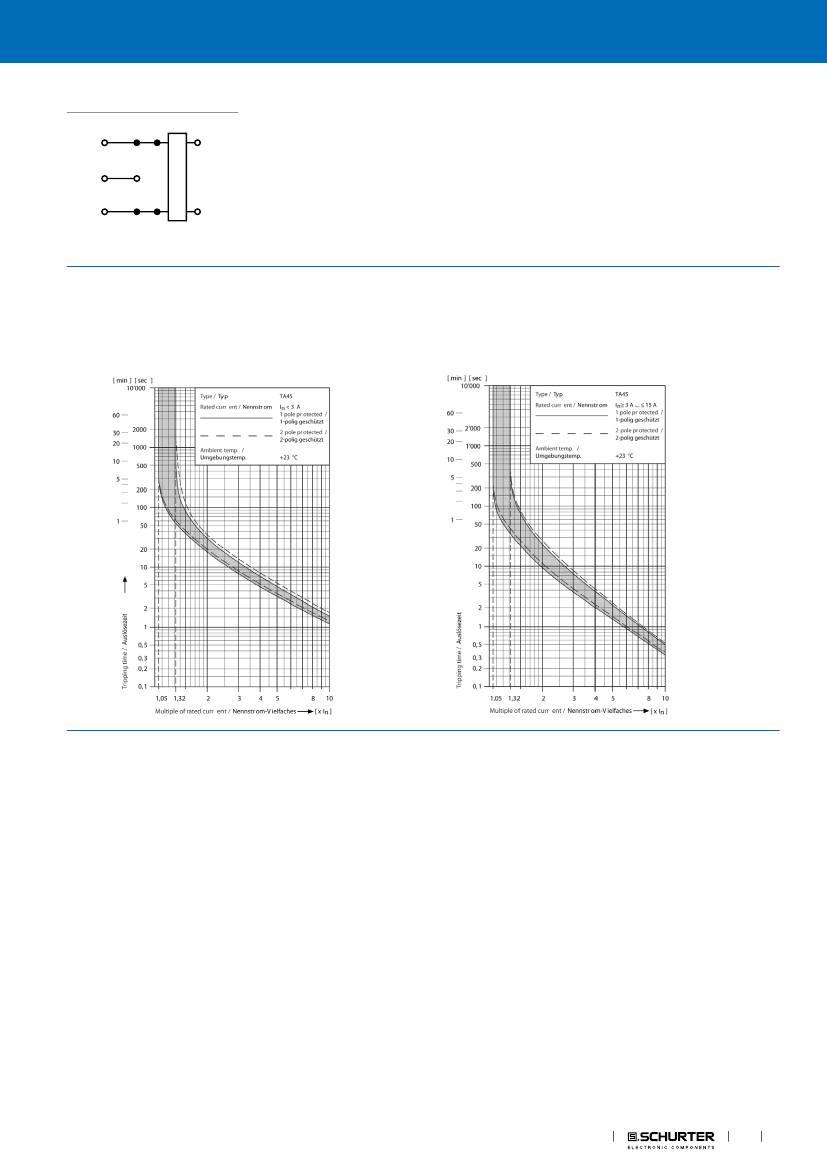

Time-Current-Curves
Tripping Characteristics In < 3 A
Tripping Characteristics In
≥
3 ...
≤
15 A
Connectors
3
6145
Table 1 Selection for type TA45
Order example
• Circuit Breaker of Equipment
• 2-pole, rocker actuated
• Quick connect terminal
Other types on request
Diagram
Thermal overload protection
1-pole
P2
P1
Power entry modules without line filter
https://www.schurter.com /PG05
ABT
W
F
150
C0
2-pole
P2
P1
Without illumination
With illumination
220…240 V
110…120 V
6
3
4
3
ABT
A12
A14
ABD
A32
A34
}
Colours
Switch front
Rocker
W
B
6
black
black
black
white
black
–
–
–
orange transp.
Rocker legend
Surface
Illustration
Colour of print
Surface
Illustration
Colour of print
O
F
H
K
L
embossed / Relief
printed / bedruckt
printed / bedruckt
printed / bedruckt
M
white / weiss
black / schwarz
white / weiss
P
R
printed
printed
printed
O
black
white
black
l
OFF OFF
ON
l
I
I
O
O
ON
l
Position of the rocker legend
e.g F
O
Rated current circuit breaker of equipment
In
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
Code
J01
J02
J03
J04
J05
J06
J07
J08
J09
J10
J11
J12
In
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,3
2,5
Code
J13
J14
J15
J16
J17
J18
J19
J20
J21
J22
J23
J25
In
2,8
3,0
3,5
4,0
4,5
5,0
6,0
6,5
7,0
7,5
8,0
9,0
Code
J28
030
035
040
045
050
060
065
070
075
080
090
In
10,0
11,0
12,0
13,0
14,0
15,0
20,0
Code
100
110
120
130
140
150
200
Without release: code C0
Undervoltage release
P2
U<
P1
P2
b
U<
P1
P2
ba
U<
P1
Remote trip release
P2
c P1
U
E
Z
A
Code
2
3
4
Rated
voltage Un
240 V AC
230 V AC
120 V AC
•
•
•
•
•
•
•
•
•
•
•
•
4
Connectors
Power entry modules without line filter
https://www.schurter.com /PG05
6145

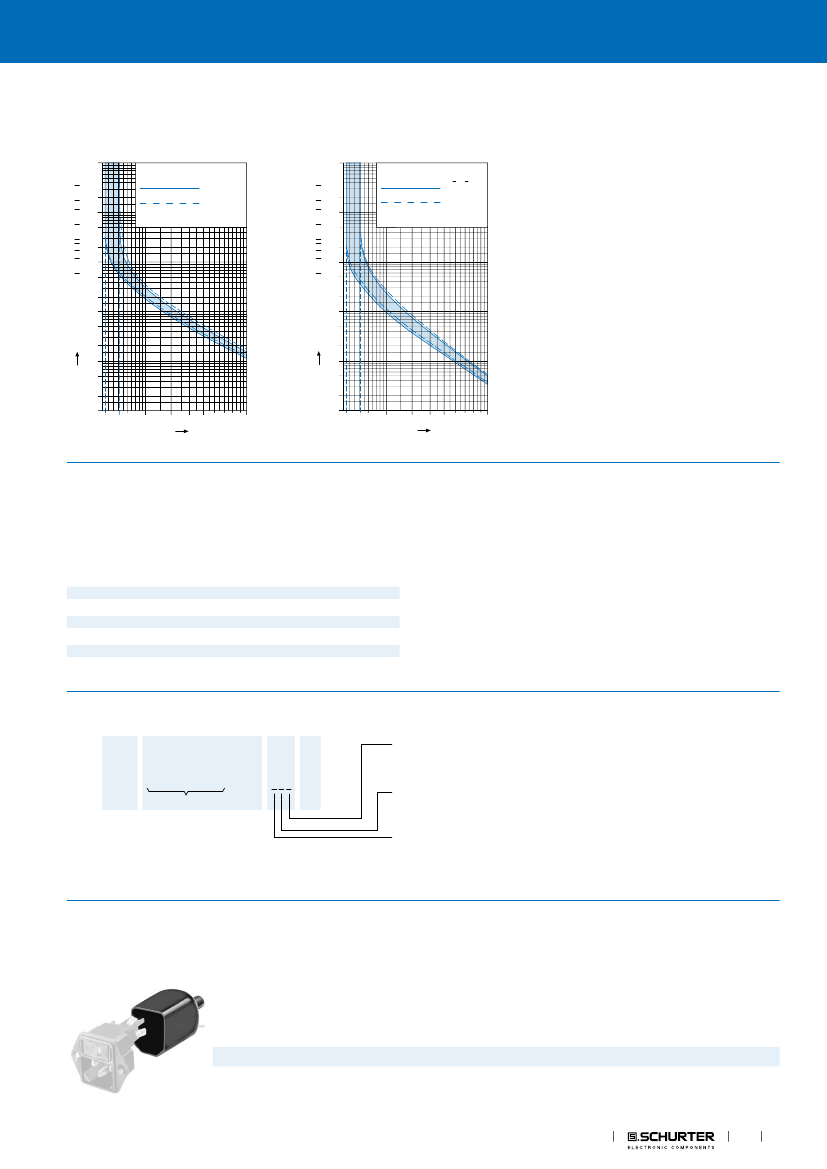

Technical data (continued)
Circuit breaker
Tripping characteristics
I
n
< 3 A
[ min ] [ sec ]
10’000
Type
Rated current
TA45
In < 3 A
1-pole protected
Tripping characteristics
I
n
> 3… < 15 A
_
_
[ min ] [ sec ]
10’000
Type
Rated current
TA45
I n > 3... < 15 A
1-pole protected
60
30
20
10
5
200
100
1
50
20
10
5
2
1
0,5
Tripping time
60
30
20
10
5
200
100
1
50
20
10
5
2
1
0,5
Tripping time
2000
1000
500
Ambient temp.
2-pole protected
+23 °C
2’000
1’000
500
Ambient temp.
2-pole protected
+23 °C
0,3
0,2
0,1
1,05 1,32
2
3
4
5
8
10
Multiple of rated current
0,3
0,2
0,1
1,05 1,32
2
3
4
5
8
[ x In ]
10
Multiple of rated current
[ x In ]
Effect of ambient temperature 1)
The unit is calibrated for an ambient temperature of +23 °C. To
determine the rated current for a lower or higher ambient tempera-
ture, use a correction factor from the table below.
*
Ambient temperature [°C] Correction factor
–10
0,89
– 5
0,91
0
0,92
+23
1,00
+30
1,03
+40
1,08
+55
1,16
* Temperature must be measured at the rear of the breaker next
to the terminals after equipment operating temperature has been
reached.
1) Example
Rated current at +23 °C
Ambient temperature
Correction factor
Chosen rated current at
+ 40 °C ambient temperature
6,0 A
+40 °C
1,08
6 A x 1,08 = 6,5 A
Configuration code (example)
Type
Order code TA45
(2-pole rocker-switch
without accessories)
see table 1
Terminal PE
1
Quick-connect terminal 6.3x0.8 mm
Terminal N
1
Quick-connect terminals 6.3x0.8mm, without connection to TA45
4
connection to TA45 non insulated
Terminal L
1
Quick-connect terminals 6.3x0.8mm, without connection to TA45
4
connection to TA45 non insulated
6145 - ABTWF150C0 - 000 - 111 - 00
Packaging unit
Accessories
20 Pcs
Description
Assorted Covers
Rear Cover
0859.0074
Connectors
5
