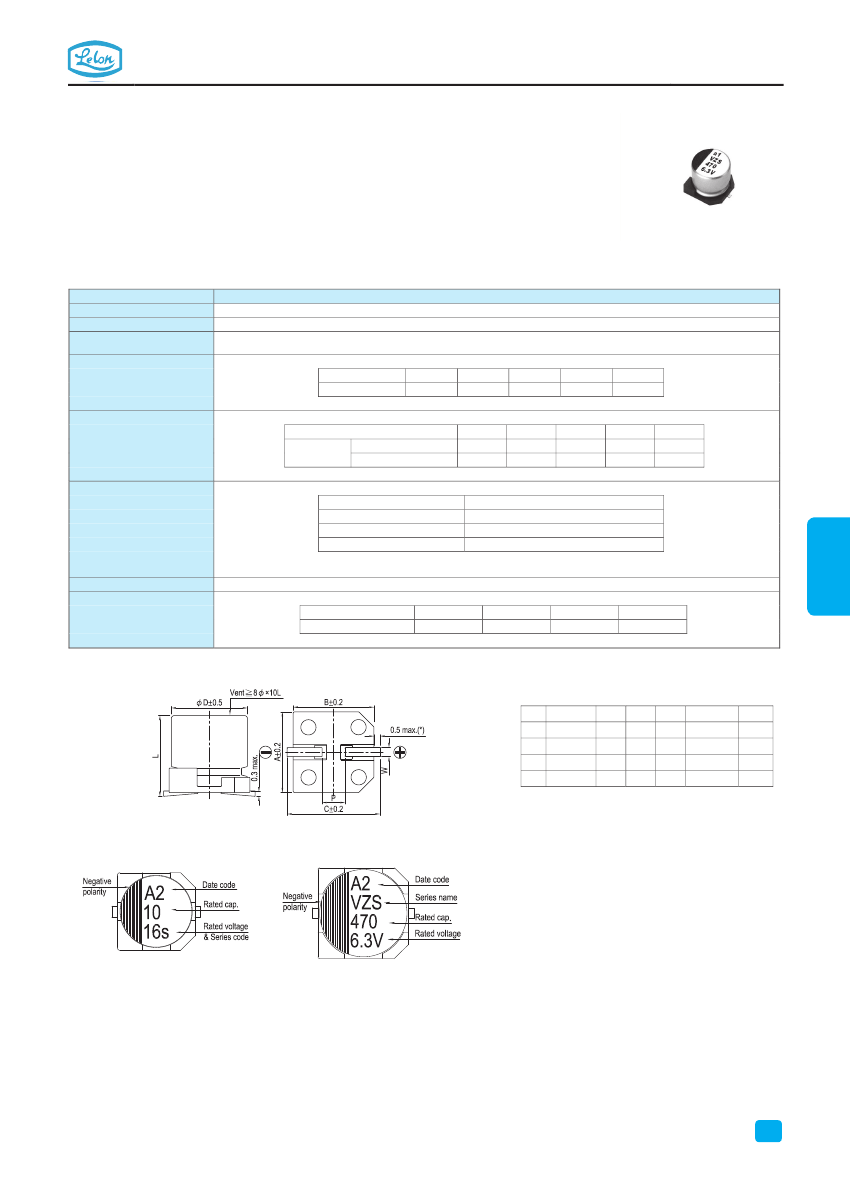

SMD Aluminum Electrolytic Capacitors
VZS Series
Features
‧
5φ ~ 10φ, 105℃, 2,000 hours assured
‧
Low impedance 30 ~ 50% less than VZH series
‧
Large capacitance with ultra low impedance capacitors
‧
Designed for surface mounting on high density PC board
‧
RoHS Compliance
Specifications
Items
Category Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Performance
-55℃ ~ +105℃
±20%
I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes)
Where,
C = rated capacitance in μF,
V = rated DC working voltage in V
Rated Voltage
Tanδ (max)
6.3
0.30
10
0.26
16
0.22
25
0.16
35
0.13
VZS
Marking color: Black
(at 120Hz, 20℃)
Tanδ (at 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
6.3
10
16
25
Z(-25℃)/Z(+20℃)
4
3
2
2
Impedance
Ratio
Z(-55℃)/Z(+20℃)
8
5
4
3
35
2
3
Endurance
Shelf Life Test
Ripple Current and
Frequency Multipliers
Test Time
2,000 Hrs
Capacitance Change
Within ±30% of initial value
Tanδ
Less than 300% of specified value
Leakage Current
Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied for 2,000
hours at 105℃.
Test time: 1,000 hours; other items are the same as those for the Endurance.
Frequency(Hz)
Multiplier
50, 60
0.60
120
0.70
1k
0.85
10k up
1.0
SMD
Diagram of Dimensions
φ
D
±
0.5
Vent
≧
8
φ
×10L
B
±
0.2
0.5 max.(*)
Lead Spacing and Diameter
φD
5
6.3
W
Unit: mm
C
5.9
7.2
9.0
11
W
0.5 ~ 0.8
0.5 ~ 0.8
0.7 ~ 1.1
0.7 ~ 1.3
P ± 0.2
1.5
2.0
3.1
4.7
L
5.8 ± 0.3
5.8 ± 0.3
10 ± 0.5
A
5.3
6.6
8.3
B
5.3
6.6
8.3
0.3 max.
A
±
0.2
L
8
P
C
±
0.2
10 10 ± 0.5 10.3 10.3
(*): For 5 ~ 6.3φ is 0.4 max.
Marking
Negative
polarity
φD
≦
6.3mm
φD
= 8 ~ 10 mm
Date code
Rated cap.
Rated voltage
& Series code
A2
10
16s
Negative
polarity
A2
VZS
470
6.3V
Date code
Series name
Rated cap
.
Rated voltage
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
107
107
SMD Aluminum Electrolytic Capacitors
VZS
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 100k Hz, 105℃
Impedance: Ω/ at 100k Hz, 20℃
Dimension and Permissible Ripple Current
V. DC
220
330
470
680
101
151
221
331
471
681
102
152
10×10
0.06
1,190
8×10
8×10
0.08
0.08
850
850
6.3×5.8
0.26
300
5×5.8
6.3×5.8
0.36
0.26
240
300
5×5.8
6.3×5.8
6.3×5.8
8×10
8×10
8×10
10×10
0.36
0.26
0.26
0.08
0.08
0.08
0.06
240
300
300
850
850
850
1,190
8×10
8×10
8×10
10×10
10×10
0.08
0.08
0.08
0.06
0.06
850
850
850
1,190
1,190
10×10
0.06
5×5.8
0.36
240
5×5.8
0.36
240
5×5.8
6.3×5.8
6.3×5.8
6.3×5.8
0.36
0.26
0.26
0.26
240
300
300
300
μF
22
33
47
68
100
150
220
330
470
680
1,000
1,500
Contents
6.3V (0J)
φD×L
Imp. mA
10V (1A)
φD×L
Imp. mA
16V (1C)
φD×L
Imp. mA
5×5.8
0.36
240
25V (1E)
φD×L
Imp. mA
5×5.8
5×5.8
6.3×5.8
6.3×5.8
6.3×5.8
6.3×5.8
8×10
8×10
0.36
0.36
0.26
0.26
0.26
0.26
0.08
0.08
240
240
300
300
300
300
850
850
35V (1V)
φD×L
Imp. mA
5×5.8
5×5.8
6.3×5.8
6.3×5.8
0.36
0.36
0.26
0.26
240
240
300
300
8×10
8×10
10×10
0.08
0.08
0.06
850
850
1,190
1,190
Part Numbering System
VZS Series
470μF
±20%
Capacitance
Tolerance
6.3V
Rated
Voltage
VZS
Series Name
471
Capacitance
M
0J
Carrier
Tape
Package
Type
8φ×10L
Terminal
Type
TR
-
0810
Case size
Pb-free and PET
coating case
Lead Wire and
Coating Type
Note: For more details, please refer to “Part Numbering System (SMD Type)” on page 15.
SMD
108
108
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
All product specifications in the catalog are subject to change without notice. (CAT. 2018E1)
