B069-0612-153-Z: DescriptionBasic information of LT6553CGN#TRPBF amplifier: LT6553CGN#TRPBF is a video amplifier (Video Amplifiers) from Analog Devices Inc. It belongs to the LT6553 series of products. LT6553CGN#TRPBF amplifier core information: The corresponding working power supply current is 8 mA. The output current of each channel is: 105 mA. The gain bandwidth product (GBP, gain bandwidth product) of LT6553CGN#TRPBF is 650 MHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 9 nV/rtHz Related dimensions of LT6553CGN#TRPBF: Number of channels in total: 3 Channels. LT6553CGN#TRPBF amplifier additional information: Its more detailed single package form is: SSOP-16. When suppliers on the market sell LT6553CGN#TRPBF, they use the form: Reel.; CategoryThe connector The connector; File Size451KB，1 Pages; ManufacturerSMP Technology Inc.; Alternative parts：B069-0612-153-Z

Download Datasheet Parametric View All

B069-0612-153-Z Overview

Basic information of LT6553CGN#TRPBF amplifier:

LT6553CGN#TRPBF is a video amplifier (Video Amplifiers) from Analog Devices Inc. It belongs to the LT6553 series of products.

LT6553CGN#TRPBF amplifier core information:

The corresponding working power supply current is 8 mA. The output current of each channel is: 105 mA.

The gain bandwidth product (GBP, gain bandwidth product) of LT6553CGN#TRPBF is 650 MHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measurement indicator. The corresponding input voltage noise density is 9 nV/rtHz

Related dimensions of LT6553CGN#TRPBF:

Number of channels in total: 3 Channels.

LT6553CGN#TRPBF amplifier additional information:

Its more detailed single package form is: SSOP-16. When suppliers on the market sell LT6553CGN#TRPBF, they use the form: Reel.

B069-0612-153-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.181 inch
subject depth	0.169 inch
body length	0.252 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	B069
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.9944 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

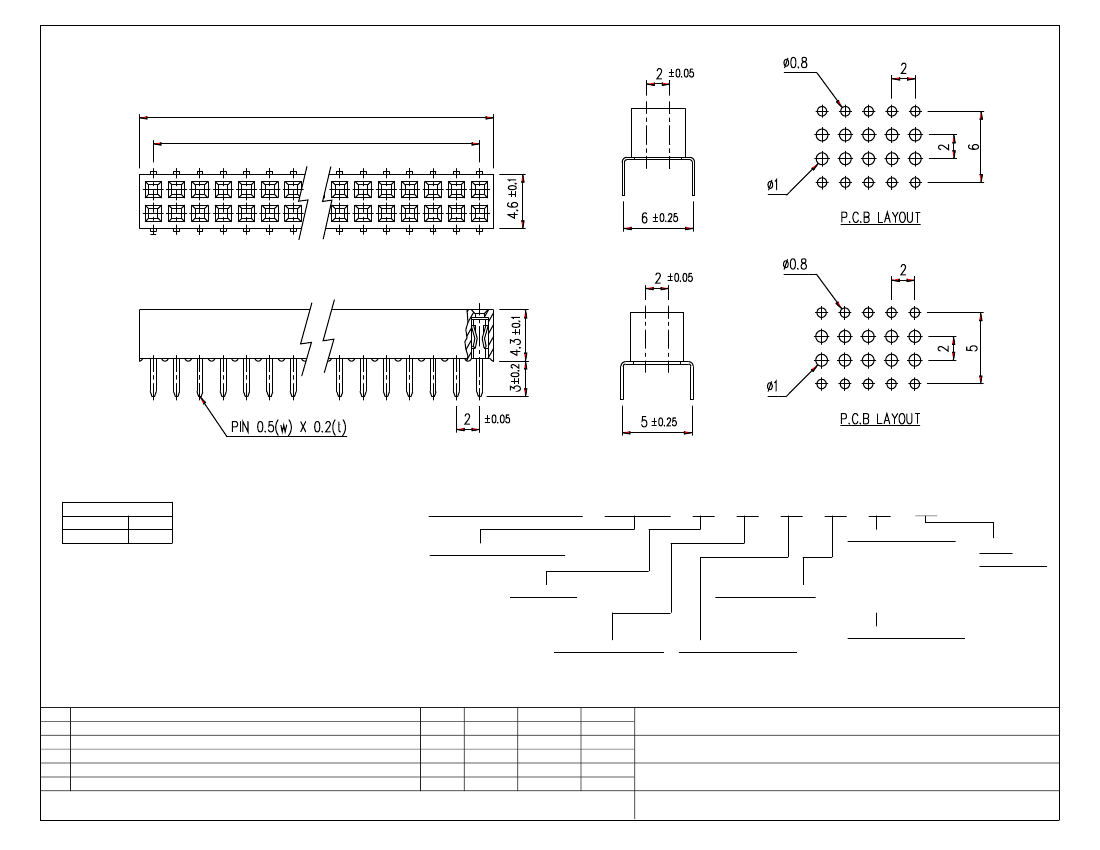

((NO. OF CONTACTS/2) x 2.00) + 0.4 +/- 0.30

(NO. OF CONTACTS/2 -1) x 2.00 +/- 0.25

DIMENSION(mm)

FOOTPRINT TYPE

3

5.00

5

6.00

HOW TO ORDER:

B

0

6

NUMBER OF CONTACTS:

06 thru 80

9

-

X

1

2

-

1

X

-

Z

RoHS

COMPLIANT

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

DEFINITION:

1 - STRAIGHT

NUMBER OF ROWS:

2 - DOUBLE ROW

FOOTPRINT TYPE:

SEE FOOTPRINT

TYPE ABOVE

PIN STYLE CONTACT:

1 - CANTILEVER BEAM

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

CONTACT: PHOSPHOR BRONZE

Rev

0 Issued

A Revised for RoHS Compliance

Drawn

S.E.

B.S.

Checked

S.M.

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Approved

S.M.

Date

04/15/97

08/06/08

SMP TECHNOLOGY, INC.

DRAWING No. B069-1

TOL. DEC.

.X +/- 0.35

Receptacle Assembly, Bottom Entry, 2.00mm Pitch

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: B 0 6 9

Pg: 1
