SS5P10HM3_A/I datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SS5P10HM3_A/I

SS5P10HM3_A/I: DescriptionSchottky Diodes & Rectifiers 5A 100V SM Schottky Rect; CategoryDiscrete semiconductor diode; File Size96KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SS5P10HM3_A/I Overview

Schottky Diodes & Rectifiers 5A 100V SM Schottky Rect

SS5P10HM3_A/I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	R-PDSO-F3
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.88 V
JEDEC-95 code	TO-277A
JESD-30 code	R-PDSO-F3
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	15 µA
Reverse test voltage	100 V
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL

Preview

Download Datasheet

View All

SS5P9, SS5P10

www.vishay.com

Vishay General Semiconductor

High Current Density Surface Mount

Schottky Barrier Rectifiers

FEATURES

• Very low profile - typical height of 1.1 mm

Available

eSMP Series

• Ideal for automated placement

• Guardring for overvoltage protection

• Low forward voltage drop, low power losses

• High efficiency

• Low thermal resistance

• Meets MSL level 1, per

LF maximum peak of 260 °C

J-STD-020,

TO-277A (SMPC)

Cathode

Anode 1

Anode 2

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode power

supplies, freewheeling diodes, DC/DC converters, and

polarity protection application.

5.0 A

90 V, 100 V

150 A

0.649 V

4.5 μA

150 °C

TO-277A (SMPC)

Single

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 5.0 A

max.

Package

Diode variations

MECHANICAL DATA

Case:

TO-277A (SMPC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Base P/NHM3 - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified (“_X” denotes revision code

e.g. A, B, .....)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix

meets JESD 201 class 2 whisker test

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

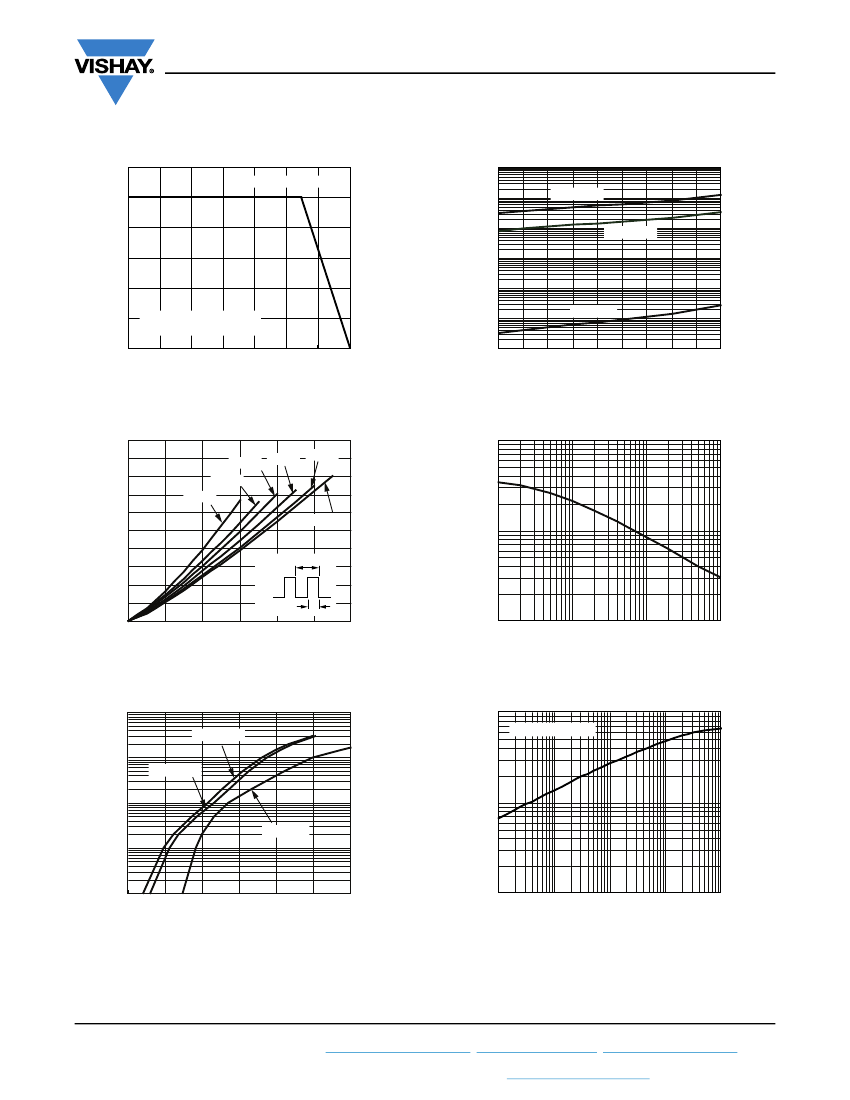

Maximum average forward rectified current (fig. 1)

Peak forward surge current 10 ms single half sine-wave

superimposed on rated load

Non-repetitive avalanche energy

at I

= 2.0 A, T

= 25 °C

Operating junction and storage temperature range

RRM

F(AV)

FSM

, T

STG

SYMBOL

SS5P9

S59

5.0

150

-55 to +150

SS5P10

S510

100

°C

UNIT

Revision: 01-Jul-15

Document Number: 88984

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

SS5P10HM3_A/I Related Products

	SS5P10HM3_A/I	SS5P9HM3/86A	SS5P10-E3/86A	SS5P9-E3/87A	SS5P9-M3/86A
Description	Schottky Diodes & Rectifiers 5A 100V SM Schottky Rect	Schottky Diode and Rectifier 5A, 90V, SM SCHOTTKY RECT.	Schottky Diodes and Rectifiers 5.0 Amp100 Volt	Schottky Diodes & Rectifiers 5.0 Amp 90 Volt	Schottky Diodes & Rectifiers 5.0 Amp 90 Volt
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay	Vishay	Vishay
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.88 V	0.88 V	0.68 V	0.68 V	0.88 V
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A
Maximum repetitive peak reverse voltage	100 V	90 V	100 V	90 V	90 V
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
package instruction	R-PDSO-F3	R-PDSO-F3	-	-	R-PDSO-F3
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	-	-	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	-	-	EFFICIENCY
Shell connection	CATHODE	CATHODE	-	-	CATHODE
Diode component materials	SILICON	SILICON	-	-	SILICON
JEDEC-95 code	TO-277A	TO-277A	-	-	TO-277A
JESD-30 code	R-PDSO-F3	R-PDSO-F3	-	-	R-PDSO-F3
Phase	1	1	-	-	1
Number of terminals	3	3	-	-	3
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	-	-	SMALL OUTLINE
Maximum reverse current	15 µA	15 µA	-	-	15 µA
Reverse test voltage	100 V	90 V	-	-	90 V
Terminal form	FLAT	FLAT	-	-	FLAT
Terminal location	DUAL	DUAL	-	-	DUAL
JESD-609 code	-	e3	e3	e3	e3
Humidity sensitivity level	-	1	1	1	1
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
