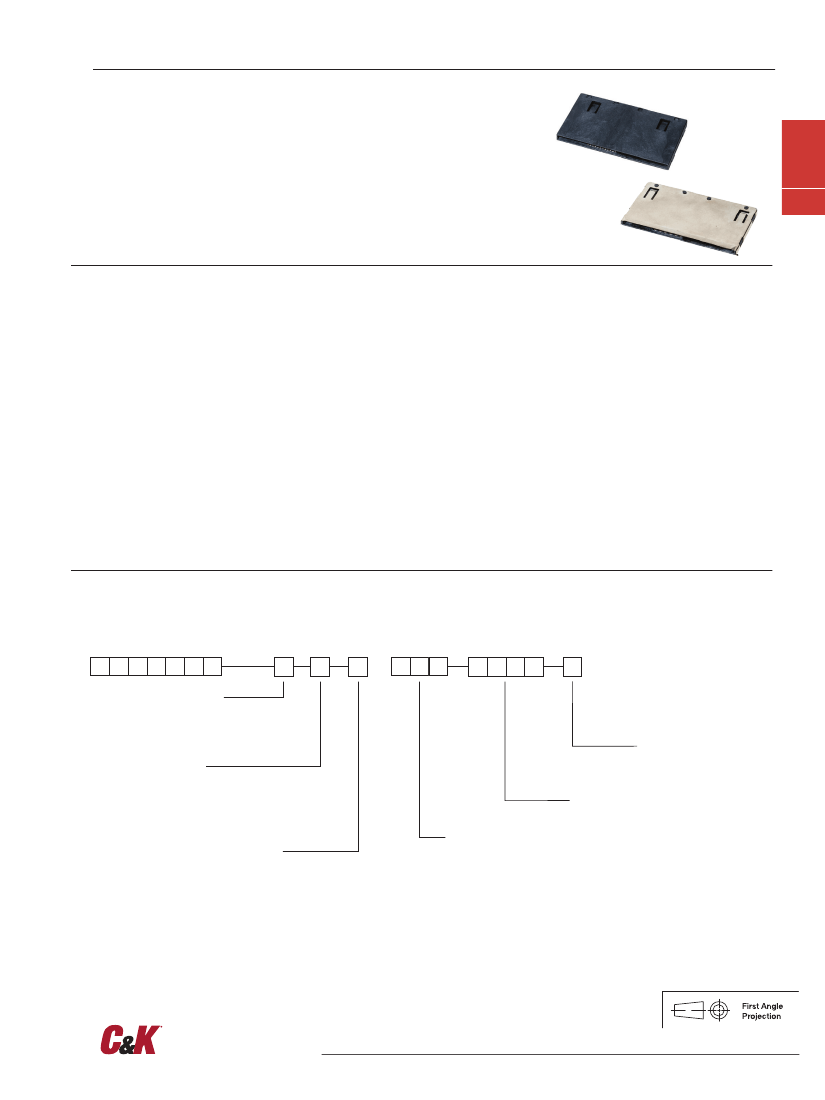

CCM01 MK5 Series
Features/Benefits
•
Operating life 500,000 cycles
•
Low profile 4 mm and 3.2 mm height
•
Card detection sealed switch
Typical Applications
•
Transaction
•
Identification
•
POS
•
MPOS
Mechanical
NUMBER OF CONTACTS:
MECHANICAL LIFE:
CARD INSERTION FORCE:
CARD EXTRACTION FORCE:
CONTACT FORCE:
8
500,000 cycles
10 N max.
1 N min. / 10 N max.
0,2 N / 0,60 N max.
Contact Electrical Data
INSULATION RESISTANCE:
CONTACT RESISTANCE:
CURRENT RATING:
DIELECTRIC STRENGTH:
1,000 M
Ω min.
100 m
Ω max.
10 µA min. / 1A max.
750 Vrms min.
Packaging
Tray 25 parts or Reel 350 parts
Switch Electrical Data
CARD DETECTION SWITCH:
CONTACT RESISTANCE:
DIELECTRIC STRENGTH:
CURRENT RATING:
MAXIMUM POWER:
Normally open
100 m
Ω max.
250 Vrms min.
1 mA min. / 10 mA max.
0.2 VA
Soldering
Compatible with lead free SMT reflow soldering process
Environmental Data
OPERATING TEMPERATURE: -40˚C
to + 85˚C
CARD DETECTION SWITCH: Sealed against dust
RoHS compliant
How To Order
To order, simply select desired option from each category and place in the appropriate box. For additional options not shown in
catalog, consult our Customer Service Center.
C C M 0
1
-
2
L
F
T
Cover Material
5
Plastic, 4.0 mm height
6
Metal, 3.2 mm height
NONE
AE
Leave blank
only applicable with
metal pegs option
(CCM01-2x2x)
Contact Tail on PCB
0
Short, recessed (best for PCI)
1
Long (accessible, easy rework)
2
Long + 2 metal pegs (40 N overload)
3
Short, no pegs
ESD Protection
3
Full ESD protection (card edge & IC)
4
Card edge ESD (only for metal version)
5
Low cost ESD (card edge for plastic cover)
Lead Free RoHS
LFT
Tin plated termnals
Packaging
T25
Pack tray 25 parts
R351
Pack reel 350 parts
14 May 18
9
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ckswitches.com
Full Size

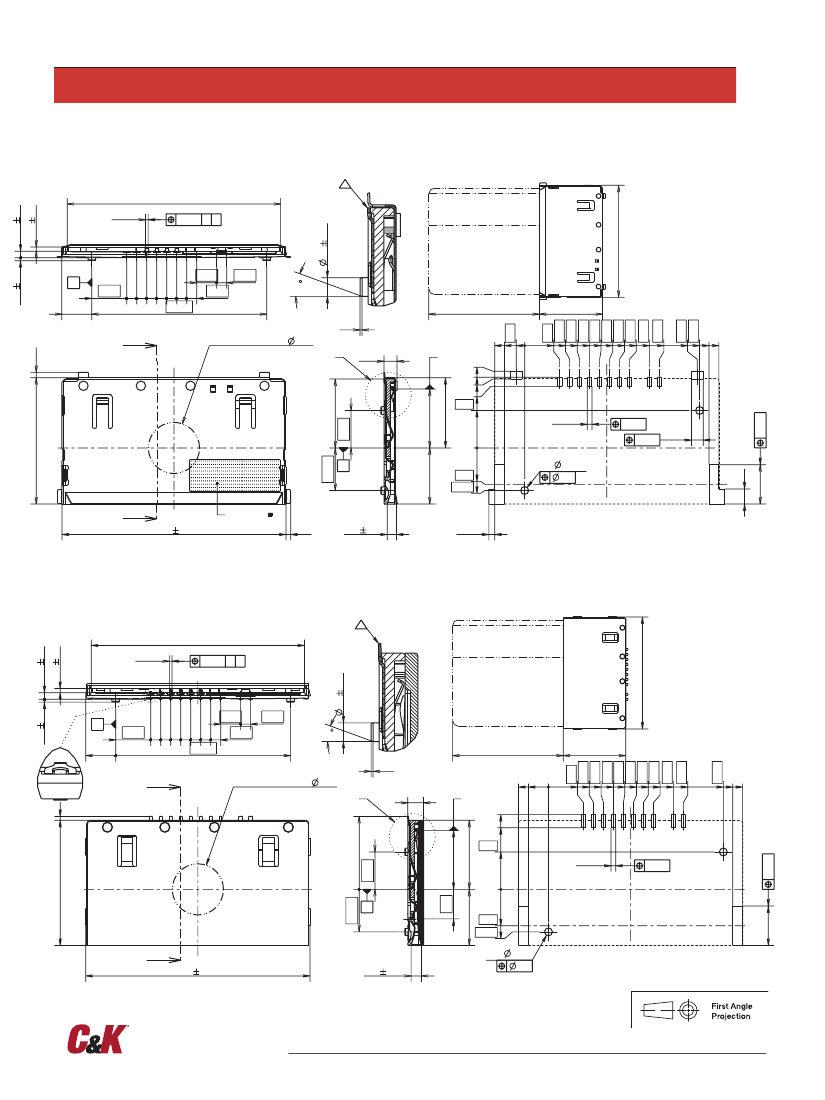

CCM01 MK5 Series
CCM01-2604 LFT T25
Metal cover, short tails
2
1,05 0,1
Card entry
54,2 Card entry
10x 0,7
1,9 0,05
0,3
A B
1,65 0,1
DETAIL Q
SCALE 5
0,76 0,1
A
7,62
5,08
8,89
44,45
2,54
2,54 7x
20
( 56,25 )
7,6
5,1
2,12
0
0,2
( 32,1 )
43,88
44,45
46,85
49,35
8,89
11,43
13,97
16,51
19,05
21,59
24,13
26,67
10x 1,2
0
14,25
2x
9,25
10,81
2+0,1
0
0,1
10,81
B
31,75
34,29
C
1,36
Pick & place area 13
SEE DETAIL Q
SECTION C-C
3,35
Card stop
19,5
17,95
17,5
15,65
9,51
C5C6C1C2C3C4C7C8 SW1 W2
S
17,54
17,85
15
( 56,9 )
0,2
0,2
2x 3
32,1
9,51
3,8
( 57 )
0,2
44,45
46,85
49,35
31,75
34,29
See note 8
C
56,9 0,1
1,2
2,35 0,2
Card entry
2x 1,5
RECOMMENDED PC BOARD LAYOUT
( component side )

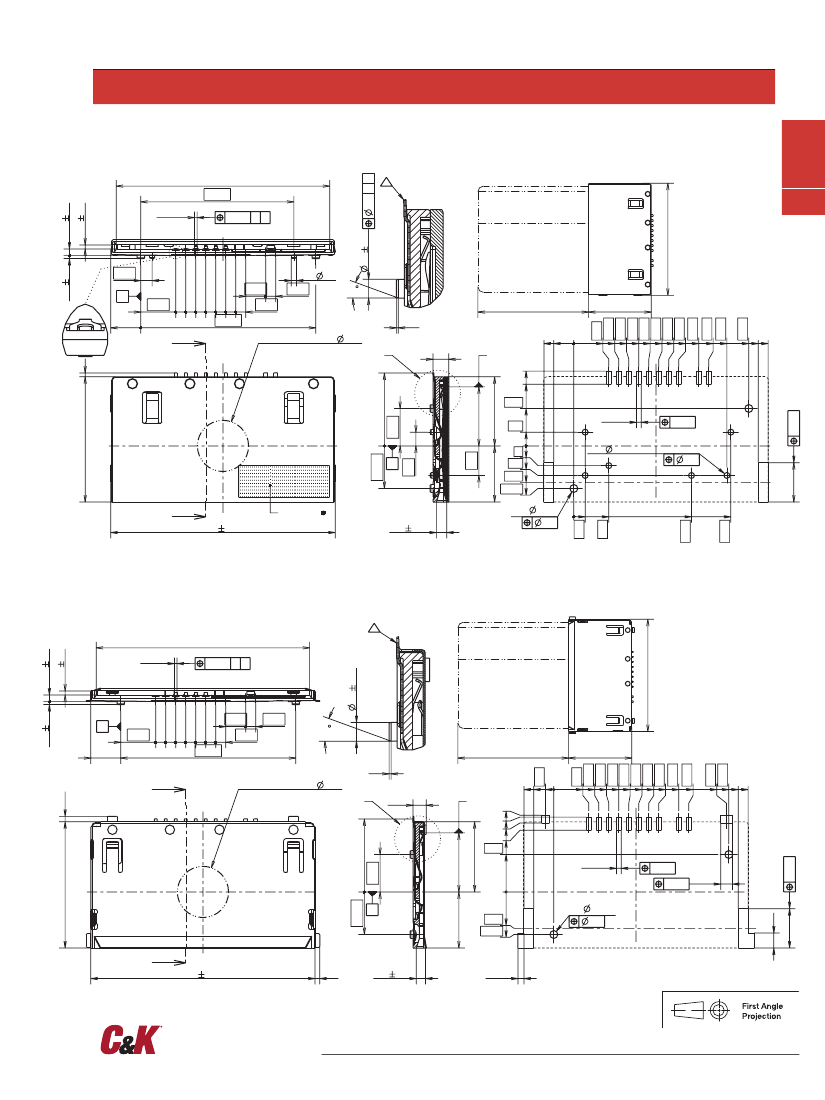

CCM01-2513 LFT T25
Plastic cover, long tails, full ESD protection
2
1,66 0,1
1,05 0,1
Card entry
54,2 Card entry
10x 0,7
0,3
A B
1,9 0,05
DETAIL Q
SCALE 5
0,75 0,1
A
7,62
5,08
8,89
44,45
2,54
20
( 56,25 )
7,6
5,1
0,2
0
( 31,8 )
8,89
11,43
13,97
16,51
19,05
21,59
24,13
26,67
2,54 7x
6 ESD
Contacts
1
C
Pick & place area 13
SEE DETAIL Q
SECTION C-C
4
Card stop
19
15,65
18,54
17,55
9,51
C5C6C1C2C3C4C7C8 SW1 W2
S
10x 1,2
15
2x 10
2x 10
0,2
31,8
9,51
0
10,81
7,5
B
14,25
9,25
10,81
2x
2+0,1
0
0,1
RECOMMENDED PC BOARD LAYOUT
( component side )
C
57 0,1
2,65 0,2
Card entry
14 May 18
10
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ckswitches.com
0,2
CCM01 MK5 Series
CCM01-2523 LFT T25
Plastic cover, long tails, metal pegs
54,2 Card entry
1,66 0,1
1,05 0,1
Card entry
38,88
10x 0,7
0,3
A B
0,1 A B
2
DETAIL Q
SCALE 5
2,88
A
7,62
6 ESD
Contacts
1
C
5,08
8,89
44,45
2x
2,54
2,54 7x
1,3
20
( 56,25 )
7,6
5,1
0,2
0
( 31,8 )
44,45
46,85
49,35
8,89
11,43
13,97
16,51
19,05
21,59
24,13
26,67
31,75
34,29
38,88
Pick & place area 13
SEE DETAIL Q
SECTION C-C
4
Card stop
19
15,65
18,54
17,55
9,51
3,5
0
5
7,5
9,25
10,81
2x
2,65 0,2
Card entry
C5C6C1C2C3C4C7C8 SW1 W2
S
10x 1,2
15
9,51
A
F
31,8
6x
B
10,81
14,25
See note 8
C
57 0,1
0
2,88
8,88
29,88
RECOMMENDED PC BOARD LAYOUT
( component side )
CCM01-2614 LFT T25
Metal cover, long tails, no ESD protection
2
1,05 0,1
Card entry
54,2 Card entry
10x 0,7
1,9 0,05
( 57 )
0,3
A B
1,66 0,1
DETAIL Q
SCALE 5
0,75 0,1
A
7,62
5,08
8,89
44,45
2,54
20
( 56,25 )
7,6
5,1
2,12
8,89
2,54 7x
( 32,1 )
43,88
19,05
21,59
24,13
11,43
13,97
16,51
26,67
31,75
34,29
44,45
46,85
49,35
0,2
C
1,35
Pick & place area 13
SEE DETAIL Q
SECTION C-C
3,36
Card stop
19,5
19
17,5
9,51
15,65
0
C5
C6
C1
C2
C3
C4
C7
C8
SW1 SW2
18,54
17,85
15
9,51
32,1
0
0,2
2x
2
+0,1
0
0,1
2x 3
10,81
B
14,25
10,81
C
57 0,1
1,2
2,35 0,2
Card entry
2x 1,5
RECOMMENDED PC BOARD LAYOUT
( component side )
14 May 18
11
Dimensions are shown in mm
Specifications and dimensions subject to change
www.ckswitches.com
2x 10
9,25
3,8
0,2
10x 1,2
0,2
39,88
2+0,1
0
0,1
2x 10
1,5 Metallized holes
0,1
C
D
3,5
7,5
B
E
0,2
0,2
Full Size
1,9 0,05
0,75 0,1
( 57 )
