59S21B-40MT5-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Rf interconnection> RF connector/coaxial connector> 59S21B-40MT5-D

59S21B-40MT5-D: DescriptionRF Connector/Coaxial Connector Plug PC-Board SMD Right AngleD BViolet; CategoryThe connector Rf interconnection RF connector/coaxial connector; File Size327KB，4 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

59S21B-40MT5-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59S21B-40MT5-D	-	-	View	Buy Now

59S21B-40MT5-D Overview

RF Connector/Coaxial Connector Plug PC-Board SMD Right AngleD BViolet

59S21B-40MT5-D Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Product Category	RF Connector/Coaxial Connector
Shipping restrictions	Mouser does not currently sell this product.
product	PCB Connectors
RF series	FAKRA
Type	Plug
impedance	50 Ohms
minimum frequency	-
maximum frequency	6 GHz
Termination type	PCB - Through Hole
direction	Right Angle
Installation type	PCB Mount
Subject type	Right Angle
Contact plating	Gold
Contact termination	Solder
Contact type	Pin (Male)
series	FAKRA
Voltage rating	335 V
Contact material	Brass
Insulation resistance	1000 MOhms
Operation cycle	25
Maximum operating temperature	+ 105 C
Minimum operating temperature	- 40 C
Factory packaging quantity	400

Preview

Download Datasheet

View All

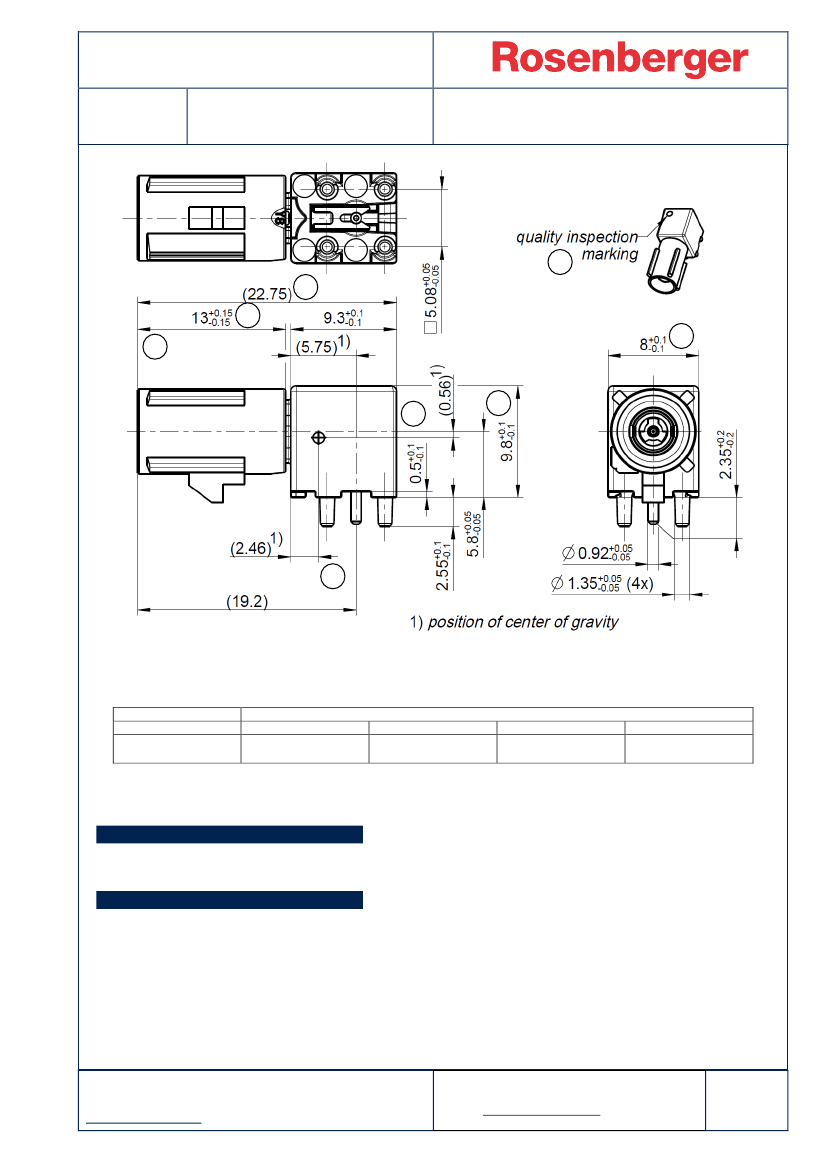

Technical Data Sheet

FAKRA-HF

RIGHT ANGLE PLUG

FOR PCB

59S21B-40MT5-Y

Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

All dimensions are in mm; tolerances according to ISO 2768 m-H

Y = Part number has to be accomplished by codification

Maße

/ dimensions

(mm)

Bereich

/ range

0 bis/to 0.5

0.5 bis/to 3

3 bis/to 6

Toleranz

± 0.05 *)

± 0.1

Tolerance

(mm)

*) Angabe abweichend zu /

Indication deviant to

DIN ISO 2768 m-H

6 bis/to 30

± 0.2

Interface

According to

ISO 20860-1, USCAR 17

Documents

PCB layout

Tape and reel packaging

MB_281

VG161.40000

RF_35/09.14/6.2

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel. : +49 8684 18-0

Email : info@rosenberger.de

Page

1/4

59S21B-40MT5-D Related Products

	59S21B-40MT5-D	59S21B-40MT5-C	59S21B-40MT5-H	59S21B-40MT5-G
Description	RF Connector/Coaxial Connector Plug PC-Board SMD Right AngleD BViolet	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle C Blue	RF Connectors / Coaxial Connectors Plug PC-Board SMD Right Angle H Violet	RF Connector/Coaxial Connector Plug PC-Board SMD Right Angle G Gray
Product Category	RF Connector/Coaxial Connector	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connector/Coaxial Connector
