Note: Capacitance must include HVPS internal capacitance.
2
advanced-energy.com
ULTRAVOLT C SERIES
ELECTRICAL SPECIFICATIONS (CONTINUED)
Programming And Controls
Input Impedance
Adjust Resistance
Adjust Logic
Output Voltage and
Impedance
Enable/Disable
Environmental
Operating
Coefficient
Thermal Shock
Storage
Humidity
Altitude
Shock
Vibration
Full Load, Max Eout, Case Temp.
Over The Specified Temperature
Mil-Std 810, Method 503-4,
Proc. II
Non-operating, Case Temp.
All Conditions, Standard Package
All Conditions, Standard Package
Nominal Input
Typical Potentiometer Values
0 to +5 for +Out, +5 to 0 for -Out
T = +25°C
All Types
+Output models 1.1 MΩ to ground, -output models 1.1 MΩ to +5
vRef.
10 to 100 K (potentiometer across vRef. and signal ground, wiper
to adjust)
+4.64 VDC for +output or +0.36 for -output = nominal Eout
+5.00 VDC ±2%, Zout = 464 Ω ±1%
0 to +0.5 disable, +2.4 to 32 enable (default = enable)
Standard
-40 to +65
±50
-40 to +65
-55 to +105
0 to 95% non-condensing
Sea level through vacuum (vacuum may require -P2 option, contact
factory for details)
-25 PPM Option
+10 to +45
±25
Units
MΩ
Ω
-
-
VDC
Units
°C
PPM/°C
°C
°C
-
-
Gs
Gs
Mil-Std-810, Method 516.5, Proc. IV 20 (standard), 40 (-C option)
Mil-Std-810, Method 514.5,
Fig.514.5C-3
10 (standard), 20 (-C option)
advanced-energy.com
3
ULTRAVOLT C SERIES

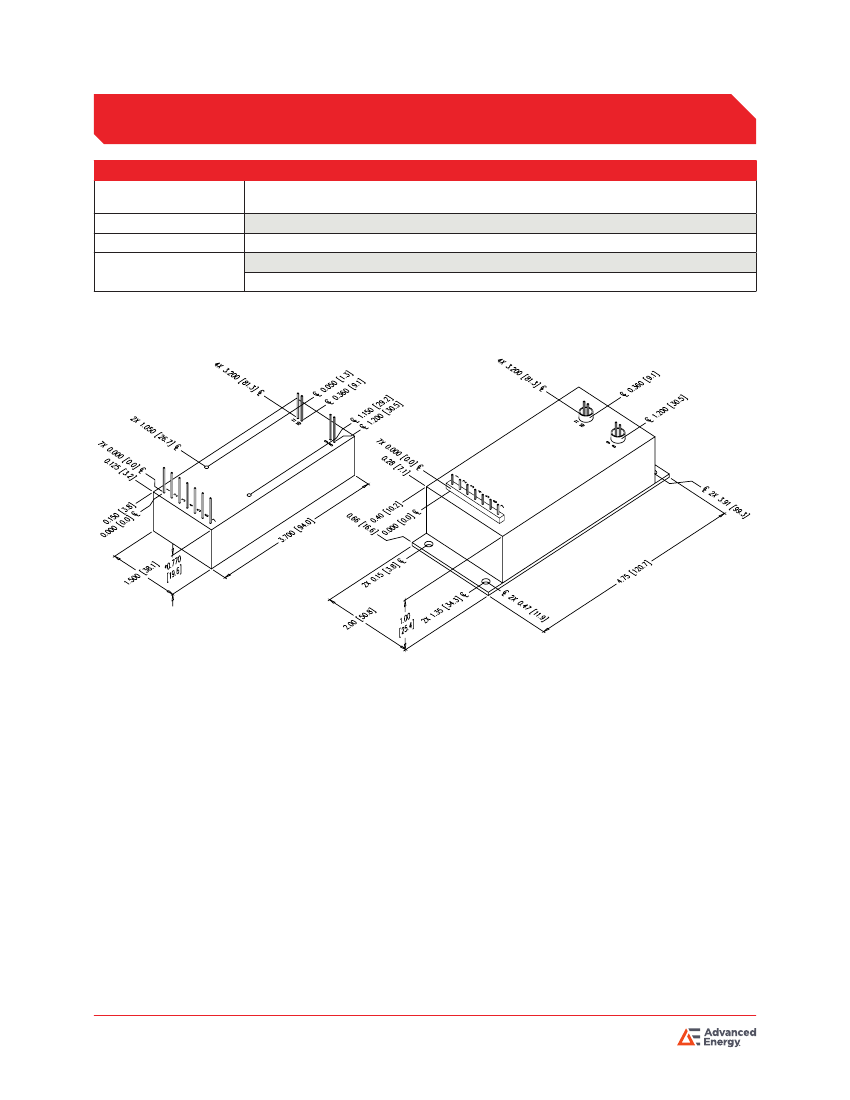

MECHANICAL SPECIFICATIONS
Physical Specifications
Construction
Volume
Weight
Tolerance
Epoxy-filled DAP box certified to ASTM-D-5948 with -C option, aluminum box, chem film per MIL-A-8625
Type II (anodizing)
70.5 cc (4.30 in
3
), with -C option: 131.1 cc (8.00 in
3
)
142 g (5.0 oz), with -C Option: 284 g (10.0 oz)
Overall 1.27 mm (±0.050"), pin to pin 0.38 mm (±0.015"), mounting hole location 0.64 (±0.025") (plastic case)
Overall 0.64 mm (±0.025"), pin to pin 0.38 mm (±0.015"), hole to hole location 0.64 mm (±0.025") (metal case)
20 and 30 W versions are an additional 157 mm (0.062") in height.
-M equipped units are an additional 0.76 mm (0.030") for each dimension.
Contact Advanced Energy for drawings of models equipped with -E or -H options.
4
advanced-energy.com
ULTRAVOLT C SERIES
INTERFACE
Connections
Pin
1
2
3
4
5
6
7
8
9
10 and 11
Function
Input Power Ground Return
Positive Power Input
Iout Monitor
Enable/Disable
Signal Ground Return
Remote Adjust Input
+5 VDC Reference Output
HV Ground Return
Eout Monitor
HV Output
All grounds joined internally. Power supply mounting points isolated from internal grounds by > 100 kΩ, 0.01 uF/50 V (max) on all models except -M, -M-C, -M-E,
