03.12.2018
RAFIX 22 QR - Selector switch, non-illuminated, square collar,
long handle
1.30.242.586/0201
Included: Ring nut with claw.
Other handle marking colors available on request.
A contact block in position 3 or 5/6 (centre) is actuated when turning in either direction.
General information
Actuator
Marking of handle
Color of front ring
Form of collar
Dimensions
Dimensions of collar
Overall height
Mounting depth with contact block without cable
Mounting hole
Mounting grid
Mechanical design
Mounting
Contact function
Illumination
Rotating angle
Mechanical characteristics
Operating force max.
Torque max.
Electrical characteristics
Protection class
Other specifications
Operating life (operations)
Degree of protection from front side
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
handle
white
black
square
29.8 x 29.8 mm
22.2 mm
56.4 mm
ø 22.3 mm
50 x 30 mm
ring nut
momentary
no
2 x 40°
approx. 5 N for 1 switching element
2 Nm
II
500,000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
03.12.2018
REACH compliant

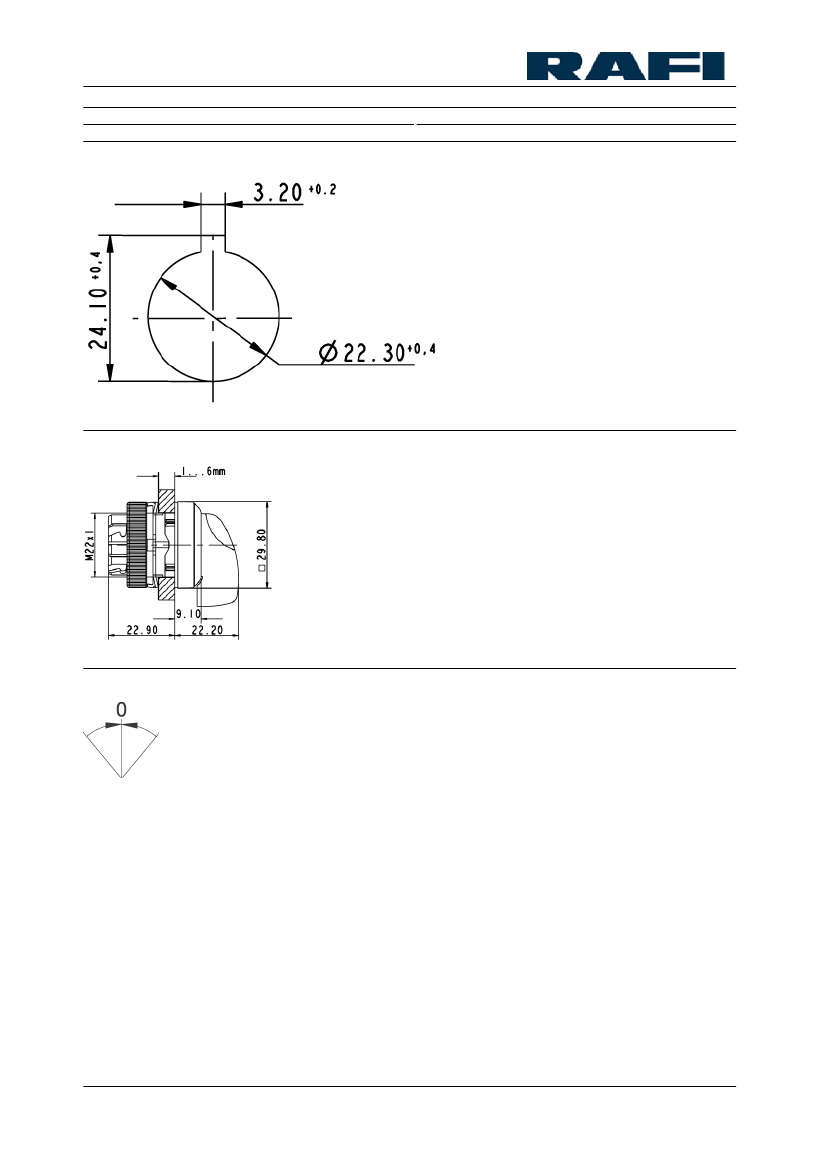

Panel cut-out to IEC 60947-5-1
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
