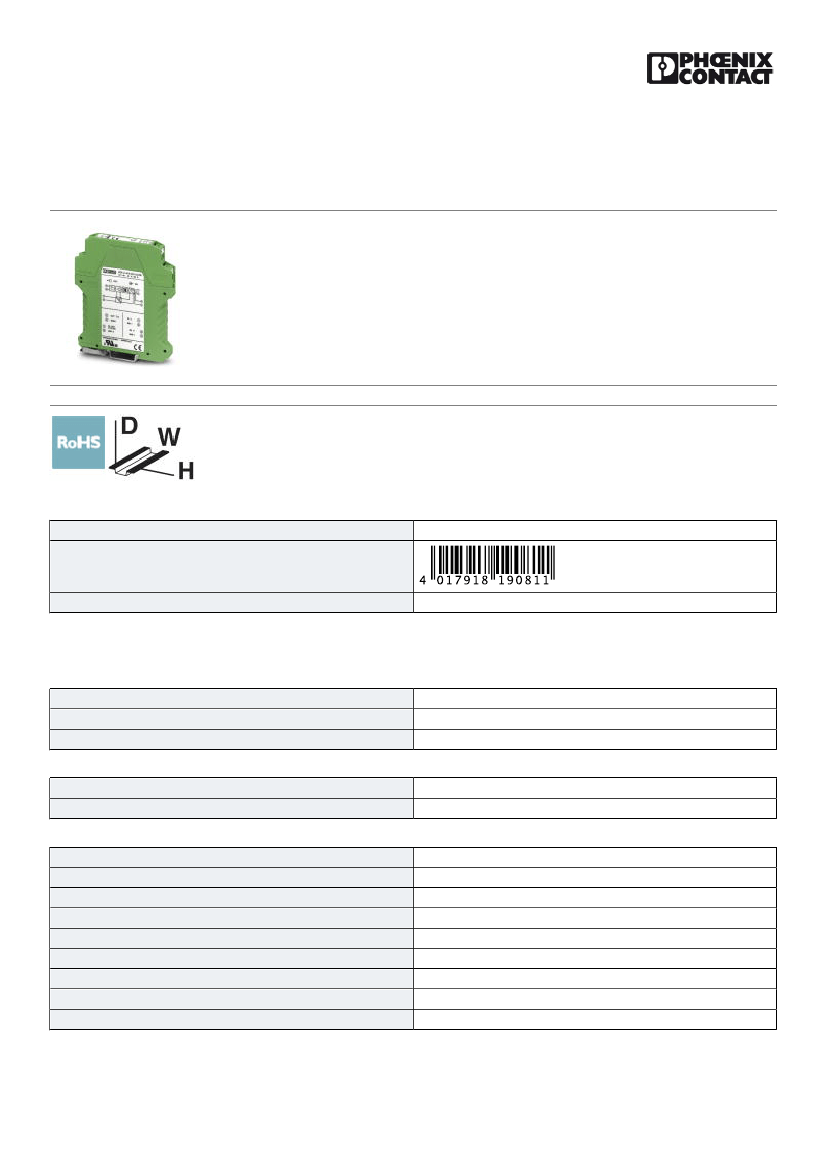

Signal conditioner - MCR-FL-C-UI-UI-DCI-24/230 - 2814838
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
MCR 3-way isolating amplifier, with configurable inputs/outputs, reliable isolation and wide range power
supply, for electrical isolation of analog signals
Key Commercial Data
Packing unit
GTIN
GTIN
4017918190811
1 pc
Technical data
Dimensions
Width
Height
Depth
12.5 mm
99 mm
114.5 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-10 °C ... 70 °C
IP20
Input data
Description of the input
Configurable/programmable
Current input signal
Max. input current
Voltage dissipation
Description of the input
Voltage input signal
max. input voltage
Current input
Yes, can be reconnected/switched
0 mA ... 20 mA (default setting)
4 mA ... 20 mA
approx. 22 mA
approx. 250 mV (at 20 mA)
Voltage input
0 V ... 10 V
11 V
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2814838
Signal conditioner - MCR-FL-C-UI-UI-DCI-24/230 - 2814838
Technical data
Input data
Input resistance of voltage input
approx. 1 MΩ
Output data
Configurable/programmable
Voltage output signal
Current output signal
Max. output voltage
Max. output current
Load/output load voltage output
Load/output load current output
Ripple
Yes, can be switched
0 V ... 10 V
0 mA ... 20 mA (default setting)
4 mA ... 20 mA
11 V
approx. 22 mA
≥ 1 kΩ (at 10 V)
≤ 600 Ω (at 20 mA)
< 10 mV
PP
Power supply
Supply voltage range
Max. current consumption
Power consumption
20 V AC/DC ... 253 V AC/DC
30 mA (Without load current)
approx. 2 VA (AC)
approx. 1 W (DC)
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Screw thread
Pluggable screw connection
0.2 mm²
2.5 mm²
24
14
0.2 mm²
2.5 mm²
8 mm
M3
General
No. of channels
Maximum transmission error
Maximum temperature coefficient
Limit frequency (3 dB)
Step response (10-90%)
Protective circuit
Test voltage, input/output/supply
Color
Housing material
Mounting position
1
≤ 0.1 % (of final value)
0.005 %/K
< 10 Hz (can be switched)
approx. 10 kHz (default setting, 10 Hz can be switched)
35 ms (at 10 Hz)
35 µs (at 10 kHz)
Transient protection
4 kV (50 Hz, 1 min.)
green
Polyamide PA non-reinforced
any
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2814838
Signal conditioner - MCR-FL-C-UI-UI-DCI-24/230 - 2814838
Technical data
General
Conformance
EMC directive 2004/108/EC
Standards and Regulations
Connection in acc. with standard
Conformance
CUL
EMC directive 2004/108/EC
Drawings
Dimensional drawing
99
12,5
IN
IN I 1
GND 1 2
U,
Circuit diagram
OUT
5 OUT I/U
6 GND 2
U
IN U 3
GND 1 4
20...253
7 VAC / DC
8 GND 3
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
114,5
11/05/2018 Page 3 / 3
