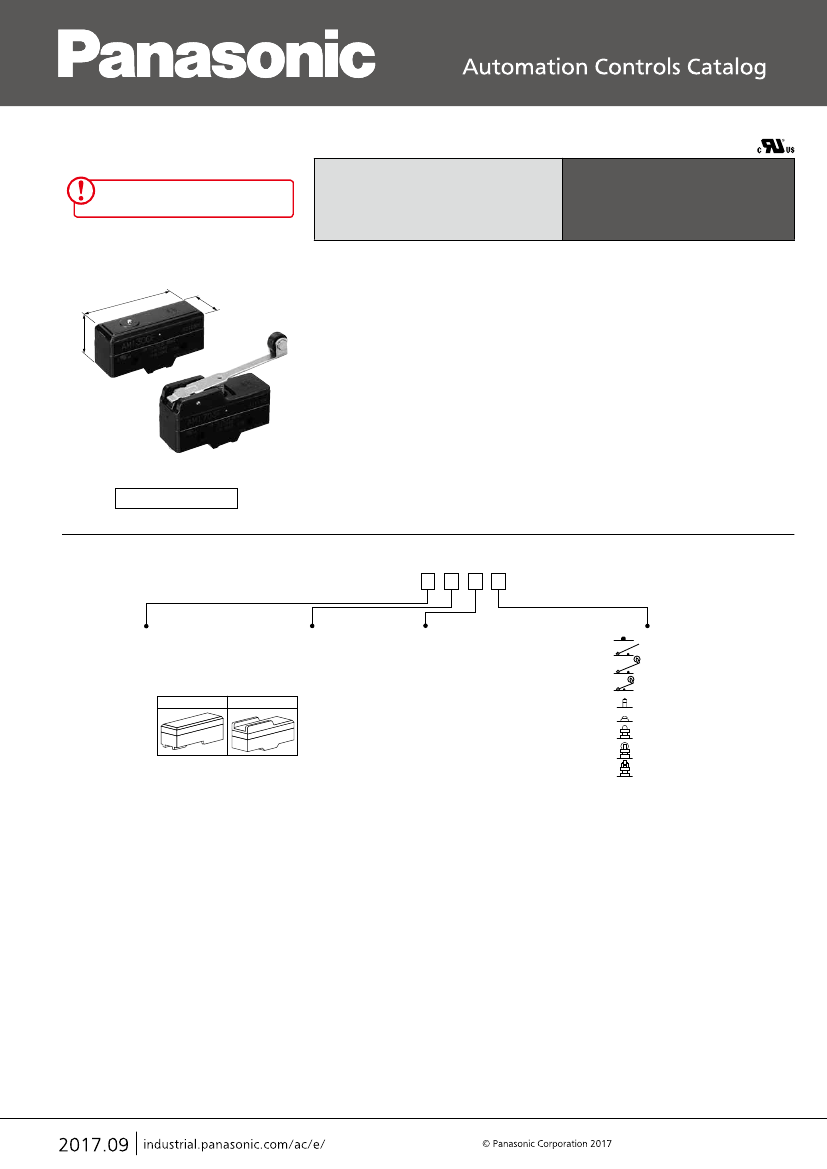

AM1 (NZ)
SWITCHES
TYPICAL APPLICATIONS
• Transfer machine
• Packing machine
• Textile equipment
• Cutting machine
• Foot operated switch, etc.
FEATURES
49.2
17.5
24.1
• 10 A Current switching capacity
• High precision and long life
• Versatile variety of actuators
• Screw terminal types can be used
with M4 crimp terminals
(Unit: mm)
RoHS compliant
ORDERING INFORMATION
AM1
Upper body cover shape & terminal
1: Flat, solder terminal
3: Flat, screw terminal
5: Grooved, solder terminal
7: Grooved, screw terminal
Upper body cover shape
Flat
Grooved
Basic specifications
0: Standard type
1: Oil tight type
3: Reversed action type
4: One way type
Actuators
0: Pin plunger
1: Hinge lever (Flexible leaf lever)
3: Hinge roller lever (Flexible roller leaf lever)
4: Hinge short roller lever
5: Overtravel plunger
6: Compact overtravel plunger
7: Panel mount plunger
811: Panel mount roller plunger
812: Panel mount cross roller plunger
F
F: Cadmium free
Note: Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
Standard part number indicates UL/C-UL (CSA standard) mark.
–1–
AECTB8E 201709-T
AM1 (NZ) Basic Switches
PRODUCT TYPES
■
Standard type
Actuator
Pin plunger
Over travel plunger
Compact over travel plunger
Panel mount plunger
Panel mount roller plunger
Panel mount cross roller plunger
Flexible leaf lever
Flexible roller leaf lever
Hinge lever
Hinge short roller lever
Hinge roller lever
One way type hinge short roller lever
One way type hinge roller lever
Reversed action type hinge lever
Reversed action type hinge short roller lever
Reversed action type hinge roller lever
Standard packing for inner carton: 20cps.
Note: Standard part number indicates UL/C-UL (CSA standard) mark.
Terminal style
Solder terminal
AM1100F
AM1105F
AM1106F
AM1107F
AM110811F
AM110812F
AM1101F
AM1103F
AM1501F
AM1504F
AM1503F
AM1544F
AM1543F
AM1531F
AM1534F
AM1533F
To Be Discontinued
Last time buy: September 30, 2018
Screw terminal
AM1300F
AM1305F
AM1306F
AM1307F
AM130811F
AM130812F
AM1301F
AM1303F
AM1701F
AM1704F
AM1703F
AM1744F
AM1743F
AM1731F
AM1734F
AM1733F
■
Oil tight types
Actuator
Hinge lever
Hinge short roller lever
Hinge roller lever
Standard packing for inner carton: 20cps.
Note: Standard part number indicates UL/C-UL (CSA standard) mark.
Terminal style
Solder terminal
AM1511F
AM1514F
AM1513F
Screw terminal
AM1711F
AM1714F
AM1713F
SPECIFICATIONS
■
Contact Rating
Type
Voltage
125 V AC
250 V AC
480 V AC
125 V DC
250 V DC
125 V AC
250 V AC
125 V DC
Resistive load
(cos
φ
= 1)
10 A
10 A
1A
0.5 A
0.25 A
10 A
10 A
0.5 A
Inductive load
(cos
φ
= 0.4)
6A
6A
0.5 A
0.05 A
0.03 A
6A
6A
0.05 A
Motor or lamp load
NC
3A
2A
—
—
—
3A
2A
—
NO
1.5 A
1A
—
—
—
1.5 A
1.0 A
—
Standard type
Oil tight type
■
Characteristics
Item
Pin plunger types
Mechanical
Expected life
Other actuator types
Electrical (OT: Max.)
Insulation resistance
Between non-continuous terminals
Dielectric strength
Between each terminal and other exposed metal parts
Between each terminal and ground
Contact resistance (initial)
Vibration resistance (Pin plunger type)
Pin plunger types
Shock resistance
Other actuator types
Allowable operating speed (at no load)
Max. operating cycle rate (at no load)
Ambient temperature
Unit weight
Contact specifications
Protection grade
Contact material
Specifications
Min. 2
×10
7
(60 cpm) (OT: specified value)
(Oil tight: Min. 1.5
×10
6
)
Min. 5
×10
6
(60 cpm) (OT: specified value)
(Oil tight: Min. 1.5
×10
6
)
Min. 5
×10
5
(20 cpm) (at rated load)
(Oil tight: Min. 1.5
×10
5
)
Min. 100 MΩ (at 500 V DC)
1,000 Vrms for 1 min.
2,000 Vrms for 1 min.
2,000 Vrms for 1 min.
Max. 50 mΩ (by voltage drop, 1 A, 6 to 8 V DC)
Single amplitude: 0.75 mm, 10 to 55 Hz (contact opening: max. 1 msec.)
Min. 300 m/s
2
(contact opening: max. 1 msec.)
Min. 50 m/s
2
(contact opening: max. 1 msec.)
0.1 to 1,000 mm/sec. (at pin plunger position)
240 cpm
–25°C to +80°C (no freezing and condensing)
Approx. 20 to 55 g
Ag alloy
IP40
–2–
AECTB8E 201709-T
To Be Discontinued
Last time buy: September 30, 2018
AM1 (NZ) Basic Switches
■
Operating Characteristics
1) Standard type
Actuator
Pin plunger
Overtravel plunger
Compact overtravel plunger
Panel mount plunger
Panel mount roller plunger
Panel mount cross roller plunger
Flexible leaf lever
Flexible roller leaf lever
Hinge lever
Hinge short roller lever
Hinge roller lever
One way type hinge short roller lever
One way type hinge roller lever
Reversed action type hinge lever
Reversed action type hinge short roller lever
Reversed action type hinge roller lever
Operating
Force OF, max.
3.63 N
3.63 N
3.63 N
3.63 N
3.63 N
3.63 N
1.47 N
1.47 N
0.69 N
1.57 N
0.98 N
2.23 N
1.67 N
1.67 N
5.30 N
2.35 N
Release Force
RF, min.
0.12 N
0.12 N
0.12 N
0.12 N
0.12 N
0.12 N
0.14 N
0.14 N
0.14 N
0.42 N
0.2 N
0.42 N
0.42 N
0.27 N
1.67 N
0.56 N
Pretravel PT,
max.
0.4 mm
0.4 mm
0.4 mm
0.4 mm
0.4 mm
0.4 mm
4 mm
4 mm
10 mm
4.5 mm
7.5 mm
3.5 mm
4.5 mm
5.0 mm
2.5 mm
3.6 mm
Movement
Differential MD,
max.
0.05 mm
0.05 mm
0.05 mm
0.05 mm
0.05 mm
0.05 mm
1.3 mm
1.3 mm
1.3 mm
0.7 mm
1.3 mm
0.4 mm
0.5 mm
0.9 mm
0.4 mm
0.7 mm
Overtravel OT,
min.
0.13 mm
1.5 mm
1.5 mm
5.6 mm
3.6 mm
3.6 mm
1.6 mm
1.6 mm
5.6 mm
2.4 mm
3.6 mm
1.5 mm
2.4 mm
5.6 mm
2.0 mm
4.0 mm
Free Position
FP, max.
—
—
—
—
—
—
—
—
—
—
—
31.8 mm
43.3 mm
—
—
—
Operating
Position OP
15.9±0.4 mm
28.2±0.5 mm
21.2±0.5 mm
21.8±0.8 mm
33.3±1.2 mm
33.3±1.2 mm
17.5±0.8 mm
28.6±0.8 mm
19.1±0.7 mm
30.2±0.4 mm
30.2±0.7 mm
30.2±0.4 mm
41.3±0.4 mm
19.1±0.8 mm
30.2±0.5 mm
30.2±0.8 mm
2) Oil tight types
Actuator
Hinge lever
Hinge short roller lever
Hinge roller lever
Operating Force
OF, max.
0.69 N
1.67 N
0.98 N
Release Force RF,
min.
0.14 N
0.42 N
0.20 N
Pretravel PT, max.
10 mm
4.5 mm
7.5 mm
Movement
Differential MD,
max.
1.5 mm
0.7 mm
1.3 mm
Overtravel OT,
min.
5.6 mm
2.4 mm
3.6 mm
Operating Position
OP
19.1±0.7 mm
30.2±0.4 mm
30.2±0.7 mm
CONTACT FORM
■
SPDT
■
Reversed action type
COM
NO NC
COM
NC NO
Contact return when actuator operates.
Even in the free position (FP), excellent vibration resistance and
shock resistance owing to immobilization by external force.
TERMINAL STYLE
■
Solder terminal
■
Screw terminal
9.1
6.3
49.2
49.2
C
N.O.
CIRCUT
NO
NC
17.5
17.5
N.C.
CIRCUT
Terminal plate
19.8
M4 screw P0.7
20.2
Note: The position of reversed action type of NO and NC is reverse.
–3–
AECTB8E 201709-T
AM1 (NZ) Basic Switches
DIMENSIONS
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
To Be Discontinued
Last time buy: September 30, 2018
(Unit: mm) General tolerance:
±0.4
■

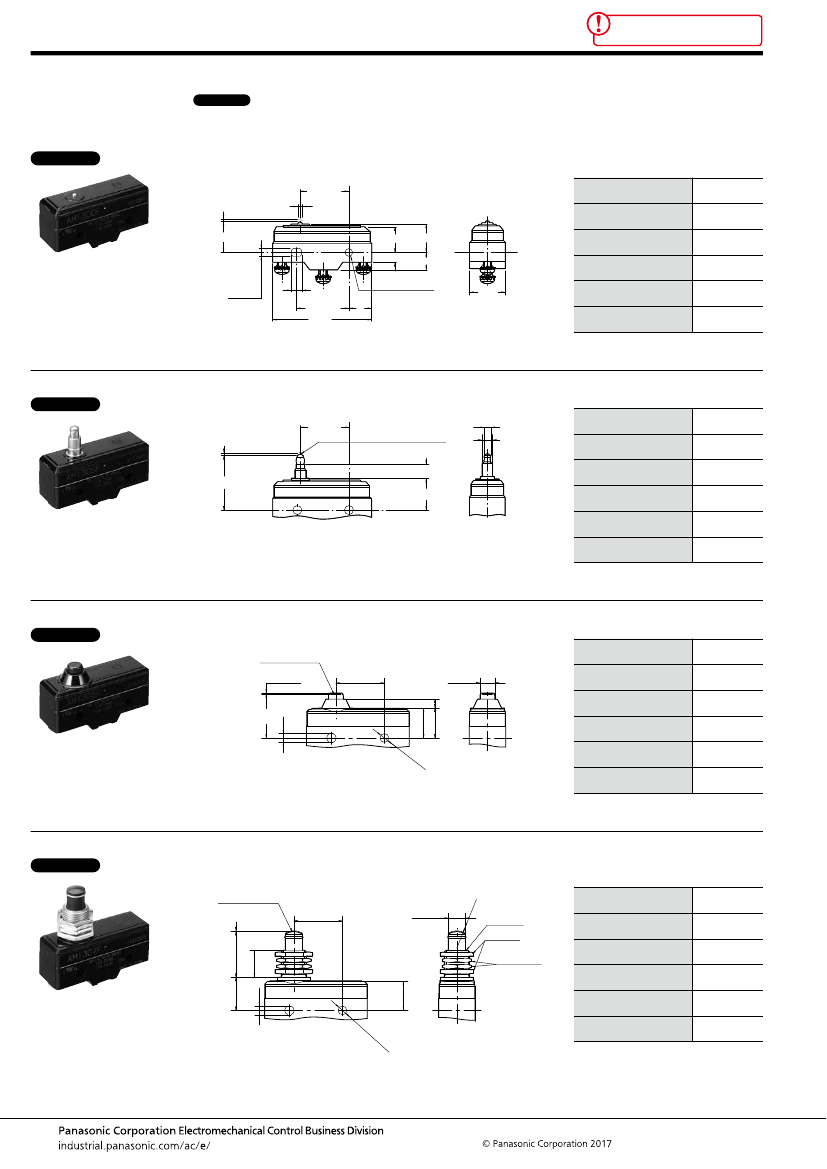

Standard types
Pin plunger
CAD Data
The photograph is a case of a screw terminal. The dimension is an intersection except a terminal section.
Please refer to “TERMINAL STYLE” for the shape and size of terminal section.
23.3±0.3
PT
2.4±0.15 dia.
Operating Force OF, max.
Release Force RF, min.
14.6
5.4
15
9.1
3.63 N
1.12 N
0.4 mm
0.05 mm
0.13 mm
15.9±0.4 mm
OP
Pretravel PT, max.
Movement Differential
MD, max.
17.5
AM1100F (Solder terminal)
AM1300F (Screw terminal)
4.2
+0.1
−0.05
4.5±0.1
25.4±0.1
49.2
4.2
+0.1
dia. hole
−0.05
11.9
Overtravel OT, min.
Operating Position OP
Overtravel plunger
CAD Data
23.3±0.3
PT
Plunger: Hardening steel
4 dia.
6.35 dia.
Operating Force OF, max.
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
Overtravel OT, min.
Operating Position OP
3.63 N
1.12 N
0.4 mm
0.05 mm
1.5 mm
28.2±0.5 mm
8.4
OP
15
AM1105F (Solder terminal)
AM1305F (Screw terminal)
Compact overtravel plunger
CAD Data
Plunger: Plastic
PT
0.4 max.
23.3±0.3
4.2
21.2±0.5
14.3
14.5
OP
Operating Force OF, max.
7.1 dia.
3.63 N
1.12 N
0.4 mm
0.05 mm
1.5 mm
21.2±0.5 mm
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
Overtravel OT, min.
Operating Position OP
4.2
+0.10
−0.05
AM1106F (Solder terminal)
AM1306F (Screw terminal)
4.
2
− +
0.
0. 10
05
Panel mount plunger
CAD Data
Plunger: Plastic
PT 0.4 max.
OP
21.8±0.8
The photograph is a case of a screw terminal. The dimension is an intersection except a terminal section.
Please refer to “TERMINAL STYLE” for the shape and size of terminal section.
23.3±0.3
8.25 dia.
R8
Operating Force OF, max.
M12
×
P1
Lock nut
(2 thick)
Nut (2 thick)
3.63 N
1.12 N
0.4 mm
0.05 mm
5.6 mm
21.8±0.8 mm
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
Overtravel OT, min.
Operating Position OP
16±0.5
AM1107F (Solder terminal)
AM1307F (Screw terminal)
4.
2
+
−
0 0.1
.0
5
di
a.
14.3
4.2
+0.10
−0.05
13.1
–4–
AECTB8E 201709-T
To Be Discontinued
Last time buy: September 30, 2018
AM1 (NZ) Basic Switches

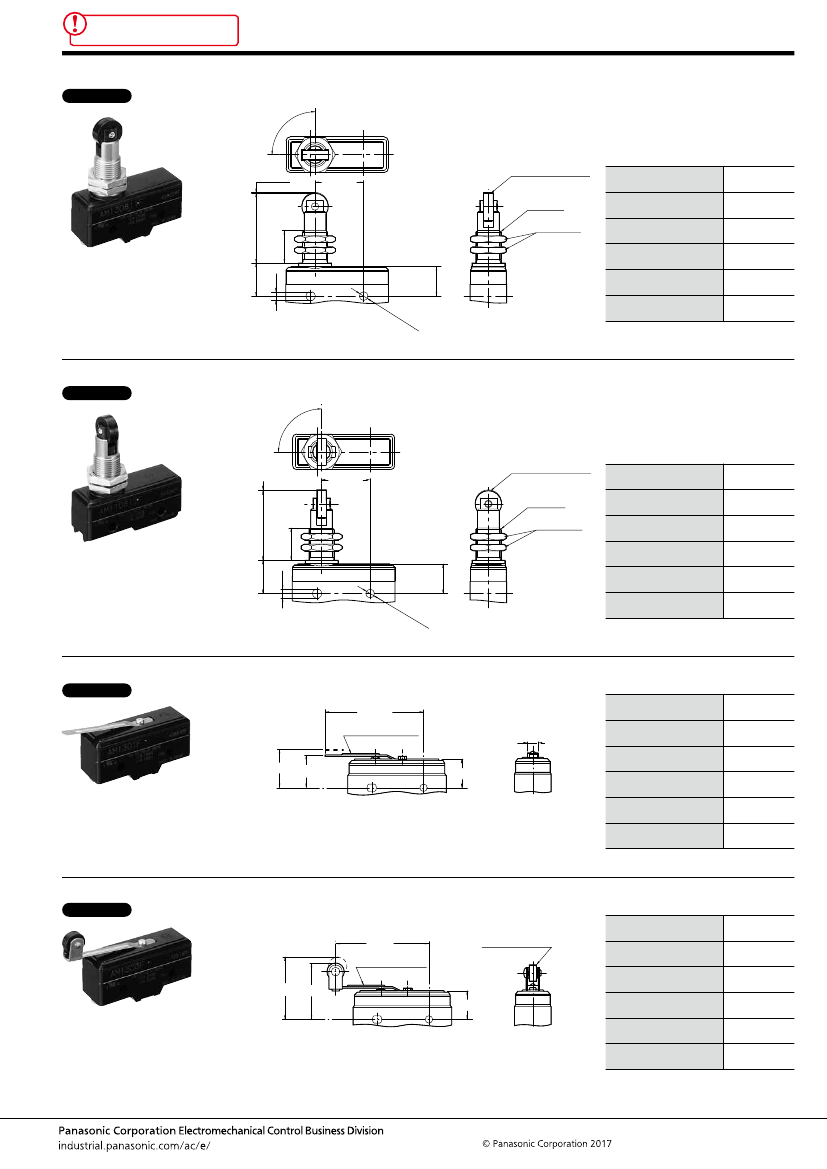

Panel mount roller plunger
CAD Data
90
°
PT
0.4 max.
23.3±0.3
Roller 12.7 dia.
×
4.6
: Plastic
M12
×
P1
Nut (2 thick)
Operating Force OF, max.
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
3.63 N
1.12 N
0.4 mm
0.05 mm
3.6 mm
33.3±1.2 mm
OP 33.3±1.2
16±0.5
14.3
AM110811F (Solder terminal)
AM130811F (Screw terminal)
4.2
+0.10
−0.05
15.5
Overtravel OT, min.
Operating Position OP
4.2
+
−
00.1
.05
dia
.
Panel mount cross roller plunger
CAD Data
90
°
Dimensions and Operating characteristics are the same
as those of Panel mount roller plunger type. However,
the roller joins the switch body at an angle of 90°.
PT 0.4 max.
23.3±0.3
Roller 12.7 dia.
×
4.6
: Plastic
M12
×
P1
Operating Force OF, max.
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
3.63 N
1.12 N
0.4 mm
0.05 mm
3.6 mm
33.3±1.2 mm
OP
33.3±1.2
Nut (2 thick)
15.5
4.2
+0.10
−0.05
14.3
16±0.5
AM110812F (Solder terminal)
AM130812F (Screw terminal)
Overtravel OT, min.
Operating Position OP
4.2
+
−
00.1
.05
dia
.
Flexible leaf lever
CAD Data
49.6±0.8
Leaf: Stainless steel
4.8
Operating Force OF, max.
Release Force RF, min.
Pretravel PT, max.
1.47 N
0.14 N
4 mm
1.3 mm
1.6 mm
17.5±0.8 mm
FP
OP
14.6
Movement Differential
MD, max.
Overtravel OT, min.
Operating Position OP
AM1101F (Solder terminal)
AM1301F (Screw terminal)
Flexible roller leaf lever
CAD Data
46±0.8
Leaf: Stainless steel
FP
OP
14.6
Roller 9.5 dia.×4:
Plastic
Operating Force OF, max.
Release Force RF, min.
Pretravel PT, max.
Movement Differential
MD, max.
Overtravel OT, min.
Operating Position OP
1.47 N
0.14 N
4 mm
1.3 mm
1.6 mm
28.6±0.8 mm
AM1103F (Solder terminal)
AM1303F (Screw terminal)
–5–
AECTB8E 201709-T
京公网安备 11010802033920号
EEWORLD
