3.13.026.506/0000: DescriptionKeylock switch MICROMEC Keylock switch IP54 90; CategoryMechanical and electronic products switch Key lock switch; File Size119KB，4 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.13.026.506/0000 Overview

Keylock switch MICROMEC Keylock switch IP54 90

3.13.026.506/0000 Parametric

Parameter Name	Attribute value
Maker	RAFI
Product Category	key lock switch
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
Lamp type	-
Current rating	100 mA
Voltage ratingDC	35 V
Power rating	1 W
Termination type	Solder Terminal
index	90 deg
Number of locations	5 Position
IP rating	IP54
Contact plating	Gold
series	MICROMEC
Flammability rating	UL 94 HB
Factory packaging quantity	2

Preview

Download Datasheet

View All

04.12.2018

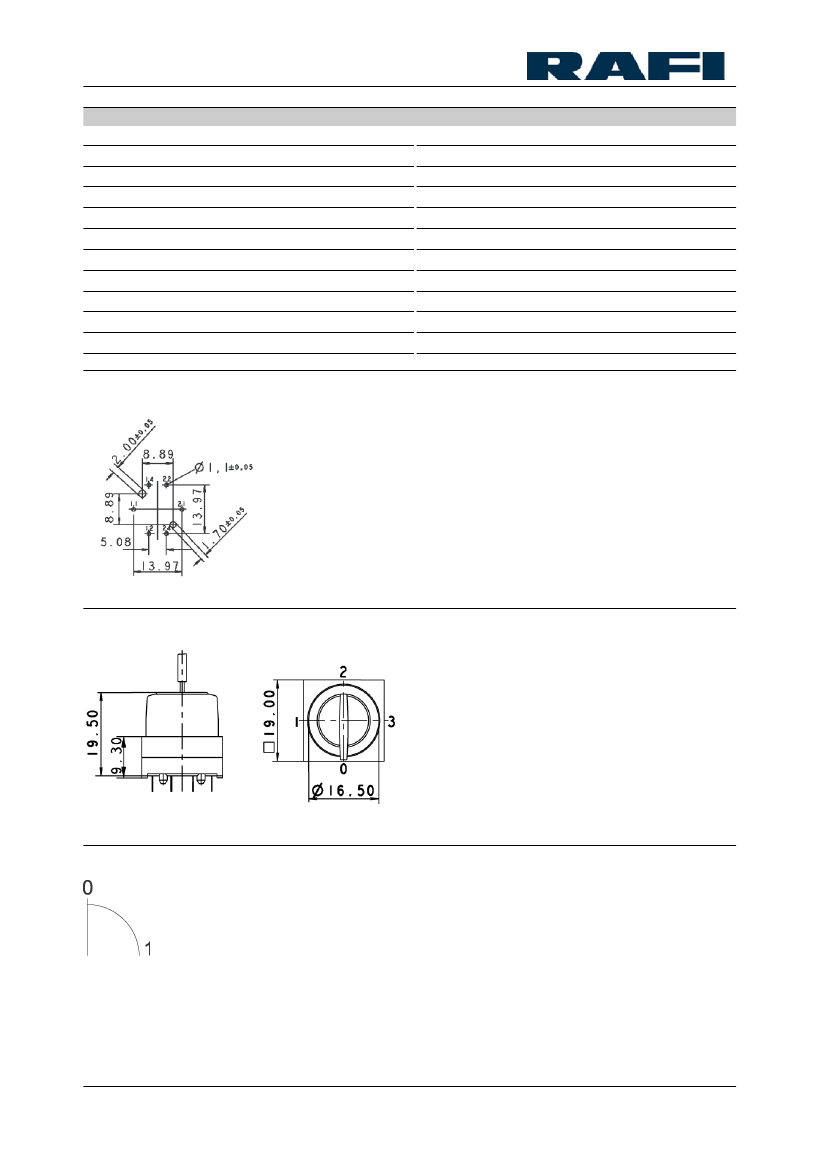

MICROMEC - Keylock switch IP54

3.13.026.506/0000

2 keys included.

Other lock variants available on request.

General information

Color

Form of collar

Dimensions

Length of collar

Width of collar

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact function

Contact materials

Illuminability

Lock

Wafers

Lock type

Number of locking positions

Main key

Key removal position

Mechanical characteristics

Switching torque

Robustness max.

Dielectric strength AC min.

Rated power max.

Electrical characteristics

Rated voltage

Rated current max.

Contact resistance when new max.

Contact resistance acc. to life max.

Insulation resistance

ESD strength max.

light grey

square

19 mm

19.5 mm

soldering

tin-plated

cross contact self cleaning

latching

Au alloy

Micromec

001

500

on request

0+1

0.04 ... 0.10 Nm

2 Nm

500 V

2 ... 35 V

100 mA

100 mΩ

200 mΩ

8 kV

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
