SQCSVA560GAJME: DescriptionMultilayer Ceramic Capacitor MLCC - SMD/SMT 250V 56pF 2% 603; CategoryPassive components capacitor Ceramic capacitor MLCC, multilayer ceramic capacitors Multilayer ceramic capacitor MLCC - SMD/SMT; File Size1MB，7 Pages; ManufacturerAVX

Download Datasheet Parametric View All

SQCSVA560GAJME Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SQCSVA560GAJME	-	-	View	Buy Now

SQCSVA560GAJME Overview

Multilayer Ceramic Capacitor MLCC - SMD/SMT 250V 56pF 2% 603

SQCSVA560GAJME Parametric

Parameter Name	Attribute value
Maker	AVX
Product Category	Multilayer Ceramic Capacitor MLCC - SMD/SMT
Shipping restrictions	Mouser does not currently sell this product.
RoHS	N
terminal	Standard
capacitance	56 pF
Voltage ratingDC	250 VDC
Tolerance	2 %
shell code - in	0603
Shell code - mm	1608
high	0.762 mm
Minimum operating temperature	- 55 C
Maximum operating temperature	+ 125 C
product	RF Microwave / High Q
Termination type	SMD/SMT
series	SQ
Encapsulation	Reel
length	1.6 mm
Package/box	0603 (1608 metric)
type	RF Capacitor Low ESR High Q
width	0.813 mm
Factory packaging quantity	4000

Preview

Download Datasheet

View All

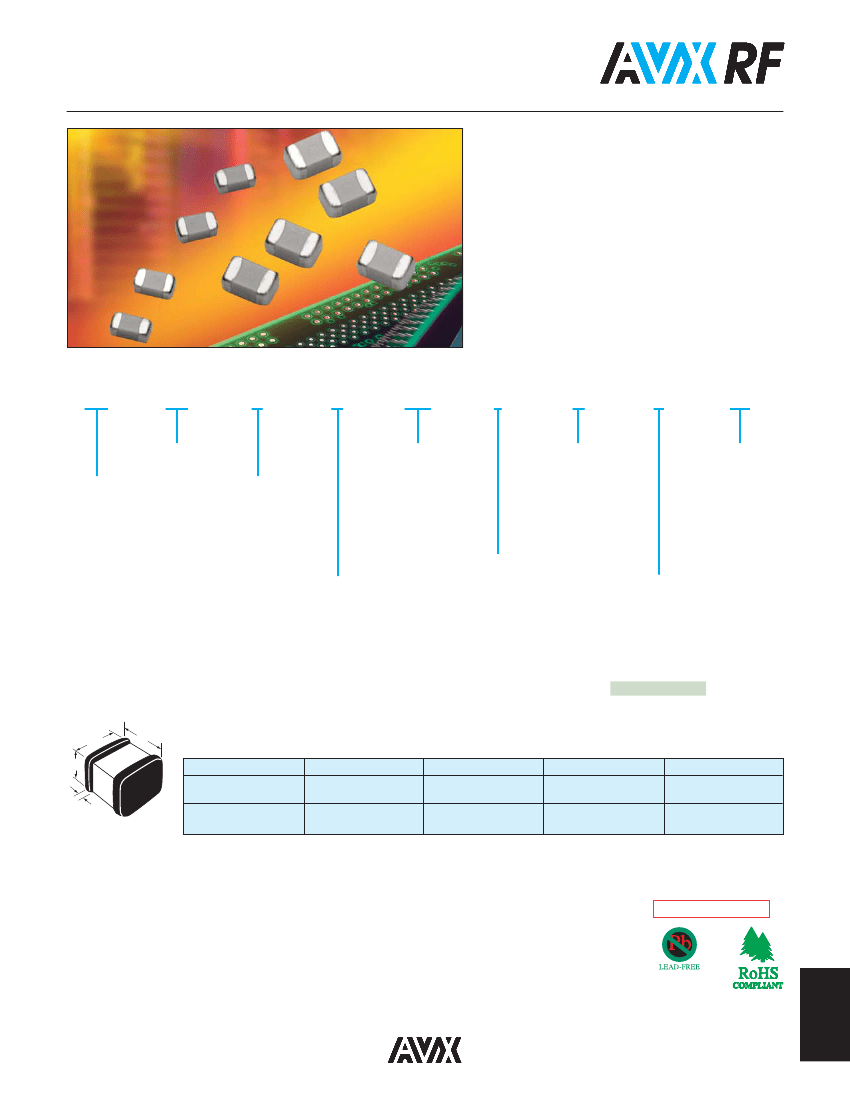

Microwave MLC’s

SQCS (0603) SQCF (0805) Ultra Low ESR MLC

FEATURES:

•

Low ESR

High Q

High Self Resonance

Capacitance Range 0.1 pF to 240 pF

EIA Size

APPLICATIONS:

•

RF Power Amplifiers

Low Noise Amplifiers

Filter Networks

Point to Point Radios

HOW TO ORDER

100

Case Size

CS = 0603

CF = 0805

Capacitance

Voltage

Code

V = 250V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

Packaging Code

1A = 7" Reel Unmarked

ME = 7" Reel Marked

* Vertical T&R available

* 500 piece reels available

AVX Style

Temperature

Coefficient Code

A = 0±30ppm/°C

Capacitance

Tolerance Code

A = ±.05 pF

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

Termination

Style Code

**7

= Ag/Ni/Au

J = Nickel Barrier

Sn/Pb (60/40)

**T

= 100% Tin

(Standard)

**RoHS compliant

MECHANICAL DIMENSIONS:

Case

SQCS

inches (millimeters)

Width (W)

.032±.006

(.813±.152)

.049±.008

(1.24±.200)

A 1J

Length (L)

.063±.006

(1.60±.152)

.079±.008

(2.01±.200)

Thickness (T)

.030 Max.

(.762)

.045 Max.

(1.14)

Band Width (bw)

.014±.006

(.357±.152)

.014±.006

(.357±.152)

SQCF

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

—8mm carrier

—7" reel = 4000 pcs (500 piece options)

Not RoHS Compliant

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

12132017

199
