6GHz-compatible antenna connector
GT16G Series

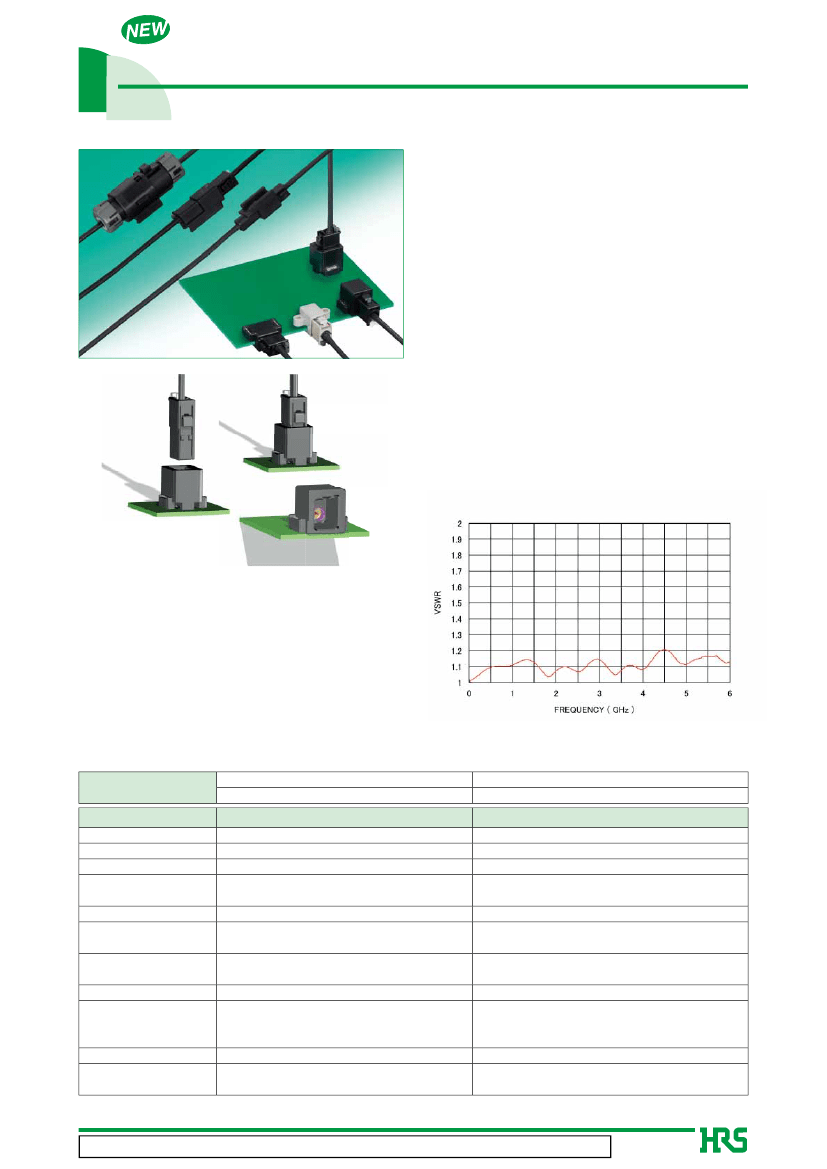

■Features
●
Superior high frequency performance :
V.S.W.R. is 1.5 in max (DC to 6GHz)
●
Satisfies rigorous test conditions for automotive devices
●
Robust lock design provides a tactile click
•
Lock strength : 98N min
●
Many variations
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
•
PCB connectors
SMT type, mid-mount type, lead reflow type
•
In-line connectors
Retainer-less type, Retainer type, bracket type,
water-proof type
●
RoHS compliant
◆
Applications :
Automotive WiFi/Bluetooth, V2X, DSRC, etc.
■High
frequency performance
●
V.S.W.R. maximum of 1.5 under all frequencies
in a range between DC and 6GHz, presenting
a superior high frequency performance.
●
Available as connectors for automotive ETC,
automotive WiFi/Bluetooth.
*Data
taken based on GT16GH-1P-DSA and GT16G-1S-HU (24).
■Product
Specifications
Ratings
Rated current : 1A
Operating temperature range : -30°C to 105°C
Rated voltage : 250V AC
Storage temperature range : -40°C to 105°C
Items
Specifications
Conditions
1. Insulation resistance A min of 100Mø
Measured at 500V DC
2. Withstanding voltage No flashover or dielectric breakdown.
650V AC for 1 minute
Center contact : 30mø max, Outer contact : 60mø max Measured at 1A DC
3. Contact resistance
Measured in a range between 0 and 6GHz,
4. High frequency
V.S.W.R. : 1.5 max
Characteristic impedance : 50ø
5. Heat resistance
Center contact : 60mø max, Outer contact : 120mø max 105°C for 300 hours
6. Low temperature
Center contact : 60mø max, Outer contact : 120mø max -40°C for 120 hours
resistance
7. Vibration resistance
8. Humidity resistance
9. Temperature cycles
10. Mating durability
11. Soldering heat
resistance
No electrical discontinuity over 10µs.
Insulation resistance : 100Mø min
20 to 200Hz, acceleration : 43.1m/s , 3 axial
directions, 3 hours
60°C, humidity : 90 to 95%, 96 hours
2
Center contact : 60mø max, Outer contact : 120mø Temperature -40°C
→
Room temperature
→
105°C
max
→
Room temperature, 30 minutes
→
5 minutes
→
No damage, cracks or loosened parts.
30 minutes
→
5 minutes, 1000 cycles
Center contact : 60mø max, Outer contact : 120mø max 30 mating cycles
•
Reflow : Twice with specified temperature profile.
No deformation or excessive looseness of the
terminals.
•
Soldering iron temperature : 350°C, Max10sec.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2016.12
1
GT16G Series●6GHz-compatible antenna connector
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
PCB connector/Inline connector
GT 16G
*
− 1 P − H
❹ ❺
Series name : GT
Series No. : 16C, 16G, 5W
Series Sub No. : Serial No.
Number of signal contacts : 1
❻
Contact type
PCB connector
Inline connector
P
S
P
PP
P/S
H
DSA
HU
R
: Pin header
: Socket
: Inline plug
: Inline plug with bracket
: Available for both male and female
: Right angle
: Straight
: Housing
: Retainer
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Product type
PCB connector
Inline connector
Center connector/outer connector
GT 16G
*
− 2428 SCF
❹
❺
Form/Packaging
Center SCF : Socket crimp contact/reel
PCF : Plug crimp contact/reel
Outer SC : Socket crimp contact/piece
PC : Plug crimp contact/piece
Series name : GT
Series No. : 16G
Series Sub No. : Serial No.
Applicable wire size
Center 2428
：
24 to 28
ＡＷＧ
Outer /1.6-2.9 : 1.5D-2W or equivalent
Insulator/contact ferrule/outer ferrule
GT 16G − SC
Series name : GT
Series No. : 16G
Part name
SC : Female insulator
PC : Male insulator
FR : Contact ferrule
1.5DHQS : Outer Ferrule
■GT16G
Series Mating Table
Female Connector
Male Connector
SMT type
GT16GM-1S-ASSY
(Retainer-less type)
PCB mid-mount type
Inline type
Inline bracket type
SMT type

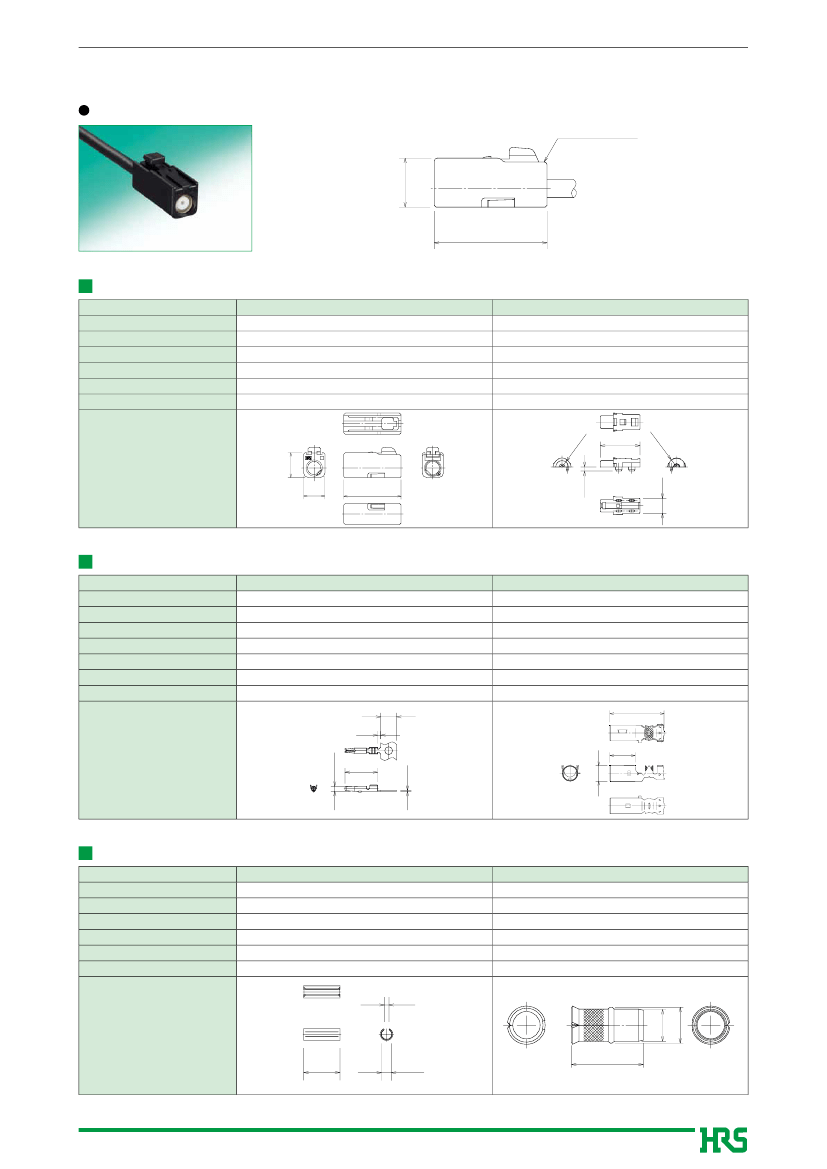

GT16G-1S-ASSY

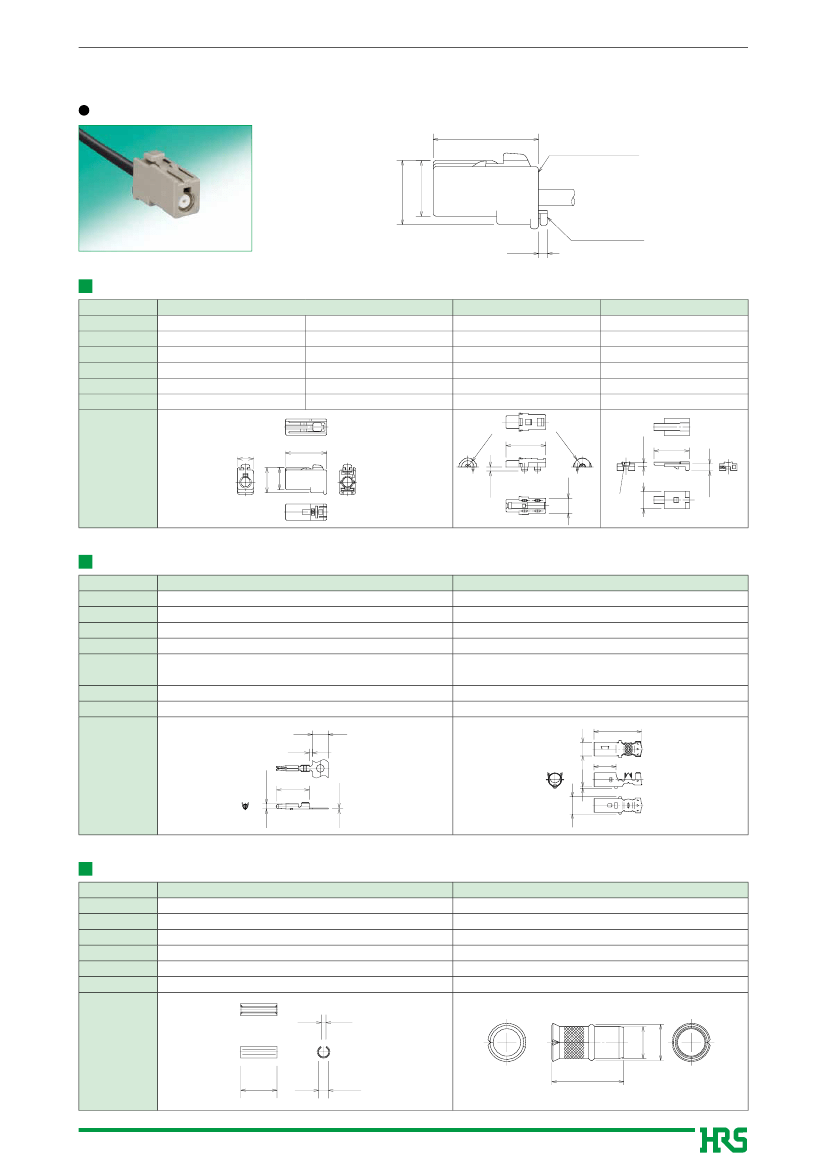

GT16GT-1S-ASSY
(Retainer type)
GT16GMP-1P-H
GT16GM-1P-H
GT16GM-1P-ASSY
GT16GMN-1PP-ASSY
GT16GD-1P-H
GT16GT-1P-H
GT16GH-1P-H
GT16G-1P-H
PCB mid-mount type
Lead reflow type

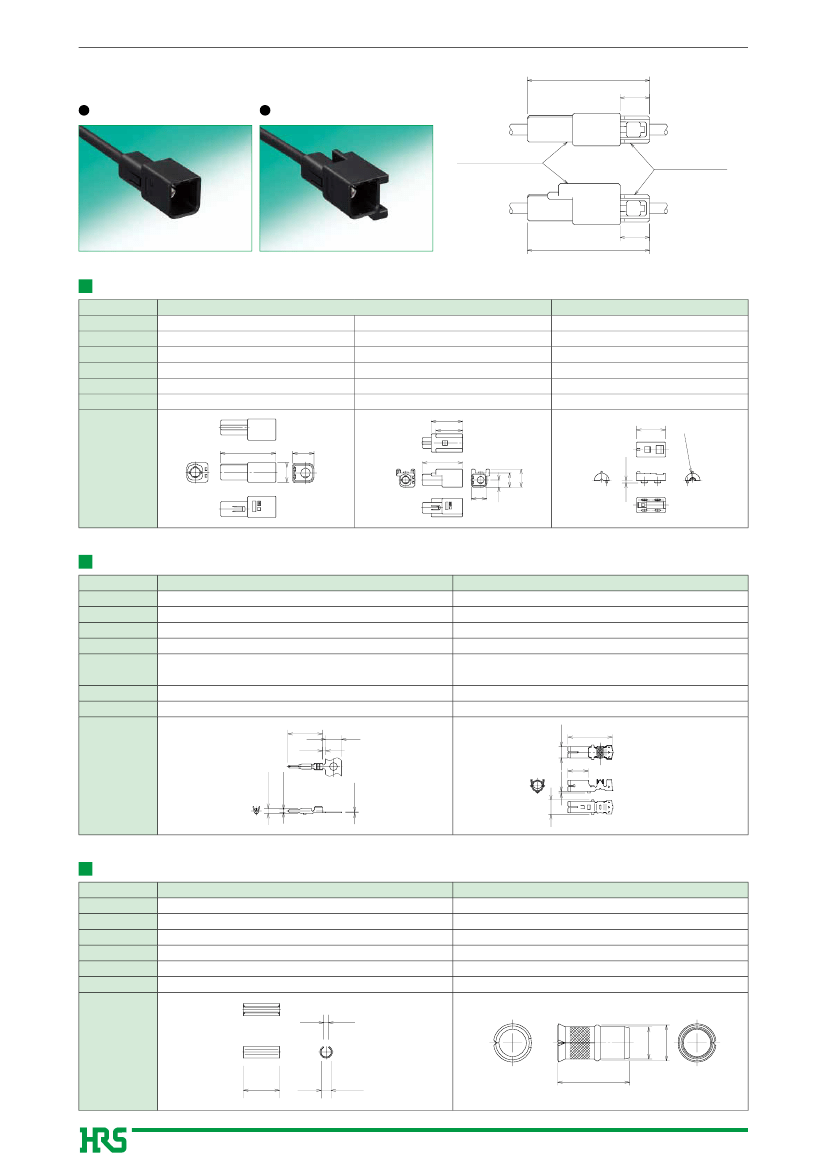

Inline bracket type
GT16GL-1P-H(71)D
GT16GRL-1P-H
GT16GH-1P-DSA
GT16GT-1PP-ASSY
GT16GW-1P-ASSY
GT16GW-1S-ASSY
Water-proof inline type
2
