1N5391: Description1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15; CategoryDiscrete semiconductor diode; File Size45KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

1N5391 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5391	-	-	View	Buy Now

1N5391 Overview

1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15

1N5391 Parametric

Parameter Name	Attribute value
Maker	LRC
package instruction	O-PALF-W2
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	5 µA
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY, LTD.

1N5391– 1N5399

1.5A

1.5A GENERAL DIODES

Maximum Average

Rectified Current

@ Half-Wave

Resistive Load 60Hz

I

O

@ T

L

A

AV

ºC

Maximum

Forward Peak

Surge Current @

8.3ms Superimposed

I

FM

(Surge)

A

PK

Maximum

Reverse

Current @ PRV

@ T

A

=25ºC

I

R

TYPE

Maximum

Peak Reverse

Voltage

PRV

V

PK

Maximum

Forward

Voltage

@ T

A

=25ºC

I

FM

A

PK

V

FM

V

PK

Package

Dimensions

µAdc

1N5391

1N5392

1N5393

1N5394

1N5395

1N5396

1N5397

1N5398

1N5399

50

100

200

300

400

500

600

800

1000

1.5

70

50

5.0

1.5

1.4

DO – 15

1.0(25.4)

MIN

.300(7.6)

.230(5.8)

1.0(25.4)

MIN

.034(0.9)

.028(0.7)

DIA

.140(3.6) DIA

.104(2.6)

DO – 15

24A–1/2

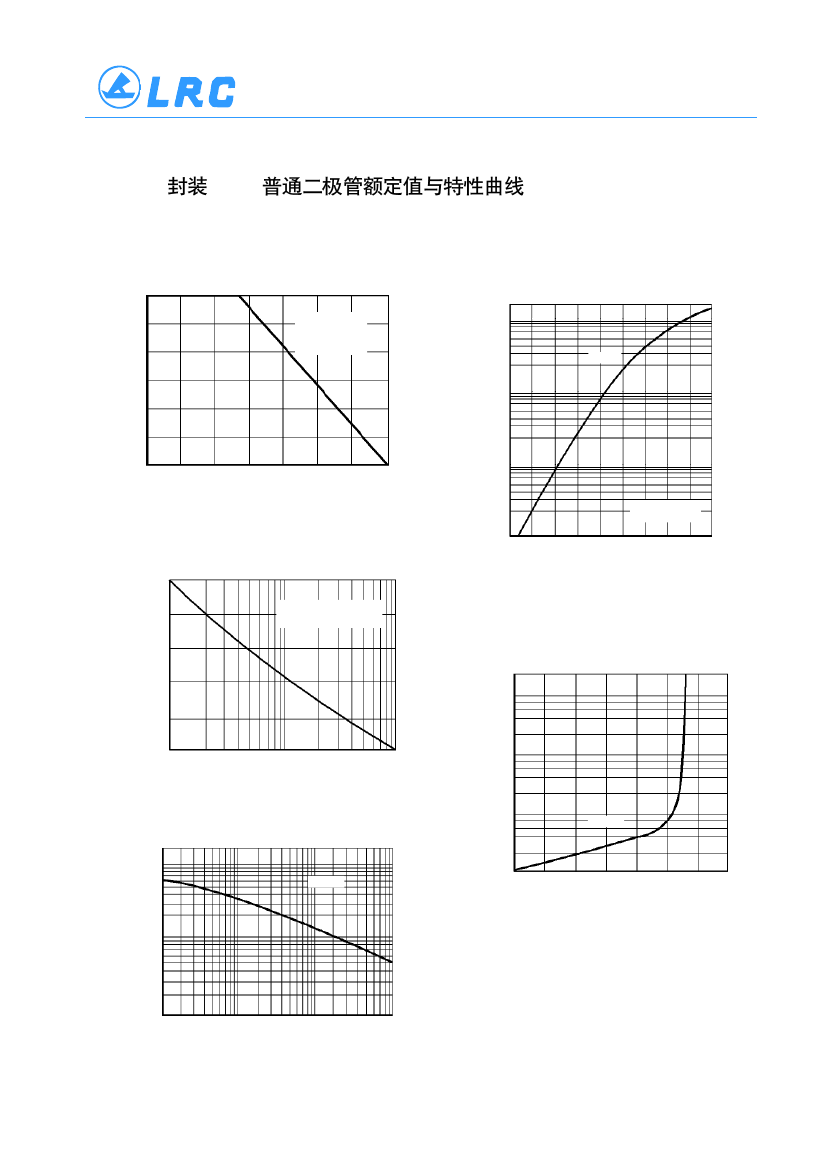

1N5391 Related Products

	1N5391	1N5392	1N5393	1N5394	1N5395	1N5396	1N5397	1N5398
Description	1.5 A, 50 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 100 V, SILICON, RECTIFIER DIODE, DO-41	RECTIFIER DIODE, DO-15	1.5 A, 300 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 400 V, SILICON, RECTIFIER DIODE, DO-15	1.5 A, 500 V, SILICON, RECTIFIER DIODE, DO-204AL	1.5 A, 600 V, SILICON, RECTIFIER DIODE, DO-41	1.5 A, 800 V, SILICON, RECTIFIER DIODE, DO-204AL
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V	1.4 V
JEDEC-95 code	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15	DO-15
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	50 V	100 V	200 V	300 V	400 V	500 V	600 V	800 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maker	LRC	LRC	LRC	-	LRC	LRC	LRC	LRC
