3M
™

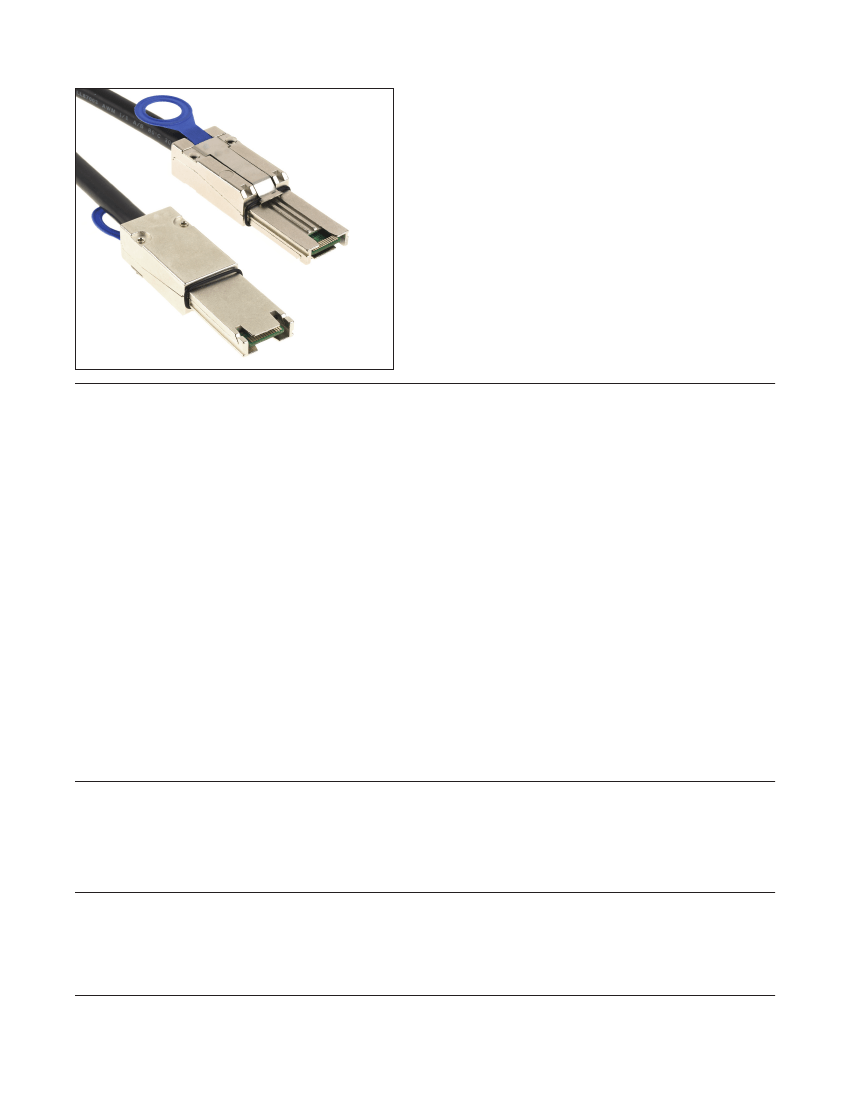

Mini Serial Attached SCSI (miniSAS) Cable Assembly
External, Signal, Straight Termination
•
•
•
•
•
•
•
•
•
8M26 Series
Capable of 6 Gbps per channel data rate
26 conductor signal assembly
Multiple lengths available
Metal latch designed to promote retention
Pull tab ring provides easier unmating
Two levels of EMLB for hot plugging
Multiple key options available
Tested to SAS Specification, SAS-2
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: February 26, 2008
TS-2212-B
Sheet 1 of 4
Physical
Backshell:
Material: Zinc Diecast
Plating: 30 μ” min. [ 0.76 μm ] Nickel
Contact:
PCB Material: FR4
Underplating: 50 μ” min. [ 1.27 μm ] Nickel
Wiping Area: 30 μ” min. [ 0.76 μm ] Gold
Cable:
Conductor: Tin Plated Solid Conductor (AWG depends on length)
Drain Wire: Tin Plated Solid Conductor
Dielectric: Foam Polyethylene
Shield: Mylar
Jacket: Non-PVC
Pulltab:
Material: Nylon
Color: Blue
Electrical
Current Rating:
Per Contact: 0.5 A
Insulation Resistance:
10
3
MΩ min.
Withstanding Voltage:
300 V
DC
min. for 1 minute
Environmental
Operating Temperature:
-20°C to +75°C
UL File No.: E86982
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini Serial Attached SCSI (miniSAS) Cable Assembly
External, Signal, Straight Termination
Pinout
8M26 Series
P1
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
P2
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
P1
GND
Tx 0+
Tx 0-
GND
Tx 1+
Tx 1-
GND
Tx 2+
Tx 2-
GND
Tx 3+
Tx 3-
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
P2
GND
Rx 0+
Rx 0-
GND
Rx 1+
Rx
GND
Rx 2+
Rx 2-
GND
Rx 3+
Rx 3-
GND
Ordering Information
8M26 - AA04XX - X.XX
Keying options:
01 = Both ends: keys 2, 4, 6
02 = P1: keys 2, 4; P2: keys 4, 6
1
(RIA E1 & C1 Apply)
Length in meters:
0.25 m
0.50 m
1.00 m
2.00 m
3.00 m
4.00 m
2
1 If other keying options are desired, contact your local 3M sales representative.
2 If other lengths are desired, contact your local 3M sales representative.
TS-2212-B
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/717/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-D
