.050" 28 AWG Stranded, Mass Terminatable Pair, PVC
1700 Series
• Wires are color-coded for easy identification
• Twist and flat repeat has variable length option
• Can be mass terminated to a broad line of IDC
connectors
• Provides reduced crosstalk in balanced drive
applications
• 28 AWG stranded wire provides flexibility and
extended product life
• 10 color repeat
• See Regulatory Information Appendix (RIA for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 4, 2009
TS-0115-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: 10 Color Repeat with Tan Common
Marking:
Standard: None
Canadian Option:
AWM 20462 105C 300V VW1 3M NU C
AWM IA 80C 150V FT1 EU <50V
Conductors:
28 AWG, 7 × 36 AWG [ 7 ×
⌀
0.127 ] Tinned Stranded Copper
Electrical
Canada: 150V
EU: <50V
Voltage Rating:
USA: 300V
Insulation Resistance:
> 1 × 10
9
Ω/10
ft. [ 3 m ]
Balanced
Characteristic Impedance:
Unbalanced
101
Ω
122
Ω
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
15.9 pF/ft [ 52.2 pF/m ]
0.16 μH/ft [ 0.53 μH/m ]
1.61 ns/ft [ 5.28 ns/m ]
63%
13.3 pF/ft [ 43.6 pF/m ]
0.20 μH/ft [ 0.66 μH/m ]
1.63 ns/ft [ 5.35 ns/m ]
62%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
USA: -20°C to +105°C
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 20462
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Canada: -20°C to +80°C
Canada: FT1
3M
™
Twisted Pair Flat Cable
.050" 28 AWG Stranded, Mass Terminatable Pair, PVC
Number of
Conductors
10 (5 pair)
14 (7 pair)
16 (8 pair)
20 (10 pair)
26 (13 pair)
34 (17 pair)
36 (18 pair)
40 (20 pair)
50 (25 pair)
60 (30 pair)
64 (32 pair)
A
1700 Series
Dimension A
0.50 [ 12.7 ]
0.70 [ 17.8 ]
0.80 [ 20.3 ]
1.00 [ 25.4 ]
1.30 [ 33.0 ]
1.70 [ 43.2 ]
1.80 [ 45.7 ]
2.00 [ 50.8 ]
2.50 [ 63.5 ]
3.00 [ 76.2 ]
3.20 [ 81.3 ]
Dimension B
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 16.51 ]
0.750 ± .015 [ 19.05 ]
0.950 ± .015 [ 24.13 ]
1.250 ± .015 [ 31.75 ]
1.650 ± .020 [ 41.91 ]
1.750 ± .020 [ 44.45 ]
1.950 ± .020 [ 49.53 ]
2.450 ± .020 [ 62.23 ]
2.950 ± .020 [ 74.93 ]
3.150 ± .020 [ 80.01 ]
Variable Flat-Repeat Length
Suffix Table
Alternative Twist and Flat Repeats
Suffix
Blank
TO
TB
TD
BP
BA
BW
Repeat (in.)
20.0
22.0
7.5
43.0
9.0
10.5
34.0
* 10 Color Repeat
Brown/Tan
Red /Tan
Orange /Tan
Yellow /Tan
Green /Tan
Blue /Tan
Violet /Tan
Gray /Tan
White /Tan
Black /Tan
Flat (in.)
2.0
4.0
1.0
3.0
1.5
2.0
2.0
3M Part
Number
1700/10
1700/14
1700/16
1700/20
1700/26
1700/34
1700/36
1700/40
1700/50
1700/60
1700/64
(OPTIONAL)
C
Note: Contact 3M for availability of additional conductor counts.

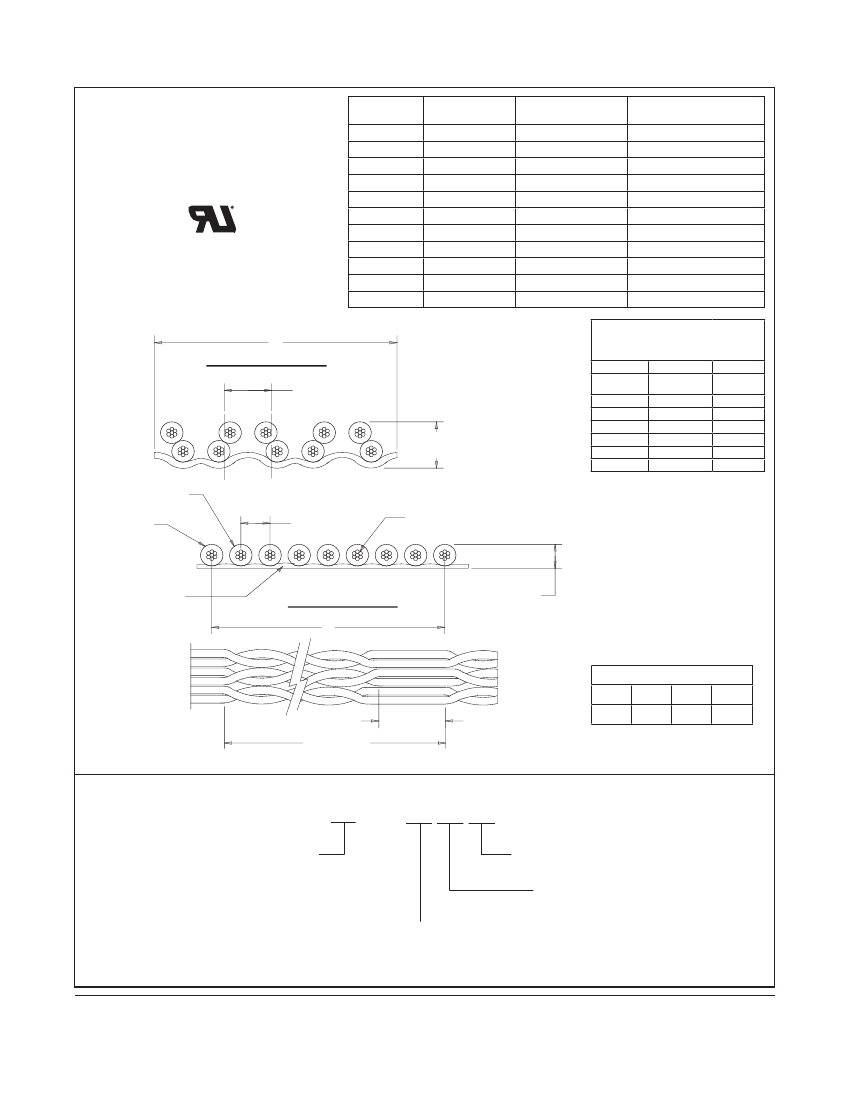

Section thru Twist
.100 Ref
[ 2.54 ]
(Standard)
.08 Ref
[ 2.0 ]
* Tan PVC
Insulation
.050 Typ
[ 1.27 ]
28 AWG, 7 X 36 AWG ( 7 X Ø 0.127) Tinned
Stranded Copper Conductors
Clear PVC Carrier
Section thru Flat
B
.043
±
.003
[ 1.09 ]
Inch
[mm]
Tolerance Unless Noted
.0
2.0
±
.3
[ 51 ]
20.0
±
.7
[ 508 ]
(See note 1)
.00
±.01
.000
±.005
Inch
±.1
[ ] Dimensions for Reference Only
Ordering Information
1700/XX XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Blank = Standard
Variable Flat-Repeat Length
(See Variable Flat-Repeat Length Suffix Table)
Number of Conductors
(See Table)
TS-0115-B
Sheet 2 of 2
Note:
1. The twist-flat repeat can be specified from 8.5 inches
(16.5 cm) to 48 inches (1.219 m), and the flat can be
specified as anything over 1 inch (2.54 cm)
2. Available in standard 100 ft and 300 ft rolls, please
specifiy when ordering. Contact 3M for availability of
custom roll lengths or other special requirements.
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
