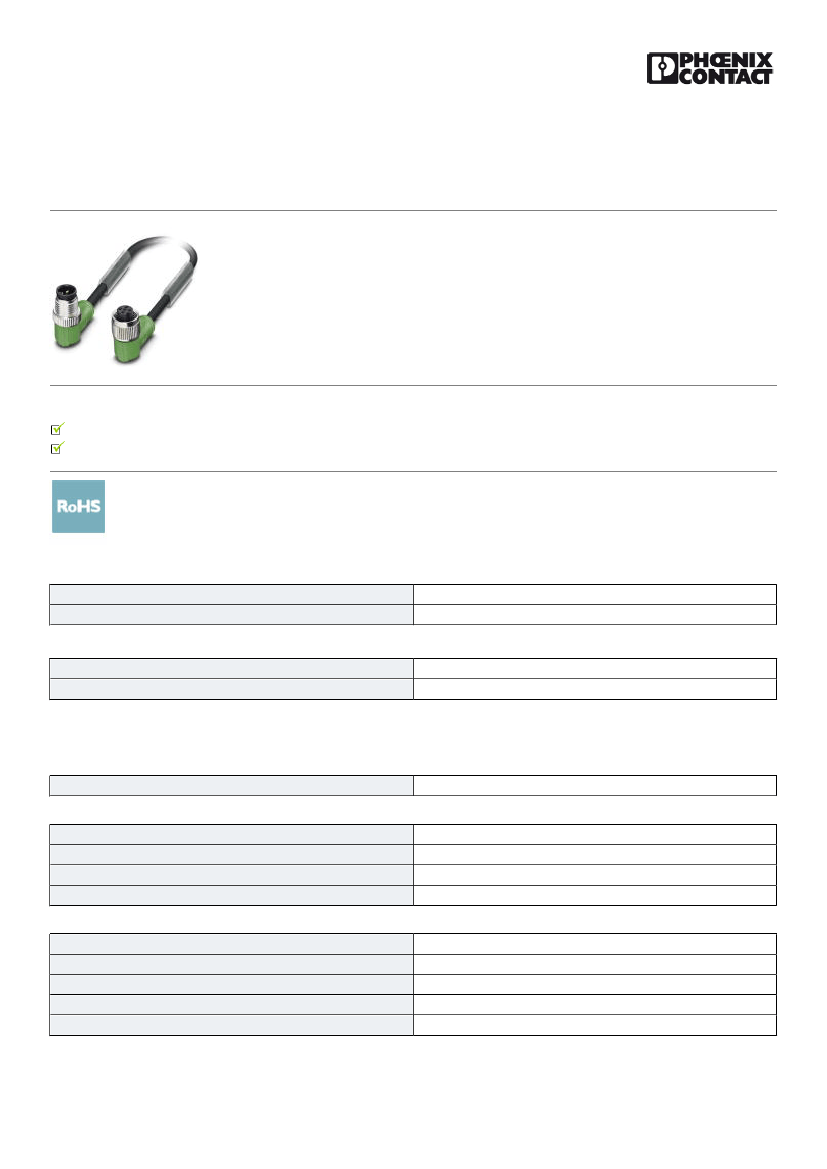

Sensor/actuator cable - SAC-5P-M12MR-M12FR/.../... - 1529506
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 5-position, Variable cable type, Plug angled M12, A-coded, on Socket angled M12, A-
coded, cable length: Free input (0.2 ... 40.0 m)
Your advantages
Easy and safe: 100% electrically tested plug-in components
Flexible solutions - configurable materials with variable cable types and cable lengths
Key Commercial Data
Packing unit
Minimum order quantity
1 pc
25 pc
Configuration
Cable type
Length [m]
PUR halogen-free black [PUR]
0.6
Technical data
Dimensions
Length of cable
Free input (0.2 ... 40.0 m)
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
4A
48 V AC
60 V DC
5
≥ 100 MΩ
11/05/2018 Page 1 / 18
https://www.phoenixcontact.com/pi/products/1529506
Sensor/actuator cable - SAC-5P-M12MR-M12FR/.../... - 1529506
Technical data
General
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
A - standard
M12 connector IEC 61076-2-101
No
Unwired
II
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Line characteristics
Note
This item is a sensor/actuator cable with a freely selectable cable type.
The technical data for all possible cable types is listed in the table below.
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
PUR/PVC gray [100]
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
PUR/PVC gray
100
LiYY-11Y
0.34 mm²
22
42x 0.10 mm
1.5 mm ±0.05 mm
≥ 0.3 mm (Core insulation)
≥ 0.38 mm (Outer cable sheath)
approx. 0.35 mm (Inner sheath)
Wire colors
Overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
brown, white, blue, black, green-yellow
5 wires around filler to the core
gray RAL 7001
5.9 mm ±0.2 mm
29.5 mm
11/05/2018 Page 2 / 18
https://www.phoenixcontact.com/pi/products/1529506
Sensor/actuator cable - SAC-5P-M12MR-M12FR/.../... - 1529506
Technical data
PUR/PVC gray [100]
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Cable weight
Outer sheath, material
Material, inner sheath
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Ambient temperature (operation)
59 mm
2000000
59 mm
5m
3 m/s
50 kg/km
PUR
PVC
PVC
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
As per UL-Style 2464
-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)
PUR, black, 5th conductor gray [115]
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
PUR, black, 5th conductor gray
115
Li9Y11Y-HF
20549 / 10493 (80°C/300 V)
5x 0.34 mm²
22
42x 0.10 mm
1.27 mm ±0.02 mm
≥ 0.21 mm
Brown, white, blue, black, gray
5 cores, twisted
black-gray RAL 7021
approx. 0.7 mm
5 mm ±0.15 mm
5xD
10 x D
4000000
50 mm
10 m
3 m/s
10 m/s²
11/05/2018 Page 3 / 18
https://www.phoenixcontact.com/pi/products/1529506
Sensor/actuator cable - SAC-5P-M12MR-M12FR/.../... - 1529506
Technical data
PUR, black, 5th conductor gray [115]
Cable weight
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
35 kg/km
PUR
PP
PP
Bare Cu litz wires
≤ 58 Ω/km
≤ 300 V
≥ 3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with UL 758/1581 FT2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
hydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
PUR/PVC yellow [140]
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
PUR/PVC yellow
140
LiY-11Y
20549
0.34 mm²
22
42x 0.10 mm
1.5 mm ±0.05 mm
approx. 0.3 mm (Core insulation)
approx. 0.35 mm (Inner sheath)
≥ 0.38 mm (Outer cable sheath)
Wire colors
Overall twist
External sheath, color
External cable diameter D
Number of bending cycles
brown, white, blue, black, green-yellow
5 wires around filler to the core
yellow
5.9 mm ±0.2 mm
2000000
11/05/2018 Page 4 / 18
https://www.phoenixcontact.com/pi/products/1529506
Sensor/actuator cable - SAC-5P-M12MR-M12FR/.../... - 1529506
Technical data
PUR/PVC yellow [140]
Bending radius
Traversing path
Traversing rate
Cable weight
Outer sheath, material
Material, inner sheath
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
59 mm
5m
3 m/s
50 kg/km
PUR
PVC
PVC
PVC
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
in accordance with DIN UL-Style 20549
PUR irradiated halogen-free orange [150]
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
AWG power supply
Conductor structure signal line
Conductor structure, voltage supply
Wire colors
Overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Outer sheath, material
Material conductor insulation
Conductor material
Conductor resistance
Nominal voltage, cable
PUR irradiated halogen-free orange
150
D12YSL11X-JB
4x 0.34 mm² (Signal line)
1x 0.5 mm² (PE connection)
22
20
42x 0.10 mm
24x 0.15 mm
Brown, blue, black, white, green/yellow
5 cores, twisted
orange RAL 2003
5.2 mm ±0.2 mm
min. 20 mm
min. 30 mm
5000000
52 mm
10 m
3 m/s
PUR
PE
Bare Cu litz wires
≤ 57.5 Ω/km (with 0.34 mm² conductor cross section)
≤ 39 Ω/km (with 0.5 mm² conductor cross section)
250 V (AC)
11/05/2018 Page 5 / 18
