3M
™

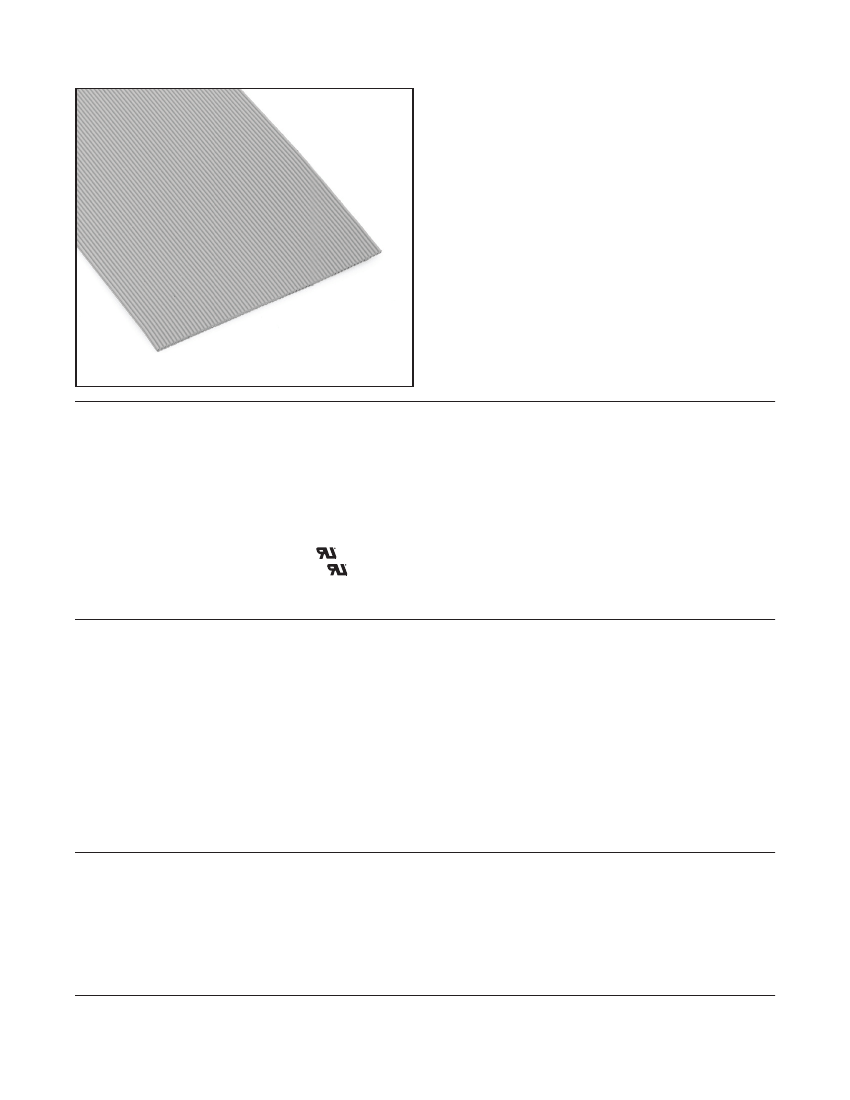

Round Conductor Flat Cable
.025" 30 AWG Solid, TPE
• Close spacing permits higher signal density
• TPE insulation provides excellent transmission
properties
• 30 AWG solid conductors on .025 inch spacing
allows for mass termination
• Zippable for branching or discrete termination
• Meets SCSI-3 Fast-20 characteristic impedance
requirements
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
3749 Series
Date Modified: November 1, 2013
TS-0068-F
Sheet 1 of 3
Physical
Insulation:
Material: Thermoplastic Elastomer (TPE)
Color: Gray
Marking:
Standard: None
C
AWM 20297 105C 150V HB 3M NU
AWM IA 105C 150V FT2 EU <50V
Canadian Option:
Conductors:
30 AWG [ Ø 0.254 ] Tinned Solid Copper
Electrical
Unbalanced
Characteristic Impedance:
90
Ω
Voltage Rating:
USA: 150V
Canada: 150V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
16.5 pF/ft [ 54.1 pF/m ]
1.48 ns/ft [ 4.86 ns/m ]
69%
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
0.13 μH/ft [ 0.43 μH/m ]
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-40°C to +105°C
Flammability Rating:
USA: UL Horizontal Canada: FT2
UL File No.: E42769, Style No: 20297
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.025" 30 AWG Solid, TPE
Number of
Conductors
10
12
14
16
20
24
26
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
30
34
36
40
50
60
68
80
100
3M Part
Number
3749/10
3749/12
3749/14
3749/16
3749/20
3749/24
3749/26
3749/30
3749/34
3749/36
3749/40
3749/50
3749/60
3749/68
3749/80
3749/100
A
B
.013
±
.005
[0.33]
.025
±
.002 Typ
[0.64]
3749 Series
Dimension A
Dimension B
0.225 +/- .004 [5.72]
0.275 ± .004 [6.99]
0.325 ± .004 [8.26]
0.375 +/- .004 [9.53]
0.475 ± .004 [12.07]
0.575 +/- .004 [14.61]
0.625 ± .004 [15.88]
0.725 +/- .006 [18.42]
0.825 ± .006 [20.96]
0.875 ± .006 [22.23]
0.975 ± .006 [24.77]
1.225 ± .006 [31.12]
1.475 ± .009 [37.47]
1.675 ± .009 [42.55]
1.975 ± .011 [50.17]
2.475 ± .012 [62.87]
0.250 +/- .006 [6.35]
0.300 ± .006 [7.62]
0.350 ± .006 [8.89]
0.400 +/- .006 [10.16]
0.500 ± .006 [12.70]
0.600 +/- .006 [15.24]
0.650 ± .006 [16.51]
0.750 +/- .009 [19.05]
0.850 ± .009 [21.59]
0.900 ± .009 [22.86]
1.000 ± .009 [25.40]
1.250 ± .009 [31.75]
1.500 ± .012 [38.10]
1.700 ± .012 [43.18]
2.000 ± .015 [50.80]
2.500 ± .015 [63.50]
[ ] Dimensions for Reference Only
.025
±
.003
[ 0.64 ]
30 AWG [0.254] Tinned
Solid Copper Conductors
TPE Insulation
Note: Blue marking on one edge of cable designates wire #1.
Ordering Information
3749 / XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
