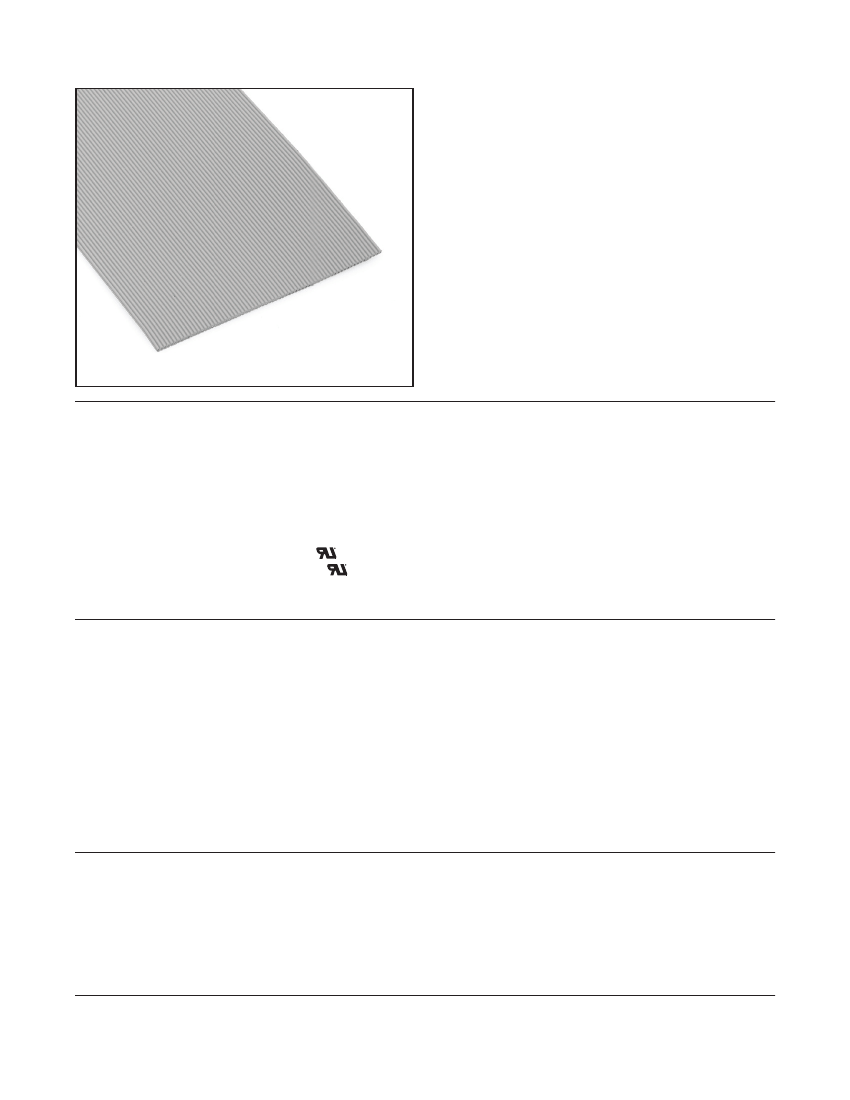

3M
™
Round Conductor Flat Cable
.025" 30 AWG Solid, TPE
• Close spacing permits higher signal density
• TPE insulation provides excellent transmission
properties
• 30 AWG solid conductors on .025 inch spacing
allows for mass termination
• Zippable for branching or discrete termination
• Meets SCSI-3 Fast-20 characteristic impedance
requirements
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
3749 Series
Date Modified: November 1, 2013
TS-0068-F
Sheet 1 of 3
Physical
Insulation:
Material: Thermoplastic Elastomer (TPE)
Color: Gray
Marking:
Standard: None
C
AWM 20297 105C 150V HB 3M NU
AWM IA 105C 150V FT2 EU <50V
Canadian Option:
Conductors:
30 AWG [ Ø 0.254 ] Tinned Solid Copper
Electrical
Unbalanced
Characteristic Impedance:
90
Ω
Voltage Rating:
USA: 150V
Canada: 150V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
16.5 pF/ft [ 54.1 pF/m ]
1.48 ns/ft [ 4.86 ns/m ]
69%
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
0.13 μH/ft [ 0.43 μH/m ]
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-40°C to +105°C
Flammability Rating:
USA: UL Horizontal Canada: FT2
UL File No.: E42769, Style No: 20297
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.025" 30 AWG Solid, TPE
Number of
Conductors
10
12
14
16
20
24
26
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.05
.000
±.010
30
34
36
40
50
60
68
80
100
3M Part
Number
3749/10
3749/12
3749/14
3749/16
3749/20
3749/24
3749/26
3749/30
3749/34
3749/36
3749/40
3749/50
3749/60
3749/68
3749/80
3749/100
A
B
.013
±
.005
[0.33]
.025
±
.002 Typ
[0.64]
3749 Series
Dimension A
Dimension B
0.225 +/- .004 [5.72]
0.275 ± .004 [6.99]
0.325 ± .004 [8.26]
0.375 +/- .004 [9.53]
0.475 ± .004 [12.07]
0.575 +/- .004 [14.61]
0.625 ± .004 [15.88]
0.725 +/- .006 [18.42]
0.825 ± .006 [20.96]
0.875 ± .006 [22.23]
0.975 ± .006 [24.77]
1.225 ± .006 [31.12]
1.475 ± .009 [37.47]
1.675 ± .009 [42.55]
1.975 ± .011 [50.17]
2.475 ± .012 [62.87]
0.250 +/- .006 [6.35]
0.300 ± .006 [7.62]
0.350 ± .006 [8.89]
0.400 +/- .006 [10.16]
0.500 ± .006 [12.70]
0.600 +/- .006 [15.24]
0.650 ± .006 [16.51]
0.750 +/- .009 [19.05]
0.850 ± .009 [21.59]
0.900 ± .009 [22.86]
1.000 ± .009 [25.40]
1.250 ± .009 [31.75]
1.500 ± .012 [38.10]
1.700 ± .012 [43.18]
2.000 ± .015 [50.80]
2.500 ± .015 [63.50]
[ ] Dimensions for Reference Only
.025
±
.003
[ 0.64 ]
30 AWG [0.254] Tinned
Solid Copper Conductors
TPE Insulation
Note: Blue marking on one edge of cable designates wire #1.
Ordering Information
3749 / XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0068-F
Sheet 2 of 3
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are
not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect
unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES
NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s
option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not
be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory
asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S. A.
800-225-5373
www.3Mconnectors.com
Please recycle. Printed in USA.
© 3M 2013 All rights reserved.
RIA-2217B-E
3M is a trademark of 3M Company.
