RN1404: DescriptionSwitching, Inverter Circuit, Interface Circuit And Driver Circuit Applications; CategoryDiscrete semiconductor The transistor; File Size574KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

RN1404 Overview

Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications

RN1404 Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOT-23
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	6 pF
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	80
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.4 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
VCEsat-Max	0.3 V

Preview

Download Datasheet

View All

RN1401½RN1406

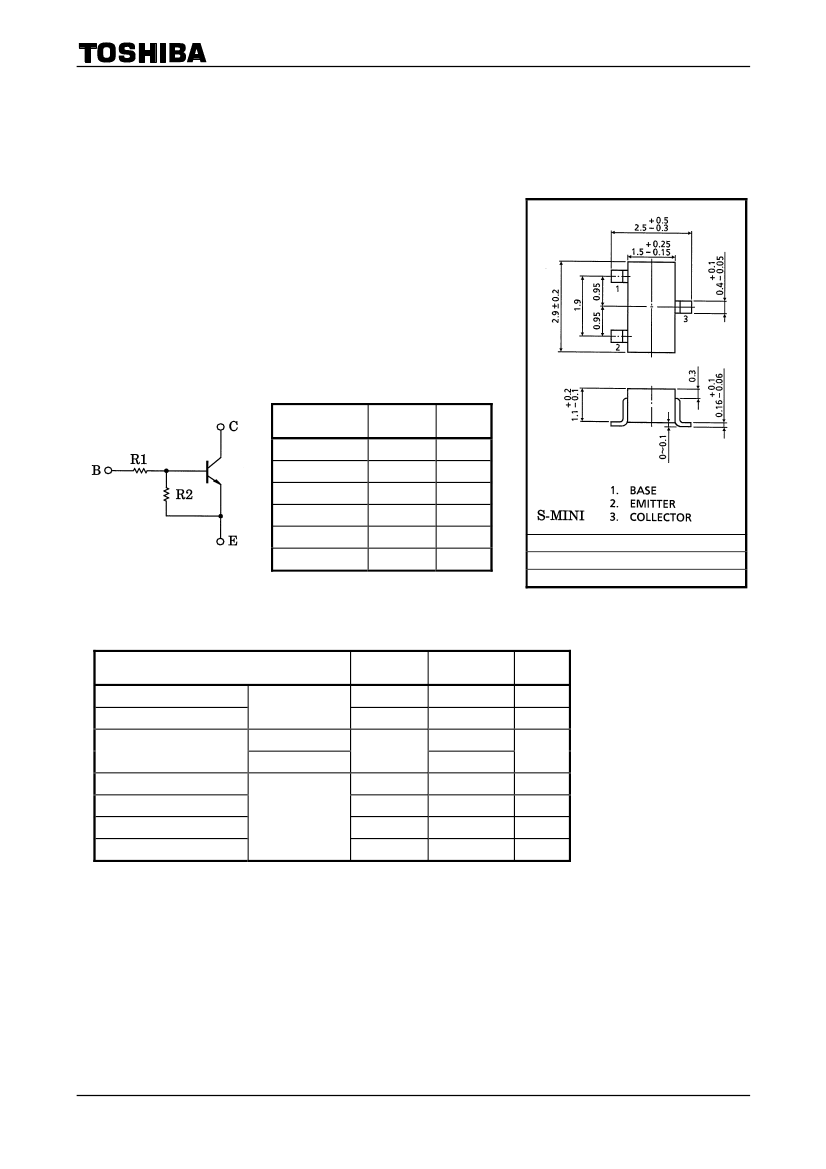

TOSHIBA Transistor

Silicon NPN Epitaxial Type (PCT Process)

RN1401, RN1402, RN1403

RN1404, RN1405, RN1406

Switching, Inverter Circuit, Interface Circuit

And Driver Circuit Applications

With built-in bias resistors

Simplified circuit design

Reduce a quantity of parts and manufacturing process

Complementary to RN2401~RN2406

Unit: mm

Equivalent Circuit and Bias Resistor Values

Type No.

RN1401

RN1402

RN1403

RN1404

RN1405

RN1406

R1 (kΩ

4.7

2.2

4.7

R2 (kΩ

4.7

JEDEC

EIAJ

TOSHIBA

Weight: 0.012g

TO-236MOD

SC-59

2-3F1A

Absolute Maximum Ratings

(Ta = 25°C)

Characteristic

Collector-base voltage

Collector-emitter voltage

Emitter-base voltage

Collector current

Collector power dissipation

Junction temperature

Storage temperature range

RN1401~1406

RN1401~1404

RN1405, 1406

Symbol

CBO

CEO

EBO

stg

Rating

100

200

150

−55~150

Unit

°C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the

significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even

if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum

ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook

(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test

report and estimated failure rate, etc).

2007-11-01
