Amphe-Lite M3 & S1
High Performance Circular Connector
www.amphenol-industrial.com
Amphenol
is one of the largest manufacturers of interconnect products in the
world. The company designs, manufactures and markets electrical,
electronic and fiber optic connectors, coaxial and flat-ribbon cable,
and interconnect systems. Amphenol has long been the accepted
leader in providing quality connectors and interconnect systems to
the Industrial, Military and Telecommunication markets.
Company Introduction
Amphenol Industrial Operations
Amphenol Technology (Zhuhai) Co., Ltd.
T
Table of Content
Amphe-Lite M3
Product Introduction............................................................................1
Features and Benefits......................................................................... 2
Technical Data....................................................................................3
Shell Dimensions.............................................................................4-6
Dust Cap............................................................................................7
Back Shell..........................................................................................8
Amphe-Lite S1
Product Introduction ...........................................................................9
Features and Benefits .......................................................................10
Shell Dimensions..........................................................................11-12
Dust Cap.......................................................................................... 13
Insert Patterns
..............................................................................14
Alternate Insert Positioning
...................................................15-16
How to Order
.................................................................................17
Contact Installation Guide
.....................................................18-19
Amphe-Lite M3&S1
Product Introduction For Amphe-Lite M3
Amphenol 's Amphe- Lite M3 is based on the MIL- DTL- 38999 III. Designed for harsh
environments, the product is pertinent, but not limited, to the following markets and
applications:
n
n
n
n
n
n
Control Systems
Commercial Aircraft
Telecommunications Equipment
Medical Instrumentation
Vehicle Signal Interconnects
High-Performance Test Equipment

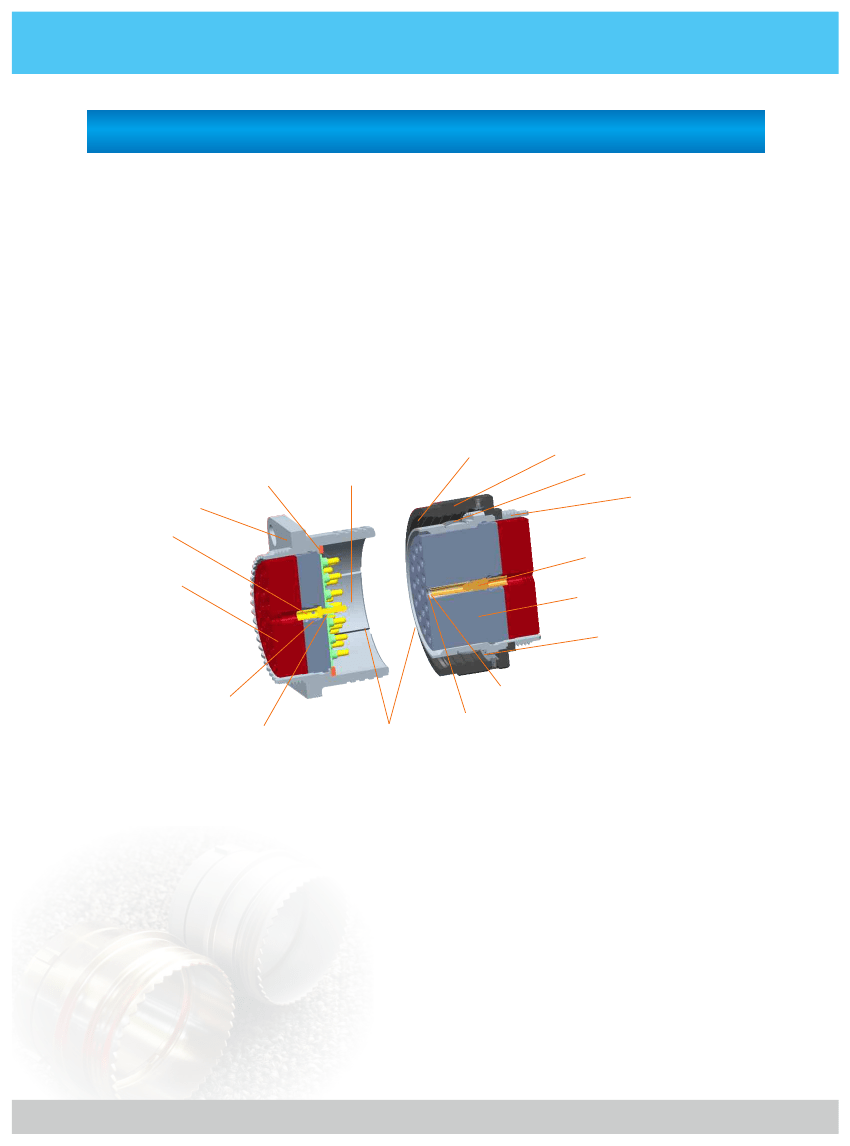

Scoop-proof Design Pin
Contacts are recessed to
protect from shortening
and damage when mating
Triple Lead Thread
Coupling Nut
Peripheral
Sealing Gasket
EMI Ring
Plug Shell
Receptacle Shell
Pin Contact
Socket Contact Body
Silicone Wire
Sealing Grommet
Rigid Hard Dielectric Insulator
Anti-Vibration
Spring
Multiple-Tine Retaining Clip
assures positive retention with
inwardly-deflecting tines that lock
securely behind contact shoulder
Five Keys and Keyways
One Major/Four Minor
assure proper alignment of
connector halves before
contact engagement
Stainless Steel Contact Shroud
Interfacial Sealing
Lead-in Chamber
guides contacts together
when mating
Key Features:
1. Service Class F Amphe-Lite M3 uses superior silicone seals providing increased fluid resistance.
2. Provides excellent EMI shielding and grounding through 100% metal to metal bottoming.
3. Acme threads provide coupling durability. Completely mates in one 360-degree turn of the coupling nut to provide
the fastest and easiest equipment assembly and maintenance possible.
4. Recessed pins minimize potential contact damage in this 100% scoop-proof connector. In a blind mating
application, mating shells cannot scoop the pins and cause a shorting or bending of contacts.
5. A rigid dielectric insert provides durable protection to the contacts.
6. With Gray ZnNi Plating the connector can reach 500 hours of salt spray resistance and is RoHS compliant.
