Technical Data Sheet
FAKRA -
HF
PLASTIC HOUSING
59Z067-000-Y
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification

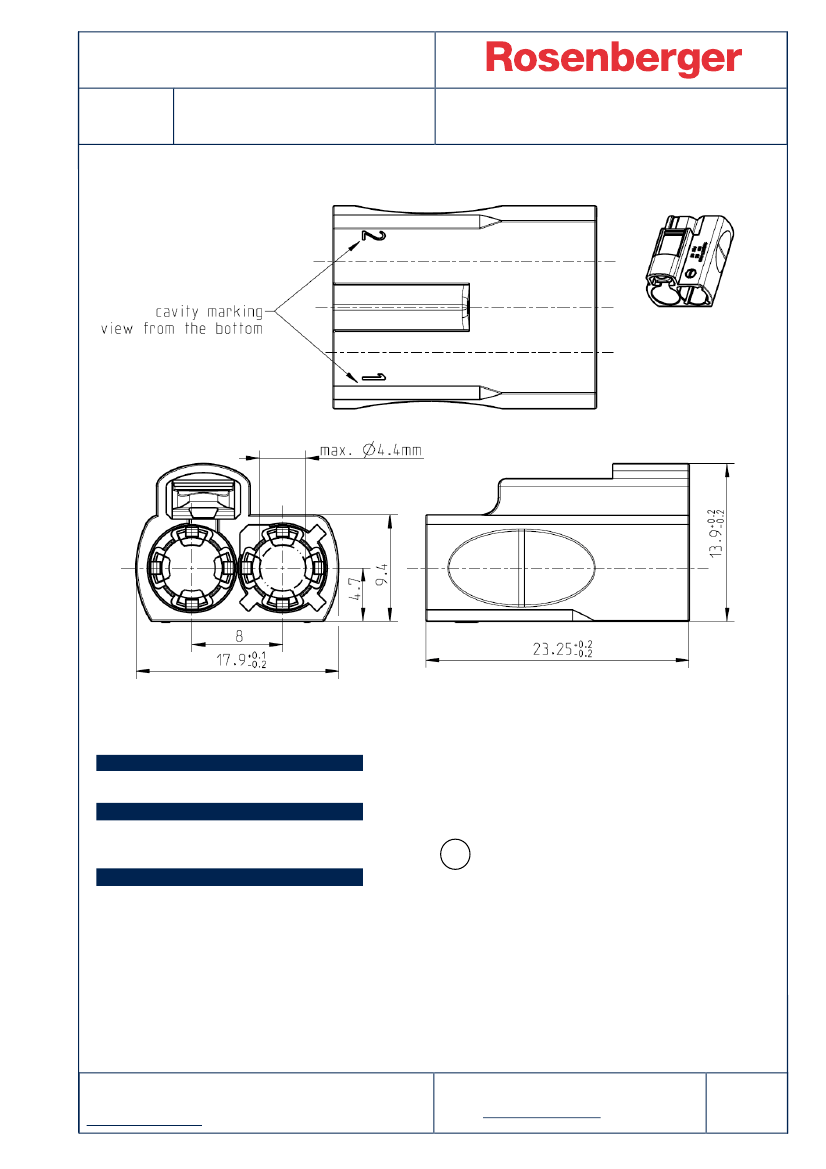

Interface and coding
According to
DIN 72594-1, USCAR 17
Material and plating
Connector parts
Housing
Material
PBT-GF23
≥
25
≥
110 N
≥
110 N
≥
40 N
d
Mechanical data
Mating cycles
Retention force latch
Retention force primary lock
Coding efficiency
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
FAKRA -
HF
PLASTIC HOUSING
59Z067-000-Y
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
RoHS
-40°C to +105°C
DIN 72594-2 clause 8.2
DIN 72594-2 clause 8.3
DIN 72594-2 clause 8.1
DIN 72594-2 clause 8.4
compliant
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Application
Applicable e.g. for following connectors:
* -xx for all available cable variations
59K13O-1xx*; 59K16A-1xx*; 59K16B-1xx*; 59K17O-1xx*;
59K17K-1xx*
c

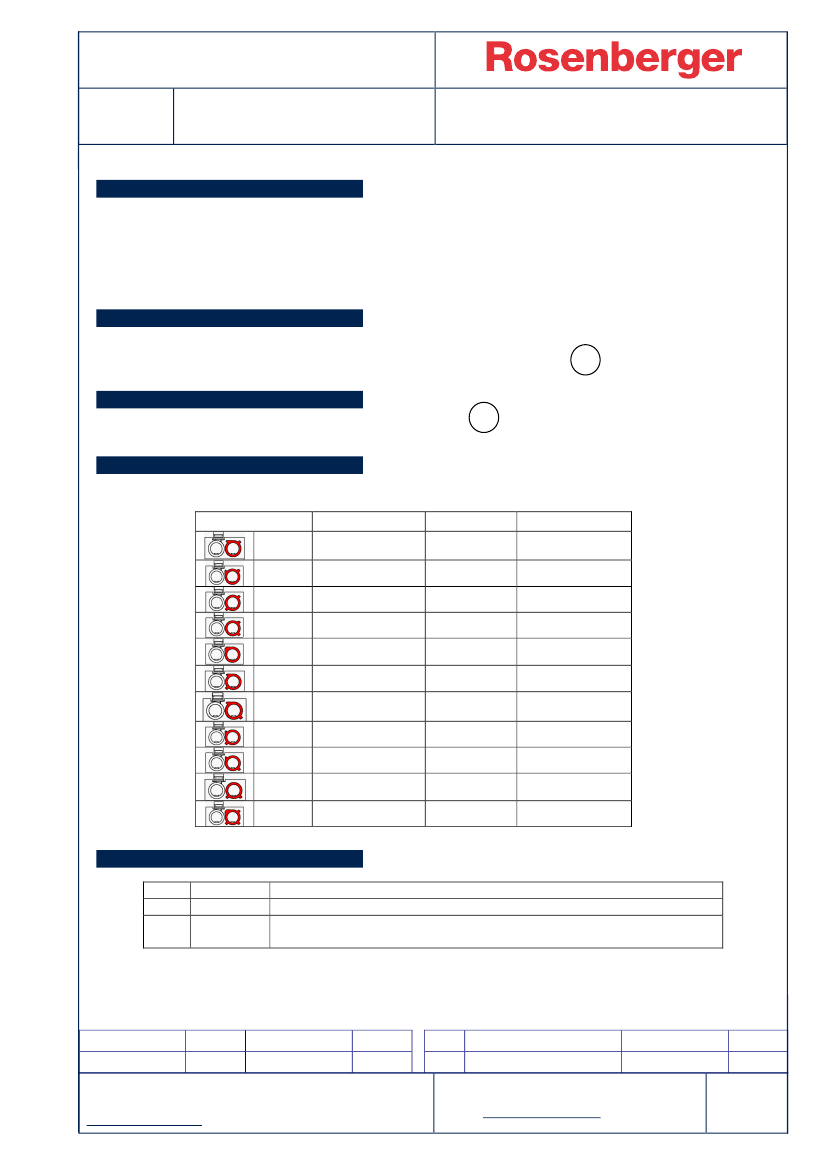

Packing
Standard
Weight
250 pcs in box
2.56 g/pcs
d
Coding
Part Number has to be accomplished by codification
Coding
A
B
C
D
E
F
G
H
I
K
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 5021
Part-Number
59Z067-000-A
59Z067-000-B
59Z067-000-C
59Z067-000-D
59Z067-000-E
59Z067-000-F
59Z067-000-G
59Z067-000-H
59Z067-000-I
59Z067-000-K
59Z067-000-Z
Change History
Rev.
c00
d00
Date
11.05.15
18.08.15
Change
Application for following connectors added:59K16B-1xx*,59K17K-1xx*
- Packing quantity changed from “200 pcs in box” to “250 pcs in box”
- Material marking PBT GF-20 changed to PBT GF-23
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
R. Bippus
Date
09.01.07
Approved
C. Anfang
Date
02.11.15
Rev.
d00
Engineering change number
15-1095
Name
T. Stockhammer
Date
02.11.15
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
