LP4EE1PBCRW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> Push button switch> LP4EE1PBCRW

LP4EE1PBCRW: Description按钮开关 Illuminated Pushbutton Switch DPDT (LATCHING), PCB, 100mA 30 VDC, WHITE LED, 50,000 MAKE-AND-BREAK CYCLES, INSULATION RESISTANCE: 500VDC, 100M ohm min, 250gf +/- 100 GRAMS, -20C to 70C; CategoryMechanical and electronic products switch Push button switch; File Size327KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

LP4EE1PBCRW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LP4EE1PBCRW	-	-	View	Buy Now

LP4EE1PBCRW Overview

按钮开关 Illuminated Pushbutton Switch DPDT (LATCHING), PCB, 100mA 30 VDC, WHITE LED, 50,000 MAKE-AND-BREAK CYCLES, INSULATION RESISTANCE: 500VDC, 100M ohm min, 250gf +/- 100 GRAMS, -20C to 70C

LP4EE1PBCRW Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
illumination	Illuminated
series	LP4
Factory packaging quantity	1

Preview

Download Datasheet

View All

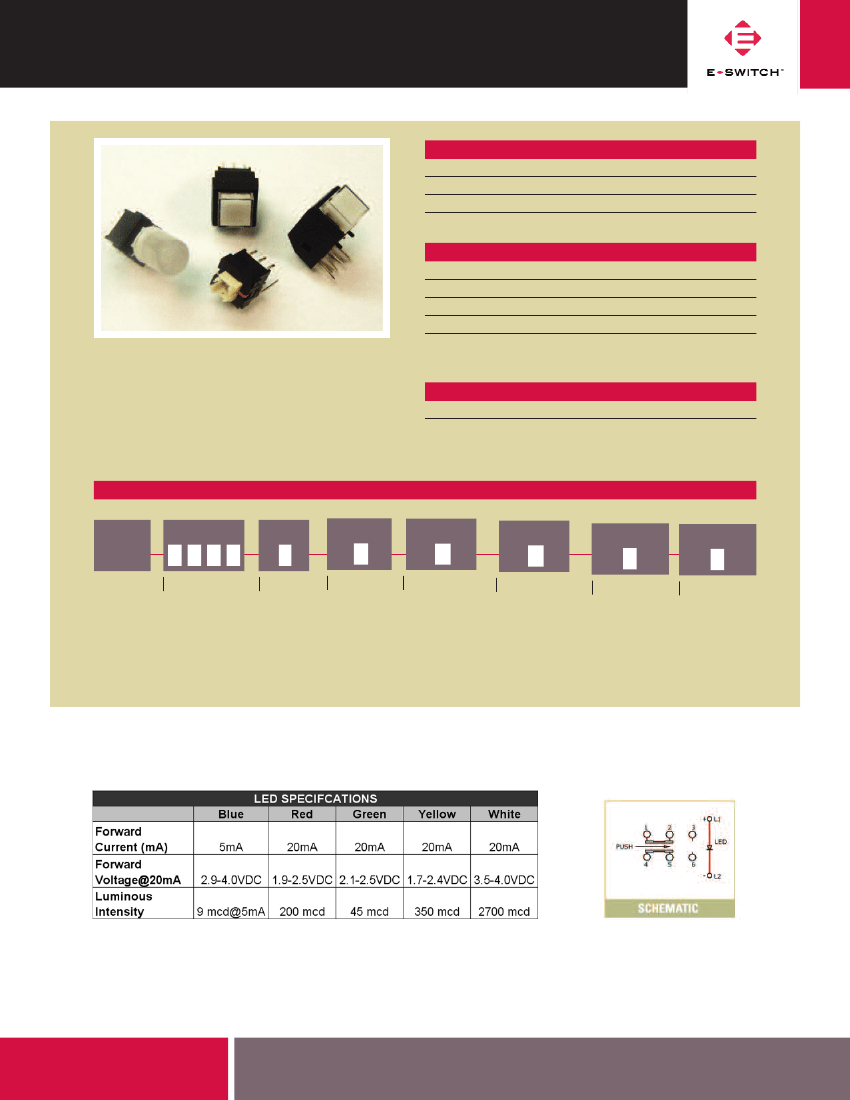

SERIES LP4 SWITCHES

ILLUMInATED PUShBUTTOn SWITCh

MECHANICAL SPECIFICATIONS

Mechanical Life:

Force:

Travel:

50,000 cycles

250 ± 100 grams

1.0mm ± 0.3mm LOCK; 1.5mm ± 0.3mm FULL

ELECTRICAL SPECIFICATIONS

Contact Rating:

Contact Resistance (Initial Max.):

Insulation Resistance (min.@500V):

Dielectric Strength (1 Min.):

30VDC, 0.1A

50milliohms max.

100megaohms min. @ 500VDC

500VAC

FEATURES & BENEFITS

• Latching and momentary options

• Illuminated

• Right angle and vertical mount

options

• Multiple bezel and button designs

APPLICATIONS / MARKETS

• Telecommunications

• Consumer Electronics

• Audio/visual

• Medical

• Testing/instrumentation

• Computer/servers/peripherals

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature:

-20°C to +70°C

HOW TO ORDER

FUNCTION

STYLE

CIRCUIT

TERMINATION

HOUSING

COLOR

CAP SIZE

LED COLOR

OPTIONS

SERIES

CAP COLOR

LP4

OA = Momentary

EE = Latching

1 = DPDT

P = Vertical PCB

Mount

R = Right Angle

PCB Mount*

B = Black

W = White

G = Gray

N = No Cap

A = Square w/ Bezel

B = Round w/ Bezel

C = Round w/o Bezel

N = No Cap

T = Transparent

G = Green

R = Red

Y = Yellow

B = Blue

N = No LED

R = Red

G = Green

Y = Yellow

B = Blue

W = White

Example Ordering Number

LP4_ OA_ 1_ P_ B_ A_ T

* Right angle only available in a square cap with bezel.

Specifications subject to change without notice.

www.e-switch.com

email: info

e-switch.com

7153 NORTHLAND DRIVE NORTH

BROOKLYN PARK, MN 55428

PhOnE: 763.504.3525

FAx: 763.531.8235
