MICRO SWITCH Miniature Industrial Limit Switch
GLL Series
002310
Datasheet
Issue 4
FEATURES
• Ten different actuator heads, five different contact options,
and two different conduits
• Designed to EN50047 standard
• Double insulated plastic housing
• Integral threaded conduit of 0.5 NPT or 20 mm
• Positive opening normally closed contacts to
IEC 60947-5-1-3
• Certified for global applications; CE, cULus, CSA, CCC
• Galvanically isolated poles or throws [Zb] within contact
block
• Double break snap action or slow action contacts
• Hinge cover with single fastener for easy wiring access
• IP66 environmental sealing for indoor or outdoor
applications
• ROHS compliant
DESCRIPTION

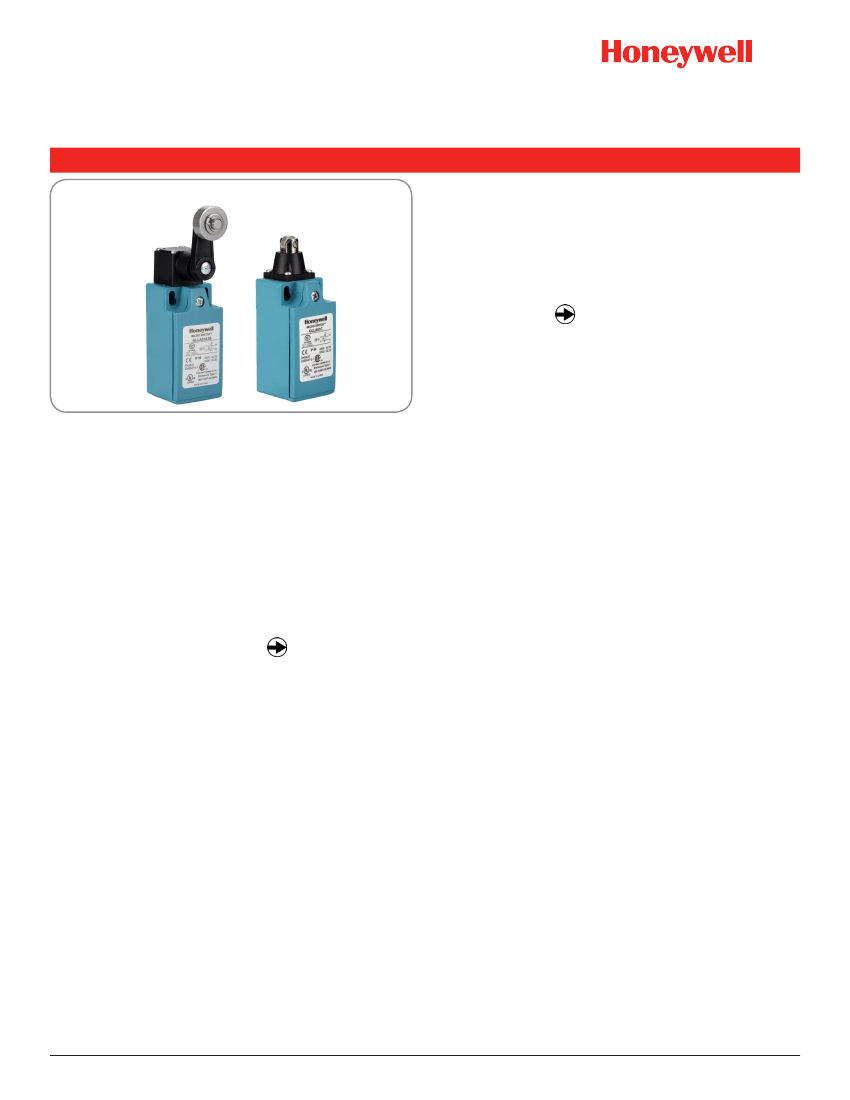

Honeywell provides a wide selection of industrial limit
switches for machinery and equipment on indoor and outdoor
applications. When the solution for the application is a small
global limit switch, Honeywell offers the GLL Series miniature
industrial limit switch. The GLL Series switches are designed
with global certifications for worldwide use. With an integral
contact block, the design also provides a double-insulated
thermoplastic housing and conforms to the EN50047
mounting pattern with IP and NEMA environmental sealing. A
wide variety of linear and rotary actuators is available as well as
contact block options to satisfy many applications. All normally
closed contacts are positive opening
.
POTENTIAL INDUSTRIAL APPLICATIONS
•
•
•
•
Aerial platforms/Lifts
Elevators/Escalators
Industrial Doors/Gates
Packaging equipment
DIFFERENTIATION
• Double insulated thermoplastic limit switch with integral
contact block
• Cost effective EN50047 type limit switch with world-wide
availability
VALUE TO CUSTOMERS
• Designed to EN50047 standards
• AC15, A600 and DC13, Q300 control circuit electrical
ratings for world-wide acceptance
• Wide range of actuators and circuitry options in same
package
• CCC, CE, CSA, and cULus certifications for global
acceptance
PORTFOLIO
The GLL Series global limit switches are a segment of the
Honeywell industrial global limit switch offering. The global
limit switch products also include the GLA Series, the
miniature GLC, GLD, and GLE Series, the NGC Series, and
SZL-VL Series. In addition to the global limit switch series,
Honeywell provides a comprehensive line of medium duty
industrial limit switches (CE Series, E6/V6 Series, LS Series)
and heavy-duty limit switches (HDLS Series).
Sensing and Internet of Things
MICRO SWITCH Miniature Industrial Limit Switch, GLL Series
Table 1. Specifications
Characteristic
Description
Certifications
Conforming to standards
Housing material
Actuators
Conduit
Contact options*
Contact material
Utilization category
Rated operational voltage [Ue]
Rated operational current [Ie]
Thermal current [Ith]
Rated insulation voltage [Ui]
Rated impulse withstand voltage
(Uimp)
Short Circuit Protective Device
[SCPD] type & rating
Sealing
Operating temperature
Mechanical life
Vibration [w/o actuator]
Shock [w/o actuator]
Parameter
EN50047 industrial global limit switch
CE, CCC, cULus, CSA
CE [EN60947-5-1]; CCC [GB 14048.5]; UL & cUL [UL508, File E37138]; CSA B44.1-04/
ASME-A17.5-2004
Thermoplastic reinforced with glass fiber
Side rotary with fixed levers, side rotary with adjustable levers, side rotary with adjustable rod,
top pin plunger, top roller plunger, top horizontal roller lever, top vertical roller lever
0.5-14 NPT, 20 mm
1NC-1NO snap action, 1NC-1NO slow action break before make [BBM], 1NC-1NO slow action
make before break [MBB], 2NC slow action. Poles or throws are electrically isolated [Zb]
Silver alloy
AC-15, A600; DC-13, Q300
600 Vac, 250 Vdc
1.2 A, 0.27 A
10 A
600 V
2500 V
Class J fuse, rated 10A, 600V
IP66; NEMA 1, 12, 13
-10 °C to 80 °C [14 °F to 176 °F]
Up to 5 million operations
10 g per IEC 60068-2-6
50 g per IEC 60068-2-27
.
* All normally closed (NC) contacts are positive opening
Table 2. Electrical Specifications
ac
A600 Ue Volts
120
240
380
480
500
600
AC-15 Ie Amps
6
3
1.9
1.5
1.4
1.2
dc
Q300 Ue Volts
125
250
DC-13 Ie Amps
0.55
0.27
2
