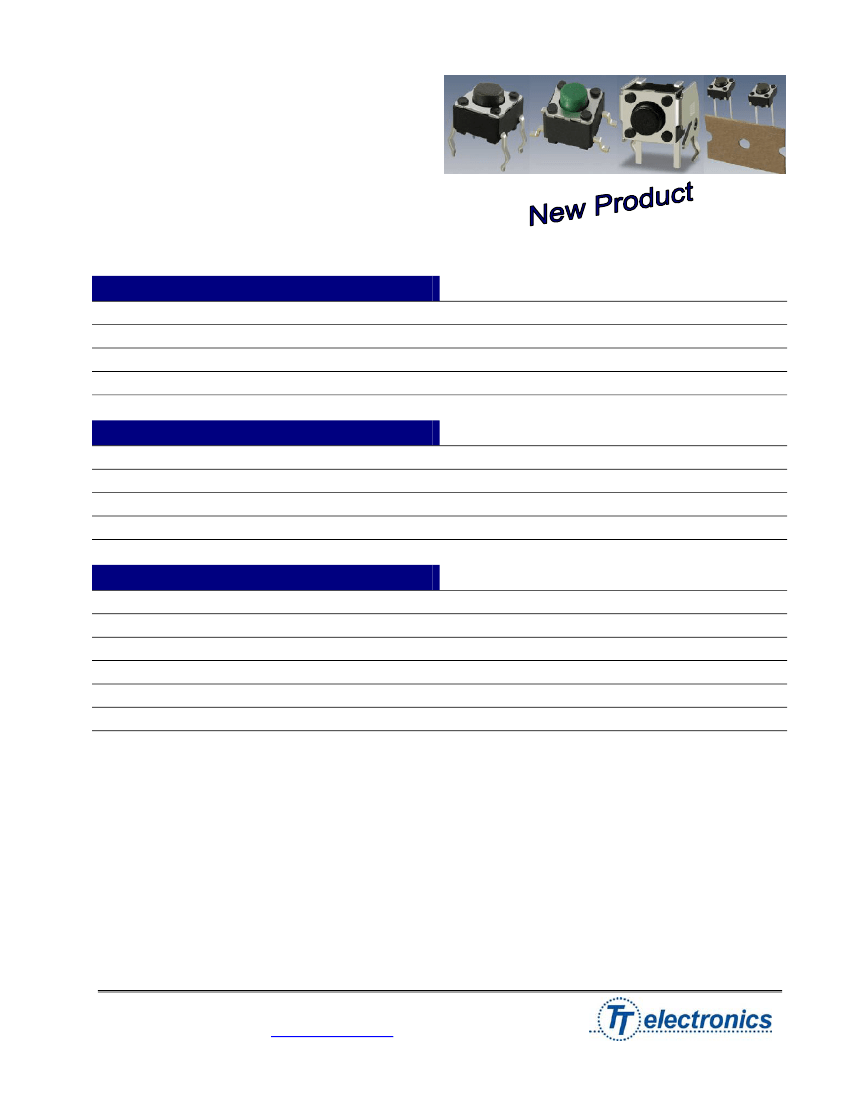

Model SWT6
Tactile Switches 6X6 mm
500K Actuations
RoHS Compliant
MODELS AVAILABLE
Side Actuation
Top Actuation
Top Actuation with Ground
SMD Top Actuation
SWT6-R
SWT6-V
SWT6-E
SWT6-M
ELECTRICAL
Contact Resistance
Current Rating
Insulation Resistance
Dielectric Strength
100 mΩ
DC 12V, 50 mA
100 MΩ min
AC 250V
ENVIRONMENTAL
Life, Mechanical
Operating Temperature Range
Storage Temperature
Shock
Vibration
Operating Force Range (refer to definition table below))
500K Actuations
-20
o
C – 70
o
C.
-30
o
C – 80
o
C
Mil-STD-202F, Method 213B Condition A
Mil-STD-202F, Method 201A
100 gf – 260 gf
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 30, 2008
Website:
www.bitechnologies.com
page
1
of
5
BI technologies
Model SWT6
ORDERING INFORMATION
SWT6 - M 2
Y TR
Model Series
Packaging
Blank – Bulk
Style R – 1000 pcs
Style V & E – 2000 pcs
AP – Ammo Pack
Style V – 1000 pcs
Style E – 800 pcs
TR – Tape & Reel
Style M, Stem Heights 2 & 3 – 1000 pcs
Style M, Stem Height 5 – 750 pcs
Style
R – Side Actuation
V – Top Actuation
E – Top Actuation with Ground
M – SMD Top Actuation
Stem Height (Styles Available)
1 – 3.85 mm (R)
2 – 4.3 mm (V, E, M)
3 – 5.0 mm (V, E, M)
4 – 5.85 mm (R)
5 – 7.0 mm (V, E, M)
6 – 8.35 mm (R)
7 – 9.5 mm (V, E)
8 – 13mm (V)
Color / Force
Styles R, V, E
K – Black, 100 gf
M – Gray, 160 gf
R – Red, 260 gf
Style M
Y – Yellow, 100 gf
G – Green, 160 gf
B – Blue, 260 gf
Style V 13mm height only
K – Black, 100 gf
N – Brown, 160 gf
R – Red, 260 gf
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 30, 2008
Website:
www.bitechnologies.com
page
2
of
5
BI technologies
Model SWT6
OUTLINE DRAWINGS

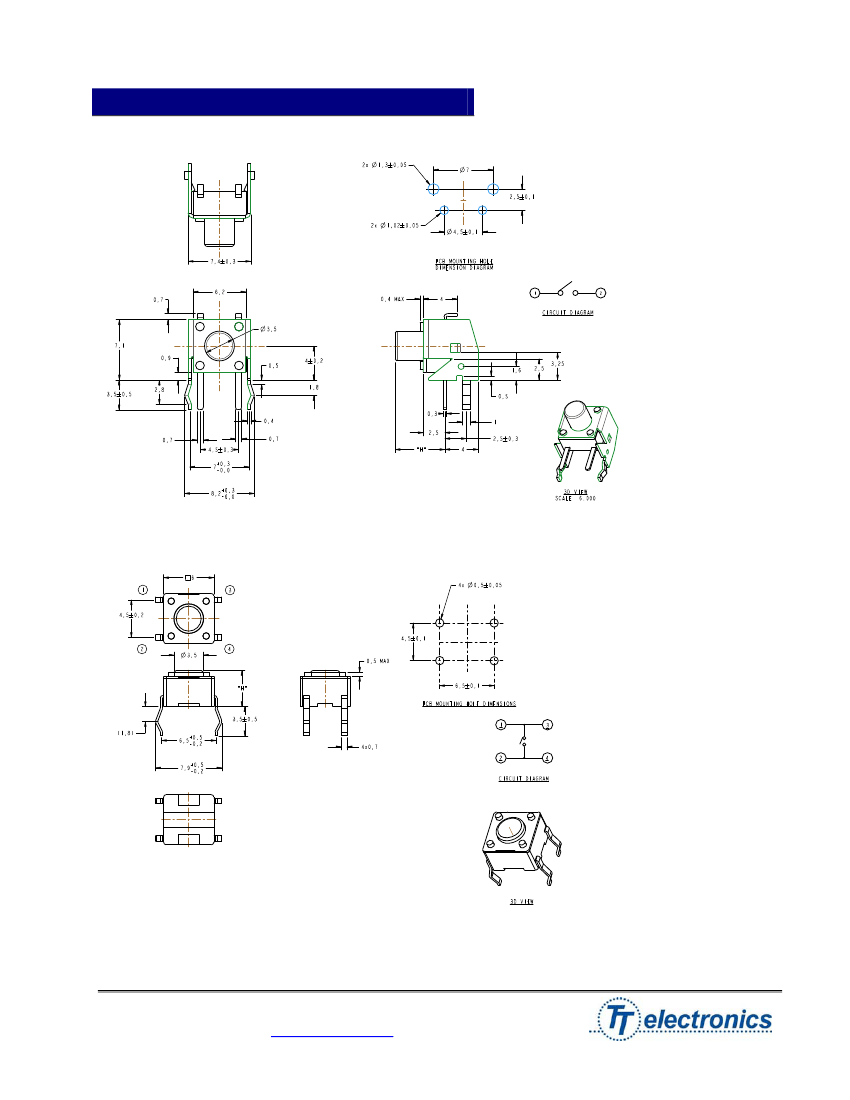

SWT6-R (Side Actuation)
SWT6-V
(Top Actuation)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 30, 2008
Website:
www.bitechnologies.com
page
3
of
5
BI technologies
Model SWT6

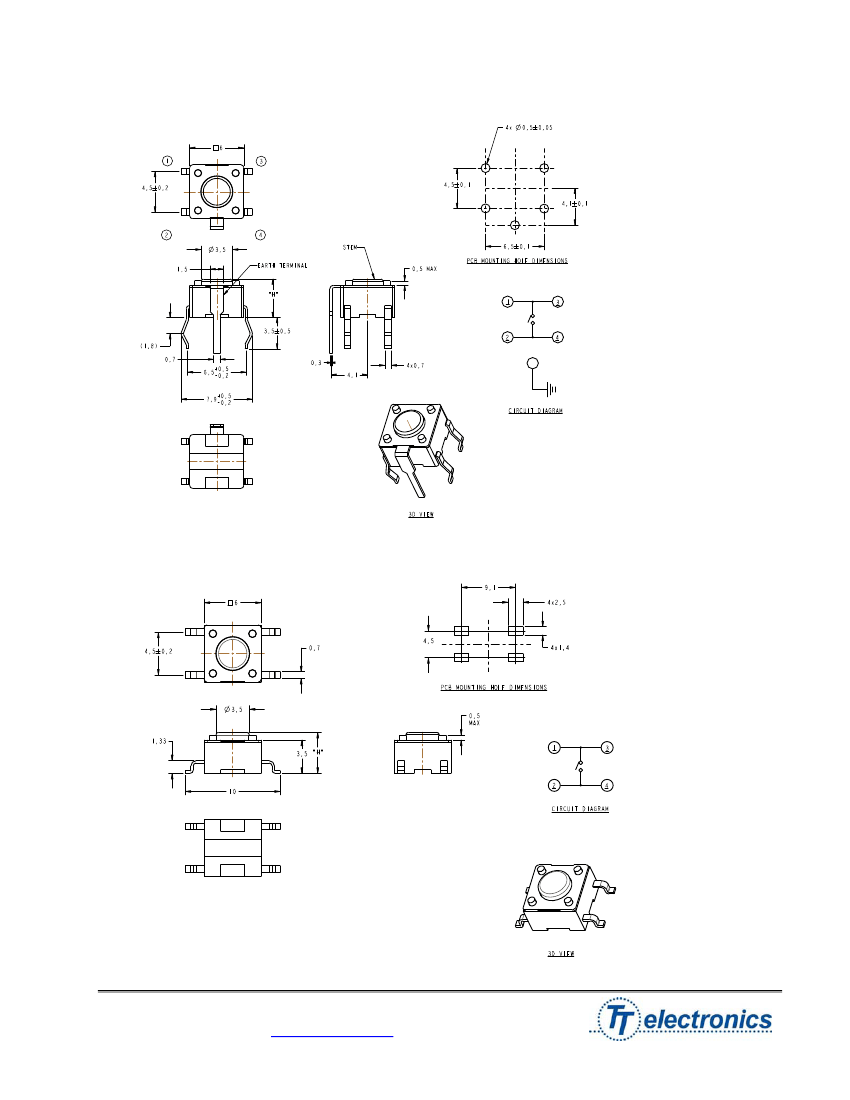

SWT6-E
(Top Actuation with Ground)
SWT6-M
(SMD, Top Actuation)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 30, 2008
Website:
www.bitechnologies.com
page
4
of
5
BI technologies
Model SWT6

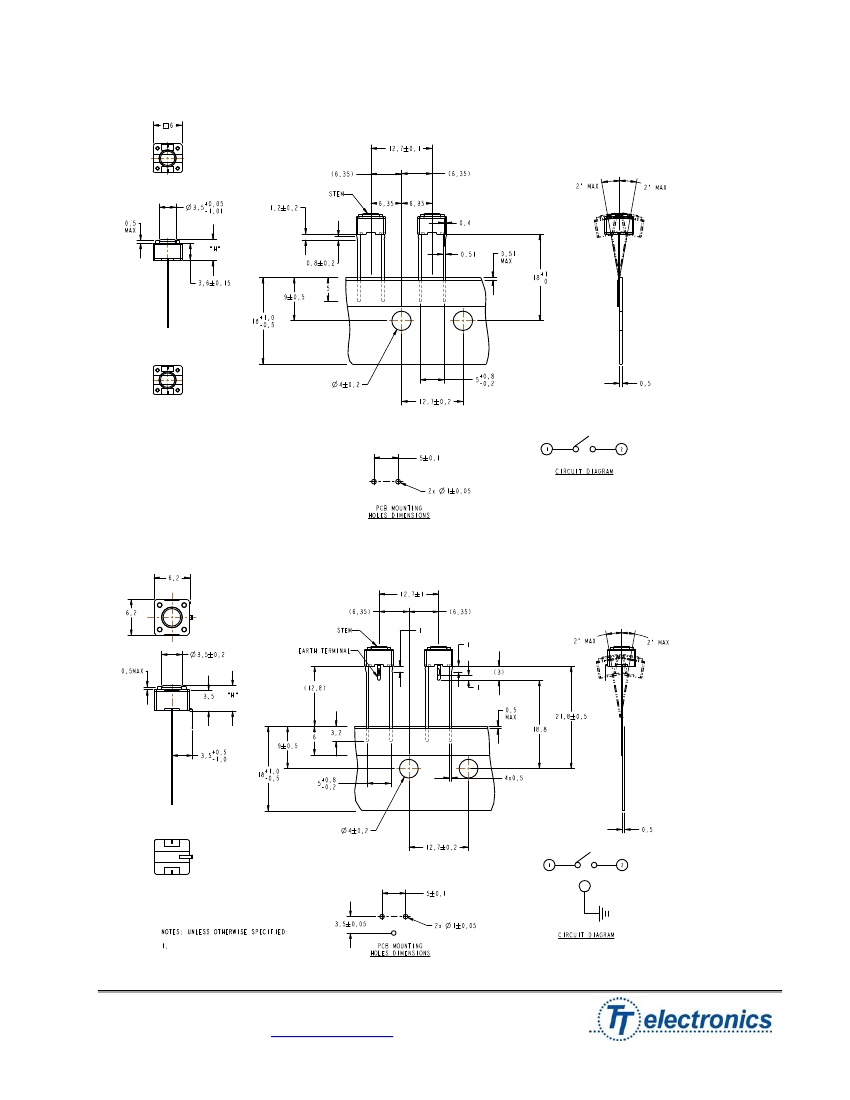

SWT6-VXXAP
(Top Actuation, Ammo Pack)
SWT6-EXXAP
(Top Actuation with Ground, Ammo Pack)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 30, 2008
Website:
www.bitechnologies.com
page
5
of
5
BI technologies
