Tilt Sensor Switch
Item No.
Page
●

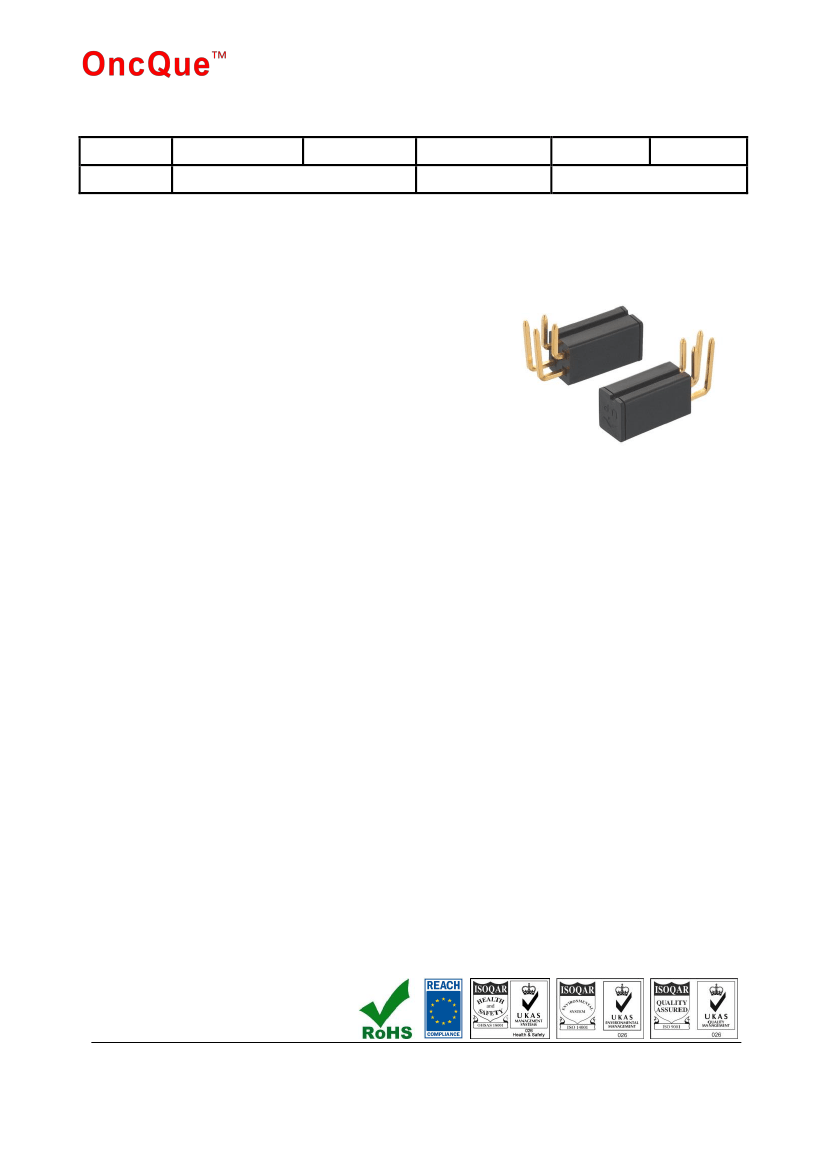

FUNCTIONS
1. Horizontal Tilt Detecting
2. Vertical Up-Side Down Detecting
RBS040210
1 of 7
Description
Ball-Contact
Publish Date
Version
11
Jun. 26, 2018
●
APPLICATIONS
1. Position Detection for Iron
2. Lighting system for night time
while car hold being opened
3. Toys, Entertainment Device
●
FEATURES
1. Suitable for horizontal PCB.
2. Switch state: DIP Normal Close.
3. Housing made of high insulation plastic material, free from electric conduction and
4.
5.
6.
7.
8.
rust problem.
Gold-plated ball and terminals, low possibility of oxidization.
All plastic materials subject to industrial purpose, resist high temperature and
meet fireproof function.
Simple ON and OFF signals, easy for design.
RoHS compliance, an ideal substitute for mercury switch.
A more economical tilt and rotation detection option than IC design solution.
9. All made in Taiwan and examined before shipment.
No.1, Jingke 3rd Rd., Nantun Dist., Taichung
City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
PATENTS
1. Taiwan Patent No. 155965
2. Taiwan Patent No. 476797
3. U.S.A. Patent No. US 6,198,059 B1
4. U.S.A. Patent No. US 7,256,360 B1
5. U.S.A. Patent No. US 7,446,272 B2
6. U.S.A. Patent No. US 9,058,945 B2
7. China Patent No. 201220308500.8
8. China Patent No. 201210218323.9
RBS040210
2 of 7
Description
Ball-Contact
Publish Date
Version
11
Jun. 26, 2018
No.1, Jingke 3rd Rd., Nantun Dist., Taichung
City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS040210
3 of 7
Description
Ball-Contact
Publish Date
Version
11
Jun. 26, 2018

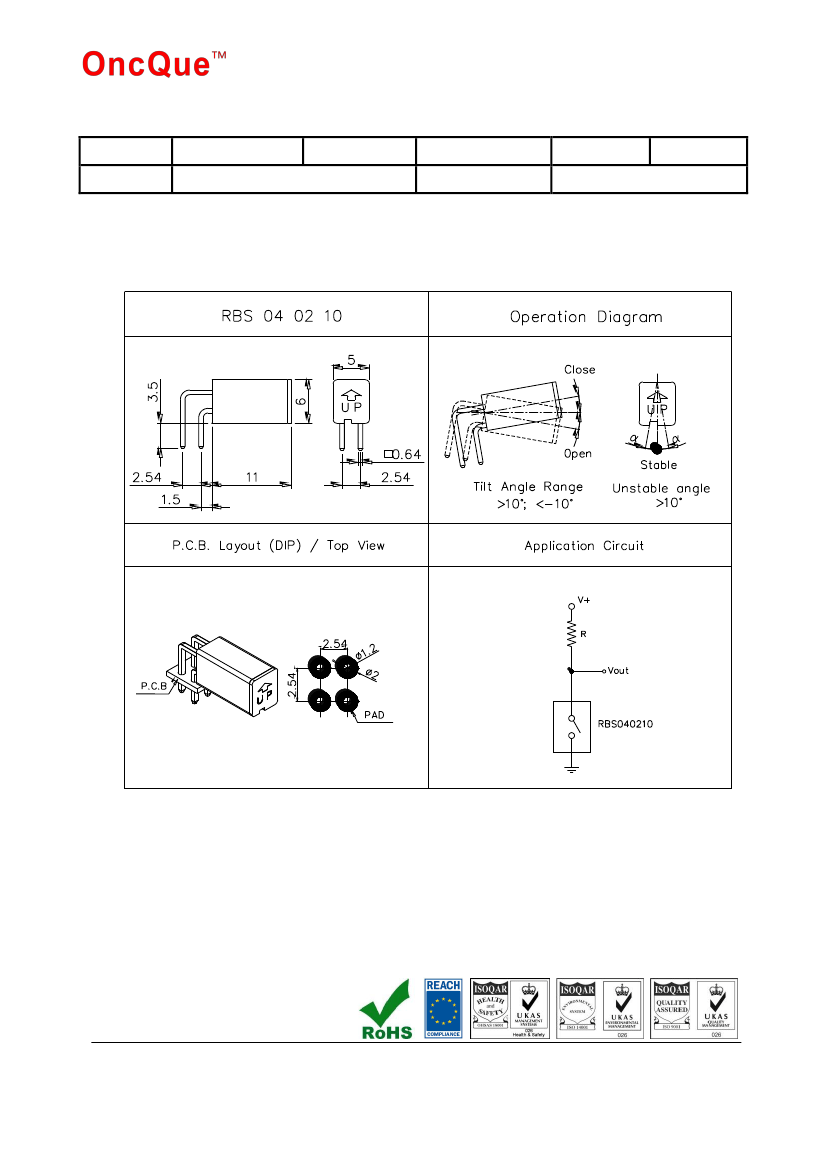

DIMENSIONS / OPERATION / P.C.B. LAYOUT (Unit: mm, Tolerance: ±0.25mm)
Fig. 1
θ
θ
α
No.1, Jingke 3rd Rd., Nantun Dist., Taichung
City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS040210
4 of 7
Description
Ball-Contact
Publish Date
Version
11
Jun. 26, 2018
Current/Voltage Suggested
Input Current (mA)
1.0
Operating Voltage (V)
5
Condition
--
●
1.
2.
3.
4.
5.
6.
7.
ELECTRICAL CHARACTERISTICS
Contact Rating
Contact Resistance
Operation Diagram
Insulation Resistance
Dielectric Strength
Capacitance
Conductive Rate
10 mA, 5VDC
10 Ω max.
Refer to Fig. 1
1000 MΩ min., 100 VDC
500 VDC min., 1 minute
5pF max.
90% min.
No.1, Jingke 3rd Rd., Nantun Dist., Taichung
City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS040210
5 of 7
Description
Ball-Contact
Publish Date
Version
11
Jun. 26, 2018
RELIABLE TEST ITEMS
Reliable Test for RBS040210
Test Item
1
2
3
4
5
Operating Temperature
Storage Temperature
Humidity
Mechanical Life
Electrical Life
Contents
-25°C ~ 85°C
-40°C ~ 85°C
40 °C / 95%RH
2 Hz horizontal
1,000,000 times
100,000 times
●
SOLDERING CONDITION
Following soldering conditions are for reference only, please use soldering information that
solder paste manufacturer recommends.
Condition
Suitable
Production
Process
Wave Soldering
Soldering
Temperature
Soldering Time
Wattage of
Manual Soldering
Type
260±5°C
< 5 seconds max.
-
30W or
Temperature-
controlled manual
soldering
DIP
Manual Soldering
300±5°C
< 3 seconds max.
DIP
No.1, Jingke 3rd Rd., Nantun Dist., Taichung
City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
