832HA-1C-F-C-B-24VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> General relay> 832HA-1C-F-C-B-24VDC

832HA-1C-F-C-B-24VDC: DescriptionGeneral Purpose Relay 30A, General Purpose Relay; CategoryMechanical and electronic products relay General relay; File Size632KB，5 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric Compare View All

832HA-1C-F-C-B-24VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	832HA-1C-F-C-B-24VDC	-	-	View	Buy Now

832HA-1C-F-C-B-24VDC Overview

General Purpose Relay 30A, General Purpose Relay

832HA-1C-F-C-B-24VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	General purpose relay
product	Power Relays
series	832HA
Factory packaging quantity	50

Preview

Download Datasheet

View All

SONG CHUAN

832HA

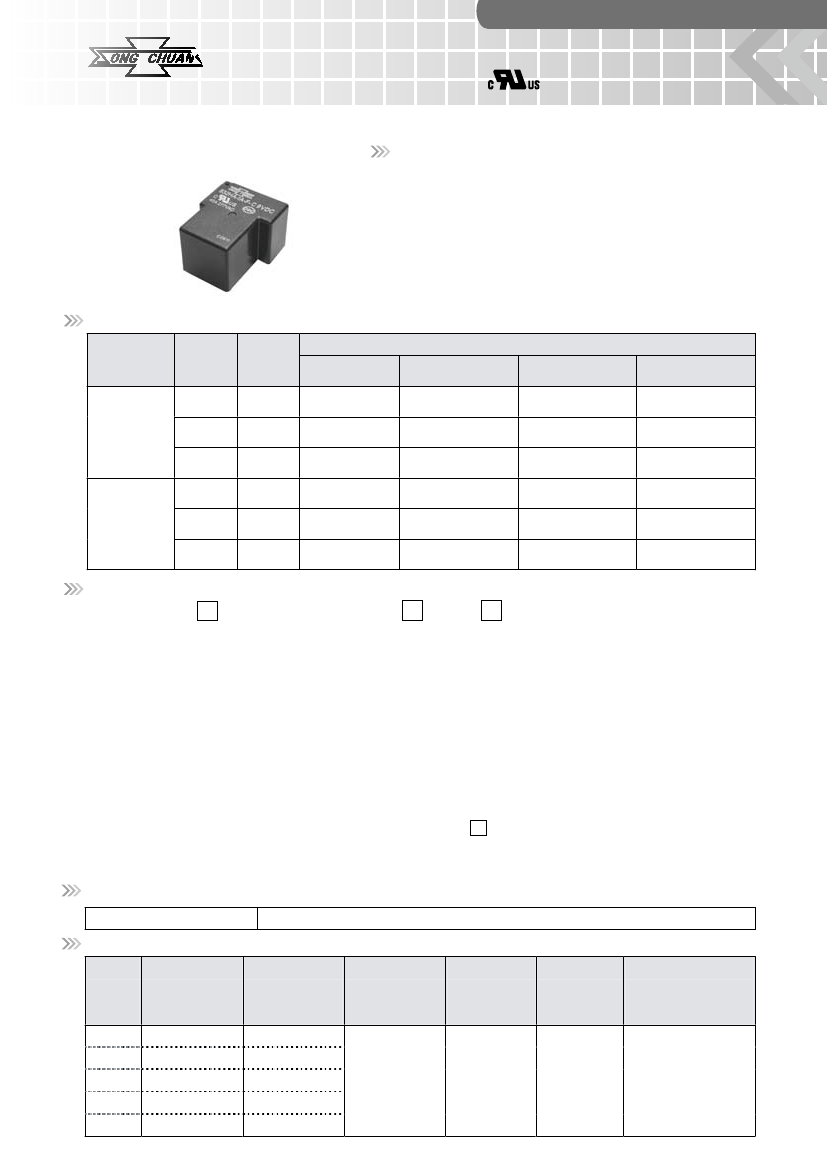

Features

Heavy duty 40A general purpose PCB Power Relay.

Available for top faston, flux tight, sealed versions.

UL Class F as standard.

High CTI 250 material or product comply with IEC 60335-1

are available.

Special design for UPS, power supply of high rating

application.

Complies with RoHS-Directive

2011/65/EU.

Contact Insulation

form

(SPNO)

(SPNC)

(SPDT)

(SPNO)

(SPNC)

(SPDT)

system

Open type

832HA-1A-F

832HA-1B-F

832HA-1C-F

Flux tight

832HA-1A-F-C

832HA-1B-F-C

832HA-1C-F-C

Designation

Sealed type

832HA-1A-F-V

832HA-1B-F-V

832HA-1C-F-V

Sealed type

washable

832HA-1A-F-S

832HA-1B-F-S

832HA-1C-F-S

Type List

Terminal

style

PCB terminal

WP (PCB

terminal &

Quick

terminal)

832HAWP-1A-F 832HAWP-1A-F-C 832HAWP-1A-F-V 832HAWP-1A-F-S

832HAWP-1B-F 832HAWP-1B-F-C 832HAWP-1B-F-V 832HAWP-1B-F-S

832HAWP-1C-F 832HAWP-1C-F-C 832HAWP-1C-F-V 832HAWP-1C-F-S

Ordering Information

832 HA

1. 832

2. HA

6. Blank

-- Basic series designation

-- High power type

3. Blank -- PCB terminal

-- Quick terminal

-- PCB terminal & Quick terminal

4. 1A

5. F

-- Single pole normally open

-- Single pole normally closed

-- Single pole double throw

-- Class F

Resistive load

-- Open type

-- Flux tight

-- Sealed type

-- Sealed type washable

-- With flanged cover

-- Sealed type washable with flanged

cover

-- Coil voltage (please refer to the

coil rating data for the availability)

Contact Rating

NO: 40A 240VAC ; NC: 40A 240VAC

Coil Rating (DC)

Rated

voltage

(V)

Rated current

±10 % at 23

(mA)

185

150

Coil resistance Max. continuous

±10 % at 23

(

Ω

)

155

660

2560

voltage

at 70

110 % of

rated

voltage

Pick up

at 23

80 % of

rated

voltage

Drop out

at 23

10 % of

rated

voltage

approx. 0.93W

Power consumption

at rated

voltage

voltage(Max.) voltage(Min.)

832HA-1C-F-C-B-24VDC Related Products

	832HA-1C-F-C-B-24VDC	832HAWP-1A-F-S-12VDC	832HAW-1A-F-C1-12VDC	832HA-1C-F-C-12VDC	832HAW-1A-F-C-12VDC	832HA-1B-F-C-24VDC	832HA-1C-F-C-24VDC	832HA-1B-F-48VDC	832HA-1B-24VDC	832HAW-1C-F-S1-12VDC
Description	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 40A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay	General Purpose Relay 30A, General Purpose Relay
Maker	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan
Product Category	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay	General purpose relay
product	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays	Power Relays
series	832HA	832HA	832HA	832HA	832HA	832HA	832HA	832HA	832HA	832HA
Factory packaging quantity	50	25	25	50	25	50	50	50	50	25
