K6BL0G1.53NLV315 Overview

Miniature Key Switch

K6BL0G1.53NLV315 Parametric

Parameter Name	Attribute value
Maker	C&K
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
illumination	Non-Illuminated
Lamp type	-
series	K6
Factory packaging quantity	500

Preview

Download Datasheet

View All

Miniature Key Switches

Features/Benefits

•

Excellent tactile feel

•

Wide variety of LED’s,

switching

travel and actuation forces

•

Designed for low-level

•

Detector version available

•

RoHS compliant

Construction

Typical Applications

•

Automotive

•

Industrial electronics

•

Computers and network

equipment

Electrical

SWITCHING POWER MIN./MAX.: 0.02 mW / 3 W DC

SWITCHING VOLTAGE MIN./MAX.: 2 V DC / 30 V DC

SWITCHING CURRENT MIN./MAX.: 10 mA /100 mA DC

DIELECTRIC STRENGTH (50 Hz)

1) 2)

: ≥ 300 V

OPERATING LIFE: ≥ 2 x 10

operations

≥1 X 10

operations for SMT version

CONTACT RESISTANCE: Initial ≤ 50 mΩ

INSULATION RESISTANCE: ≥ 10

BOUNCE TIME: ≤ 1 ms

Operating speed 100 mm/s (3.94/s)

FUNCTION: momentary action

CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.

DISTANCE BETWEEN BUTTON CENTERS:

min. 7,5 and 11,8 (0.295 and 0.465)

TERMINALS: Snap-in pins, tinned

MOUNTING: Soldered by PC pins, locating pins

PC board thickness: 1,5 (0.0591)

Mechanical

TOTAL TRAVEL/SWITCHING TRAVEL: 1,5/0,9 (0.059/0.035)

PROTECTION CLASS: IP 40 according to DIN/IEC 529

1) Voltage rise: 300 V/s

2) According to DIN 41640; IEC 512-2

3) Higher values upon request

Environmental

OPERATING TEMPERATURE: -40˚C to 85˚C.

STORAGE TEMPERATURE: -40˚C to 95˚C.

Packaging

THT: bulk in boxes of 500 pieces

SMT: bulk in boxes of 500 pieces

reels of 500 pieces (with LED) or 750 pieces (without LED)

Process

SOLDERABILITY:

THT: wave soldering, compatible with lead free soldering profile

Hand soldering, 350˚C for 3s

SMT: not compatible with lead free reflow profile

245˚C for 5s

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Note: Some of the configurations may not be available or could require some development.

Key Switches

1.5

Standard LED Code

NONE

Models without LED

LV306

Green

LV327

Yellow

LV315

Orange

LV352

Red

LV302

White

LV328

Blue

Series

K6B

K6BL

with LED

K6S

SMT (with metallic frame)

K6SL

SMT with LED (with metallic frame)

LED*

NONE

Models without LED

Green

Yellow

Orange

Red

White

Blue

Travel

1.5

1,5mm (0.059)

Frame Option

(for K6B and K6BL)

Metallic frame

Operating Force

3 N 300 grams

5 N 500 grams

2N OD

2 N 200grams without snap-point

* Additional LED colors available by request.

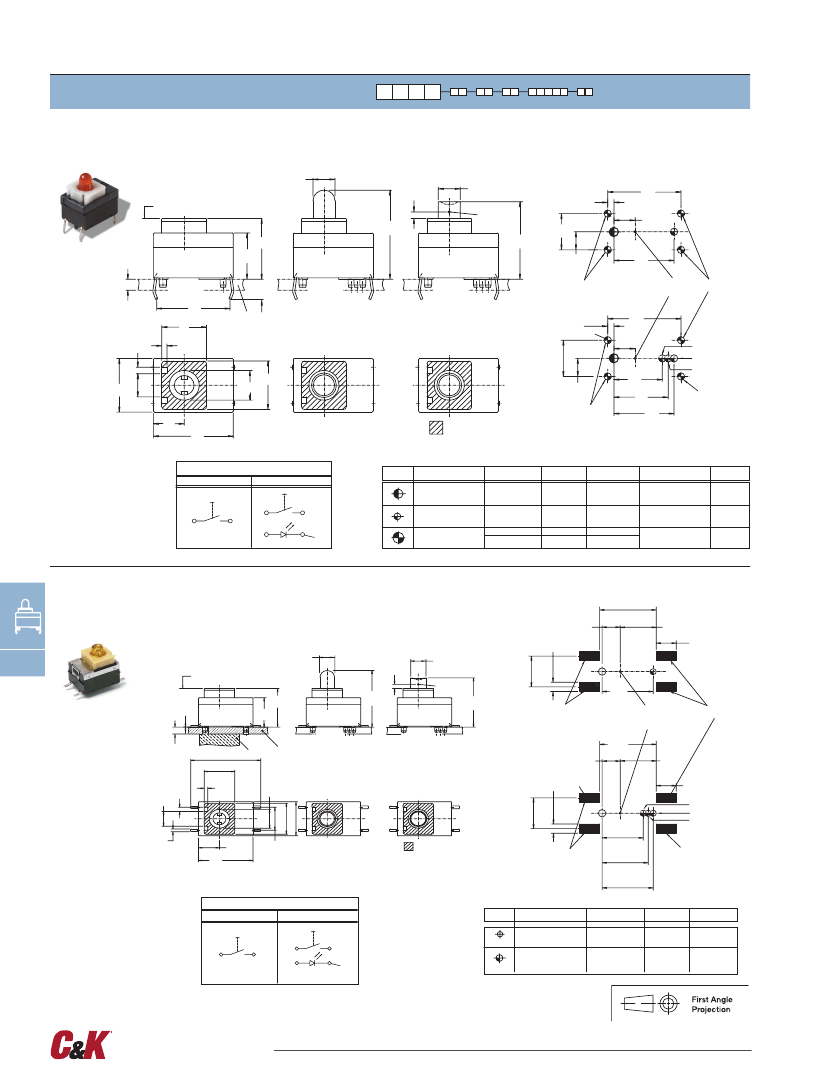

Dimensions are shown: mm

Specifications and dimensions subject to change

D–3

www.ckswitches.com

K6BL0G1.53NLV315 Related Products

	K6BL0G1.53NLV315	K6BLRD1.53NLV352	K6BLBU1.53NLV328	K6BLWH1.53NLV302	K6B1.55N
Description	Miniature Key Switch	Push button switch K6BLRD1.53N LV352	Miniature Key Switch	Miniature Key Switch	Button switch Switch Key Std Spst Mom 500Gf
Maker	C&K	C&K	C&K	C&K	C&K
illumination	Non-Illuminated	LED	LED	Non-Illuminated	-
Is it Rohs certified?	-	conform to	conform to	-	conform to
Reach Compliance Code	-	compliant	compliant	-	compliant
ECCN code	-	EAR99	EAR99	-	EAR99
Actuator stroke	-	1.4986 mm	1.4986 mm	-	1.4986 mm
Actuator type	-	KEYPAD	KEYPAD	-	PUSHBUTTON
body height	-	6.4008 mm	6.4008 mm	-	6.4 mm
Maximum contact current (DC)	-	0.1 A	0.1 A	-	0.1 A
Contact (DC) maximum rated R load	-	0.1A@30VDC	0.1A@30VDC	-	.1A@30VDC
Contact resistance	-	0.05 mΩ	0.05 mΩ	-	0.05 mΩ
Maximum contact voltage (DC)	-	30 V	30 V	-	30 V
Dielectric withstand voltage	-	300VAC V	300VAC V	-	300VAC V
Electrical life	-	200000 Cycle(s)	200000 Cycle(s)	-	200000 Cycle(s)
Insulation resistance	-	1000000000000 Ω	1000000000000 Ω	-	1000000000000 Ω
JESD-609 code	-	e3	e3	-	e3
Installation features	-	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	-	THROUGH HOLE-STRAIGHT
Number of switches	-	1	1	-	1
Maximum operating temperature	-	85 °C	85 °C	-	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-	-40 °C
surface mount	-	NO	NO	-	NO
Switch action	-	MOMENTARY	MOMENTARY	-	MOMENTARY
switch function	-	SPST	SPST	-	SPST
Switch type	-	KEYPAD SWITCH	KEYPAD SWITCH	-	KEYPAD SWITCH
Terminal surface	-	Tin (Sn)	Tin (Sn)	-	Tin (Sn)
Terminal length	-	0.11 inch	0.11 inch	-	0.11 inch
Termination type	-	SOLDER	SOLDER	-	SOLDER
