ULV4F2GSS545: Description按钮开关 Anti-Vandal Switch 3A 250VAC 2P ON-ON Power Symbol Blue LED 24V Stainless Steel Body & Actuator Solder Terminal IP67 IK10; CategoryMechanical and electronic products switch Push button switch; File Size166KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

ULV4F2GSS545 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ULV4F2GSS545	-	-	View	Buy Now

ULV4F2GSS545 Overview

按钮开关 Anti-Vandal Switch 3A 250VAC 2P ON-ON Power Symbol Blue LED 24V Stainless Steel Body & Actuator Solder Terminal IP67 IK10

ULV4F2GSS545 Parametric

Parameter Name	Attribute value
Maker	E-Switch
Product Category	power switch button
Shipping restrictions	Mouser does not currently sell this product.
product	Standard Switches
type	Anti-Vandal
illumination	Illuminated
lighting color	Blue
Lamp type	LED
Contact form	DPDT
switch function	ON - ON
Current rating	3 A
Voltage ratingAC	250 VAC
Installation style	Panel
Termination type	Solder Lug
Contact plating	Silver
Actuator	Round
IP rating	IP67
series	ULV4
diameter	22 mm
Features	Dot / Ring / Power Illumination Options, UL Certified, Custom Graphics Available
length	27.5 mm
Material	Steel
life	500000 Cycles
Maximum operating temperature	+ 55 C
Minimum operating temperature	- 20 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

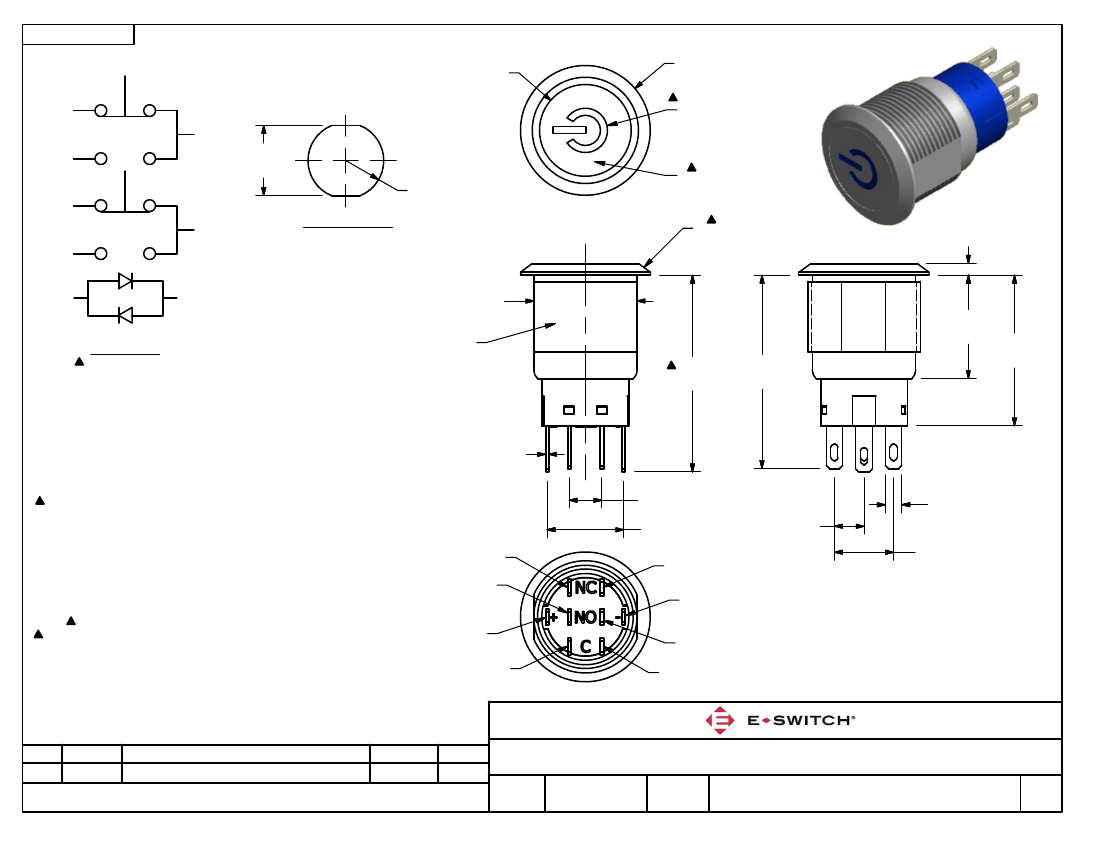

SHEET 1 OF 1

15.50

[.61 in]

22.00

[.87 in]

POWER SYMBOL

ILLUMINATION:

BLUE

1

2

17.80

[.70 in]

R9.60

[.38 in]

6

4

5

PANEL CUT-OUT

PANEL THICKNESS 1-10mm

ACTUATOR

STAINLESS STEEL

HOUSING

STAINLESS STEEL

2.0

[.08 in]

3

LED 1

(+)

LED 2

(-)

17.50 FLATS

[.69 in]

M19 x 1.0

THREAD

33.3

[1.31 in]

32.7

[1.29 in]

17.5

[.69 in]

25.5

[1.00 in]

SCHEMATIC

ON - ON

DPDT Illuminated

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = 0.4

X.XX = 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 3A 250 VAC cUL

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. MECHANICAL LIFE: 500,000 CYCLES.

8. INSULATION RESISTANCE: 1,000 M @ 500VDC MIN.

9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

10. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

11. OPERATING TEMP.: -20 C to 55 C

12.

DENOTES CRITICAL PARAMETER.

13. LAMP VOLTAGE: 24V

14. TRAVEL: 3.2mm

15. ACTUATION FORCE: 3.5 1.0 N

16 MOUNTING NUT TORQUE: 5-14 Nm

17. INGRESS PROTECTION: IP67

18. HARDWARE SUPPLIED: O-RING AND HEXNUT

.50

[.02 in]

5.5

[.22 in]

13.0

[.51 in]

TERMINAL 3

TERMINAL 2

LED 1

(+)

TERMINAL 1

TERMINAL 6

LED 2

(-)

TERMINAL 5

TERMINAL 4

5.00

[.197 in]

2.80

[.110 in]

10.00

[.394 in]

A

REV

22316

PCR NO

New Release

DESCRIPTION

5/23/16

DATE

MW

BY

TITLE

SCALE

ULV4F2GSS545

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

3:2

5/23/2016

MW

T940060

A
