APB Series
Backlit Pushbutton Switch
A
Features/Benefits
•
IP67 sealed
•
1,000,000 life cycle
•
Illumination
•
Threaded or snap-in mounting
•
RoHS compliant
Typical Applications
•
Harsh environments
•
Off-Road
•
Industrial
•
Medical
•
Transportation
•
Joystick control modules
•
Gaming
•
Military
Materials
HOUSING: PBT
BASE: PBT
CAP: Painted polycarbonate
ACTUATOR:
Illuminated: Clear polycarbonate
INTERNAL SEAL: Silicone rubber
TERMINALS: Copper alloy, gold over silver plating
MOVABLE CONTACT: Copper alloy, gold over silver plating
TERMINAL SEAL: Epoxy
WIRE LEADS: UL1569 Black 22 AWG
Pushbutton
Specifications
FUNCTION: SPST Momentary
CONTACT ARRANGEMENT: N.O.
MOUNTING TYPE:
Snap-in (no panel seal)
Threaded body (hex nut, lock washer, and panel seal gasket provided)
Torque spec for threaded body: Do not exceed 8-9 in-lbs (0.9-1.0 N.m)
Mechanical
OPERATING LIFE: 1,000,000 cycles
TOTAL TRAVEL: 2.1 ± 0.2 mm
OPERATING POINT 1.55 ± 0.25 mm
OVER TRAVEL: 0.6 min.
OPERATING FORCE: 4N ± 1N standard configuration; other force
option 2N ± 0.5N
VIBRATION: 10-500 Hz 10g Max
SHOCK: 60g 11ms sawtooth wave
CONTACT RATING:
200mA @ 24 V DC resistive (500,000 cycles)
100mA @ 50 V DC resistive (500,000 cycles)
400mA @ 32 V AC resistive (500,000 cycles)
125mA @ 125 V AC resistive (1,000,000 cycles)
DIELECTRIC STRENGTH: 1000 V AC min.
INSULATION RESISTANCE: 1 G Ω @ 500 VDC
INITIAL CONTACT RESISTANCE 50 mΩ max (without wire leads)
BOUNCE TIME: <5 ms
Operating Environment
OPERATING TEMPERATURE: -40˚C to 85˚C
ESD PROTECTION: 20 KV min.
Electrical
Process Environment
SEALING: IP67 for threaded body
IP65 for snap-in version (no panel seal)
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
A
Designation
APB
APB Series
Operating Force
2
2 Newtons
4
4 Newtons
Cap Symbol
000
Painted black over
white without symbol*
001
Plus
002
Locked
003
Engine stop
004
Park brake release
005
Engine start
006
Fast
007
Slow
008
Unlocked
009
Rock shaft lower
010
Minus
P
B
E
B
E
Cap
E
Extended Dome (600E)
Terminal Seal
E
Epoxy
Contact Material
B
Gold
Illumination
01
Super White
07
Super Blue
Bushing Style
S
Snap-in plastic
T
Threaded plastic
Termination
Z
Solder Lug
W
12” Wire Leads 22 AWG * cap painted black over white to
allow customer laser etching
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
12 Oct 16
A-114
www.ckswitches.com

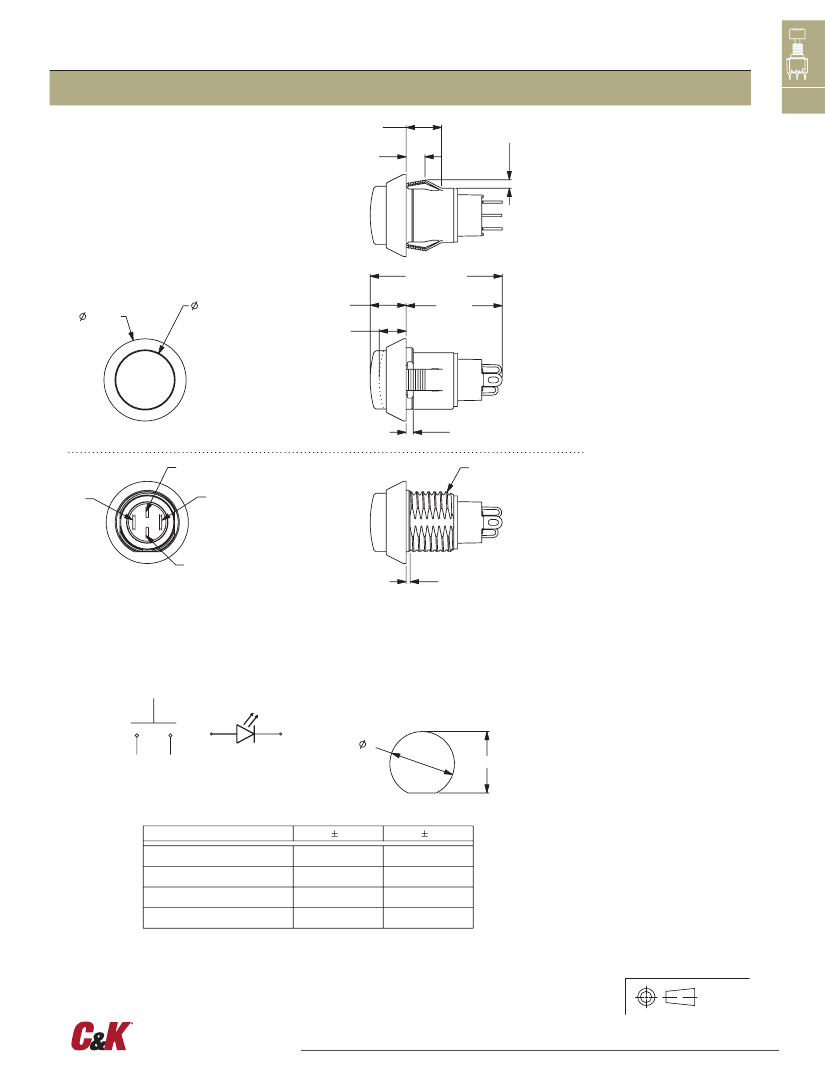

APB Series
Backlit Pushbutton Switch

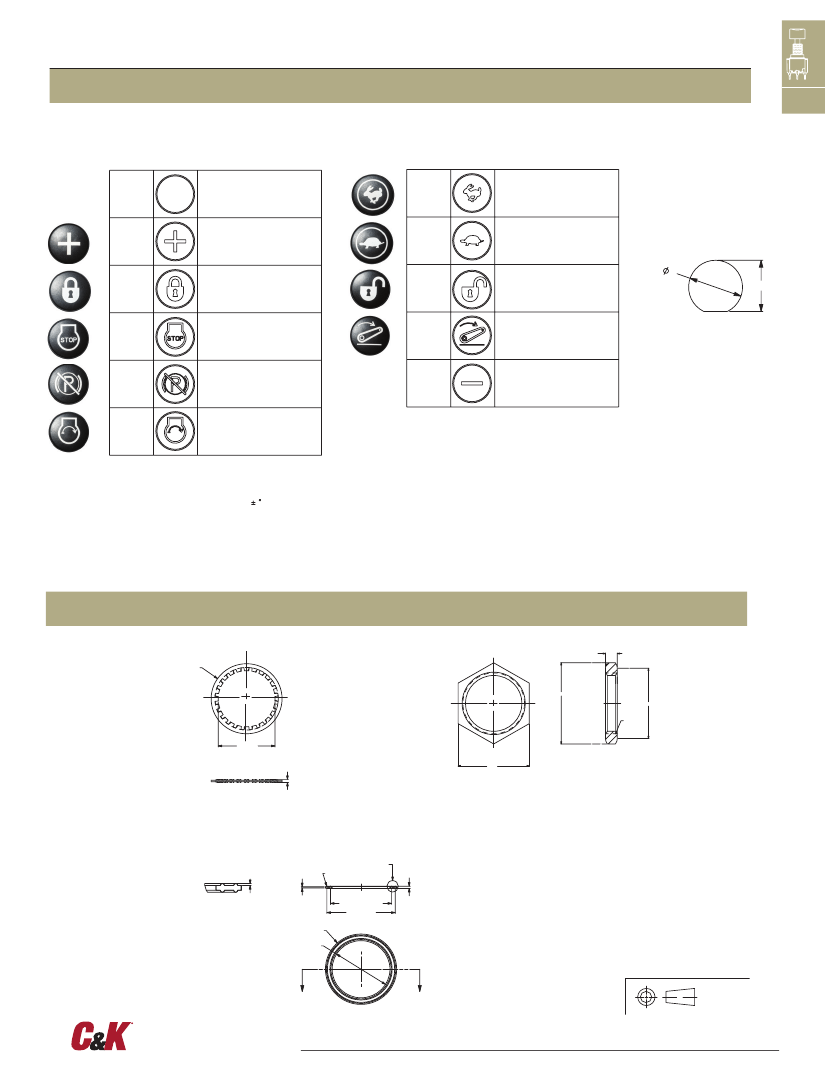

CAP SYMBOLS
A
Pushbutton
-000
-001
-002
-003
-004
-005
NO SYMBOL
PLUS
LOCKED
ENGINE STOP
PARK BRAKE
RELEASE
ENGINE START
-006
-007
-008
-009
-010
FAST
SLOW
A
PANEL CUTOUT
UNLOCKED
ROCK SHAFT
LOWER
MINUS
B
Panel Orientation
Flat indicates bottom
See chart on previous page
for dimensions
NOTES:
1. ALL GRAPHICS MUST BE POSITIONED AS SHOWN, PERPENDICULAR TO
ALIGNMENT FEATURE ON UNDERSIDE OF CAP.
2. GRAPHIC MARKING MUST BE ALIGNED WITH THE FLAT FEATURE ON THE
UNDERSIDE OF THE CAP AS SHOWN, TOLERANCE
3
HARDWARE
LOCK WASHER
Part Number 647D00000
ø17.25
HEX NUT
Part number 515D00000
18.36 REF
2.40
ø15.90
M13 X 1.25-6H
13.82
0.77
15.90
PANEL SEAL
Part Number 655D00000
4X 0.13
Detail A
Scale 15:1
ø 17.00
ø 13.80
A
See Detail A
0.30
4X R 0.13 REF
2 X ø 14.60
2 X ø 16.30
0.56 REF
A
Third Angle
Projection
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
12 Oct 16
A-117
www.ckswitches.com
