M85049/9-56W: DescriptionRing-shaped MIL specification back cover BACKSHELL ENV R/A OD CAD; CategoryThe connector Connector bracket; File Size4MB，33 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M85049/9-56W Overview

Ring-shaped MIL specification back cover BACKSHELL ENV R/A OD CAD

M85049/9-56W Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Factory Lead Time	10 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

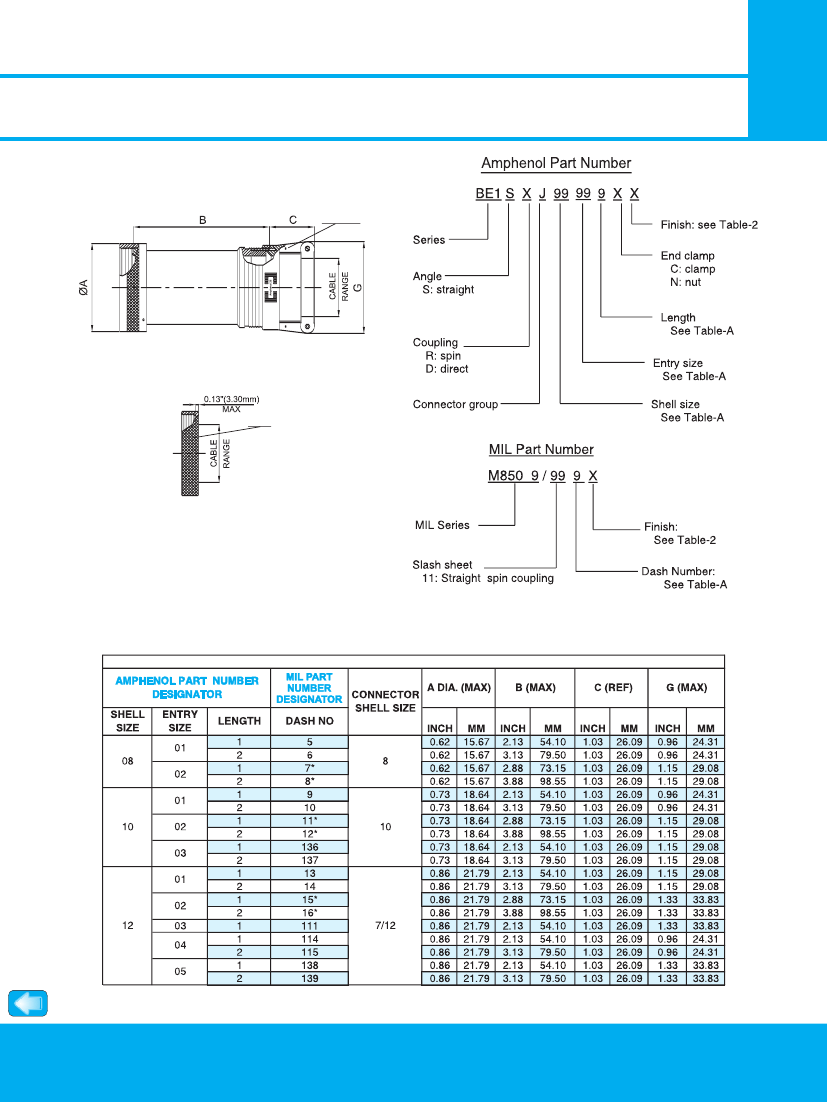

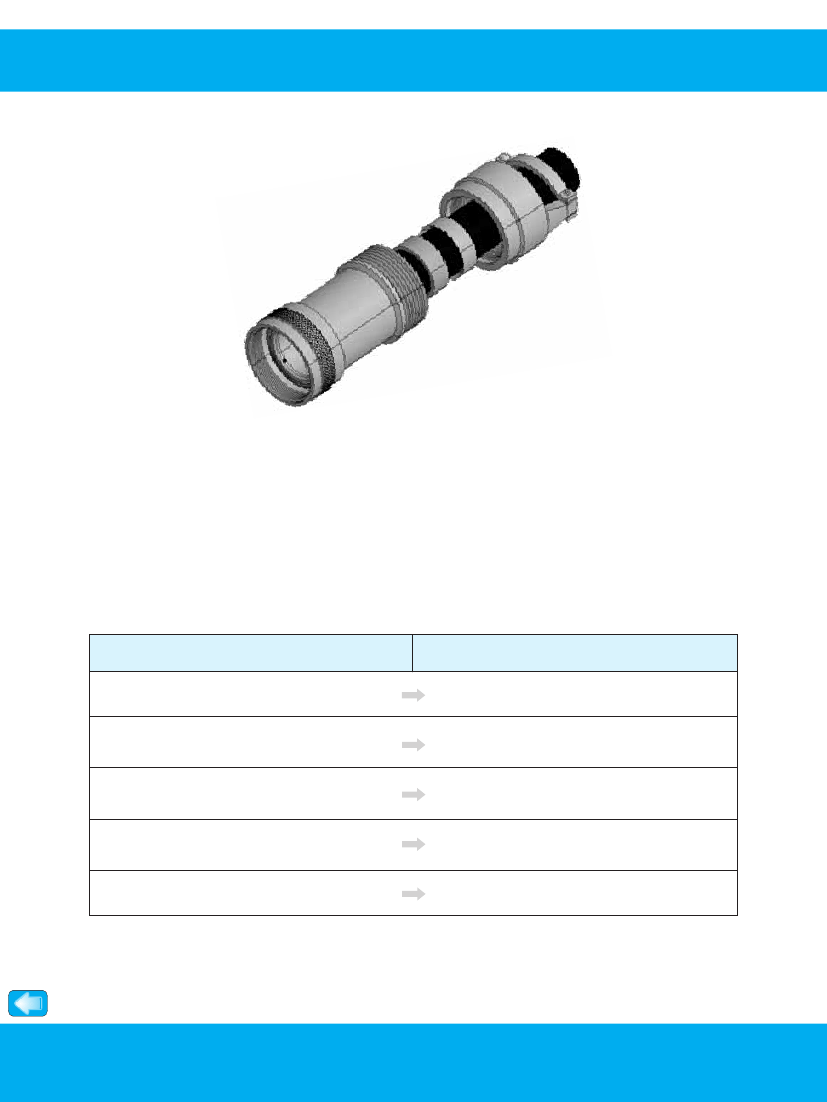

ENVIRONMENTAL BACKSHELL

These Backshells from Amphenol not only provide the cable support and strain relief,

but ensure the cable sealing and environment protection by means of high quality

sealing grommet and grommet follower. The strain relief nut is tightened squeezing

the grommet on to the cable jacket during assembly. These Backshells from Amphenol

give 6 feet water sealing protection when used with perfectly jacketed cable and are

suitable for harsh environment applications.

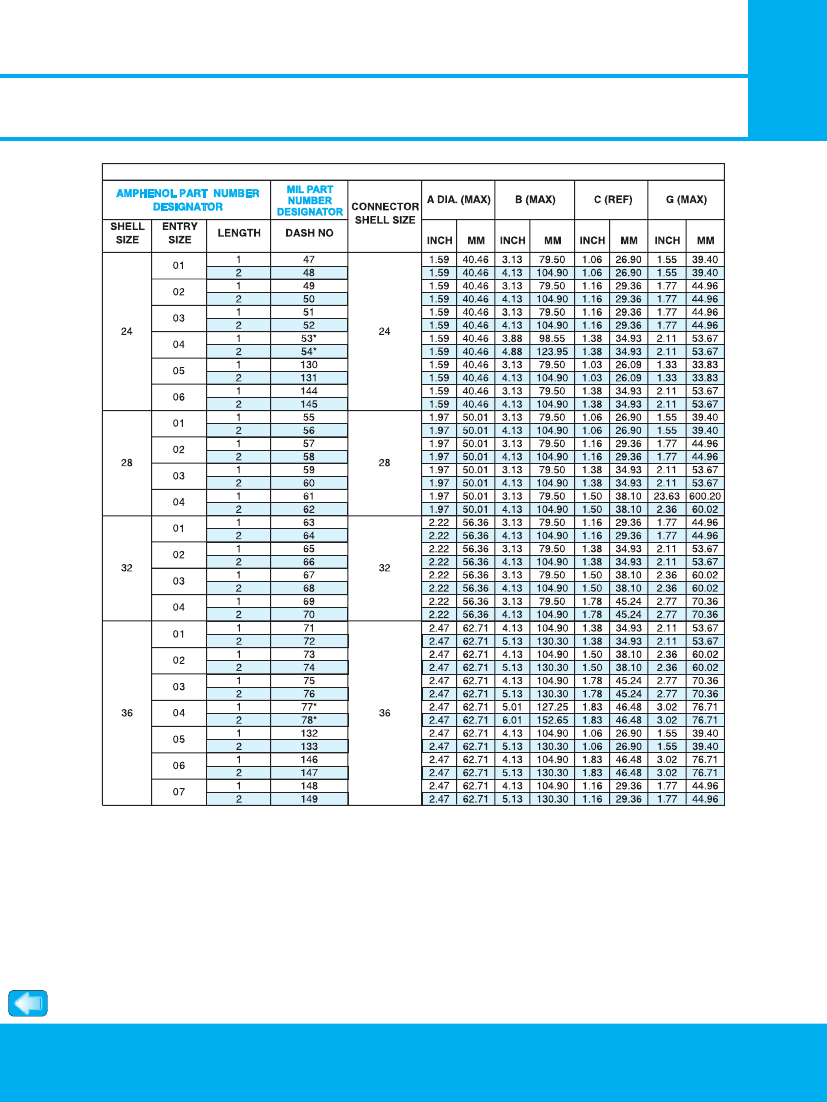

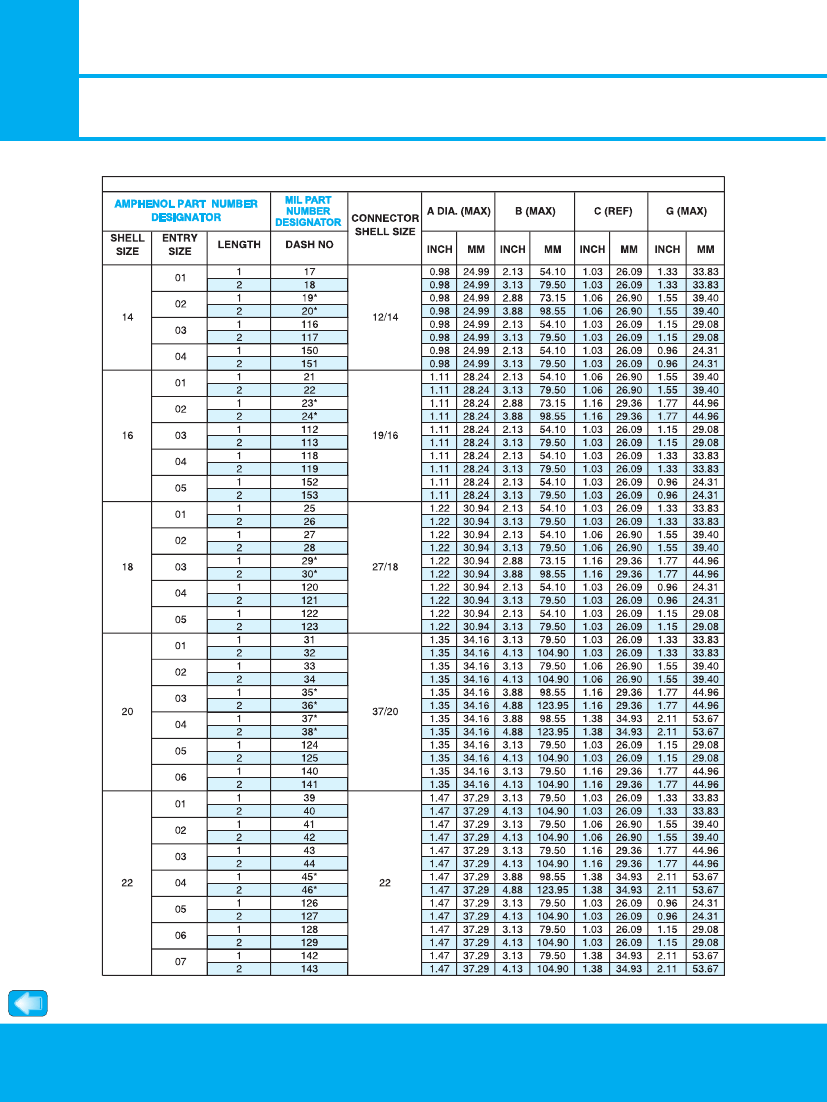

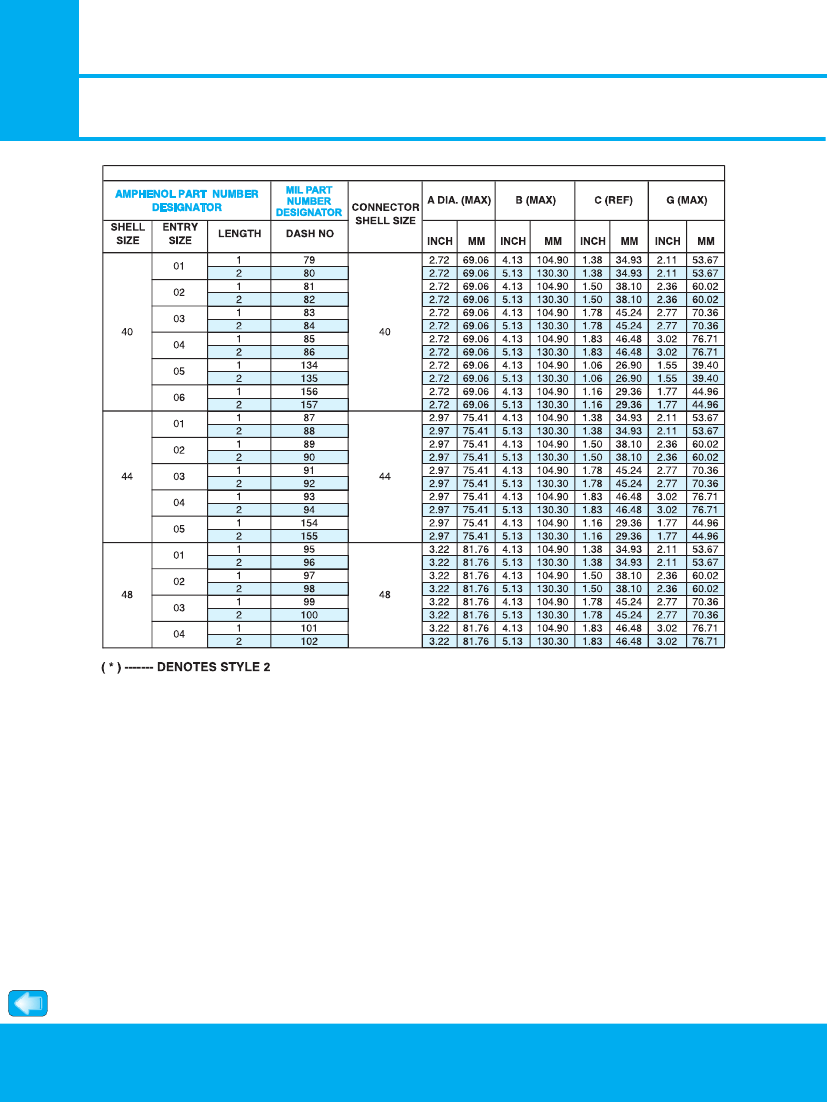

For Connector Group

J

K

L

M

N

Page No.

II-1

-

II-11

II-16

II-21

II-26

II-32

II-12 -

II-17 -

II-22 -

II-27 -

Note:

For Connector group Identification refer Table 1 - A, B, C, D

(Page 7-11)

and for Material / Plating Finish, Refer Table-2

(Page 12)

Amphenol Backshells

II

email: sales@backshellworld.com

www.backshellworld.com
