SATA-001-2222-3

Description
Telecom and Datacom Connector, 7 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug
CategoryThe connector    The connector
File Size55KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

SATA-001-2222-3 Overview

Telecom and Datacom Connector, 7 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug

SATA-001-2222-3 Parametric

Parameter NameAttribute value
Objectid1531494568
Reach Compliance Codeunknown
YTEOL6.87
Body/casing typePLUG
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationGOLD FLASH OVER NICKEL
Contact completed and terminatedTIN (50) OVER NICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBLADE PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability50 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYETHYLENE
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of ports1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
Termination typeSURFACE MOUNT
Total number of contacts7
UL Flammability Code94V-0

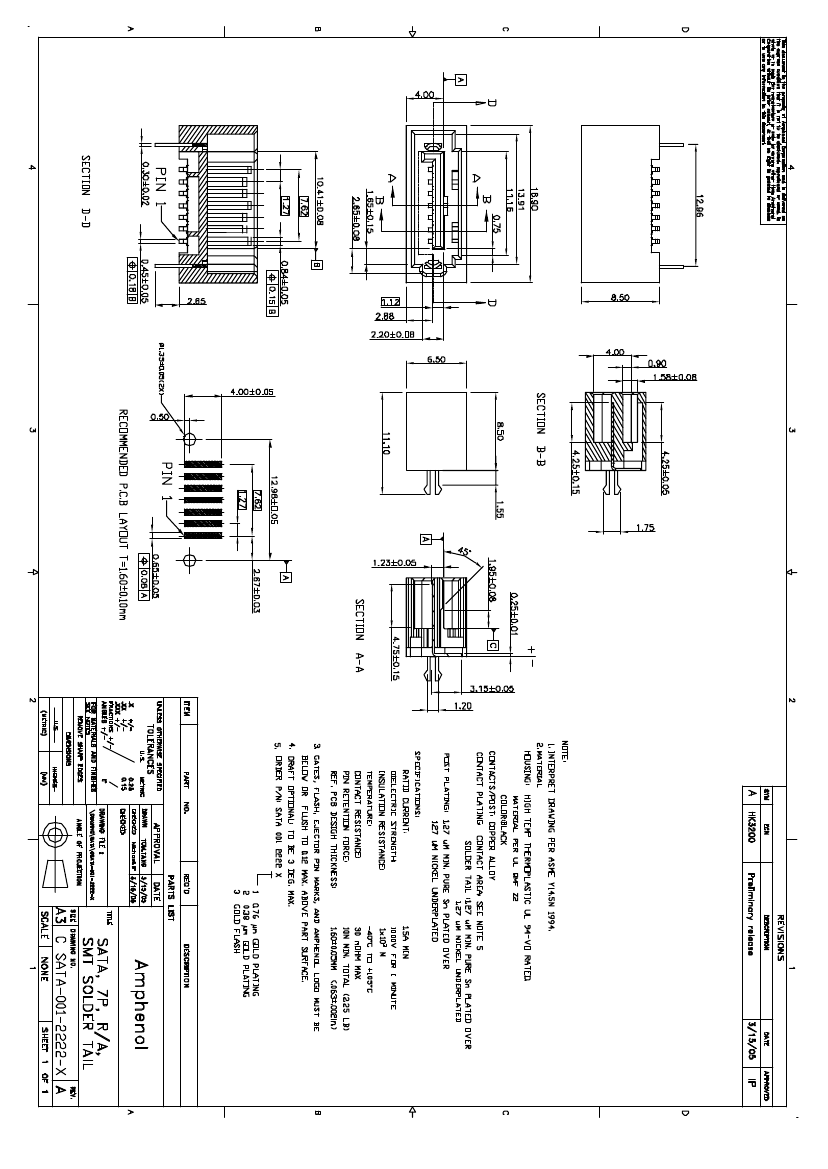

CUSTOMER DRAWING

SATA-001-2222-3 Related Products

SATA-001-2222-3 SATA-001-2222-1 SATA-001-2222-2
Description Telecom and Datacom Connector, 7 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug Telecom and Datacom Connector, 7 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug Telecom and Datacom Connector, 7 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Plug
Reach Compliance Code unknown unknown unknown
Body/casing type PLUG PLUG PLUG
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation GOLD FLASH OVER NICKEL GOLD (30) OVER NICKEL GOLD (15) OVER NICKEL
Contact completed and terminated TIN (50) OVER NICKEL TIN (50) OVER NICKEL TIN (50) OVER NICKEL
Contact point gender FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 30 mΩ 30 mΩ 30 mΩ
Contact style BLADE PIN-SKT BLADE PIN-SKT BLADE PIN-SKT
DIN compliance NO NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Durability 50 Cycles 500 Cycles 250 Cycles
empty shell NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK
insulator material GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC GLASS FILLED POLYETHYLENE
JESD-609 code e3 e3 e3
MIL compliance NO NO NO
Mixed contacts NO NO NO
Installation option 1 LOCKING LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
Number of ports 1 1 1
Number of rows loaded 1 1 1
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 1.5 A 1.5 A 1.5 A
Guideline UL UL UL
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 7 7 7
UL Flammability Code 94V-0 94V-0 94V-0
Objectid 1531494568 - 1531494565
YTEOL 6.87 - 6.87
reliability - COMMERCIAL COMMERCIAL
