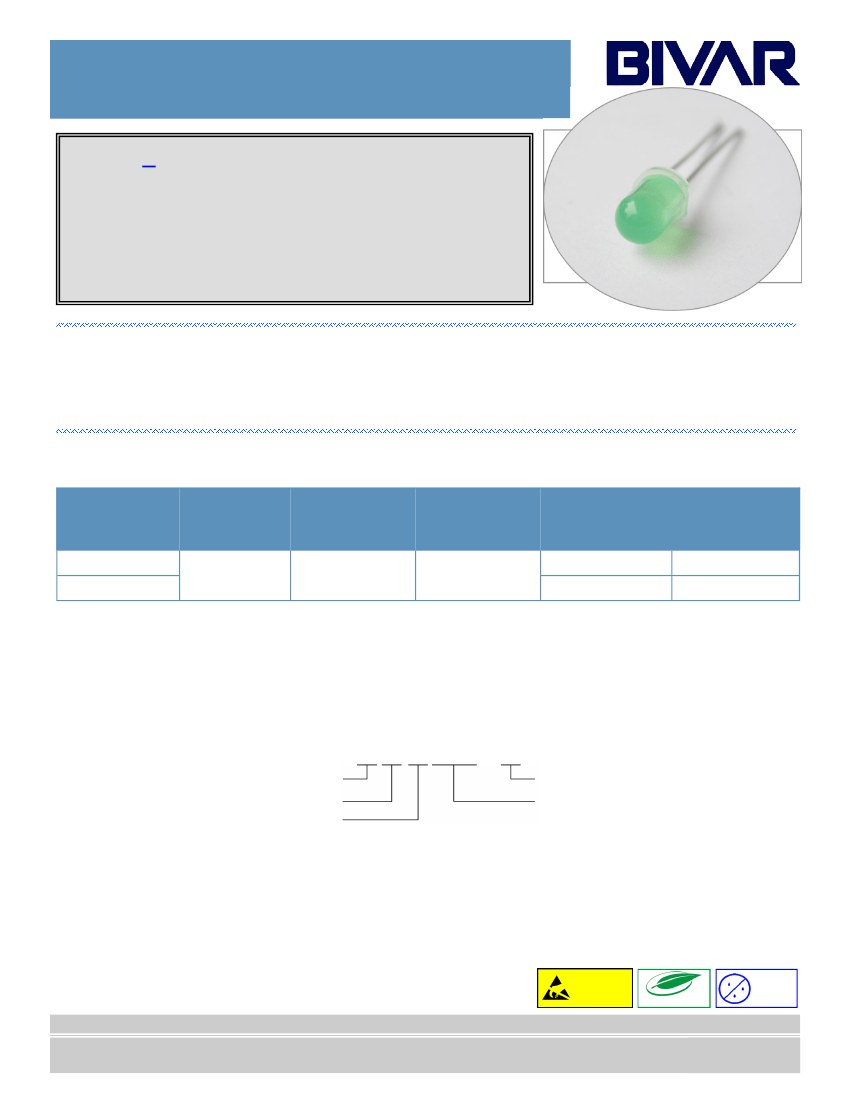

Industry Standard 5mm (T1 ¾) Package
RoHS Compliant
Diffused Lens
Available in Flange (F) and Standard (Blank) Lead Frame
styles
5V Operating Voltage
Ideal for Status Indication and Display
Bivar 5mm T1 ¾ Package 5V LED is ideal for those applications equipped with regular 5V power sup-
plies such as servers and computer peripherals. Bivar offers diffused LED lens for uniform light output.
The Flanged LED is ideal for Panel Mount Clip & Ring assemblies and the Standard Lead frame LED is
ideal for vertical spacer assemblies without lead bends.
Part Number
5GD5V-F
5GD5V
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
568nm
Lens Appearance
Green Diffused
Green Diffused
Viewing Angle
40°
45°
GaP/GaP
GREEN
Part Number Designation
5 X X 5V - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, Blank for Standard
5V Operating Voltage
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 1 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1 ¾) Package Discrete LED
LED
5mm (T1) Package Discrete LEDs
YELLOW, Low Bright
TURQUOISE, Bright
BLUE, UltraCurrent
GREEN, SuperCurrent
AMBER, Ultra Ultra Bright
AMBER Low Current
Low
5V
GREEN, 5V Bright
5V

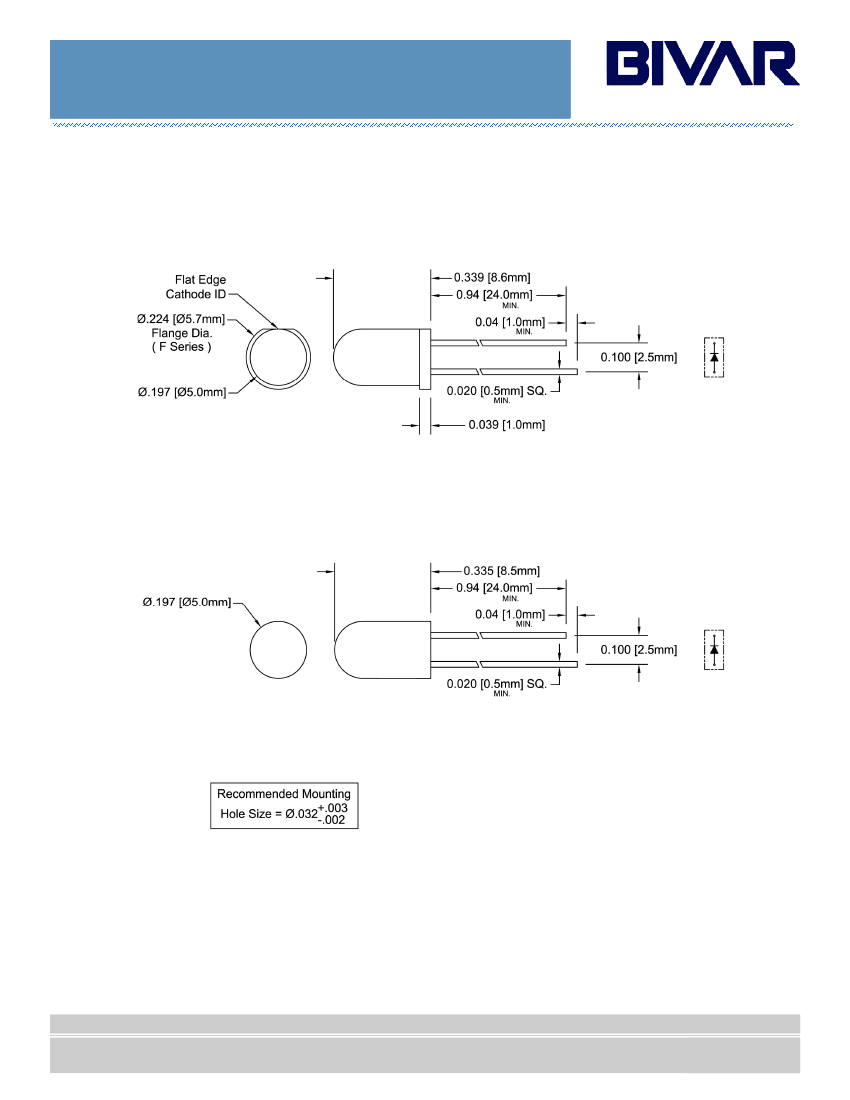

Outline Dimensions
Flanged “5XX5V-F” LED
Standard “5XX5V” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 2 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1 ¾) Package Discrete LED
LED
5mm (T1) Package Discrete LEDs
YELLOW, Low Bright
TURQUOISE, Bright
BLUE, UltraCurrent
GREEN, SuperCurrent
AMBER, Ultra Ultra Bright
AMBER Low Current
Low
5V
GREEN, 5V Bright
5V
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
/ mW
8 mA
12 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & Vf = 5V unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
TYP
/
/
MAX
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
TYP
25
25
MAX
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
40
45
Part Number
MIN TYP MAX MIN TYP MAX
5GD5V-F
5GD5V
/
/
5.0
/
/
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 3 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1 ¾) Package Discrete LED
LED
5mm (T1) Package Discrete LEDs
YELLOW, Low Bright
TURQUOISE, Bright
BLUE, UltraCurrent
GREEN, SuperCurrent
AMBER, Ultra Ultra Bright
AMBER Low Current
Low
5V
GREEN, 5V Bright
5V

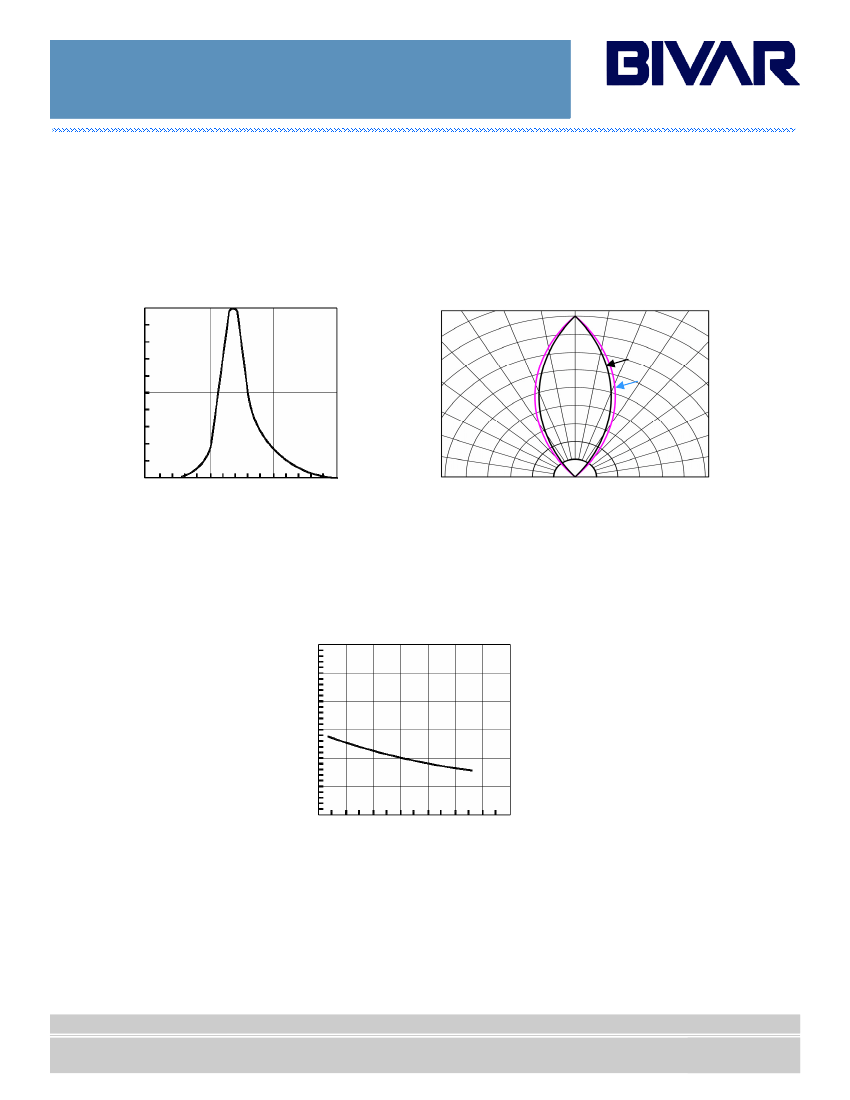

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
1.0
40°
0.5
45°
50°
60°
70°
80°
0.0
500
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
550
600
650
Fig. 1 Relative Luminous Intensity vs. Wavelength
Iv
3.0
2.0
1.0
0.0
T (°C)
-40
0
40
80
Fig. 3 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 4 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1 ¾) Package Discrete LED
LED
5mm (T1) Package Discrete LEDs
YELLOW, Low Bright
TURQUOISE, Bright
BLUE, UltraCurrent
GREEN, SuperCurrent
AMBER, Ultra Ultra Bright
AMBER Low Current
Low
5V
GREEN, 5V Bright
5V
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 03/08
Page 4 of 4
Page 5 of 5
