B0540W RHG

Description
Schottky Diodes & Rectifiers 40 Volt 0.5 Amp 5.5 Amp IFSM
Categorysemiconductor    Discrete semiconductor    Diode rectifier with    Schottky diode rectifier
File Size254KB,6 Pages
ManufacturerTaiwan Semiconductor
Websitehttp://www.taiwansemi.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

B0540W RHG Overview

Schottky Diodes & Rectifiers 40 Volt 0.5 Amp 5.5 Amp IFSM

B0540W RHG Parametric

Parameter NameAttribute value
MakerTaiwan Semiconductor
Product CategorySchottky diodes and rectifiers
productSchottky Diodes
Installation styleSMD/SMT
Package/boxSOD-123-2
If - forward current500 mA
Vrrm - Repetitive reverse voltage40 V
Vf - forward voltage0.51 V
Ifsm - Forward surge current5.5 A
ConfigurationSingle
technologySi
Ir - 反向电流 20 uA
Minimum operating temperature- 55 C
Maximum operating temperature+ 125 C
EncapsulationCut Tape
EncapsulationMouseReel
EncapsulationReel
Pd-power dissipation410 mW
Factory packaging quantity3000
Vr - 反向电压 40 V
unit weight10 mg

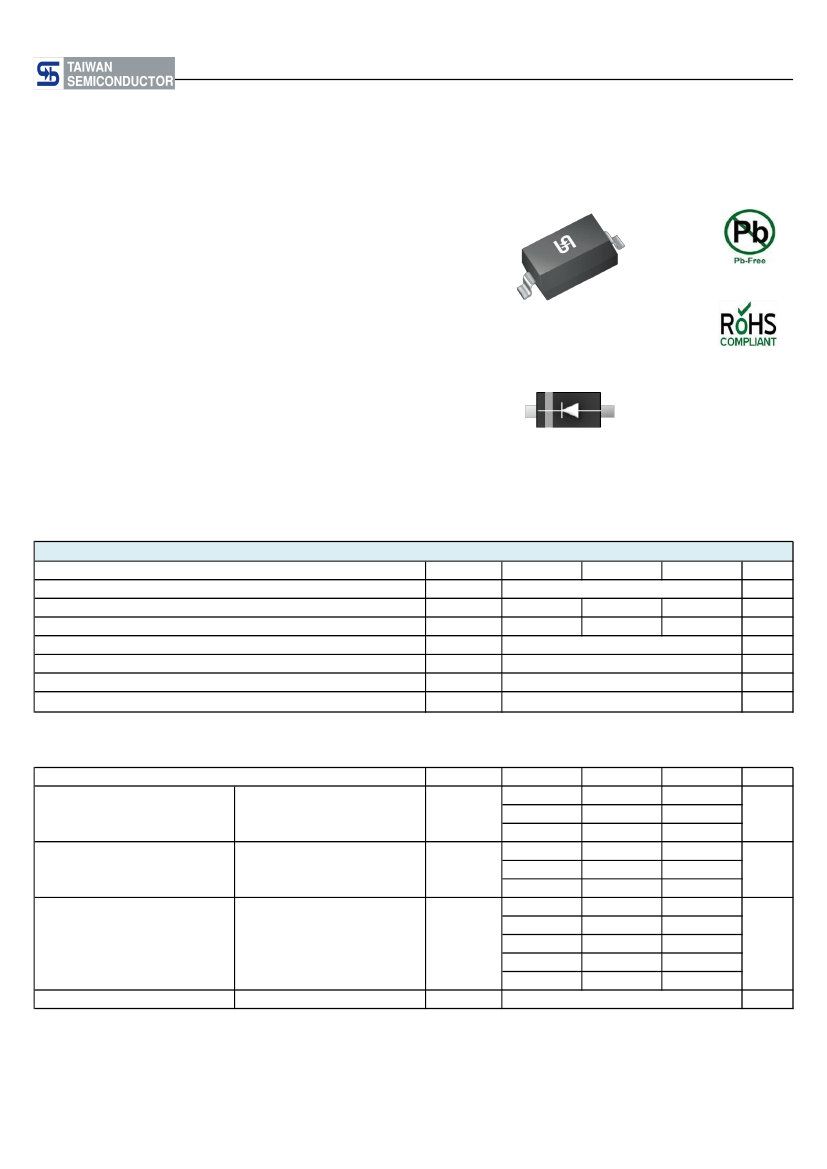

B0520LW,B0530W,B0540W
Taiwan Semiconductor
Small Signal Product
Low VF SMD Schottky Barrier Diode
FEATURES
- Low power loss, high current capability, low VF
- Surface mount device type
- Moisture sensitivity level 1
- Matte Tin (Sn) lead finish with Nickel (Ni) under plate
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21

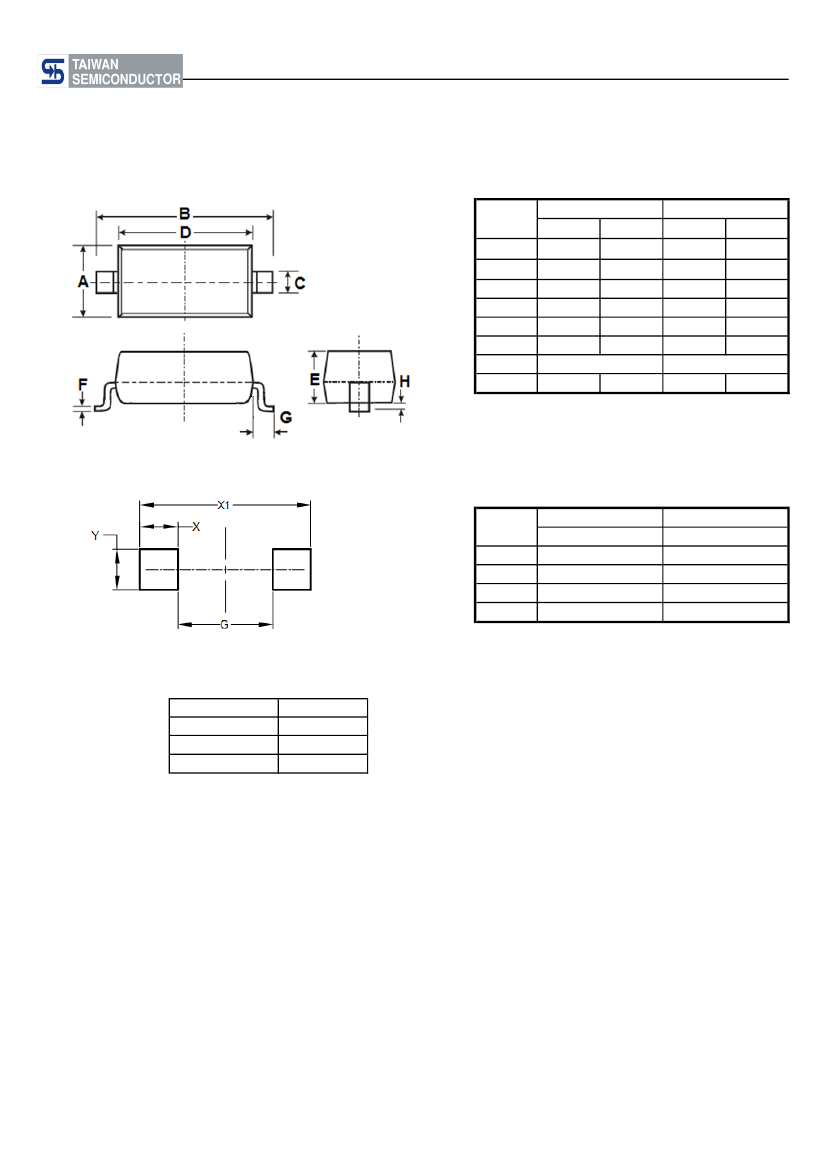

SOD-123
MECHANICAL DATA
- Case: Bend lead SOD-123 small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed : 260°C/10s
- Polarity: Indicated by cathode band
- Weight: 0.01 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Power Dissipation
Repetitive Peak Reverse Voltage
Reverse Voltage
Mean Forward Current @ T
L
=100°C (Lead Temperature)
Non-Repetitive Peak Forward Surge Current (Note 1)
Thermal Resistance (Junction to Ambient)
Junction and Storage Temperature Range
Notes: 2. Valid provided that electrodes are kept at ambient temperature
PARAMETER
Reverse Breakdown Voltage
(Minimum Value)
I
R
=250μA
I
R
=130μA
I
R
=20μA
I
F
=100mA
I
F
=500mA
I
F
=1000mA
V
R
= 10V
Reverse Leakage Current
(Maximum Value)
V
R
= 15V
V
R
= 20V
V
R
= 30V
V
R
= 40V
Junction Capacitance
V
R
= 0 V
f=1.0MHz
C
J
T
J
= 25°C
I
R
T
J
= 25°C
V
F
V
(BR)
SYMBOL
B0520LW
20
-
-
0.300
0.385
-
75
-
250
-
-
B0530W
-
30
-
0.375
0.430
-
-
20
-
130
-
170
B0540W
-
-
40
-
0.510
0.620
-
-
10
-
20
pF
μA
V
V
UNIT
(Note 2)
SYMBOL
P
D
V
RRM
V
R
I
O
I
FSM
R
θJA
T
J
, T
STG
20
14
B0520LW
B0530W
410
30
21
500
5.5
244
-55 to +125
40
28
B0540W
UNIT
mW
V
V
mA
A
°C/W
°C
Notes: 1. Test Condition: 8.3ms single half sine-wave superimposed on rated load
Forward Voltage
(Maximum Value)
Version: I1601
