Part Number

Search

LFSPXO068091Reel

Description
Standard clock oscillator 28.636MHz 3.3V 50ppm -40C +85C
CategoryPassive components    Frequency controller and a timer    oscillator    The standard clock oscillator
File Size387KB,3 Pages
ManufacturerIQD
Environmental Compliance
Download Datasheet Parametric View All

LFSPXO068091Reel Online Shopping

Suppliers Part Number Price MOQ In stock
LFSPXO068091Reel - - View Buy Now

LFSPXO068091Reel Overview

Standard clock oscillator 28.636MHz 3.3V 50ppm -40C +85C

LFSPXO068091Reel Parametric

Parameter NameAttribute value
MakerIQD
Product CategoryStandard clock oscillator
frequency28.636 MHz
frequency stability50 PPM
Working power voltage3.3 V
Termination typeSMD/SMT
Package/box5 mm x 3.2 mm
Minimum operating temperature- 40 C
Maximum operating temperature+ 85 C
length5 mm
width3.2 mm
seriesCFPS-69
EncapsulationReel
typeCeramic SMD Crystal Oscillator
Factory packaging quantity1000

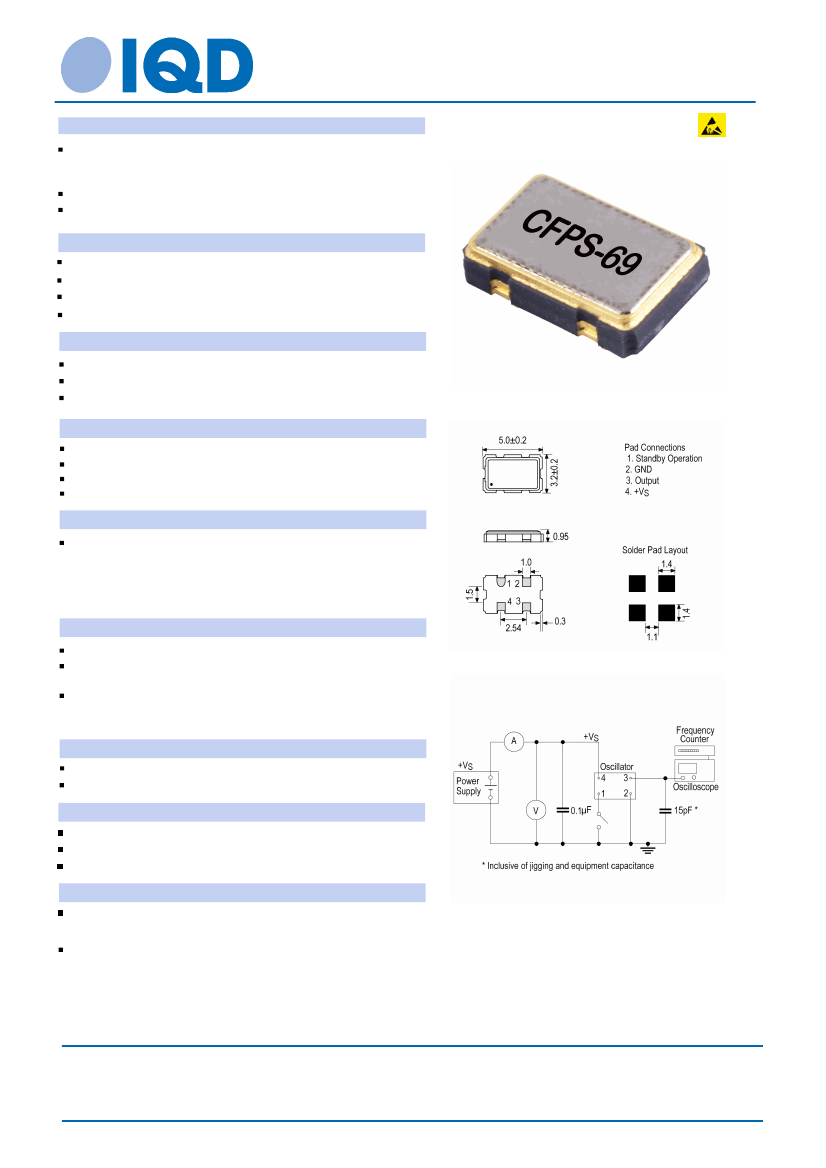

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO068091Reel
Description
Low supply current crystal oscillators
Ceramic package with a seam sealed metal lid, hermetically
sealed
Model
CFPS-69
Model Issue number
5
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
28.6360MHz
±
50.00ppm
-40.00 to 85.00°C
±3ppm max per year
Supply Voltage
Current Draw
Standby Current: 1μA max
Output Details
3.3V ±5%
4.500mA
Outline (mm)
Output Compatibility
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
12.0ns max
45/55%
Standby Operation:
Logic ‘1’ (>70% VS) to pad 1 enables oscillator output
Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; when
the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Storage Temperature Range: –55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Manufacturing Details
Test Circuit
RoHS Terminations
RoHS Reflow Temp
Compliance
NiAu
260degC 10s
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
Printed on 23 Apr 18 11:17 using Part Data Sheet V1.00015
