LCS_032_RTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> The LED indicator> The LED light pipe> LCS_032_RTP

LCS_032_RTP: DescriptionLED light pipe Red Transparent LCS032RTP; CategoryLED optoelectronic/LED The LED indicator The LED light pipe; File Size130KB，2 Pages; ManufacturerVCC; Environmental Compliance

Download Datasheet Parametric View All

LCS_032_RTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCS_032_RTP	-	-	View	Buy Now

LCS_032_RTP Overview

LED light pipe Red Transparent LCS032RTP

LCS_032_RTP Parametric

Parameter Name	Attribute value
Maker	VCC
Product Category	LED light pipe
product	Rigid Light Pipes
color	Red
body shape	Tubular
body length	8.13 mm
Material	Acrylic, Optical Grade
Encapsulation	Bulk
size	5 mm
Installation style	Panel Mount
Factory packaging quantity	1000

Preview

Download Datasheet

View All

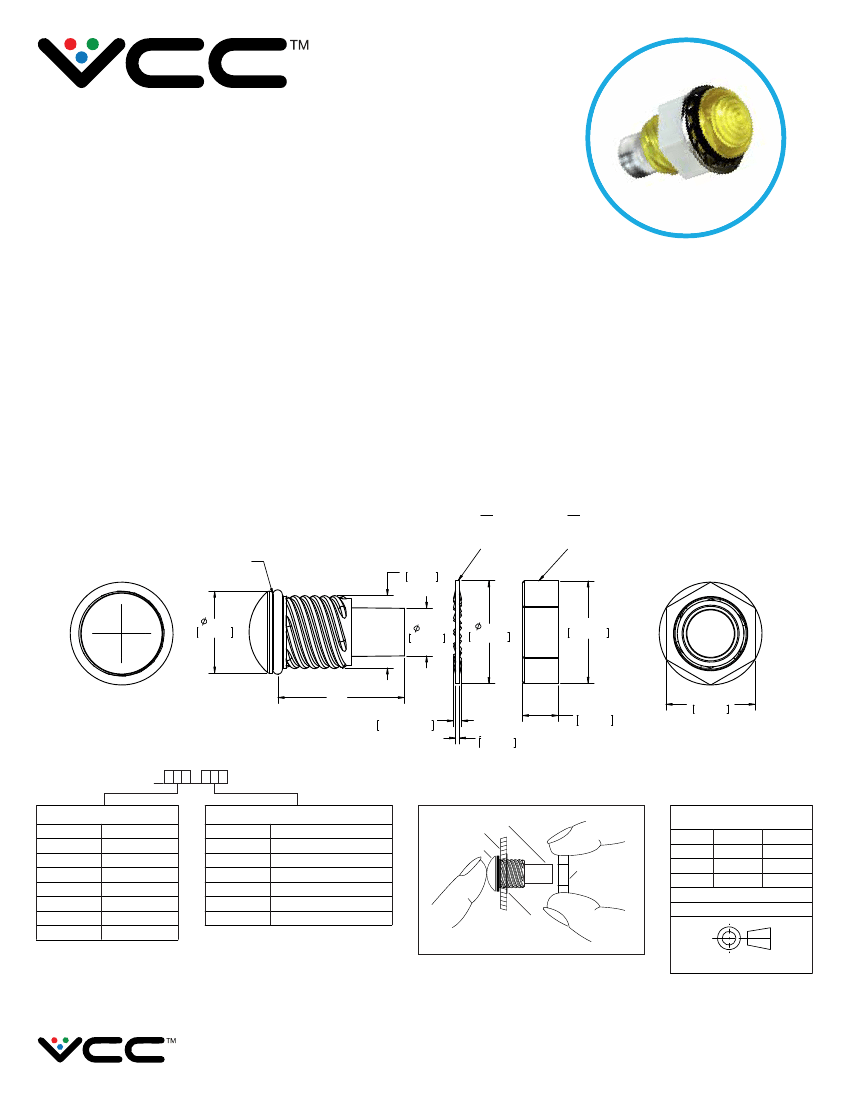

LCS Series 0.500” (12.7mm)

5mm Threaded Moisture Sealed

Rigid Light Pipe

Notes

1. Mounting: Mounts in a Ø .312” ± .002” (Ø 7.92mm ± 0.051) panel hole on .500” (12.7mm) centers.

Panel thickness .031” (.8mm) to .125” (3.18mm). Panel hole shall be deburred, but not chamfered.

2. Assembly: Insert lightpipe through the panel hole, slide lock washer onto lens barrel on lightpipe and

twist on retaining ring. Slide PCB into position aligning LED with the end of the lightpipe unit.

3. Material: Lightpipe - Acrylic (Clear optical grade) UL 94-HB

Lens - Polycarbonate UL 94-V2

Seal - EPDM

Lock Washer - FH Steel, Nickel Plate

Retaining Nut - Thermoplastic (white) UL 94-V0

4. Meets NEMA 6P/IP 67 standards

LOCK

WASHER

RETAINING

NUT

MOISTURE SEAL

0.307in

7.8mm

.344in

8.74mm

.200in

5.08mm

.432in

10.97mm

.430in

10.93mm

.XXX

.034in±.003

0.86mm±0.08

.016in

0.41mm

.150in

3.81mm

.370in

9.40mm

Ordering Code: LCS

Lightpipe

Length

032

052

072

092

112

132

177

.320”

.520”

.720”

.920”

1.12”

1.32”

1.77”

RTP

ATP

GTP

BTP

YTP

CTP

Lens

Color

Amber Transparent

Green Transparent

Blue Transparent

Yellow Transparent

Clear Transparent

Lock Washer

Lightpipe

Display Panel

Lens

Retaining Ring

Dimensions Style Inches [mm] General

Tolerances Unless Otherwise Specified

Red Transparent

Inches

.XX

.XXX

± .

020

± .

015

± .

005

± .

508

± .

381

± .

127

Angle

± 1’

Break All Corners And Sharp Edges .030 max.

Third Angle Projection

Your first call for illuminated components

www.vcclite.com 1.800.522.5546

12/17 Rev1

LCS Series

Page 1 of 1
