Q22 series

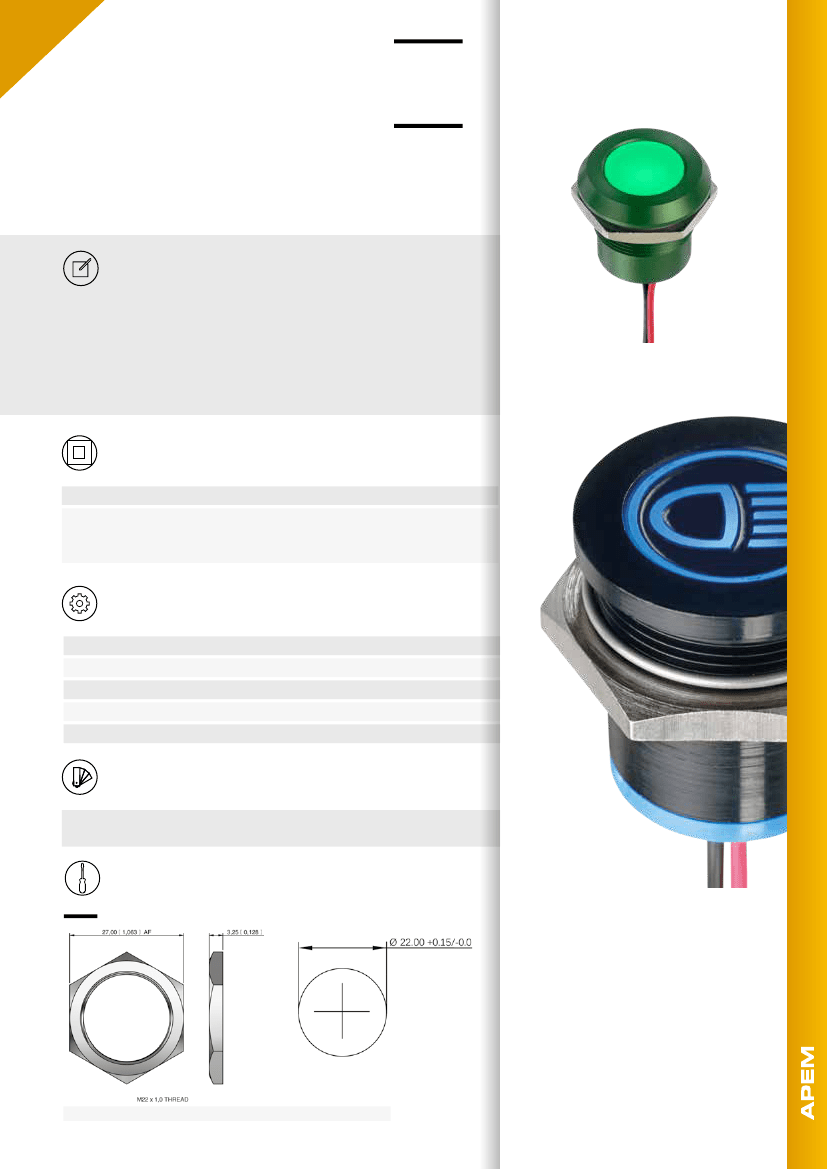

Ø22 mm panel mount LED indicators
DISTINCTIVE FEATURES
16.75 mm colored diffused epoxy lens or 16.75 mm super bright
LEDs
Secret until lit polycarbonate decals or custom engraving
(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
wire terminations
ENVIRONMENTAL SPECIFICATIONS
• IP67 sealing option (EN60529)
• Operating & Storage Temperature Range:
Rear plastic body:
-30 °C to +65 °C ( –22 °F to +149 °F)
Rear epoxy body:
-40 °C to +85 °C ( –40 °F to +185 °F)
GENERAL SPECIFICATIONS
• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° (dependant on model)
• Life Expectancy: 100,000 hours
• Torque: 75 cNm (dependent on option)
• Maximum panel thickness 12 mm (Prominent), 10 mm (Flush)
MATERIALS
• Plated brass bezel finished in bright chrome, black chrome or satin
grey and moulded polycarbonate rear body. Plastic bezel in ABS.
MOUNTING
The company reserves the right to change specifications without notice.
All LED characteristics are dependent upon environmental conditions. Therefore published data
should be considered nominal and subject to variations.
.
1
LED INDICATORS
06
LED INDICATORS
Q22 series
Ø22 mm panel mount LED indicators
ELECTRICAL SPECIFICATIONS
STANDARD LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Bi-color (Typical)
(Red/Green)
Tri-color (Typical)
(Red/Green/Yellow)
82 mcd
95 mcd
60 mcd
120 mcd
1,000 mcd
80/50 mcd
80/50/50 mcd
Flush
70 mcd
66 mcd
59 mcd
101 mcd
150 mcd
80/50 mcd
80/50/50 mcd
Forward Voltage
5.7 V
6.0 V
5.9 V
9.9 V
3.3 V
2.0 V/2.2 V
2.0 V/2.2 V/2.1 V
Voltage
Operating Voltage
(Min to Max)
Operating Current
(Typical All Types)
02 (No Resistor)
12 VDC
24 VDC
28 VDC
110 VAC
220 VAC
3.3 to 9.9 VDC
10.8 to 13.2 VDC
21.6 to 26.4 VDC
25.2 to 30.8 VDC
99 to 121 VAC
207 to 235 VAC
40 mA max*
40 mA
40 mA
40 mA
5 mA
3 mA
* Customer to supply resistor for desired operating
current.
Bi-color - The color is changed by reversing the polarity of the supply voltage.
Tri-color - The indicator has red and green LEDs, when both connected yellow is produced.
ADDITIONNAL INFORMATION ON LED COMPONENTS
SUPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
465 mcd
245 mcd
365 mcd
Flush
800 mcd
980 mcd
1,250 mcd
Forward Voltage
5.7 V
9.0 V
6.0 V
•
Bi-color
leds, by connecting the gold faston (+)
one color is produced, by reversing the supply
voltage another color is produced – bi-colors are
available up to 28 VDC
tri-color led has red and green leds when
both are connected yellow is produced
•
The
• The operating voltage must not be exceeded by more that
10% as this will result in reduced life expectancy
• Luminous intensity is measured at 20 mA on a discrete led
unless otherwise stated.
• Luminous intensities and color shades of white LEDs may
vary within a batch.
• Luminous intensity will be reduced with lower operating
current.
2
Q22 series
Ø22 mm panel mount LED indicators
BUILD YOUR PART NUMBER
Q
SERIES
MOUNTING HOLE
BEZEL STYLE
Metal
TERMINALS
BEZEL FINISH
Metal
Anodized Flush
22
Ø22mm
P
R
F
Y
PP
FP
Prominent
Recessed
Flush
Chamfer*
Plastic
Prominent
Flush
1
4
5
6
7
Solder Lug/ Fastons
(2.8 x 0.8)
Rear epoxy Pins
Rear epoxy Wires
Short body Pins
Short body Wires
C
B
G
S
BP
Bright Chrome
Black Chrome
Satin Grey
Stainless Steel
Plastic
Black
AR
AG
AY
AB
AN
Red
Green
Yellow
Blue
Black
* bezel finish : only with option
"S" and "Anodized Flush"
TYPE OF ILLUMINATION
LED COLOR
VOLTAGE
Super Bright
Yellow
Red/Green
Red/Yellow
Green/Yellow
Red/Yellow/
Green
SEALING
OPTIONS
XX
KK
YY
ZZ
Fixed Light
Flashing Light
(only 12 VDC)
Bi-color
Tri-color
R
G
Y
B
W
SR
SG
Red
Green
Yellow
Blue
White
Super Bright
Red
Super Bright
Green
SY
RG
RY
GY
RYG
02
12
12A
24
24A
28
28A
110
220
no resistor*
12 VDC
12 VAC/DC
24 VDC
24 VAC/DC
28 VDC
28 VAC/DC
110 VAC
220 VAC
(Blank)
E
Unsealed
IP67
DL
LT
Daisy Chain
Lamp Test
* please refer to the forward
voltage in electrical
specifications
ABOUT THIS SERIES
Notice:
please note that not all combinations of above numbers are available.
• Gold faston terminal denotes anode (+), silver terminal denotes
cathode (-)
• Standard wire length is 200 mm, 22 AWG UL1007, red wire
denotes anode (+), black wire denotes cathode (-) for other wire
lengths consult APEM
• For leds with alternative voltages please consult Apem
• 110 VAC and 220 VAC, short body terminal options, 5, 6 and 7
please consult the factory
• Take care when soldering to the faston terminals (recommended
solder temperature 300 °C - 3 sec)
• Pin and Wire options are epoxy sealed at the rear of the bezels,
termination options 4 and 5
• Standard tri-color faston terminals are two anodes (+) and one
cathode (-)
• Tri-color wires are one red (+) and one green (+) anode and one
black (-) cathode
• Tri-color pins are center (–) cathode, shortest (+) anode pin
green, longest (+) anode pin red
• Daisy chaining option - has negative (Cathode) terminals linked
(3 x Fastons), solder lugs only
• Lamp test facility option 4 x solder lug/Faston only
• We recommend using superbright leds for use at 110 VAC and
220 VAC
3
LED INDICATORS
LED INDICATORS
Q22 series
Ø22 mm panel mount LED indicators

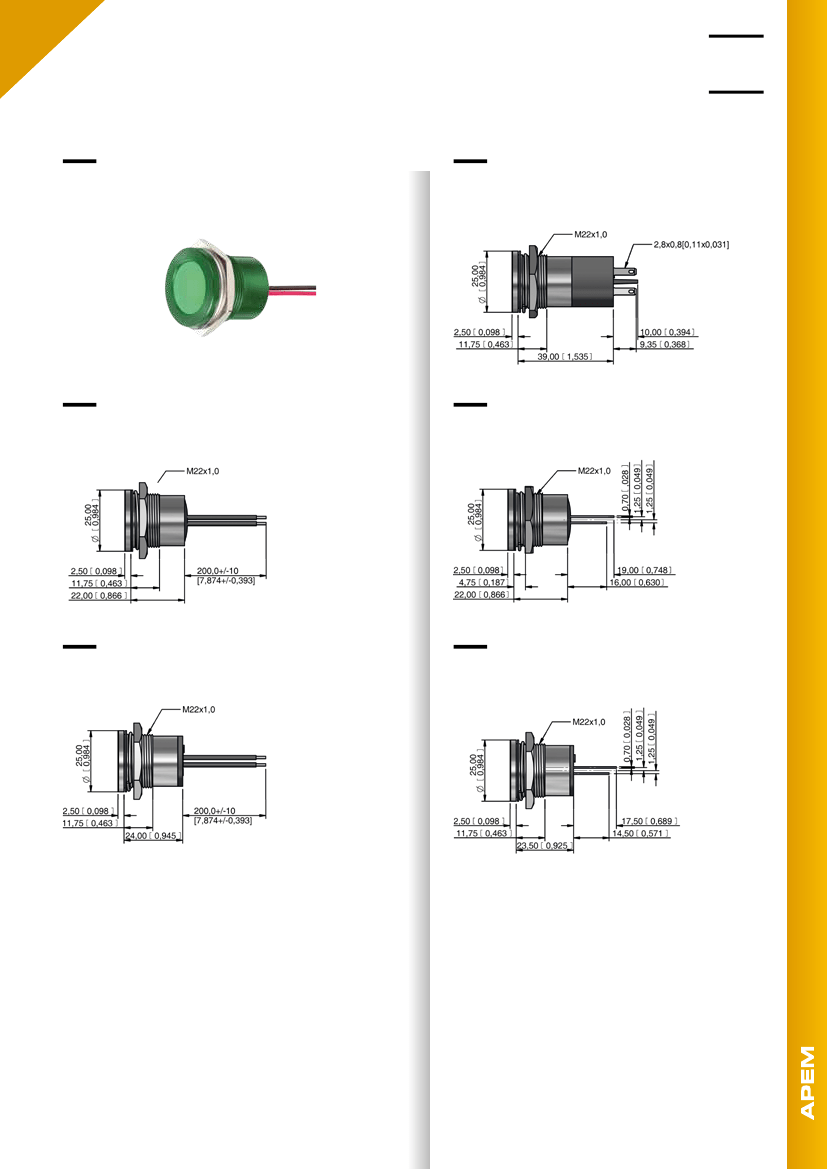

PROMINENT BEZEL
SOLDER LUG/FASTON
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
4
Q22 series
Ø22 mm panel mount LED indicators

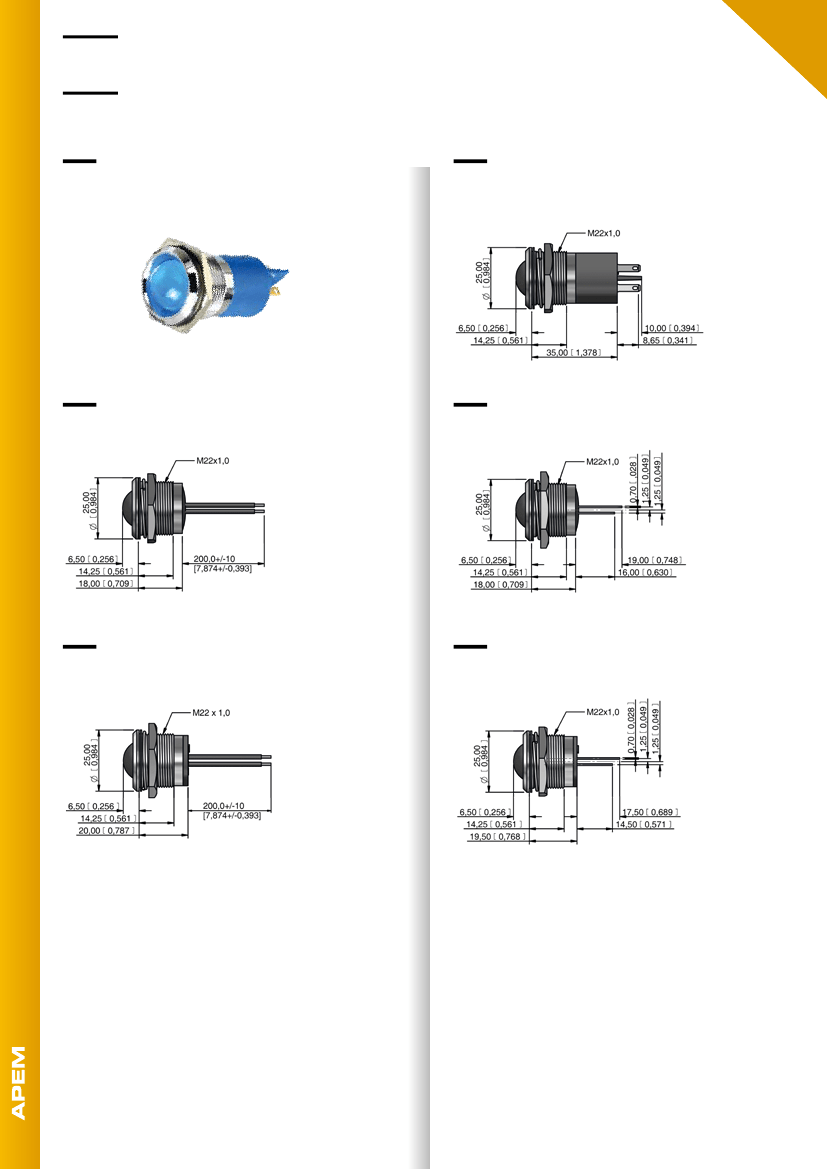

FLUSH BEZEL
SOLDER LUG/FASTON
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
5
LED INDICATORS
