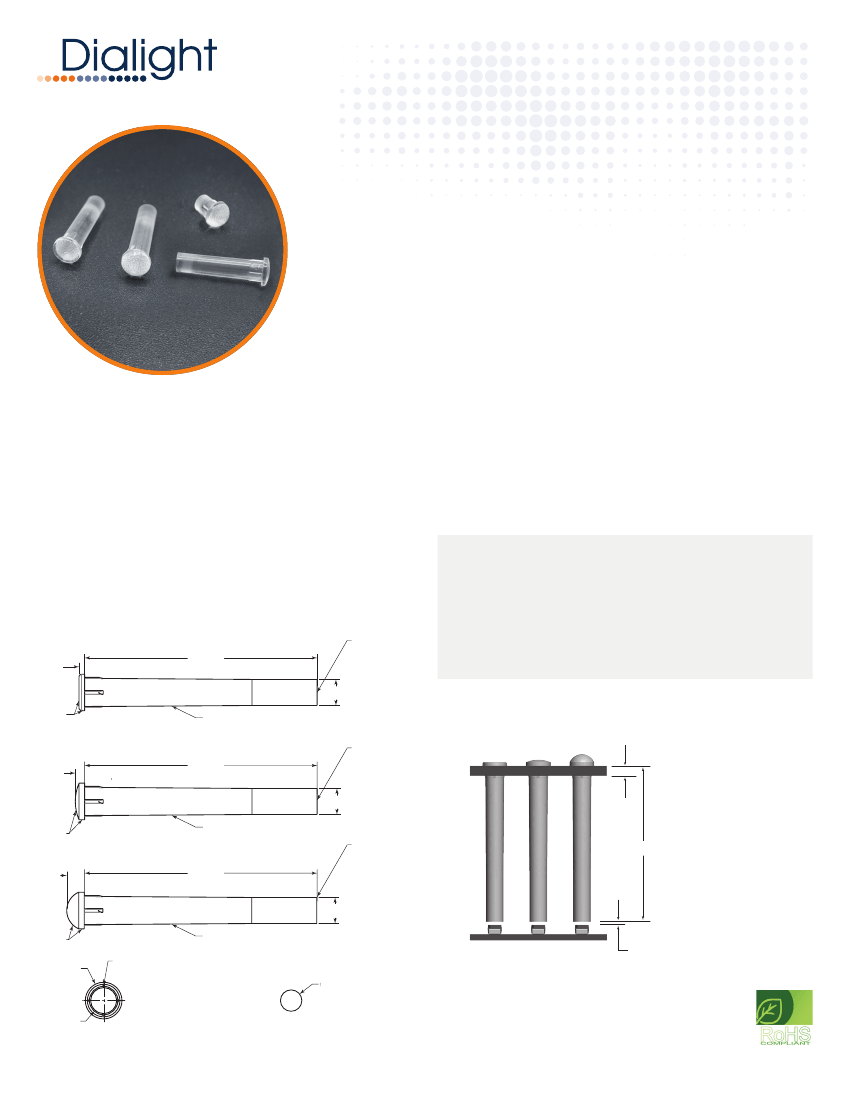

Optopipe
®
Panel Mount Light Pipes
5mm Diameter Output
Features & Benefits
•
Lengths varying from .125"–1.500"
Custom length available upon request
•
Three lens styles for optimal viewing angles:
Flat, Convex and Domed
•
Designed for both single and multiple colored LEDs
•
Light is produced by surface mount LEDs through photonic
emission, not as a by product of radiating heat source.
Low voltage and minimal power consumption.
•
Precision molded from ROHS compliant UL94-V0,
water clear polycarbonate with oxygen index of 35%
•
Available in diffused textured lens only
•
Optimally designed to be used with Dialight surface mount
LEDs
•
See Dialight Surface Mount Selector Guide for LED options
®
Application
Dialight Optopipe panel mount provide an excellent solution
for products that contain a PCB that is parallel to the front panel
in need of indication. The UL94-V0 water clear polycarbonate
light pipes are secured to the front panel with a press fit that is
easy to install. Dialight Optopipe
®
solutions are a cost effective
way of bringing indication to your front panel.
•
Recommend PLCC-2 and PLCC-4, surface mount LEDs
part number: 597-xxxx-207F
Mechanical Information
Mounting Hole Size:
.156"± .002"
-30°C to +100°C
-30°C to +100°C
Min. Panel Thickness:
.040" (1 mm)
Dimensions
.030
[076]
FLAT
515-1351-XXXXF
Dim “A”
Operating Temp:
Polished Surface
SPI A1 Finish
Storage Temp:
0.140 [3.56]
Diffused
surface
Draft
CONVEX
515-1352-XXXXF
.050
[1.27]
Dim “A”
Polished Surface
SPI A1 Finish
FLAT
CONVEX
DOMED
0.140 [3.56]
Diffused
surface
Draft
.080
[2.03]
DOMED
515-1353-XXXXF
Dim “A”
Polished Surface
SPI A1 Finish
DIM “A”
.095
[2.41]
0.140 [3.56]
Diffused
surface
Ø .197
[5]
Draft
4 ribs spaced 90° apart
major Ø .162 ± .002 [4.11 ± 0.05]
Ø 0.156 ± .002
[3.96± 0.051]
.010 –.020
[0.26–0.50]
Ø .152
[3.86]
Mounting hole
www.dialightsignalsandcomponents.com
Ordering Information
>
Ordering Information
515 Series 5mm
Part Number Guide
5 1 5 - 1 3 5 X - X X X X
F
Lens Shape
Flat -
1
Convex -
2
Domed -
3
Length in
inches
(Dim “A”)
Flat
Dialight P/N
515-1351-0125F
515-1351-0188F
515-1351-0250F
515-1351-0350F
515-1351-0375F
515-1351-0500F
515-1351-0625F
515-1351-0750F
515-1351-0800F
515-1351-0900F
515-1351-1000F
515-1351-1250F
515-1352-1500F
Dim “A”
0.125 [3.20]
0.188 [4.77]
0.250 [6.35]
0.350 [9.53]
0.375 [9.53]
0.500 [12.70]
0.625 [15.88]
0.750 [19.05]
0.800 [20.32]
0.900 [22.86]
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
Dialight P/N
Convex
Dim “A”
0.125 [3.20]
0.188 [4.77]
0.250 [6.35]
0.350 [9.53]
0.375 [9.53]
0.500 [12.70]
0.625 [15.88]
0.750 [19.05]
0.800 [20.32]
0.900 [22.86]
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
Dialight P/N
Domed
Dim “A”
0.125 [3.20]
0.188 [4.77]
0.250 [6.35]
0.350 [9.53]
0.375 [9.53]
0.500 [12.70]
0.625 [15.88]
0.750 [19.05]
0.800 [20.32]
0.900 [22.86]
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
515-1352-0125F
515-1352-0188F
515-1352-0250F
515-1352-0350F
515-1352-0375F
515-1352-0500F
515-1352-0625F
515-1352-0750F
515-1352-0800F
515-1352-0900F
515-1352-1000F
515-1352-1250F
515-1352-1500F
515-1353-0125F
515-1353-0188F
515-1353-0250F
515-1353-0350F
515-1353-0375F
515-1353-0500F
515-1353-0625F
515-1353-0750F
515-1353-0800F
515-1353-0900F
515-1353-1000F
515-1353-1250F
515-1353-1500F
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at:
www.dialightsignalsandcomponents.com
Warranty Statement:
Except for the warranty expressly provided for [herein/above/below], Dialight disclaims any and all other warranties, express or implied, including, without limitation, any warranties of merchantability, fitness
for a particular purpose, title, and noninfringement.
www.dialightsignalsandcomponents.com
Dialight_CBI_datasheet_515_5mmOpto_Dec2017
