1.27mm Pitch 8Byte DIMM Socket
SX4 Series

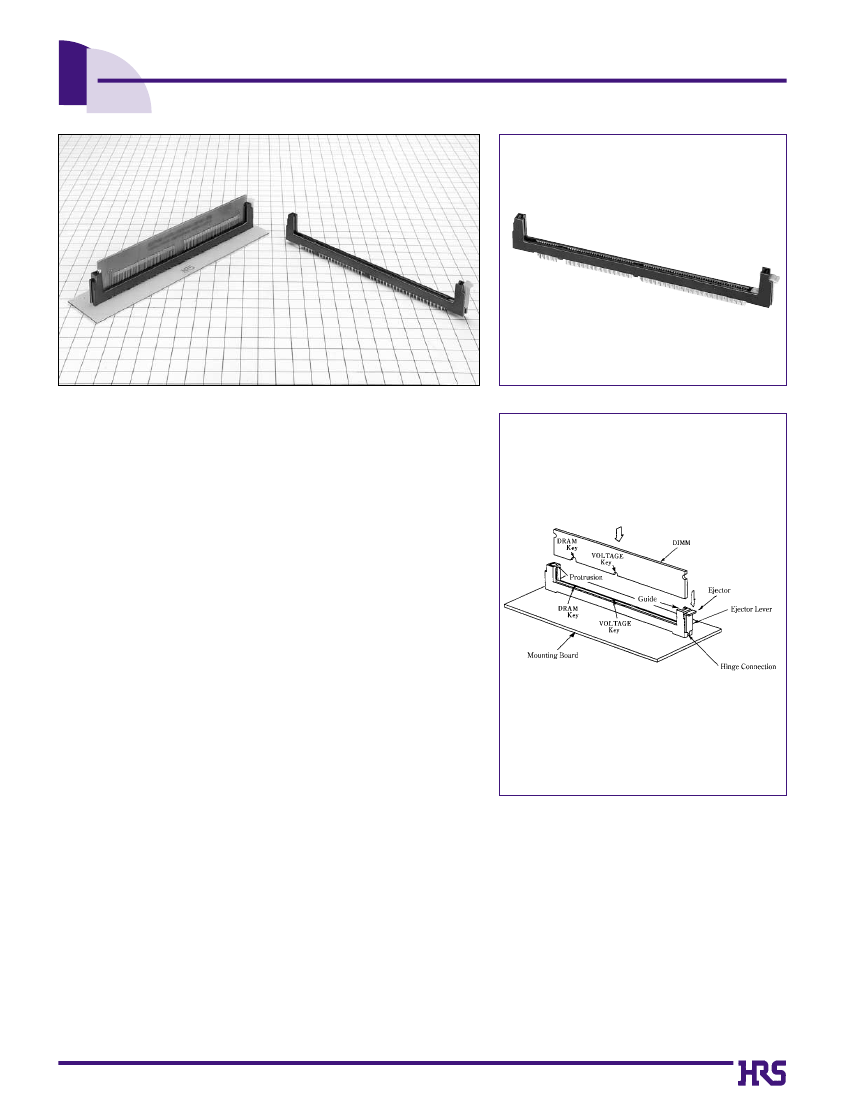

sFeatures
1. 8Byte DIMM Compliant Socket
The SX4 series are a socket compliant to "8Byte DIMM" standardized
at JEDEC.
2. JEDEC Standard MO-161
The applicable module board 1.27mm pitch 168 pos. for double-sided
connection.
3. Easy PC Board Pattern Design
The lead length for soldering dip connection on the board is 1.27mm,
row-row 1.27mm, 1.6mm, 1.905mm, and staggered alignment in 4
rows.
4. Compatible with 5V and 3.3V Operating Voltage Module
Board
5. Prevents Mis-insertion in Module Board
The key mechanism prevents mis-insertion in the module board.
6. Prevents Displacement of Module Board
The structure to sustain the module board on both sides prevents
displacement of the module board.
7. Easy Insertion and Extraction of Module Board
The unique ejector mechanism facilitates to remove the module board. with
pushing the injector.
In addition, marginal space is not needed for insertion and extraction actions.
7.
sApplications
Workstations, computers, personal computers, PPC, business machines, measuring instruments, etc.
D11
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Operating Temperature Range
Rating
Voltage rating
Current rating
-55ç to +85ç
100V AC
0.5A
Storage Temperature Range -55ç to +85ç
Item
1. Contact Resistance
2. Insulation Resistance
3. Withstanding voltage
4. Insulator/Extraction Force
5. Vibration
6. Moisture Resistance
Specification
30m
ohms
min.
1000M
ohms
min.
No flashover or insulation breakdown.
196N max.
No electrical discontinuity of 1µs or more
Contact resistance: 50m
ohms
max.
Insulation Resistance: 1000M
ohms
min.
Contact resistance: 50m
ohms
max.
Insulation Resistance: 1000M
ohms
min.
Contact resistance: 50m
ohms
max.
Contact resistance: 50m
ohms
max.
100mA DC
250V DC
250V AC / 1 minute
Condition
Measured with the 1.37±0.002mm gauge
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
50 minutes in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to
95%
Tested for 5 cycles under following condition
Temperature
Time
30 cycles
Exposed to density 5% salt water for 48 hours
: -55➝ +5 to 35➝ +85➝ +5 to 35ç
:
-30➝
10 to 15➝
+30➝
10 to 15 minutes
7. Temperature Cycle
8. Operating Life
9. Salt spray
sMaterial
Part
Contact
Insulator
Ejector
Material
Phosphor copper
PPS(UL94V-0)
Polyamid
Finish
Selective gold plating
---------------
---------------
sOrdering
Information
SX4 A B - 168 S - 1.27 DSA
1
2
3
4
5
6
7
1
Series Name: SX4
2
DIMM Key:
A: 5V type
B: 3.3V type
4
Number of Contacts: 168
5
Contact Type: Female
6
Contact Pitch: 1.27mm
7
Contact type (row interval x lead length)
DSA: 1.6mm x 3.5mm
DSD: 1.27mm x 3.5mm
DSH: 1.905mm x 3.5mm
3
Positioning boss
A: Without boss
B: With boss
D12
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

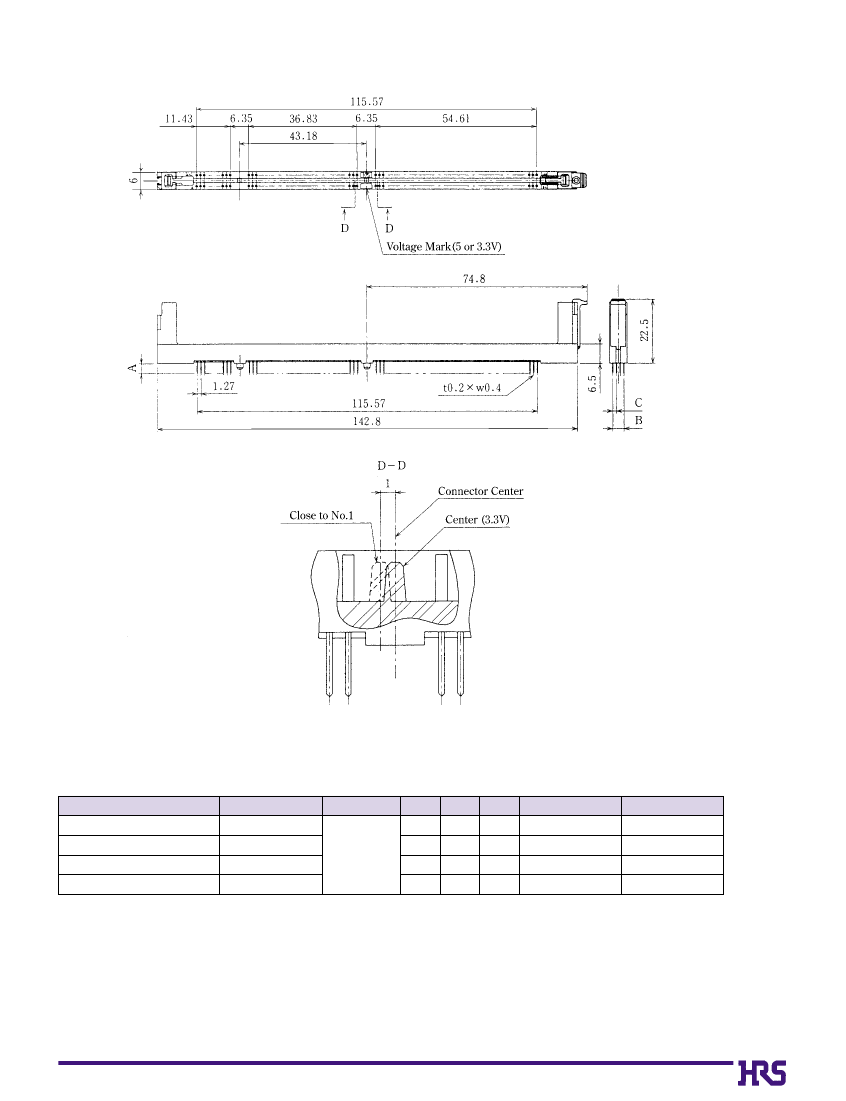

s168
Contacts
Unit: mm
Part Number
SX4AB-168S-1.27DSA
SX4BA-168S-1.27DSA
SX4BA-168S-1.27DSD
SX4AB-168S-1.27DSH
CL No.
530-0100-8
530-0103-6
530-0112-7
530-0115-5
168
Number of Contacts
A
3.5
3.5
3.5
3.5
B
4.80
4.80
3.81
5.72
C
1.6
1.6
1.27
1.905
Boss
With boss
Without boss
Without boss
With boss
Voltage Key (Note)
5.0V
3.3V
3.3V
5.0V
Note : 3.3V and 5.0V correspond to the 8Byte DIMM voltage key.
D13
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

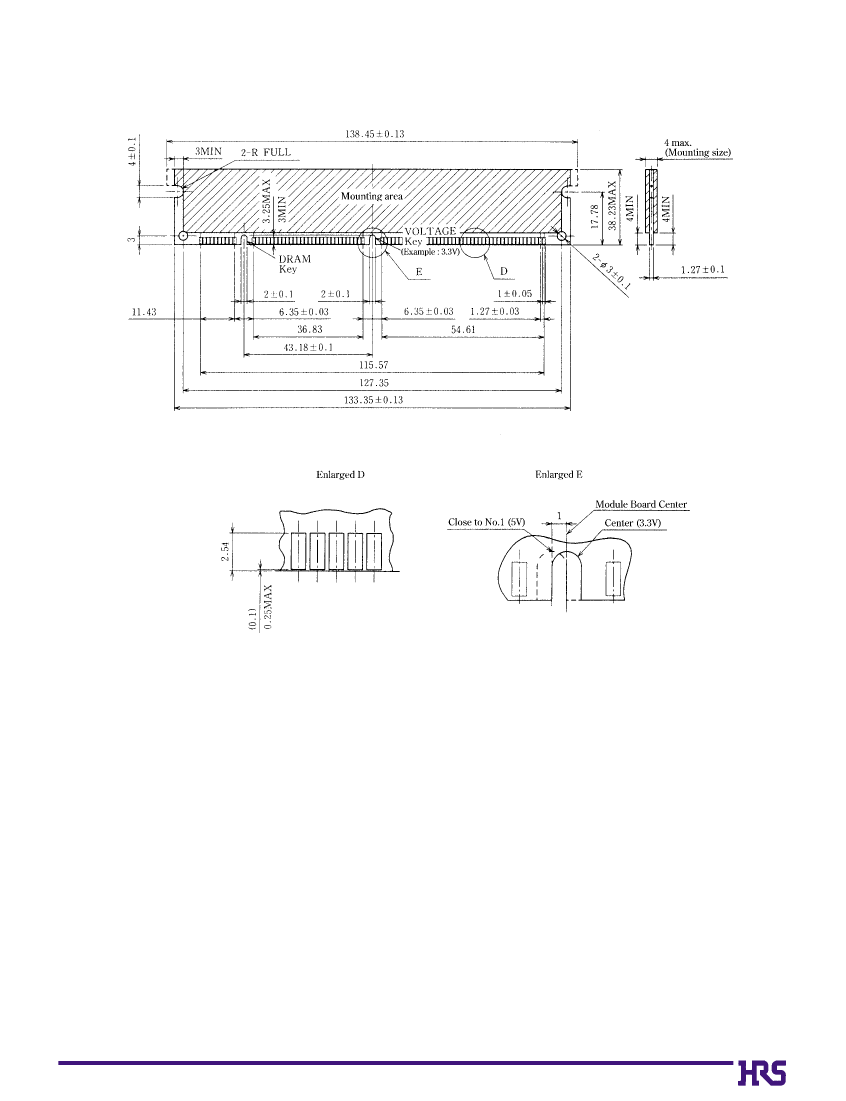

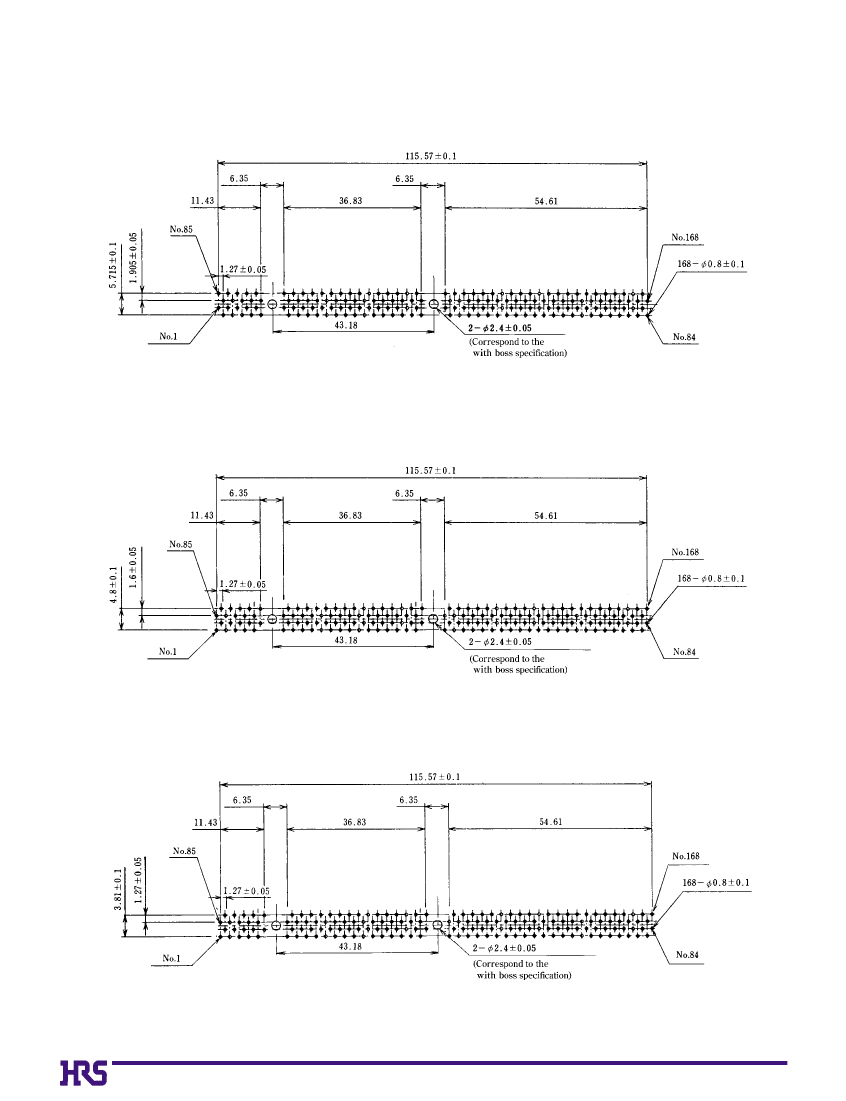

BPCB
