804-001-06M6-7PC datasheet, PDF

Datasheet> All Categories > The connector> The connector> 804-001-06M6-7PC

804-001-06M6-7PC: DescriptionCircular MIL Spec Connector; CategoryThe connector The connector; File Size1MB，5 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

804-001-06M6-7PC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	804-001-06M6-7PC	-	-	View	Buy Now

804-001-06M6-7PC Overview

Circular MIL Spec Connector

804-001-06M6-7PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	6
Total number of contacts	7

Preview

Download Datasheet

View All

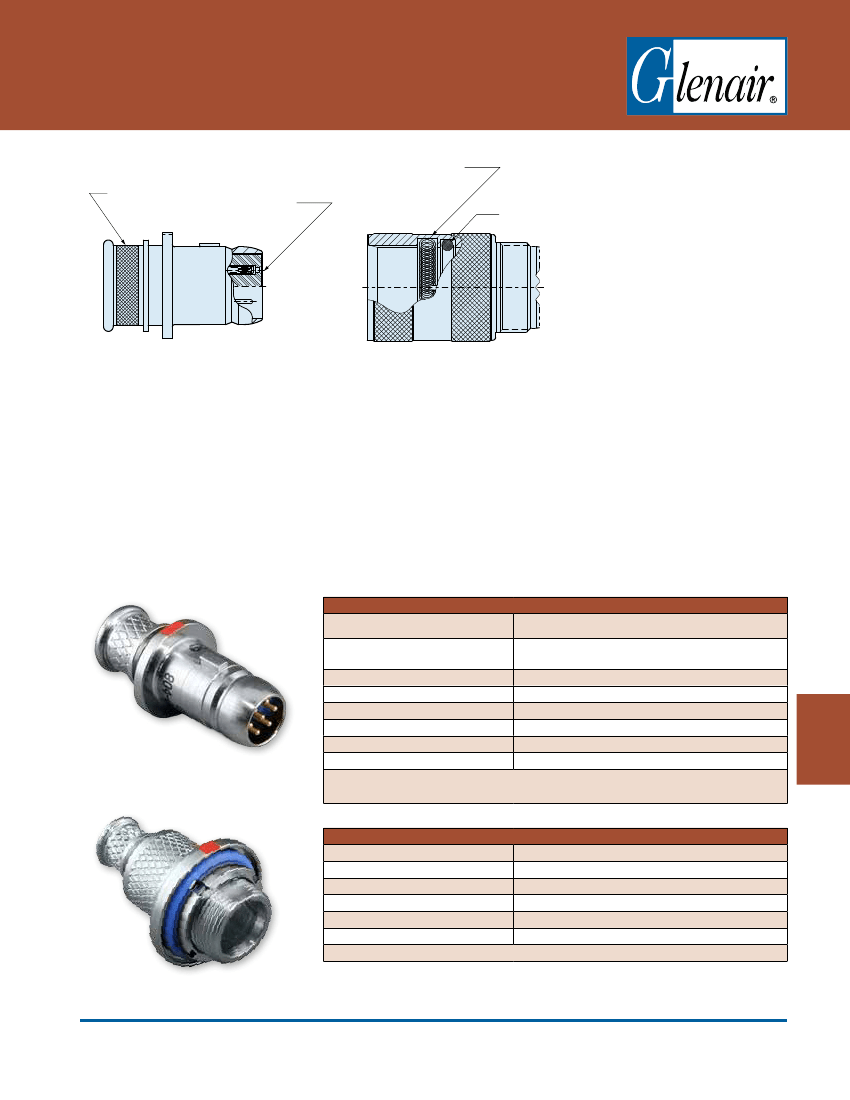

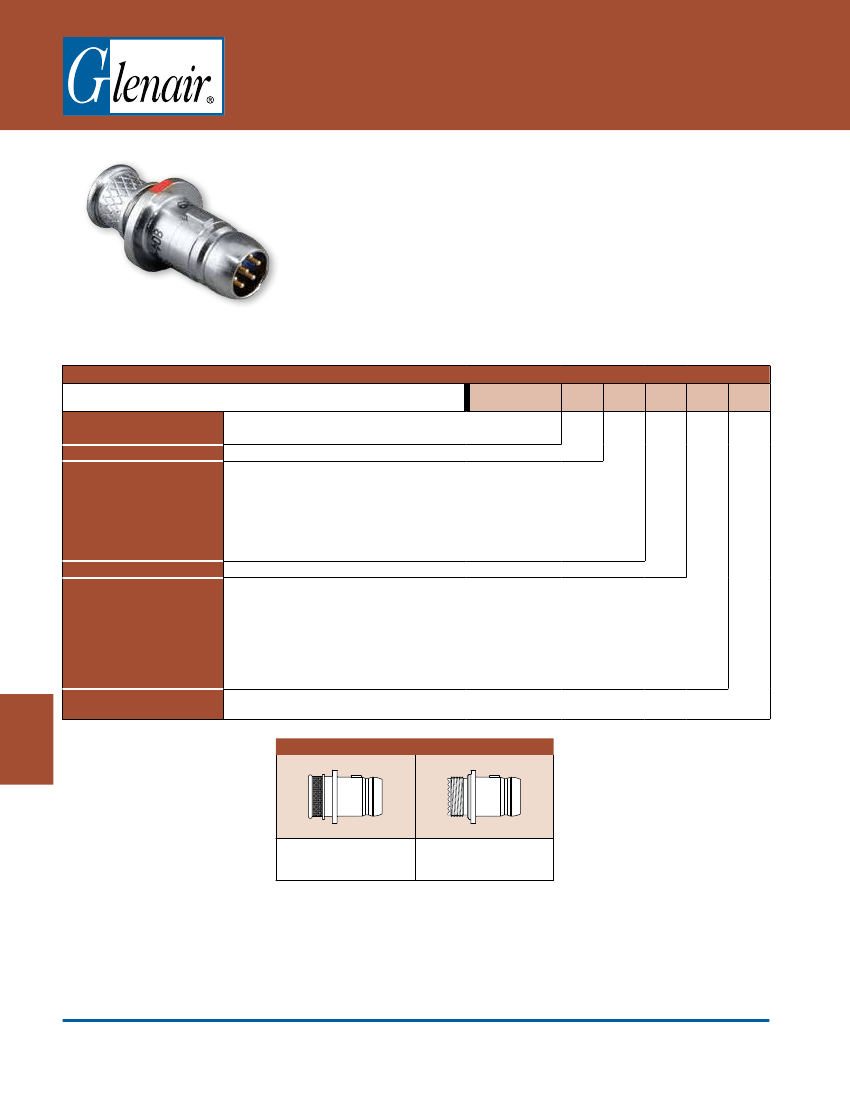

Series 804 Push-Pull Mighty Mouse

Plug Connector

804-001 & 804-002 Ordering Information

Quick Disconnect

These plugs snap securely into

receptacle housings and release with a

simple pull.

Two Keying Styles

A single master key provides fast

mating in low-light situations, or specify

three keys for more polarizing options.

Two Shell Styles

Integral platform for shield attachment

using the Band–Master

™

ATS

termination system, or an accessory

thread for attaching a strain relief.

Series 804

Sample Part Number

Series (See Table I)

Shell Style

Shell Material and Finish

Contact Type

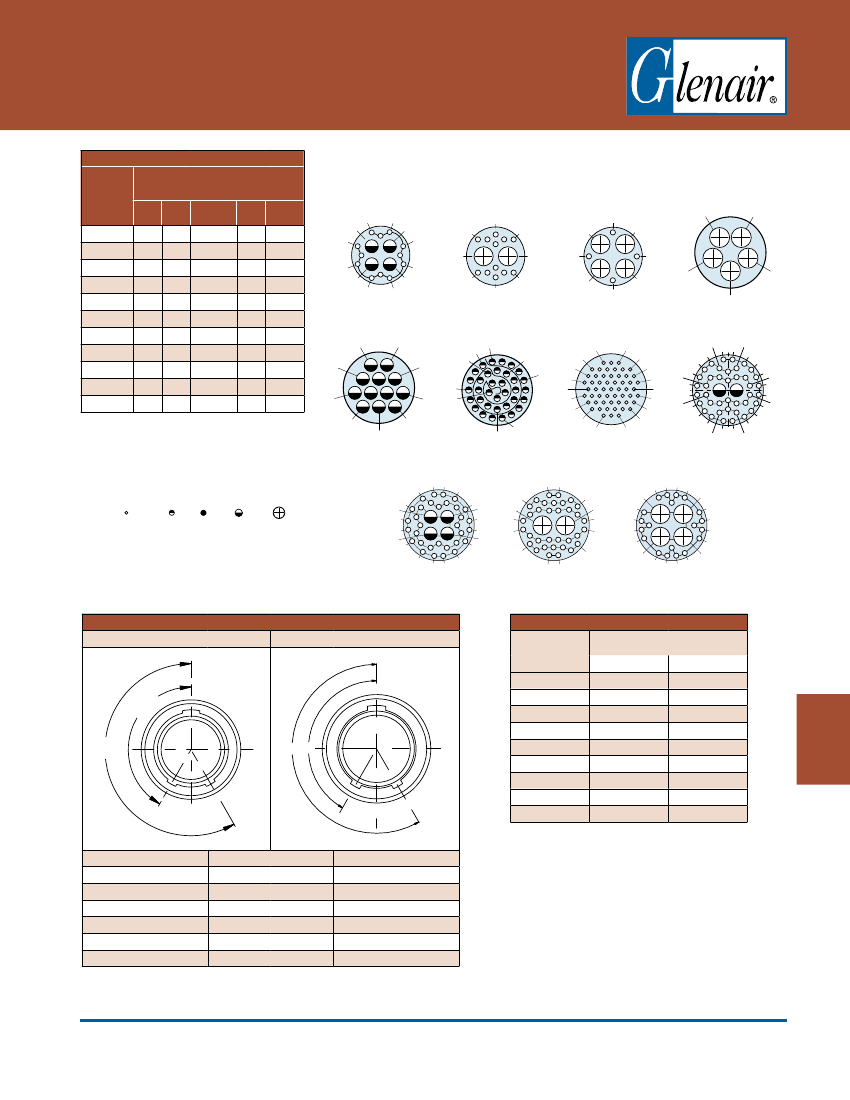

Shell Key Positions

(See Table II)

How To Order

804-001

= Plug with Banding Platform

804-002

= Plug with Accessory Thread

-06

= Plug

= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant

= Aluminum / Electroless Nickel; RoHS Compliant

= Aluminum / Nickel-PTFE RoHS Compliant

= Aluminum / Cadmium with Olive Drab Chromate

-06

9-19

ZNU

= Aluminum / Zinc-Nickel with Black Chromate

= Stainless Steel / Passivated; RoHS Compliant

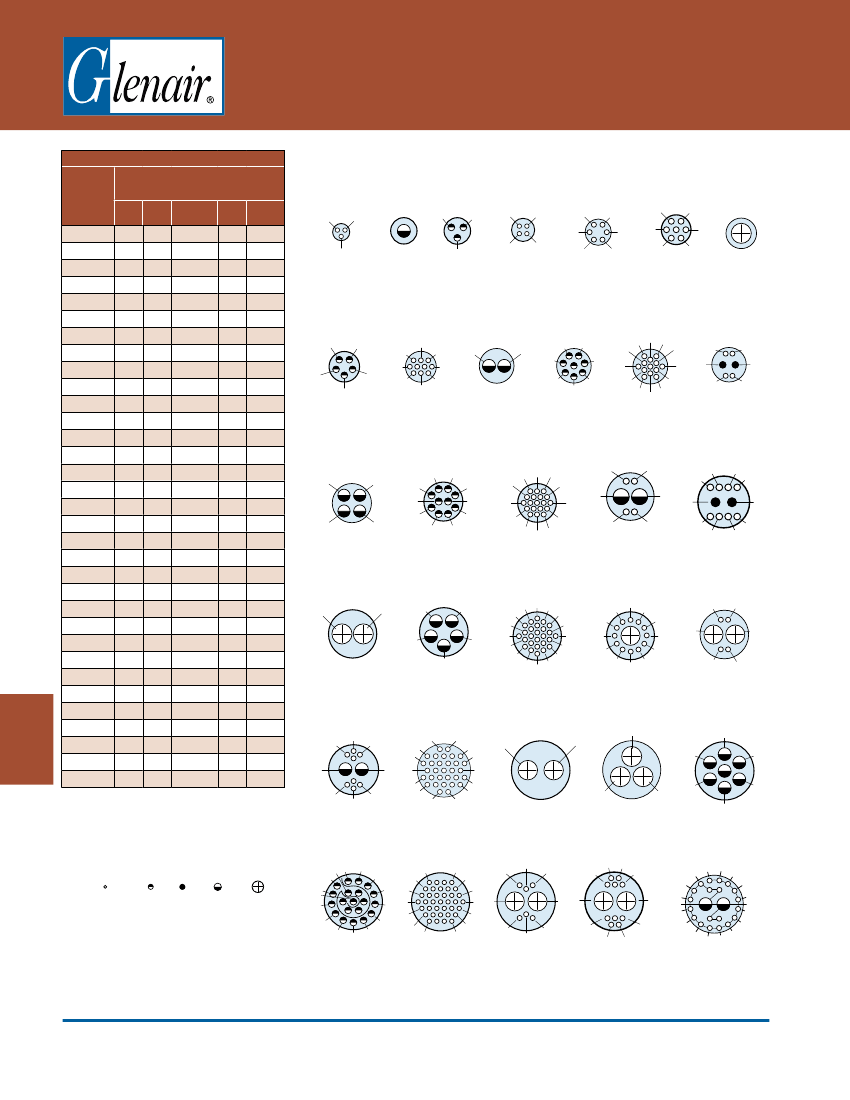

Shell Size - Insert Arrangement

See Contact Arrangements Page G-2

Connector supplied

without Crimp contacts

with contacts

Connector Supplied

with 30 AWG Crimp Barrel

= Pin, less contacts

= Pin Connector

= Pin, Crimp

= Socket , less contacts

= Socket Connector

= Socket, Crimp

Connectors with contacts are supplied with signal and/or power crimp contacts.

These contacts are not installed.

Coaxial contacts and non-standard signal contacts are ordered separately.

Omit

= Single Master Key

= Normal

= Pos. B

= Pos. C

= Pos. D

= Pos. E

= Pos. F

Table I: Series

804-001

Plug with Banding Platform

804-002

Plug with Accessory Thread

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-6

E-Mail: sales@glenair.com

804-001-06M6-7PC Related Products

	804-001-06M6-7PC	804-001-06NF7-10PB	804-002-06C9-19SA	804-002-06M14-55SB	804-001-06MT9-19PA	804-002-06NF7-10SA	804-002-06NF10-201SA	804-001-06Z110-5PA	804-002-06M9-19PD
Description	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector
Maker	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Contact material	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED	Copper Alloy	BERYLLIUM COPPER	Copper Alloy	Copper Alloy	NOT SPECIFIED
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free	-	Contains lead	-	-	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	conform to	-	incompatible	-	-	conform to
Reach Compliance Code	compliant	not_compliant	compliant	compliant	-	not_compliant	-	-	compliant
Factory Lead Time	9 weeks	9 weeks	9 weeks	9 weeks	-	9 weeks	-	-	9 weeks
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	-	-	POLARIZED
Back shell type	SOLID	SOLID	SOLID	SOLID	-	SOLID	-	-	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG	-	PLUG	-	-	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	-	CIRCULAR CONNECTOR	-	-	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (50)	NOT SPECIFIED	NOT SPECIFIED	-	GOLD (50)	-	-	NOT SPECIFIED
Contact point gender	MALE	MALE	FEMALE	FEMALE	-	FEMALE	-	-	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	-	SNAP	-	-	SNAP
DIN compliance	NO	NO	NO	NO	-	NO	-	-	NO
empty shell	NO	NO	NO	NO	-	NO	-	-	NO
Filter function	NO	NO	NO	NO	-	NO	-	-	NO
IEC compliance	NO	NO	NO	NO	-	NO	-	-	NO
MIL compliance	NO	NO	NO	NO	-	NO	-	-	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	NO	-	-	NO
Installation type	CABLE	CABLE	CABLE	CABLE	-	CABLE	-	-	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	-	GENERAL PURPOSE
Shell surface	NICKEL	CADMIUM WITH CHROMATE	ANODIZED BLACK	NICKEL	-	CADMIUM WITH CHROMATE	-	-	NICKEL
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	-	ALUMINUM ALLOY	-	-	ALUMINUM ALLOY
Housing size	6	7	9	14	-	7	-	-	9
Total number of contacts	7	10	19	55	-	10	-	-	19
