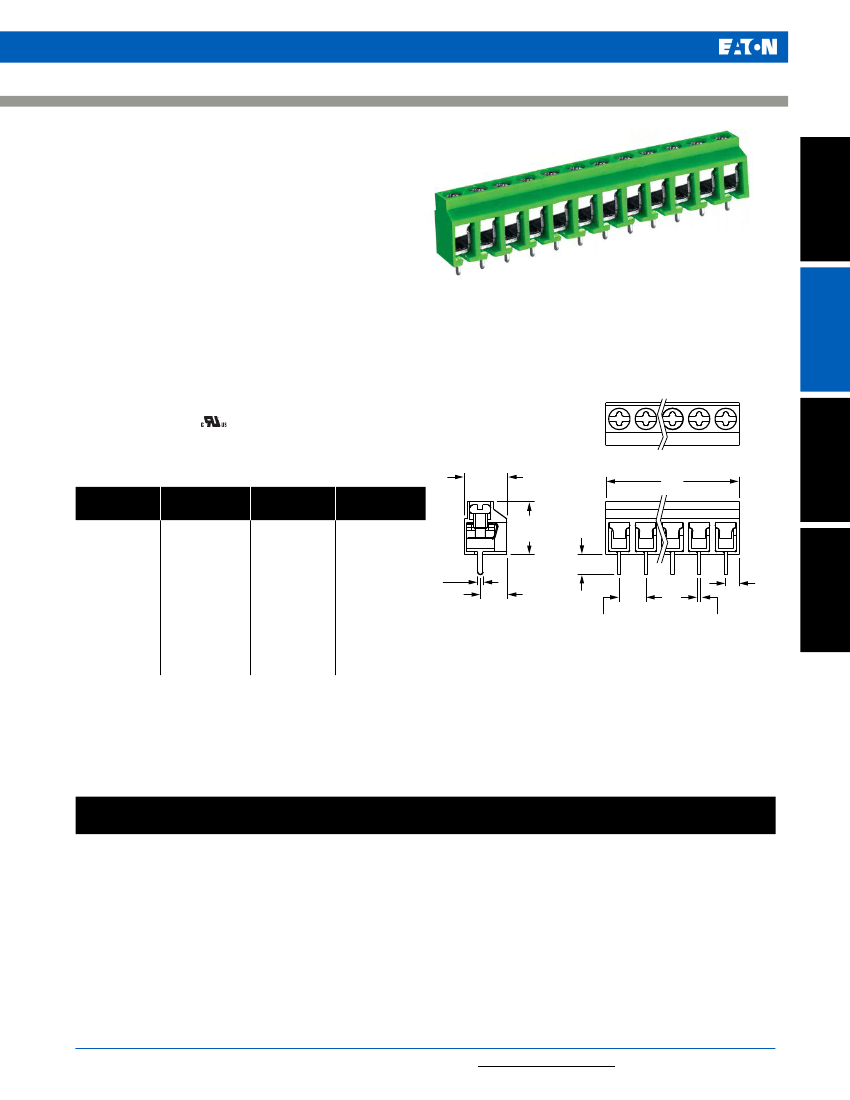

EuroMag Series PCB Mount Terminal Blocks
EM3675 Series
EuroMag Terminal Blocks
5.00 Centers
SPECIFICATIONS
Rating:
10A, 300V
Center Spacing:
0.197” (5.00mm)
Wire Range:
#14-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Screw Size:
M2.6
Zinc-Plated
Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Torque Rating:
4.0 lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Mold to Length
Connector Style:
Spring and Screw
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single Row
EM367512
EuroMag Series
Spring & Screw
Dimensions - (in) mm
Edge Connectors,
One-Sided Boards
0.32
(8.0)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
L (mm)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
Poles
15
16
17
18
19
20
21
22
23
24
L (mm)
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
L
0.39
(10.0)
0.15
(3.7)
Compliance
References
0.039
(1.00)
0.19
(4.8)
0.197
(5.00)
0.024
(0.60)
0.10
(2.5)
To convert to inches, divide by 25.4
EM3675
Part Numbering System
Series
# of Poles
E M3 67 5
qqqqqq
qq
For additional product information, visit
www.eaton.com/connectors
