DF52-8P-0.8C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DF52-8P-0.8C

DF52-8P-0.8C: DescriptionHeader and wire housing Plug 8P Straight 0.8mm Pitch; CategoryThe connector The connector; File Size256KB，7 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

DF52-8P-0.8C Overview

Header and wire housing Plug 8P Straight 0.8mm Pitch

DF52-8P-0.8C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Hirose DF52 52 Series 0.8mm Pitch 8 Way Straight Male FPC Connector, Vertical Contact
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

0.8mm Pitch, Compact and Robust Wire-to-Board Connectors

DF52 Series

◆Small

and robust structure

Board side

Thick wall parts

Cable side

Housing walls are thick while the connector remains small.

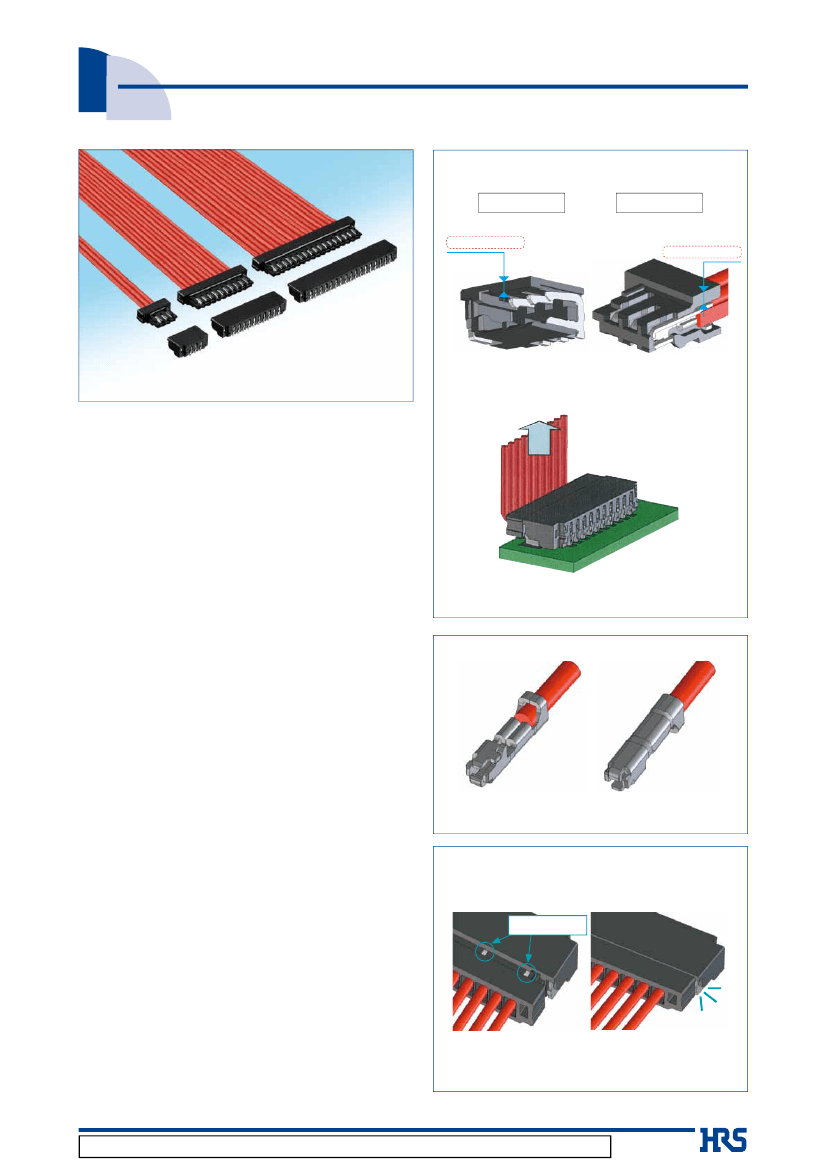

■Features

1. Small-sized connector

0.8mm Pitch, 1.75mm Height, 4.1mm Depth. Suitable for

small-sized applications.

2. Small but robust structure

The housing is designed with thick walls while remaining

small. This produces a strong, robust connector that

resists damage.

3. Suitable for high current applications.

The maximum current of 2.5A (using 2-pos 28 AWG wire)

is achieved by using highly conductive material and

appropriate contact force.

Robust structure prevents damage while routing wiring.

Fig.1

4. BOX shaped contact prevents deformation.

The BOX shaped crimp contact prevents deformation

during assembly and contributes to the overall stability

and robustness.

◆Box

shaped contact structure

5. Visual check insures fully mated Plug and Receptacle

The housing is designed with an open side that allows for

visual inspection to insure the connectors are fully mated

preventing accidental disconnect.

6. Glow Wire compliance (Compliant with IEC 60695-2-11)

7. Halogen-free

Chlorine and bromine levels are below standard values of

IEC 61249-2-21.

Br : less than 900ppm, Cl : less than 900ppm,

Br + Cl : less than 1,500ppm.

The Box shaped structure of the crimp contact prevents deformation.

Fig.2

◆Allows

for visual inspection of the mating process.

Incomplete mating

Exposed contact

Mating complete

The contact is exposed in the

half-mated state.

Mating is complete when the

contact is no longer visible.

The mated condition can be visually checked.

Fig.3

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2017.2②
