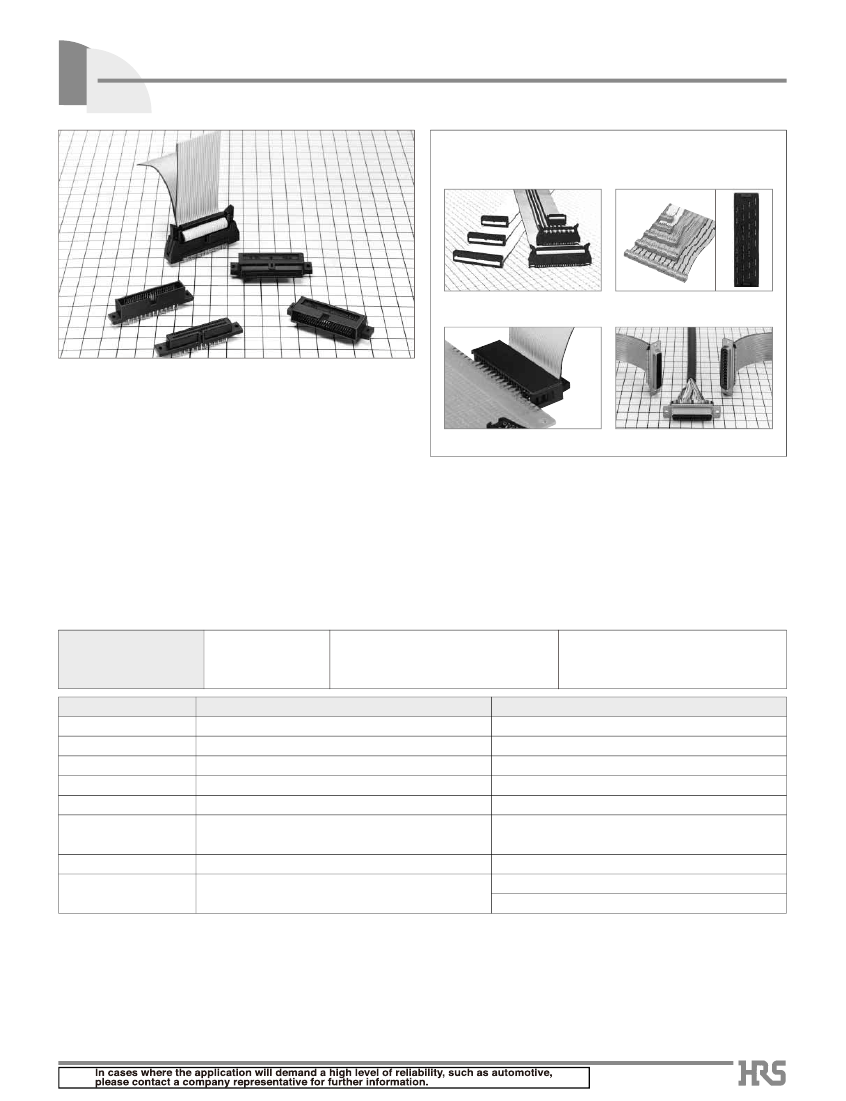

1.27mm Pitch Two-Piece Connectors
HIF6 Series
Connector in combination with the HIF6 series connection type
●HIF3B
Series
(MIL-C-83503)
●HIF2
Series
(Board direct mount type)
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
●HIF5
Series
(Card edge type)
2
●FD
Series
(D sub-ribbon connector)
■Features
1. Product Variation
The connection method is available with the board to
board type and insulation displacement type.
2. Broad applications
HIF2E, HIF3B and HIF5 can be combined one other,
because the 1.27mm pitch flat cable is used. (Fig.1)
Fig.1
(For further information, refer to catalog page B86.)
3. Applicable Cables
The applicable cable is a (UL2651) 28 AWG flat cable
(7cores: 0.127mm, outer jacket diameter: 0.8 to1.0mm)
4. Mis-insertion Preventive Structure
The mis-insertion preventive guide prevents mis-
insertion.
■Product
Specifications
Rating
Current rating : 0.5A
Operating Temperature Range : -55
to
+85
ç
(Note 1) Storage Temperature Range : -10
to
+60ç (Note 2)
Operating Humidity Range : 40
to
70%
(Note 2)
Voltage rating : 125V AC
Operating Humidity Range : 40
to
80%
Item
1.Insulation Resistance
1000M
Ω
min.
Specification
250V DC
300V AC/1 minute.
0.1A
Condition
2.Withstanding Voltage
No flashover or insulation breakdown.
3.Contact Resistance
4.Vibration
30m
Ω
max.
No electrical discontinuity of 1μs or more
Frequency : 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç : 30 minutes→15
to
35ç : 5 minutes max.→
125ç : 30 minutes→15
to
35ç : 5 minutes max.) 5 cycles
500 cycles
Solder bath : 260ç for 10 seconds
Manual soldering : 360ç for 5 seconds
5.Humidity
(Steady state)
Insulation resistance : 1000M
Ω
min.
6.Temperature Cycle
No damage, cracks, or parts looseness.
7.Durability (Mating/un-mating) Contact resistance : 30m
Ω
max.
8.Resistance to Soldering heat
No deformation of components affecting performance.
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3 : Please note that there is a risk of deforming the lock when an excessive load is applied to the inside.
B69
HIF6 Series●1.27mm Pitch Two-Piece Connectors
■Materials
/ Finish
Parts
Insulator
Socket Contact
Pin header Contact
Material
PBT
Copper alloy
Brass
Finish
Black
Selective gold plating
Remarks
UL94V-0
————
■
Product Number Structure
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.

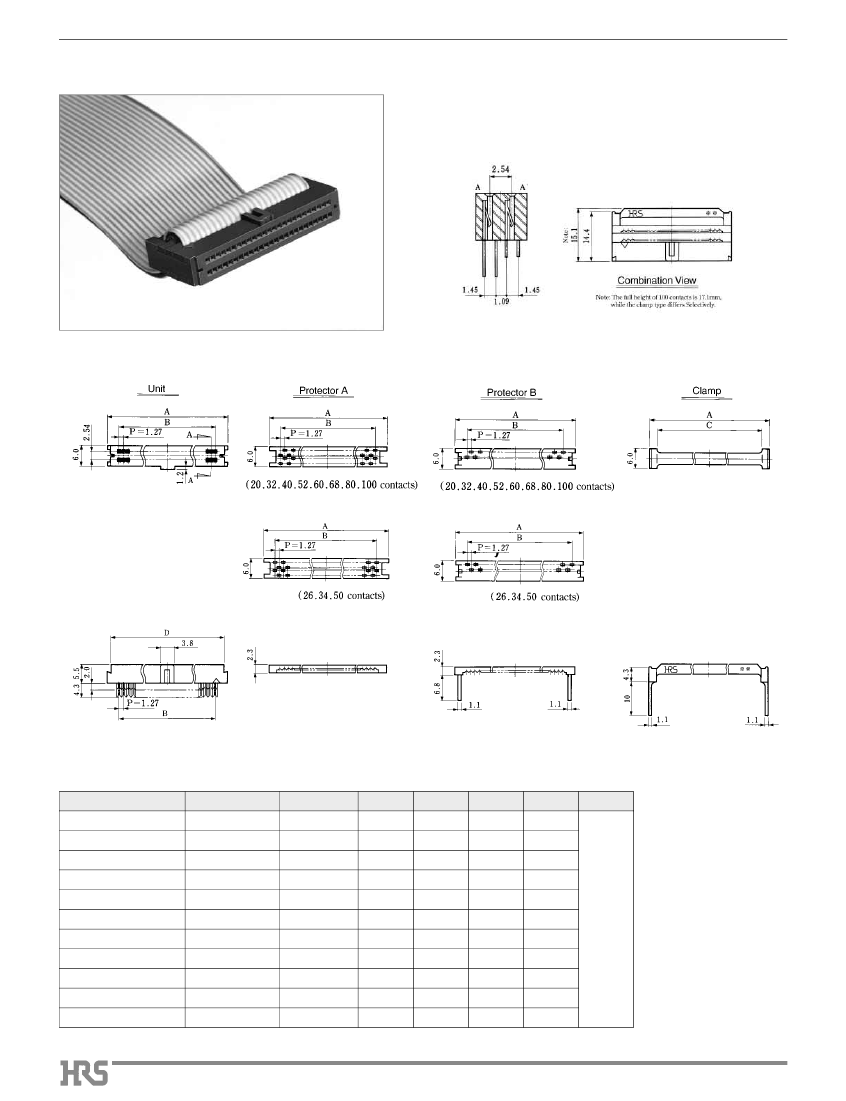

●Socket
and Receptacle
HIF6 A –
*
D A – 1.27 DSA L
q
w
e
r
t
y
u
i
q
Series Name : HIF6
w
Blank
: Ribbon cable insulation displacement type
: Without board mounting hole
: With board mounting hole
: Socket or receptacle
: Selective gold plated
: Right angle type
: Ribbon cable ID type
A
B
r
t
e
Number of contacts : 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, 100
D
A
y
Contact pitch : 1.27mm
u
Contact type : DS
DSA : Straight type
R
i
L : Board pre-fixed lock pin

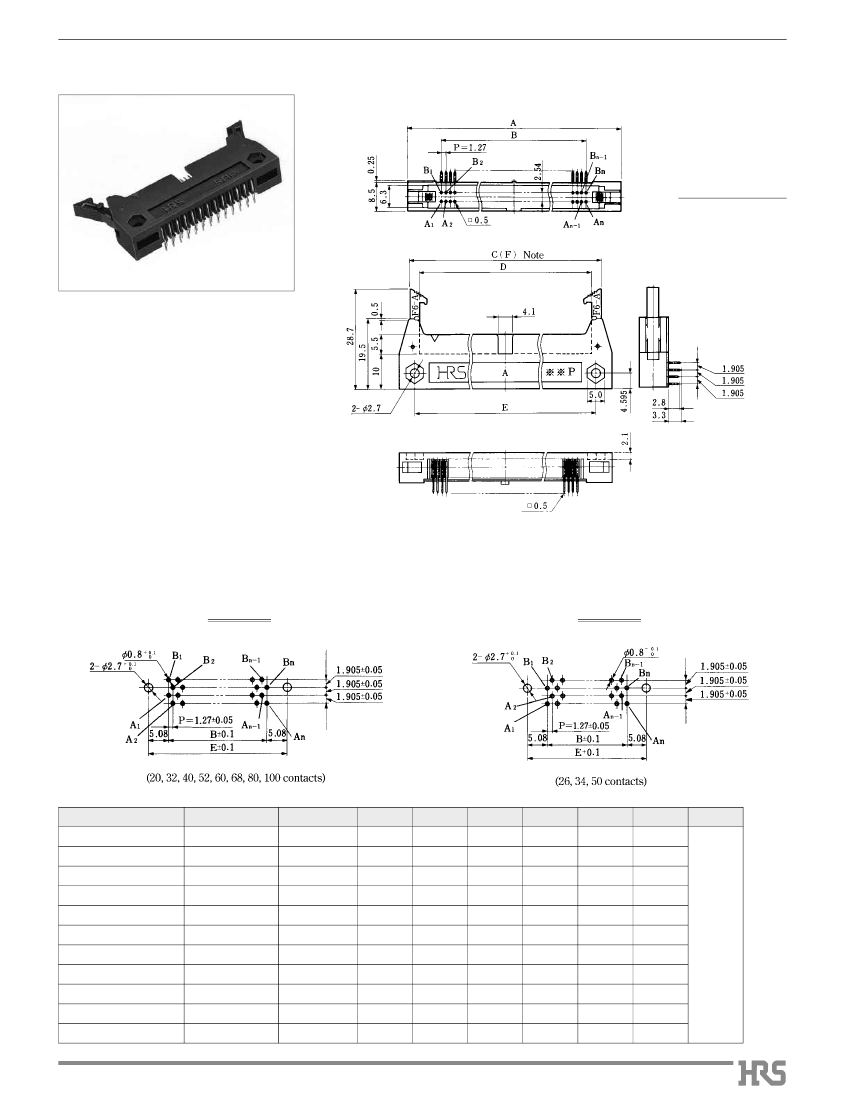

●Pin
Header
HIF6 A –
*
P A – 1.27 DSA L
q
w
e
r
t
y
u
i
q
Series Name : HIF6
w
Blank
: With lock
: Without board mounting hole
: With board mounting hole
: Pin header
: Selective gold plated
: Right angle type
: Straight type
A
B
r
t
e
Number of contacts : 20, 26, 32, 34, 40, 50, 52, 60, 68, 80, 100
P
A
y
Contact pitch : 1.27mm
u
Contact style : DS
DSA
i
L : Board pre-fixed lock pin
B70
