Note：In case of specification change, KYOCERA Part Number also will be changed.
Product Name
Product Model
Frequency
Customer Part Number
Customer Specification Number
Crystal Oscillator
48.0000 MHz
---
KYOCERA Part Number KC2016Z48.0000C1GX00
Remarks RoHS Compliant / MSL 1
Customer Acceptance
Accept Signature
Accept Date
Department
Person in charge
KYOCERA Corporation
Head Office
6 Takeda Tobadono-cho, Fushimi-ku, Kyoto
612-8501 Japan
TEL. No. (+81)75-604-3500
FAX. No. (+81)75-604-3501
Design Department
KYOCERA Corporation
Crystal Components Division
Sales Division
6 Takeda Tobadono-cho, Fushimi-ku, Kyoto
612-8501 Japan
TEL. No. (+81)75-604-3500
FAX. No. (+81)75-604-3501
Quality
Assurance
Approved by
Checked by
Issued by
Drawing No.
TNY1T-H1-DEX01-01 [2/7]
Revision History
Rev. No.
Description of revise
Date
6-Jun-18
Approved by
Checked by
Issued by
00
First Edition
KYOCERA Corporation
Drawing No.
TNY1T-H1-DEX01-01 [3/7]
1. Scope
This specification shall be defined of the Clock Oscillator for the integrated circuits (ICs).
2. Customer Part Number
---
3. KYOCERA Part Number
KC2016Z48.0000C1GX00
4. Electrical Characteristics
4-1. Absolute Maximum Rating
Item
Power Supply Voltage
Input Voltage
Storage Temperature
Symbol
V
CC
V
IN
T
STG
Rated Value
-0.3 to +4.5
-0.3 to V
CC
+0.3
-55 to +150
Units
V
V
°C
Note:
If the part is used beyond absolute maximum ratings, it may cause internal destruction. The part should be used under the recommended operating conditions
the reliability of this part may be damaged if those conditions are exceeded.
4-2. Recommended Operating Conditions
Item
Symbol
V
CC
Power Supply Voltage
Input Voltage
Operating Temperature
4-3. Electrical Characteristics
Item
Output Frequency
Frequency Tolerance*
Current Consumption
(NoLoad/ 1.71≤V
CC
≤2.25V)
Current Consumption
(NoLoad/ 2.25<V
CC
≤2.8V)
Current Consumption
(NoLoad/ 2.8<V
CC
≤3.63V)
Standby Current
Symmetry (Duty Ratio)
Rise Time/ Fall Time
(10% V
CC
to 90% V
CC/
/Loaded)
Output Voltage-“L”
Output Voltage-“H”
Output Load
Input Voltage-“L”
Input Voltage-“H”
Output Disable Time
Output Enable Time
Start-up Time
1 Sigma Jitter**
Peak to Peak Jitter**
Phase Jitter
V
IN
T
OPR
Min
1.71
0
-40
Typ
3.3
---
25
Max
3.63
V
CC
+85
Units
V
V
°C
Remarks
Symbol
F
O
F_
tol
Min
--
-50
--
Typ
48.0000
--
--
--
--
--
50
--
--
--
---
---
---
---
---
---
---
---
---
---
40
Max
--
+50
(1.8)
(2.2)
(3.3)
5
55
(2.0)
(1.6)
(1.3)
10% V
CC
---
15
30% V
CC
---
200
5
5
8
60
---
Units
MHz
ppm
Remarks
I
CC
--
--
mA
I
ST
SYM
Tr/ Tf
V
OL
V
OH
CL
V
IL
V
IH
t
_dis
t
_ena
t
_sta
J
Sigma
J
PK-PK
---
--
45
--
--
--
---
90% V
CC
---
---
70% V
CC
---
---
---
---
---
---
µA
%
ns
V
V
pF
V
V
ns
ms
ms
ps
ps
ps
@50% Vcc
1.71≤V
CC
≤2.25V
2.25<V
CC
≤2.8V
2.8<V
CC
≤3.63V
I
OL
=4mA
I
OH
=-4mA
CMOS
@Minimum operating
voltage to be 0sec
BW:12kHz to 20MHz
Note: All electrical characteristics have defined on the maximum loaded and recommended operating conditions.
*Over All Conditions:
Include initial tolerance, operating temperature range, rated power supply voltage change, load change, aging (1year @+25°C),
shock and vibration
**Based on Time Interval Analyzer "Wavecrest SIA-3000”.
Table 1
KYOCERA Corporation
Drawing No.
TNY1T-H1-DEX01-01 [4/7]
4-4. Measurement Condition
The reference temperature shall be +25±2ºC. The measurement shall be performed at the
temperature range of +5 ºC to +35 ºC unless otherwise the result is doubtful.

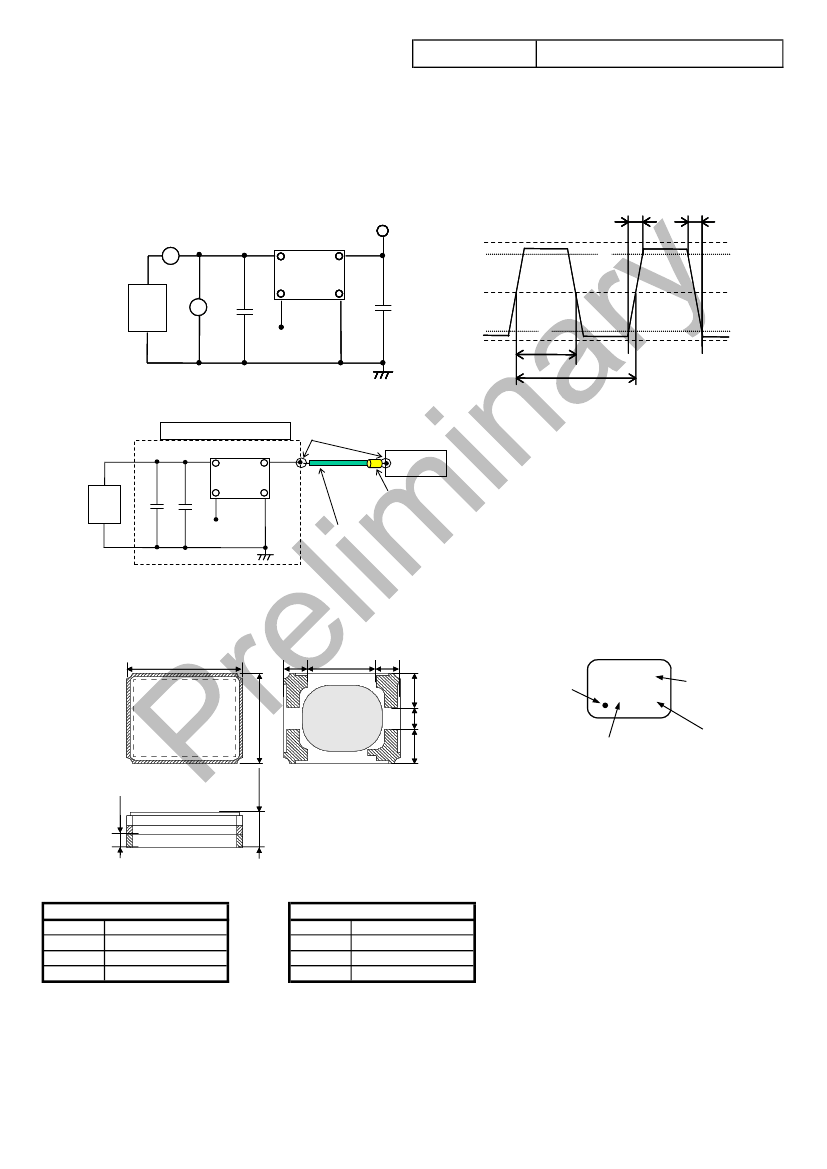

4-5. Measurement Circuit
The electrical characteristics shall be measured by test circuit "Fig. 1". Also jitter shall be
measured by test circuit "Fig. 3".
4-6. Clock Timing Chart
Tr
Tf
The clock timing chart is "Fig. 2".
Test Point
Pad4
A
+
Power
Supply
Pad1
V
0.01µF
E/D Control
GND
T
1
Symmetry = T
1
/ T
0
X100(%)
T
0
= 1/f
OUT
Pad3
V
CC
V
OH
90%V
CC
Oscillator
Pad2
CL
V
OL
10%V
CC
50%V
CC
-
Note: CL includes probe and test fixture capacitance
Fig.1 Test Circuits
Clock Oscillator Test Fixture
Pad4
+
Power
Supply
Pad1
Fig.2 Clock Timing Chart (C-MOS Output)
<Measurement Conditions>
l
Time Interval Analyzer
WaveCrest SIA-3000
l
DTS timer calibration
Over 30 minutes warm-up
Extend 30 minutes calibration
l
Jitter histogram conditions (Tail-fit)
More than 50,000cyc Hits
Bit Error Ratio (BER) –12 (14sigma)
50 ohm SMA Termination
Pad3
WaveCrest
SIA-3000
ATT 6dB
Oscillator
Pad2
10µF 0.01µF
-
E/D Control
50 ohm COAX with SMA Connectors
Fig.3 Jitter Test Circuits
5. Dimensions and Marking
2.0
0.4
#3
1.2
#4
0.4
Marking Area
1.6
0.4
0.6
Pad1 Indication
XXXXXX
K XX A12
Serial Code
0.6
Internal Code
Manufacturing Date Code
#2
#1
0.24
0.8 Max
Plating Ni+Au
Tolerance:+/-0.2
Manufacturing
Date Code
Unit:(mm)
1) Year Code (2000: ”Z”, 2001:”A”, 2002: ”B” ....)
2) Weekly Code
Pad arrangement
Enable/Disable Function
Pad1
OPEN
“H” Level
“L” Level
Pad3 (Output)
Active
Active
High Z (No-Oscillation)
1
2
3
4
Enable/Disable
Case GND
Output
V
CC
KYOCERA Corporation
Drawing No.
TNY1T-H1-DEX01-01 [5/7]
6. Parts Numbering Guide
KC2016Z 48.0000 C 1 G X 00
A
A. Series (SMD Oscillator)
B. Output Frequency
C. Output
C: C-MOS
D. Supply Voltage
1: 1.8V/ 2.5V/ 3.3V Compatible
E. Frequency Tolerance*
G: ±50ppm
B
C D E F
G
F: Symmetry (Duty Ratio) and Enable/Disable Function
X: Symmetry: 45% to 55% with Stand-by Function
G. Suffix for Individual Requirements
(STD Specification is ''00'')
Packing (Tape & Reel 2,000pcs/Reel)
*Over All Conditions:
Include initial tolerance, operating temperature range, rated power supply voltage
change, load change, aging (1year @+25°C), shock and vibration
7. Environmental Characteristics
Items
7-1. Solderability
7-2. Soldering Heat
Resistance
7-3. Temperature Cycle
7-4. Mechanical
Shock (Pulse)
Conditions
Criteria of Acceptance
Dipped potion:
Minimum 95% coverage
Without looseness or crack etc
7-5. Vibration
7-6. High Temperature
7-7. Low Temperature
7-8. Humidity Cycle
7-9. Hermeticity 1
(Gross leak)
7-10.Hermeticity 2
(Fine leak)
Soaking:
+245±5°C, 5.0±0.5sec
Reflow soldering:
Peak +260°C max, 10sec, Twice max
10cycles:
-55°C to +125°C (30minuts each/ cycle)
5 times
14,750m/sec
2
(1,500G), Duration of pulse 0.5msec
(MIL-STD-883D-2002.3 Condition B)
4 times each axis X, Y, Z:
20 to 2,000Hz and 2,000Hz to 20Hz/cycle
Peak acceleration 196m/sec
2
(20G)
(MIL-STD-883D-2007.2 Condition A)
1000 hours:
Temperature: +85+5/-3°C
1000 hours:
Temperature: -40+5/-3°C
10 cycles:
Based on 1004 specifications
(MIL-STD-883D-1004.7)
Soaking:
+125°C, 5minutes
Measured by Helium Detector Equipment
(MIL-STD-883D-1014.10 Condition A1)
Clause 7-10 shall be satisfied.
Clause 7-1 shall be satisfied.
No bubbles appeared
5x10
-9
Pa m
3
/sec max
After each testing, the parts shall be subjected to standard atmospheric conditions more than 2 hours. After that, the electrical
characteristics shall be measured. The result of the test shall be satisfied
