12
11
10
9
8
7
6
5
4
3
2
1
H
LAST CIRCUIT
3.00
TYP.
1.92
TYP.
1.98
±
0.20
SEE NOTE 7
H
R
0.18
MAX
6.85
REF
3.00
4.05
±
0.10
7.11
±
0.10
8.71
±
0.20
E
G
E
PUNCH SIDE
DIM "C"
±
0.10
DIM "D"
G
CIRCUIT #2
CIRCUIT #1
"B"
"A"
F
1.92
TYP.
SECTION
E-E
+0.05
-0.10
RECOMMENDED PANEL CUTOUT
SEE NOTES 7 AND 9
CIRCUIT 2
IDENTIFIER
F
1.40
±
0.13
6.85
±
0.13
3.55
2 PLACES
OPTIONAL PANEL MOUNT
0.70
TYP.
E
CIRCUIT 1
IDENTIFIER
1.40
E
2.95
16.89
REF
D
D
8.38
C
B
A
NOTES:
1) HOUSING MATERIAL:
LAST CIRCUIT
IDENTIFIER
UNFILLED NYLON, UL94V-0, COLOR-BLACK, (LOW HALOGEN)
2) FINISH: N/A
3) PRODUCT SPECIFICATION: PS-43045
4) PACKAGING SPECIFICATION: 2036320000-PK
5) THIS HOUSING MATES WITH MICRO-FIT 172952 TPA RECEPTACLE OR 43025 STANDARD RECEPTACLE.
6) THIS HOUSING TO BE USED WITH MOLEX MALE TERMINAL 43031-5***
7) DESIGNED FOR 1.40 MINIMUM TO A 2.54 MAXIMUM THICK PANEL OR PRINTED CIRCUIT BOARD.
8 CIRCUIT WITH PANEL MOUNTS
8) SEE SECTION "F"-"F" FOR TERMINAL ORIENTATION IN HOUSING. TERMINALS IN LOWER
ROW ARE INSERTED 180
°
FROM THE UPPER ROW.
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
SYMBOLS
CURRENT REV DESC: UPDATE TITLE BLOCK
9) PANEL MOUNT FEATURES MUST LOCK ON SIDE OPPOSITE PUNCH SIDE FOR OPTIMUM RETENTION.
=
0
mm
4:1
10) PART CONFORMS TO CLASS 'B' REQUIREMENTS OF COSMETIC SPECIFICATION
=
0
GENERAL TOLERANCES
(UNLESS SPECIFIED)
PS-45499-002. SOME HOUSINGS MAY HAVE A SMALL GATE BLEMISH NEAR THE
=
0
ANGULAR TOL ±
0.5 °
EC NO:
173344

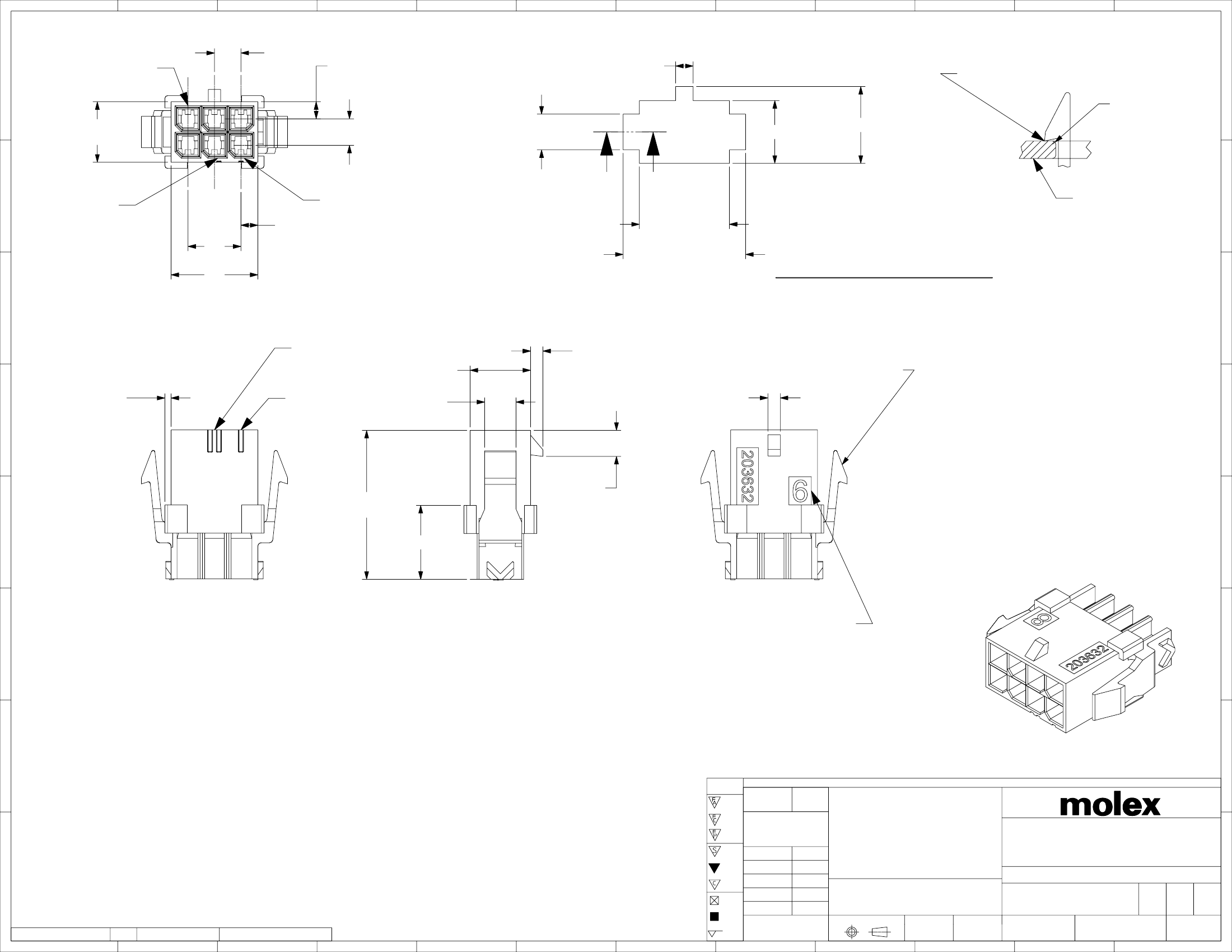

MICROFIT (3.0) TPA DUAL ROW PLUG HOUSING
GATE LOCATION THAT DOES NOT AFFECT FUNCTIONALITY.
WITH OPTIONAL PANEL MOUNT
DRWN: MKIPPER
2018/03/08
=
0
4 PLACES
±
2018/03/09
CHK'D: SSOUSEK
11) TEXT ON PART IS FOR REFERENCE ONLY. TEXT AND TEXT LOCATION MAY
±
=
0
3 PLACES
APPR:
FSMITH
2018/03/16
PRODUCT CUSTOMER DRAWING
VARY DEPENDING ON PART NUMBER AND/OR TOOLING.
±
0.25
2 PLACES
=
0
INITIAL REVISION:
REVISION
±
0.35
1 PLACE
12) HOUSING DESIGNED FOR USE WITH 172953-xx01 TPA. NEVER USE WITHOUT TPA.
DRWN: MKIPPER
2017/04/07
=
0
DIMENSION UNITS
C
B
SCALE
DOCUMENT NUMBER
DOC TYPE
DOC PART
A
0 PLACES
±
=
0
FORMAT: master-tb-prod-C
REVISION: H
DATE: 2018/01/18
APPR:
FSMITH
THIRD ANGLE PROJECTION
DRAWING
2017/07/20
SERIES
2036320000-SD
CUSTOMER
PSD
000
A2
DOCUMENT STATUS
12
P1
RELEASE DATE
11
2018/03/16
10
13:32:24
9
8
7
6
C
=
0
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
MATERIAL NUMBER
SHEET NUMBER
C-SIZE
203632
4
3
SEE CHART
GENERAL MARKET
1 OF 2
5
2
1
12
11
10
9
8
7
6
5
4
3
2
1
H
G
F
E
PART CHARACTERISTICS
PART NUMBER
NUMBER OF PANEL
DIM A
DIM B
DIM C
POSITION
MOUNT
2036320400
YES
4
6.85 3.00
7.21
2036320401
NO
2036320600
YES
6
9.85 6.00 10.21
2036320601
NO
2036320800
YES
8
12.85 9.00 13.21
2036320801
NO
2036321000
YES
10
15.85 12.00 16.21
2036321001
NO
2036321200
YES
12
18.85 15.00 19.21
2036321201
NO
2036321400
YES
14
21.85 18.00 22.21
2036321401
NO
2036321600
YES
16
24.85 21.00 25.21
2036321601
NO
2036321800
YES
18
27.85 24.00 28.21
2036321801
NO
2036322000
YES
20
30.85 27.00 31.21
2036322001
NO
2036322200
YES
22
33.85 30.00 34.21
2036322201
NO
2036322400
YES
24
36.85 33.00 37.21
2036322401
NO
DIM D
172952 RECEPTACLE
172953 TPA
H
10.89
13.89
16.89
19.89
22.89
25.89
28.89
31.89
34.89
37.89
40.89
172953-XX01 TPA
TERMINAL LOCKING TABS MUST BE FULLY
SEATED TO HOUSING BEFORE MATING WITH
OTHER HALF OF CONNECTOR SYSTEM
F
24.54
G

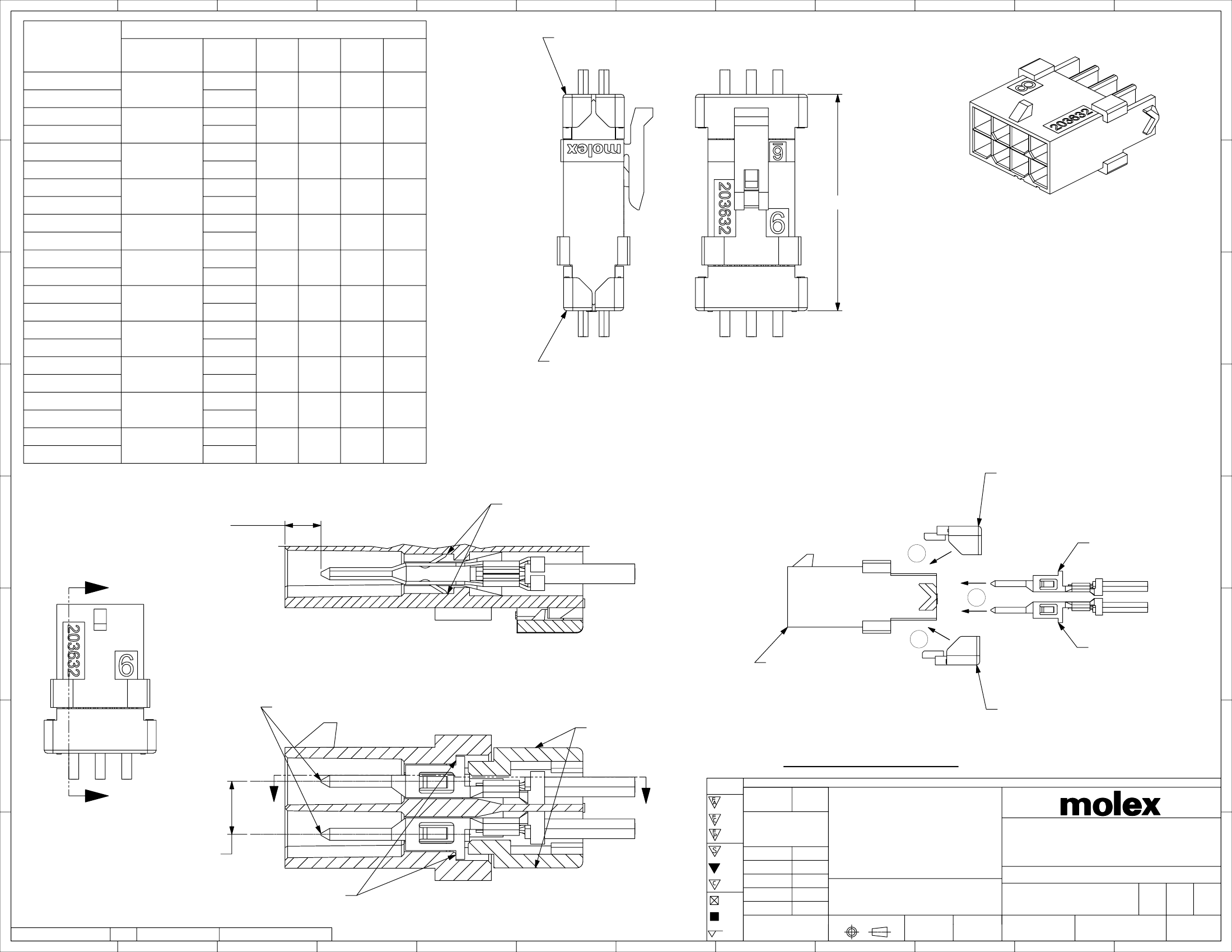

8 CIRCUIT WITHOUT PANEL MOUNTS
203632 PLUG
172953 TPA
MATED MICRO-FIT CONNECTOR
(WITH TPA INSTALLED)
E
D
F
2.04
REF
TERMINAL
INSERTION
DEPTH
D
2
1
2
SECTION
G-G
SCALE 8:1
TERMINAL STOPS
C
TERMINAL STOPS
C
203632 PLUG HOUSING
43031-5xxx TERMINALS
172953-xx01 TPA
B
TERMINAL AND TPA
ORIENTATION AND ASSEMBLY
NEVER USE WITHOUT TPA
SYMBOLS
=
0
=
0
=
0
172953-XX01 TPA
G
F
G
mm
B
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
CURRENT REV DESC: UPDATE TITLE BLOCK
4:1
±
±
±
±
±
±
0.5 °
GENERAL TOLERANCES
(UNLESS SPECIFIED)
ANGULAR TOL
EC NO:
173344
3.00
REF
A
=
0
=
0
4 PLACES
3 PLACES
2 PLACES
1 PLACE
0 PLACES
TERMINAL STOPS
SECTION
F-F
SCALE 8:1
(WITH TERMINALS AND TPA's)
C
=
0
=
0
=
0
=
0
0.25
0.35
DRWN: MKIPPER
CHK'D: SSOUSEK
APPR:
FSMITH
INITIAL REVISION:
DRWN: MKIPPER
APPR:
FSMITH
THIRD ANGLE PROJECTION
DRAWING
2018/03/08
2018/03/09
2018/03/16
2017/04/07
2017/07/20
SERIES
MICROFIT (3.0) TPA DUAL ROW PLUG HOUSING
WITH OPTIONAL PANEL MOUNT
PRODUCT CUSTOMER DRAWING
DOCUMENT NUMBER
DOC TYPE
DOC PART
REVISION
A
2036320000-SD
MATERIAL NUMBER
CUSTOMER
PSD
000
A2
FORMAT: master-tb-prod-C
REVISION: H
DATE: 2018/01/18
DOCUMENT STATUS
12
P1
RELEASE DATE
11
2018/03/16
10
13:32:24
9
8
7
6
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
SHEET NUMBER
C-SIZE
203632
4
3
SEE CHART
GENERAL MARKET
2 OF 2
5
2
1
